Banana Pi

BananaPi BPI-M2S 2GB RAM + 16GB eMMC Board

$90.72
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address

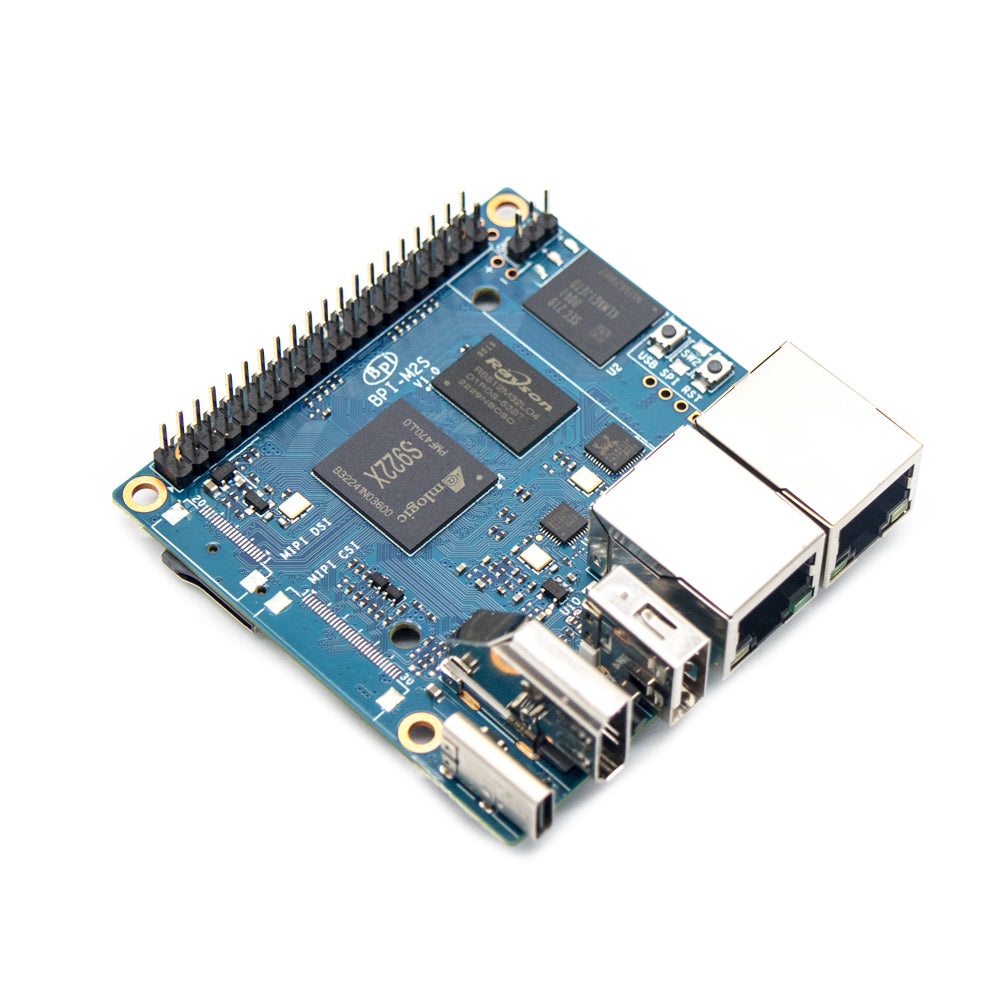

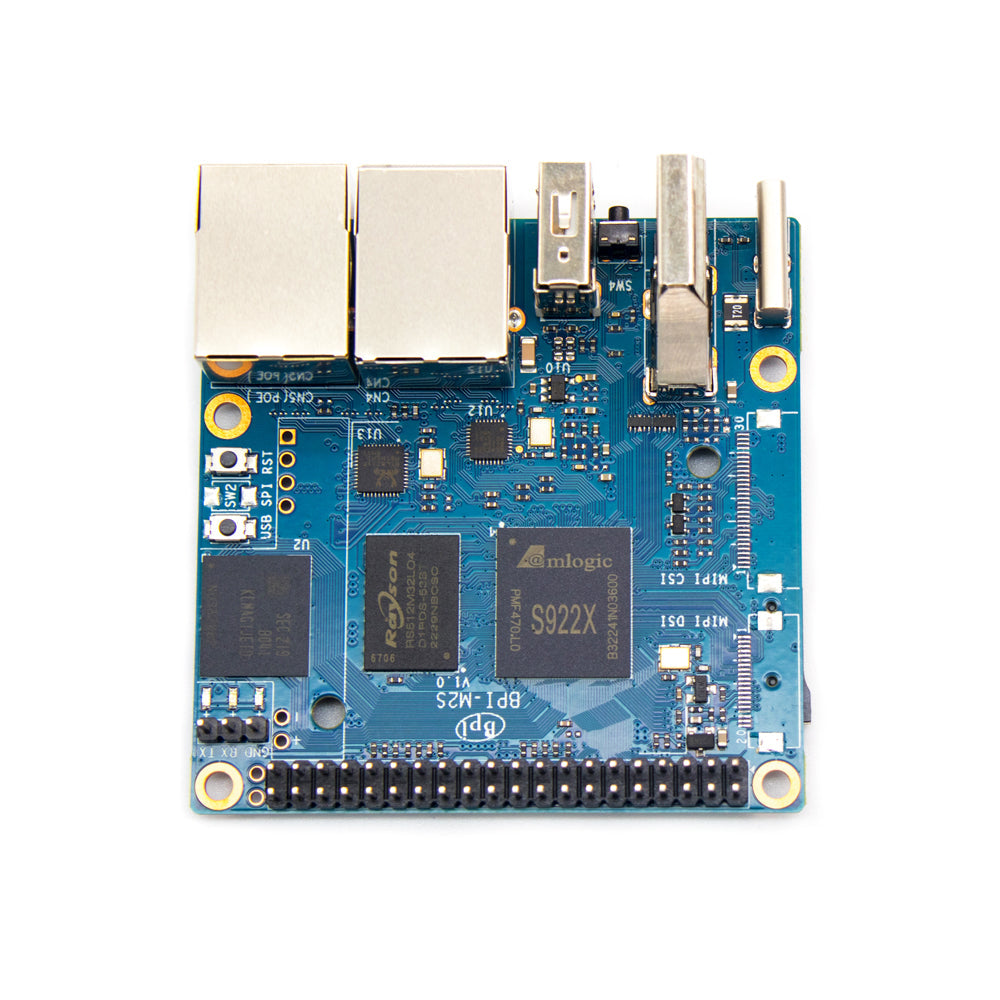

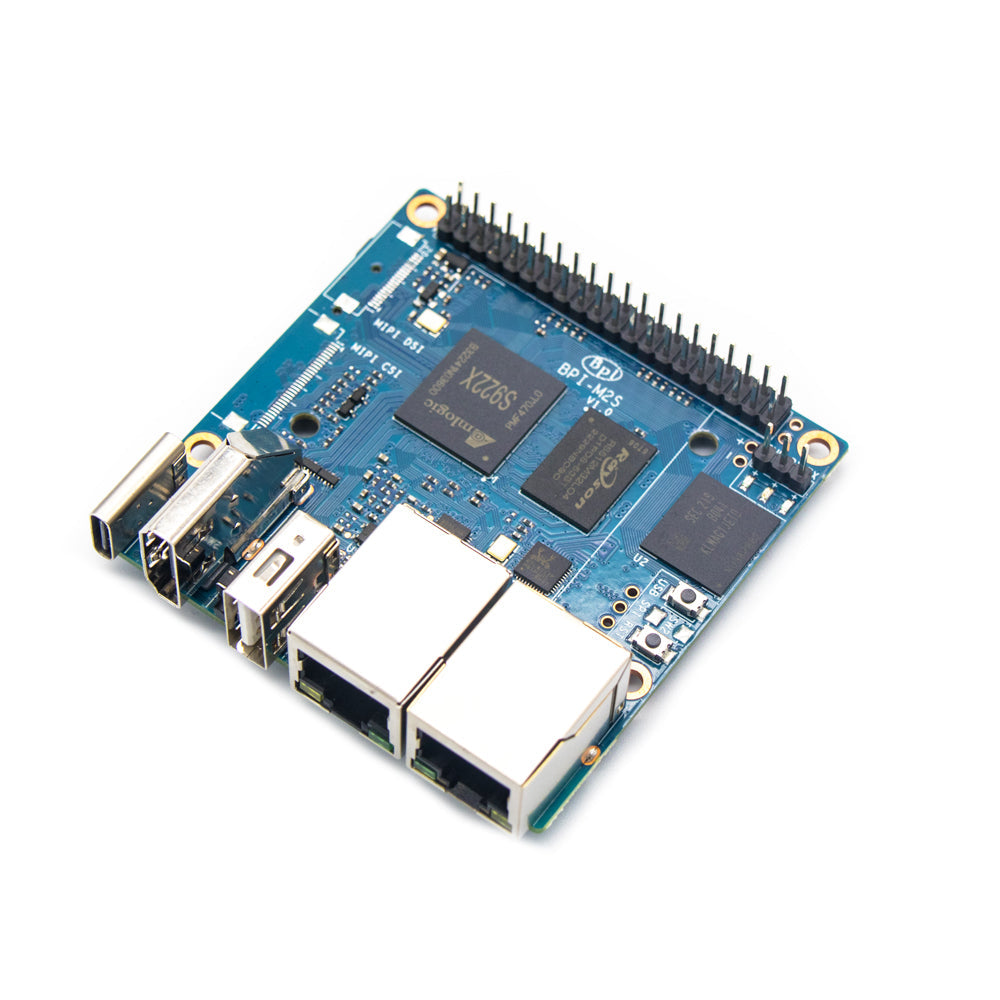

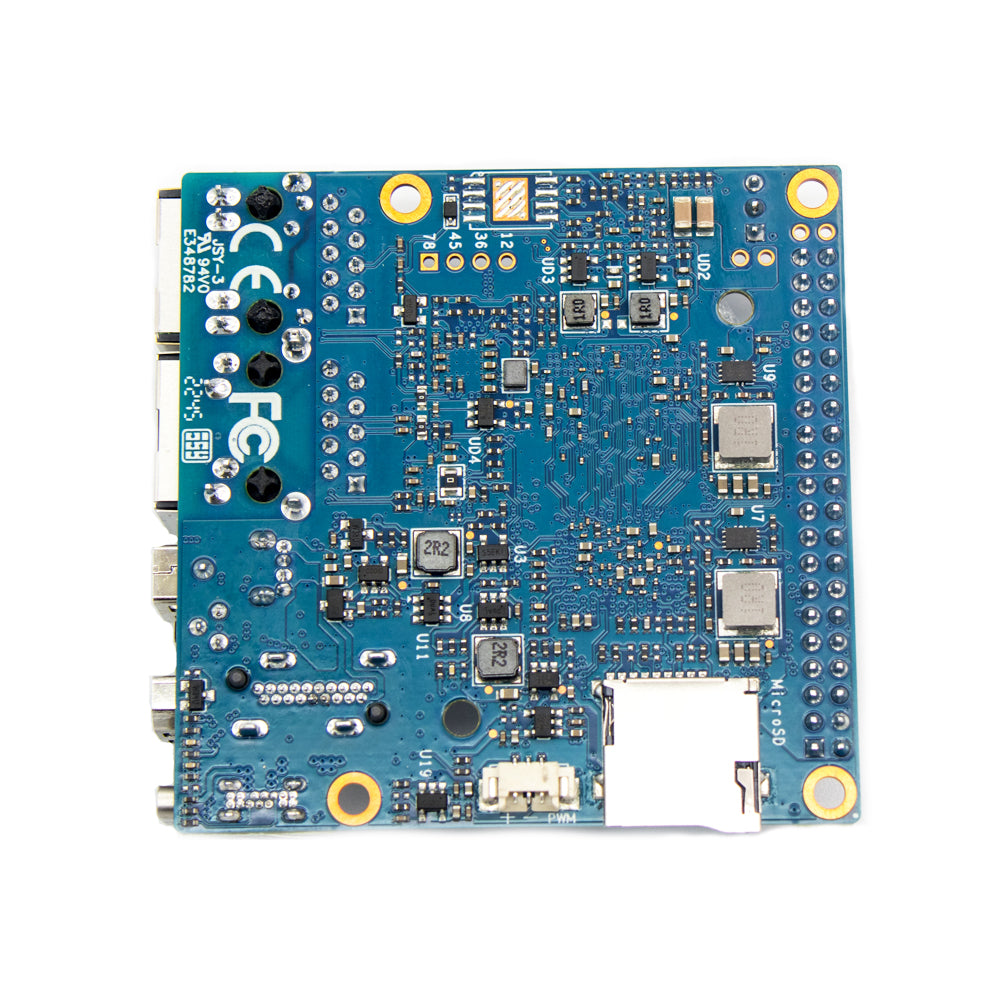

Banana Pi BPI-M2S 2GB RAM + 16GB eMMC Board

  • Amlogic S922x (Option Amlogic A311D)
  • NPU for AI :Next generation, deep-neural-network applications, at 5.0 TOPS
  • 4GB LPDDR4 RAM
  • 16GB eMMC flash (Max 128G)
  • MIPI DSI Camera interface
  • MIPI CSI Screen interface
  • 2 Gigabit network port
  • HDMI output
  • 40 PIN GPIO
  • support Android and Linux system.

BananaPi BPI-M2S new design with Amlogic A311D Quad core ARM Cortex-A73 and dual core ARM Cortex-A53 CPU ,ARM G52 MP4(6EE) GPU,NPU for AI at 5.0 TOPS, support Camera and MIPI-CSI interface ,HDMI output,2 Gigabit port . 4G RAM and 16 GB eMMC flash, also support Amlogic S922x chip


Banana Pi BPI-M2S use Amlogic A311D 12nm process low power, high performance processor suitable for computing, personal mobile Internet devices and other smart device applications. It is based on the Big/Little architecture and integrates the dual-core Cortex-A73 and quad-core Cortex-A53 with an example 5.0T NPU processor. The A311D motherboard program using the chip, compared with the common four-core program in the market, has a qualitative leap in performance, can play various formats of HD video HDMI can output 4K*2K/60 frames of video, can deal with complex interactive operations such as deep learning.


Hardware interfact:
Key Features:
  • Amlogic A311D Quad core ARM Cortex-A73 and dual core ARM Cortex-A53 CPU ,ARM G52 MP4(6EE) GPU
  • NPU for AI :Next generation, deep-neural-network applications, at 5.0 TOPS
  • 4GB LPDDR4 RAM
  • 16GB eMMC flash (Max 128G)
  • support MIPI DSI Camera interface
  • support MIPI CSI Screen interface
  • 2 Gigabit port
  • HDMI output
  • 40 PIN GPIO
  • support Android and Linux system.

Support PoE module  and WiFI&BT module onboard

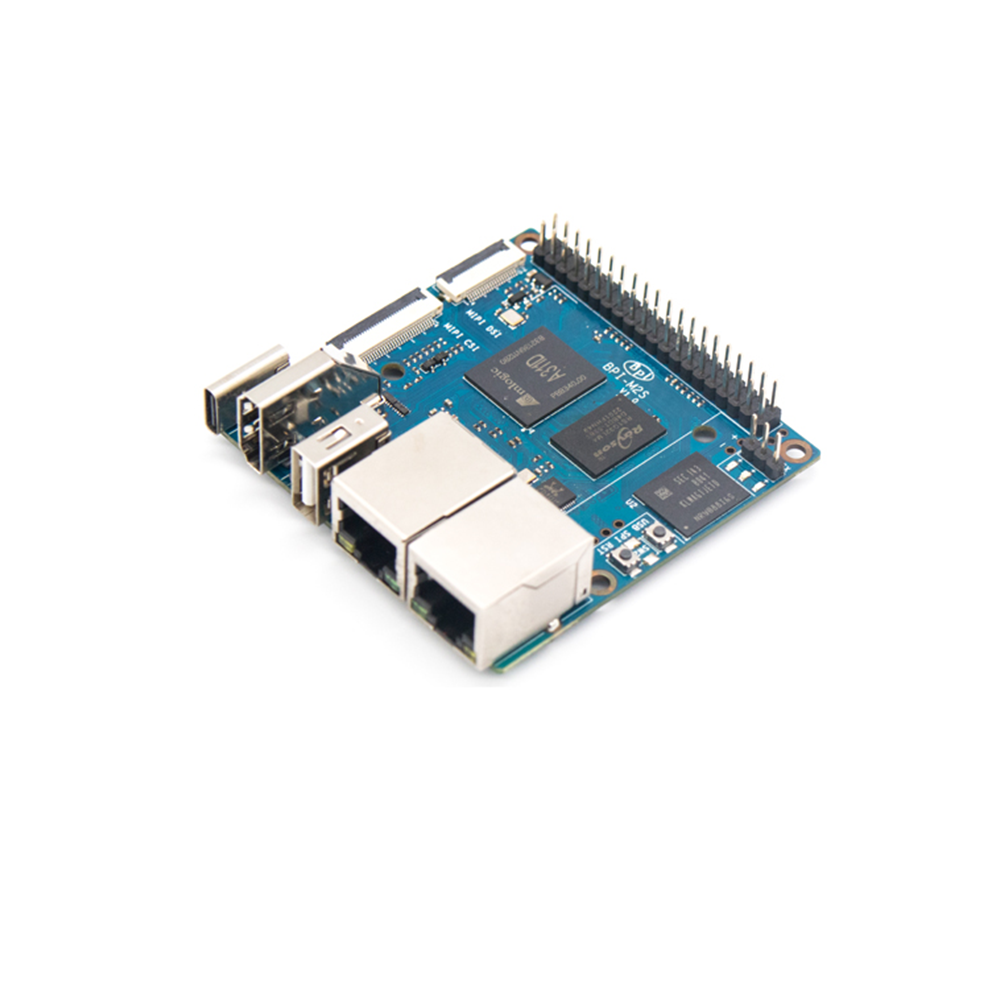

Banana PI BPI-M2S Amlogic A311D / S922X

For more information about Banana Pi BPI-M2S Board, please concact us.
