Banana Pi

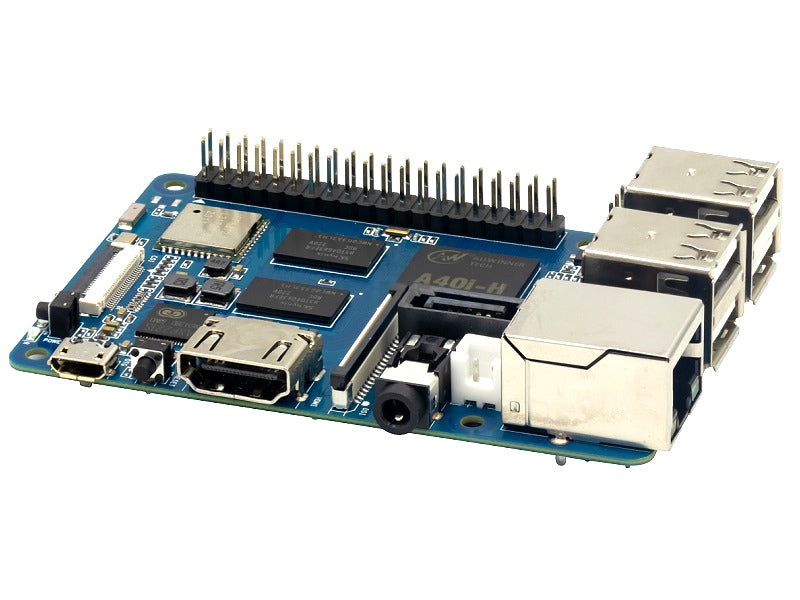

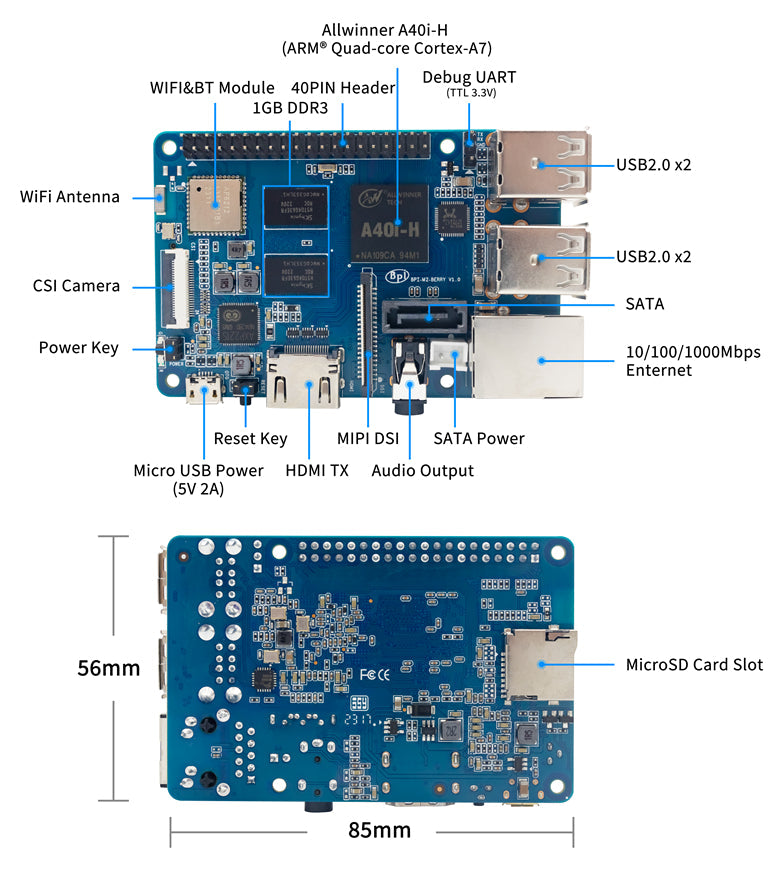

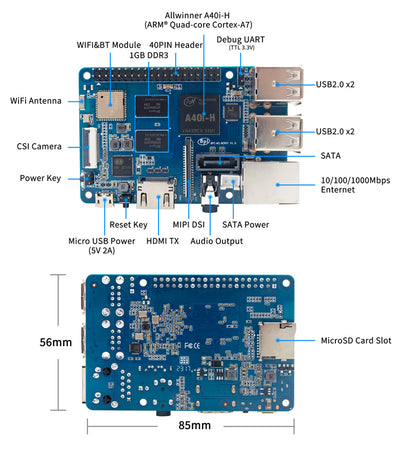

Banana Pi BPI-M2 Berry Single Board Computer – 1GB RAM

$79.00
Opens WhatsApp with this product and current options


BananaPi BPI-M2 Berry Development Board

SKU BPI-M2BERRY

BananaPi BPI-M2 Berry Development Board — industrial / embedded computing hardware for automation, edge and OEM projects. GeniusCore.

Highlights
Industrial-grade design for continuous operation
Suitable for automation, HMI and embedded deployments
Order code: BPI-M2BERRY
Technical specifications
SKU BPI-M2BERRY
Product BananaPi BPI-M2 Berry Development Board
Category BPI Boards
Applications Automation, embedded computing, edge / IoT, OEM integration

Detailed I/O and memory options depend on configuration. Ask for the datasheet.

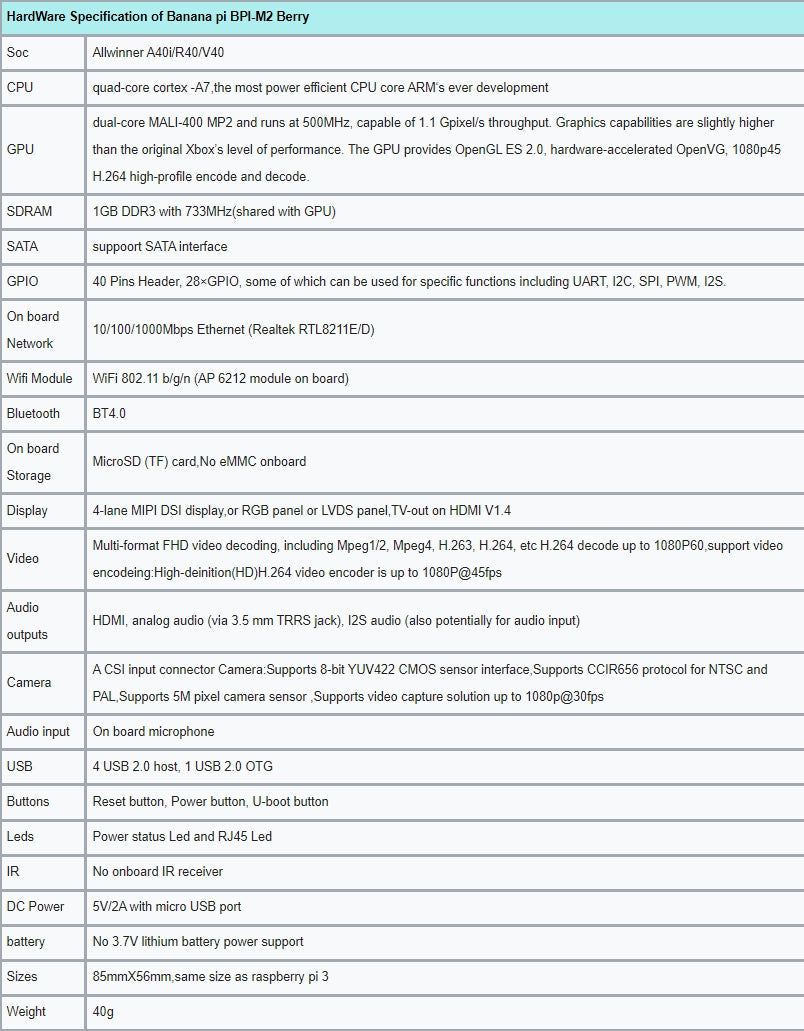

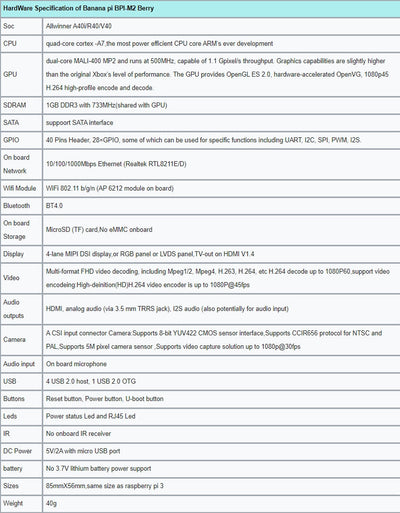

Specification Details

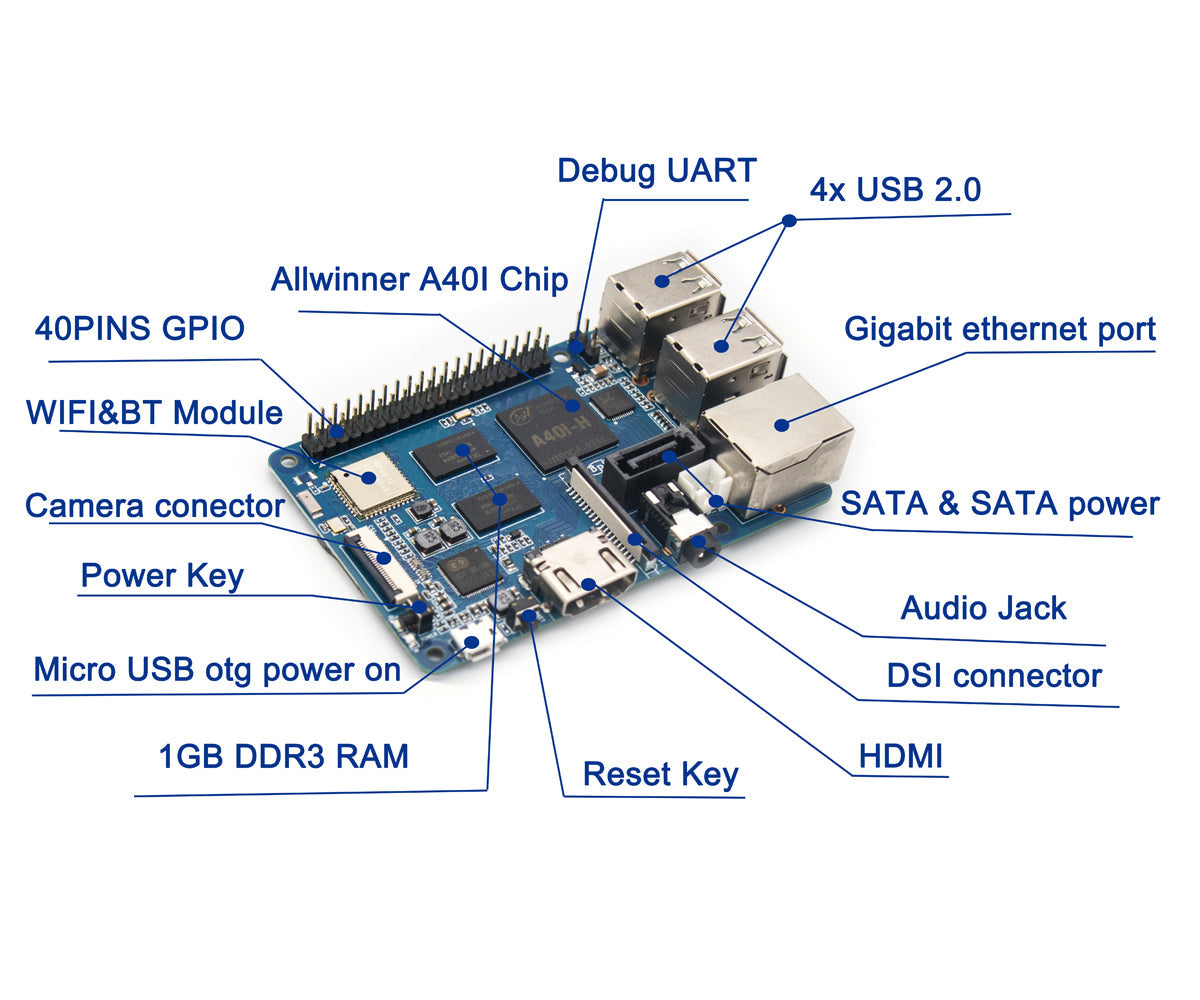

Soc Allwinner A40i/R40/V40
CPU quad-core cortex -A7,the most power efficient CPU core ARM’s ever development
GPU dual-core MALI-400 MP2 and runs at 500MHz, capable of 1.1 Gpixel/s throughput. Graphics capabilities are slightly higher than the original Xbox’s level of performance. The GPU provides OpenGL ES 2.0, hardware-accelerated OpenVG, 1080p45 H.264 high-profile encode and decode.
SDRAM 1GB DDR3 with 733MHz(shared with GPU)
GPIO 40 Pins Header, 28×GPIO, some of which can be used for specific functions including UART, I2C, SPI, PWM, I2S.
Wifi Module WiFi 802.11 b/g/n (AP 6212 module on board)
Bluetooth BT4.0
Display 4-lane MIPI DSI display,or RGB panel or LVDS panel,TV-out on HDMI V1.4
Video Multi-format FHD video decoding, including Mpeg1/2, Mpeg4, H.263, H.264, etc H.264 decode up to 1080P60,support video encodeing: High-deinition(HD)H.264 video encoder is up to 1080P@45fps
Audio outputs HDMI, analog audio (via 3.5 mm TRRS jack), I2S audio (also potentially for audio input)
Camera A CSI input connector Camera: Supports 8-bit YUV422 CMOS sensor interface,Supports CCIR656 protocol for NTSC and PAL,Supports 5M pixel camera sensor ,Supports video capture solution up to 1080p@30fps
USB 4 USB 2.0 host, 1 USB 2.0 OTG
Buttons Reset button, Power button, U-boot button
Leds Power status Led and RJ45 Led
IR No onboard IR receiver
Sizes 85mmX56mm,same size as raspberry pi 3
Weight 40g
CPU / SoC Allwinner R40, Allwinner V40
