Banana Pi

BananaPi BPI-CM4 Board

$90.00
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address

BananaPi BPI-CM4 Board

  • Amlogic A311D 4 x ARM Cortex-A73 CPU cores,2 x ARM Cortex-A53 CPU cores
  • Mali-G52 GPU
  • NPU for AI at 5.0 TOPS
  • 4GB LPDDR4
  • 16G eMMC flash (Max 128G)
  • Wifi5/Wifi6 wireless module
  • Designed with B to B connectors for enhanced stability same as RasPi CM4
  • One on-board Gigabit Ethernet design
  • One PCIe interface expansion, can flexibly add related modules

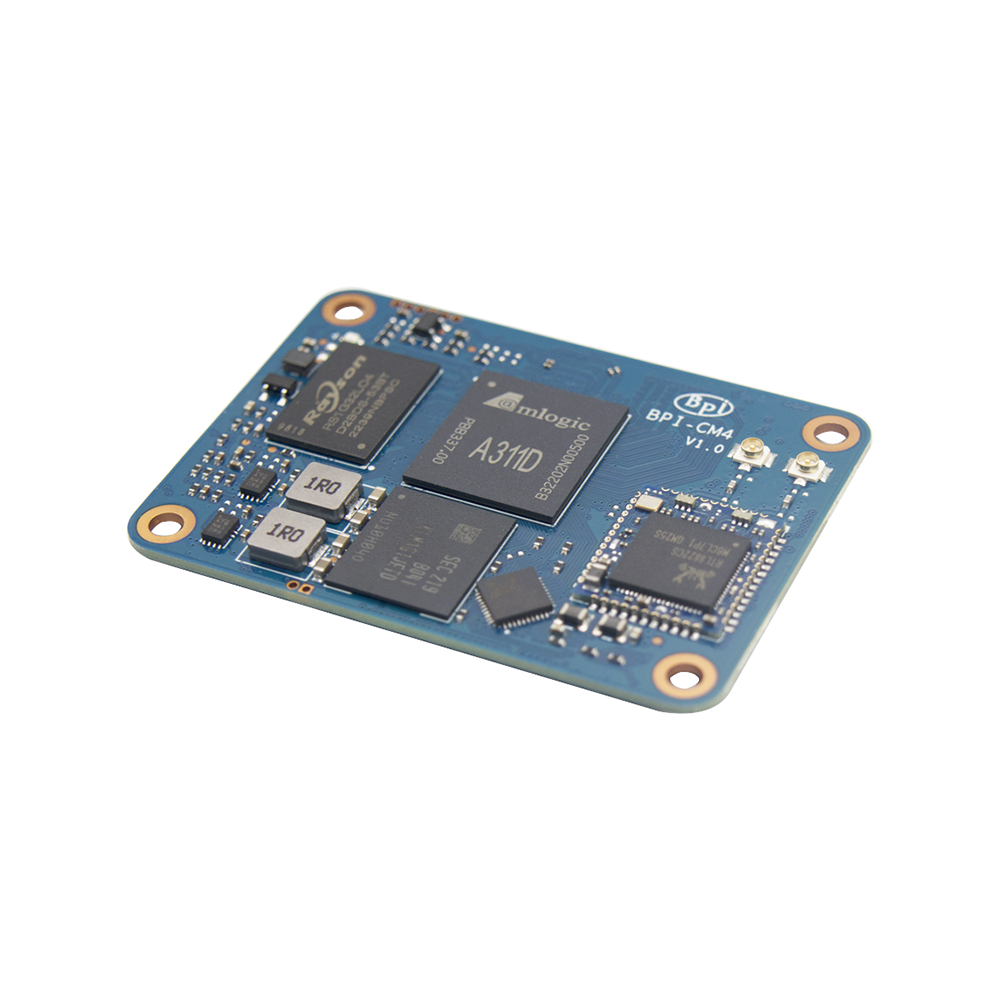

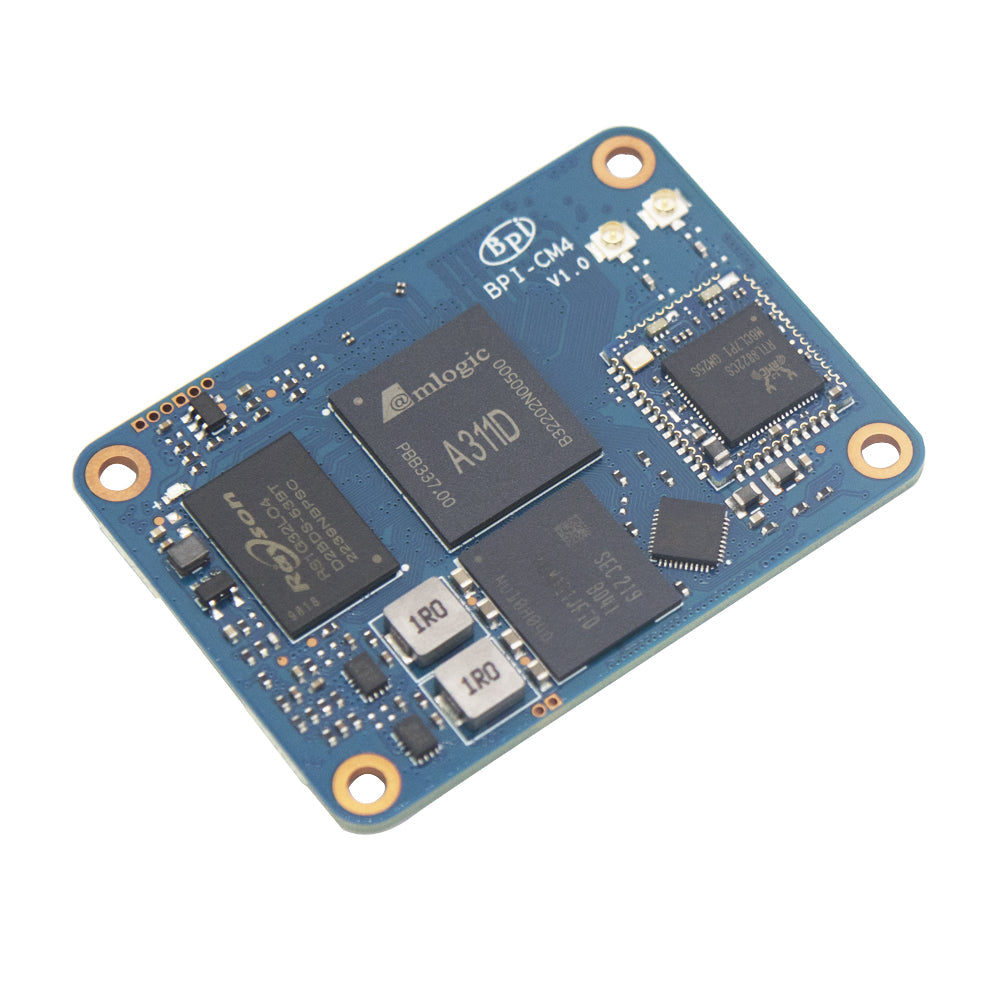

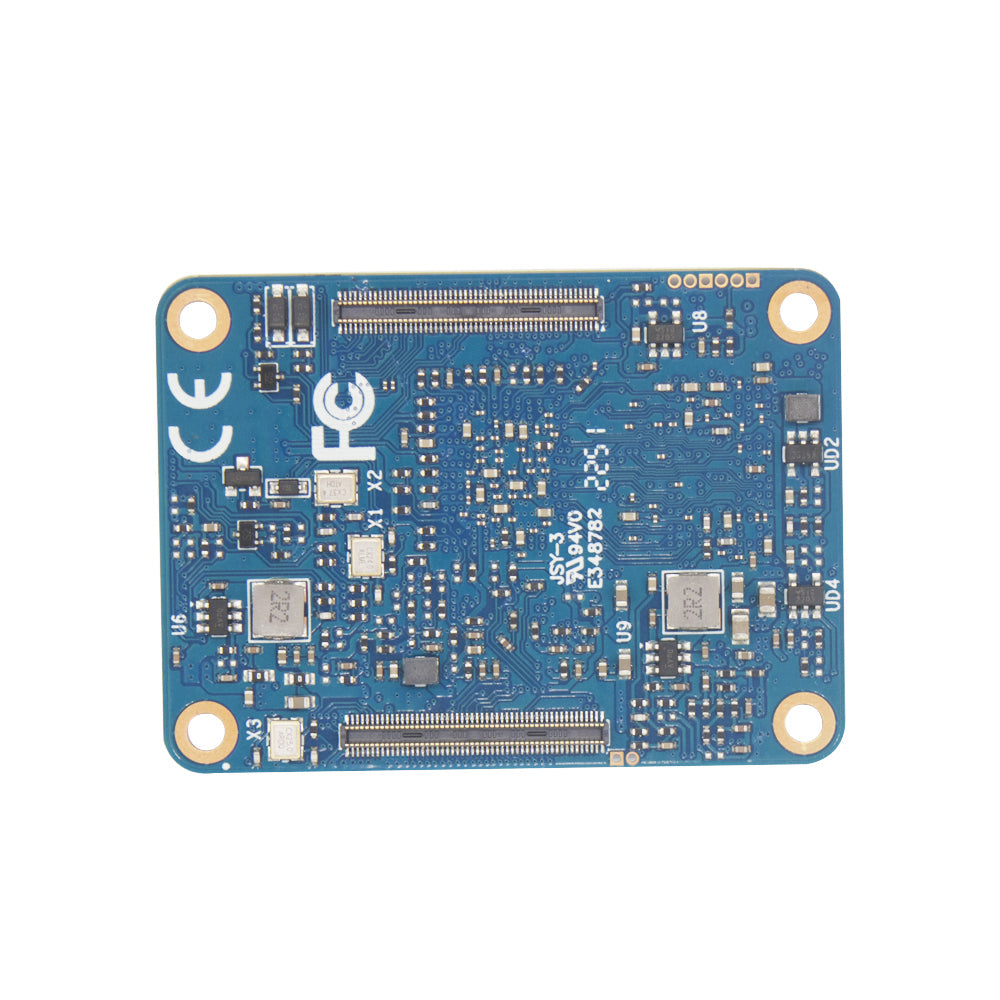

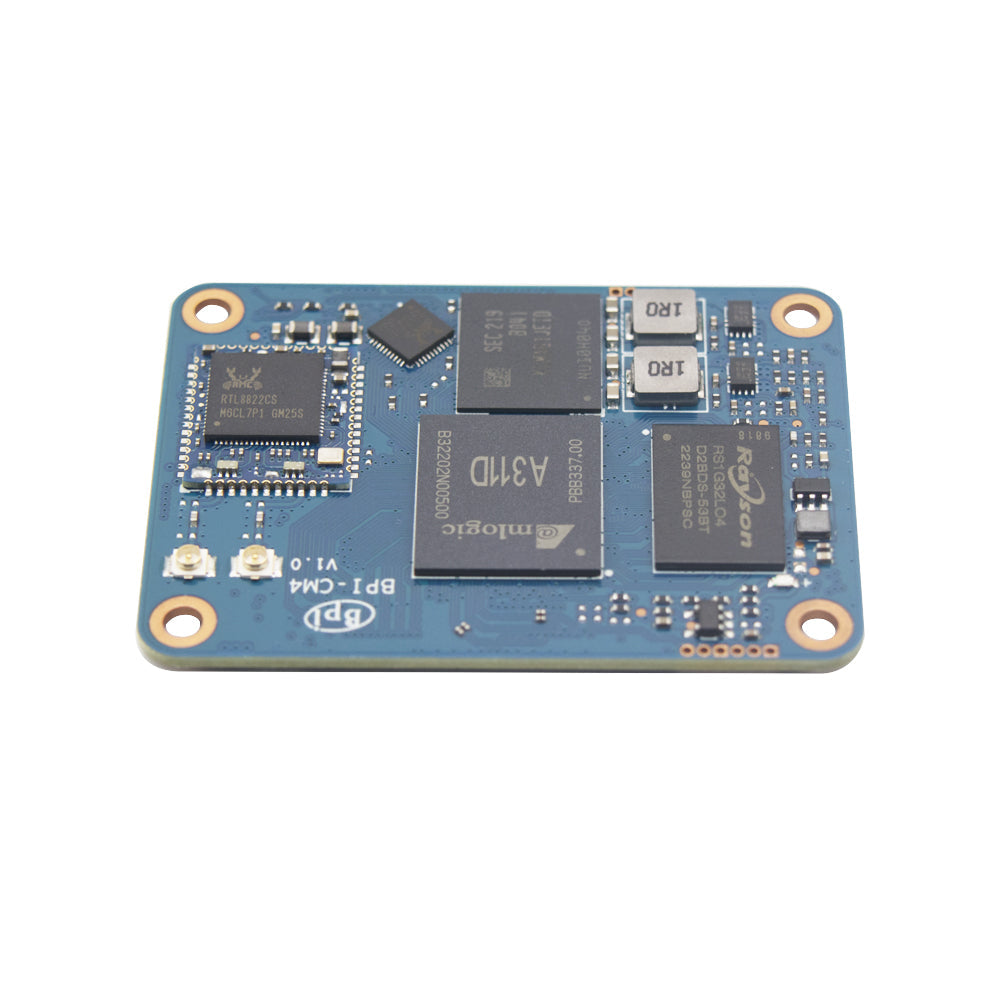

Banana Pi BPI-CM4 is a computer module with Amlogic A311D, same size asm Raspberry Pi CM4 module ,it also features the same connection pins, which means that it should work with carrier boards designed for the Raspberry Pi CM4

Features:

1. Amlogic A311D 4 x ARM Cortex-A73 CPU cores,2 x ARM Cortex-A53 CPU cores
2. ARM Mali-G52 MP4 graphics
3. Neural Processing Unit with 5 TOPS performance.
4. 4gb LPDDR4
5. 16gb eMMC flash ,max support 128 gb
6. Compatible with raspberry Pi CM4
7. 1 x HDMI, 1 x CSI, 1x DSI interface(Raspberry Pi CM4 with 2)


Interface:


BananaPi BPI-CM4 Board

Banana Pi BPI-CM4 moudule base board inteface

BananaPi BPI-CM4 Board

The BPI-CM4 computer module is exactly the same size as the raspberry PI CM4, and adopts the same interface:

BananaPi BPI-CM4 Board

You can use the universal raspberry PI CM4 module expansion board

BananaPi BPI-CM4 Board

Compared to the raspberry PI CM4, the red symbol indicates unsupported, and the others are PIN2PIN:

BananaPi BPI-CM4 Board


For more information about Banana Pi BPI-CM4, please concact us.
