BOE

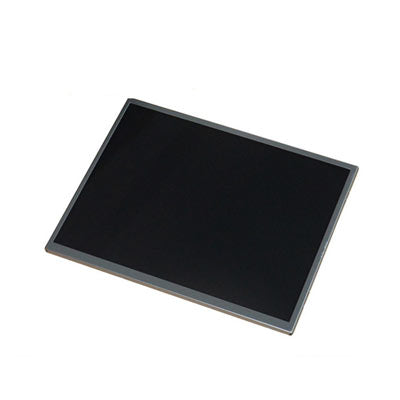

BOE AV104XOM-N10

$80.00
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address
  • Module No:AV104XOM-N10
  • Brand:BOE
  • Size:10.4
  • Resolution:1024x768
  • Brightness:600cd/m2
  • Viewing angle:85/85/85/85
  • Interface:LVDS
  • CR:1200:1
  • Operating Temp.:
  • Parameters
Manufacturer BOE
Model Name AV104XOM-N10
Screen Size 10.4
Pixel Number 1024x768
Active Area(mm) 210.432x157.82 mm
Outline(mm) 230x180.2x10.5mm
Bezel Area(mm) 218.83(W) x 165.82(H)mm
Treatment AG
Luminance 600 cd/m² (Typ.)
Contrast Ratio 1100 : 1 (Typ.) (TM)
Viewing Angle 85/85/85/85(CR≥10) Left / Right / Up / Down
Response 30 (Typ.)(Tr+Td) ms
Work Mode IPS, Normally black, Transmissive
Color Depth 16.2M   55% (CIE1931)
Backlight 50K hours, With Driver
Net Weight TBD
operating frequency 60Hz
Touchscreen without
Signal Type/interface Type LVDS(1 ch, 6-8 bit) , 20 pins,connector
Voltage Supply 3.3V (Typ.)
Temperature Storage Temp.: -40 ~ 90°C
Operating Temp.: -30 ~ 85 °C
Package As request


AV104X0M-N10 is a color active matrix TFT-LCD Panel using amorphous silicon TFT's

(Thin Film Transistors) as an active switching devices. This model is composed of a
TFT-LCD Panel, a driving circuit and a back light system.

Has a 10.4 inch diagonally measured active area with XGA resolutions (1024 horizontal by 768 vertical pixel array).

High contrast ratio, low reflection and wide viewing angle. RoHS Compliant.
Special for Automotive
