Amlogic S905D3 Smart IoT Motherboard 2GB RAM 16GB eMMC K-S905

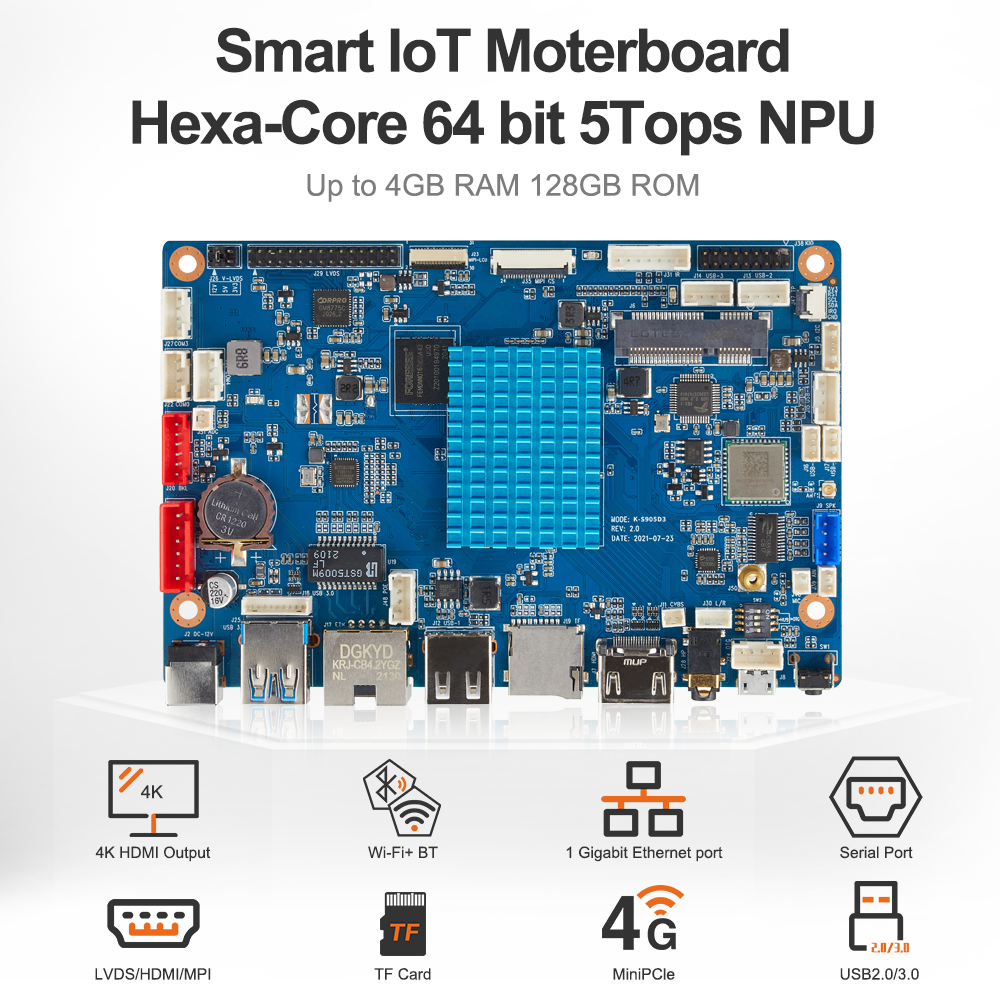

K-S905 is an embedded industrial motherboard designed for AIoT applications. It is powered by the Amlogic S905D3 processor, featuring a quad-core ARM CPU. The board comes equipped with 2GB of RAM and 16GB of eMMC storage. For connectivity, it offers one Gigabit Ethernet port and a Power over Ethernet (PoE) interface.

Additionally, it supports up to two RS232 serial ports, with an optional RS485 port, and includes a Mini PCIe interface for external expansion, such as adding 4G modules. The K-S905 is compatible with Android, Linux, and Ubuntu operating systems, making it versatile for various smart IoT applications.

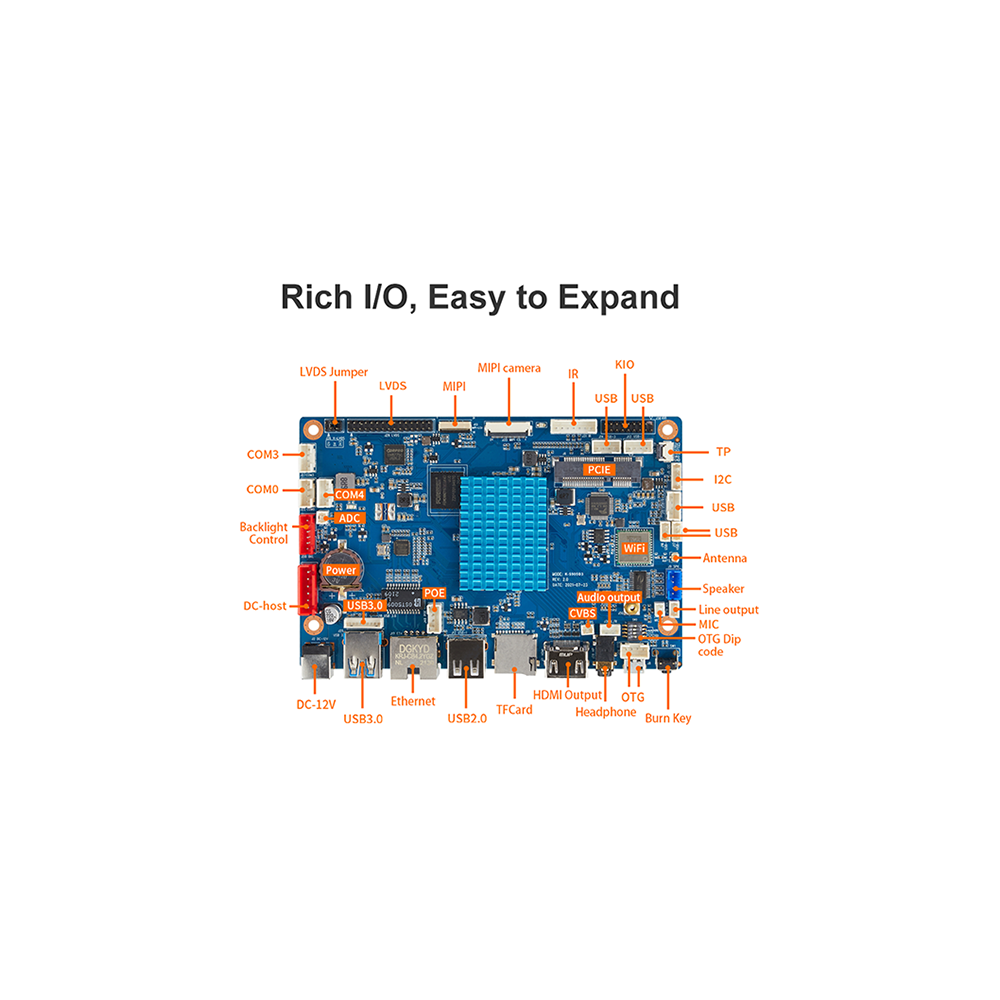

Key Features:

  • Memory: Standard configuration of 2GB LPDDR4 RAM, with an option for 4GB.

  • Storage: Equipped with 16GB eMMC flash storage, expandable up to 128GB.

  • Display Support: Offers multiple interfaces, including eDP, LVDS, MIPI, and HDMI, supporting various display configurations.

  • Networking: Includes a Gigabit Ethernet port and a Power over Ethernet (PoE) interface for flexible networking options.

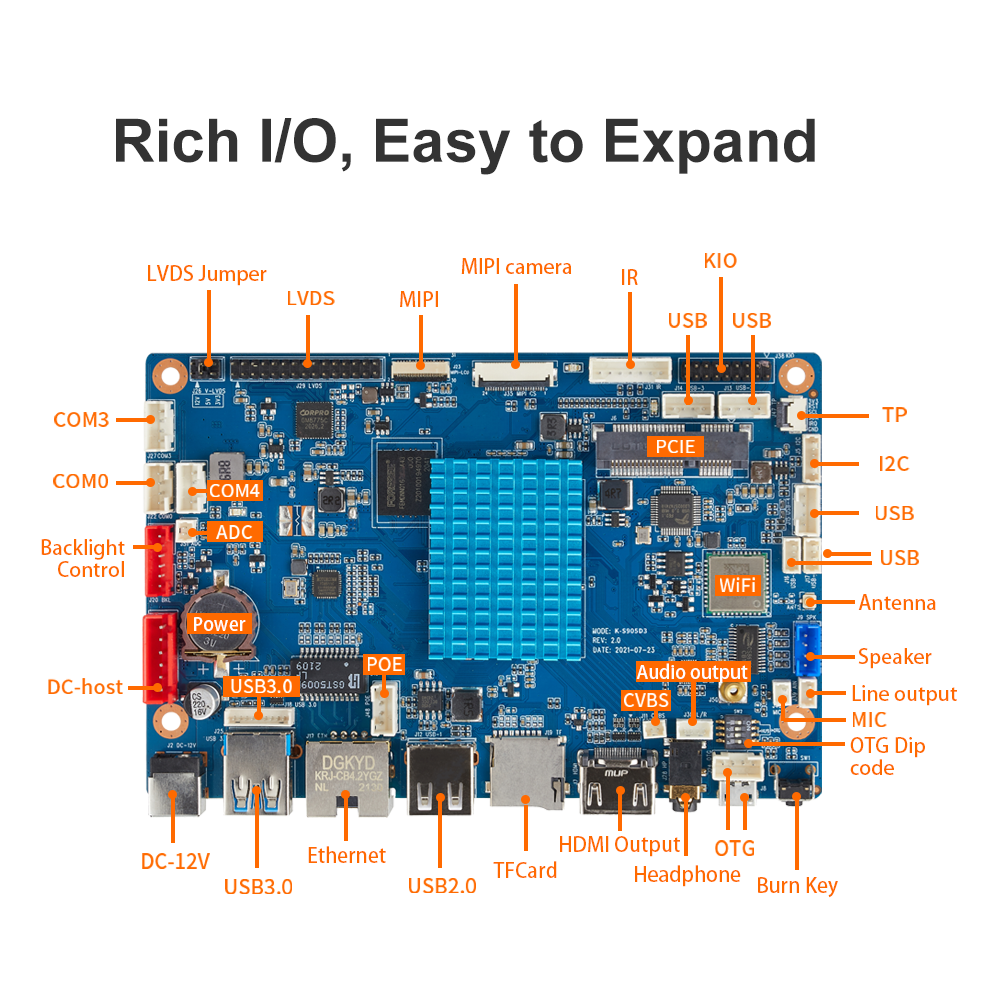

  • Expansion Interfaces: Provides up to two RS232 serial ports, with an optional RS485 port, and a Mini PCIe interface for external expansions such as 4G modules.

  • Operating System Compatibility: Supports Android 9.0, Linux, and Ubuntu operating systems, offering versatility for different application needs.

These features make the LIONTRON K-S905 suitable for various smart IoT applications, including digital signage, smart home devices, and industrial automation systems.

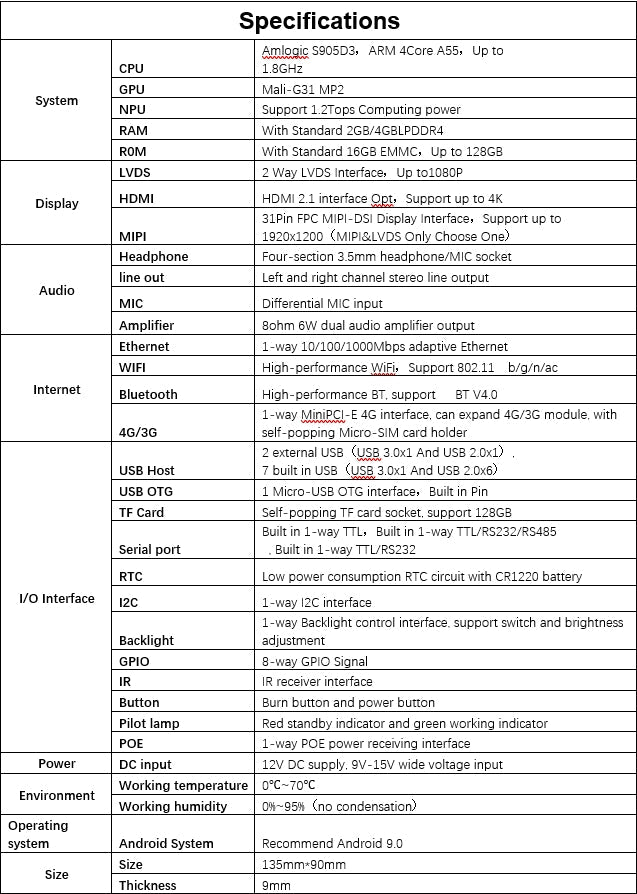

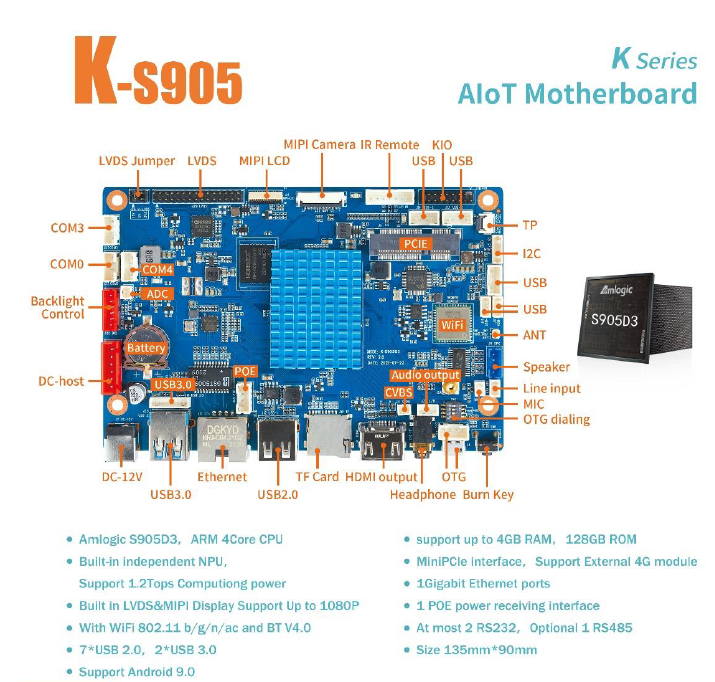

Key Features

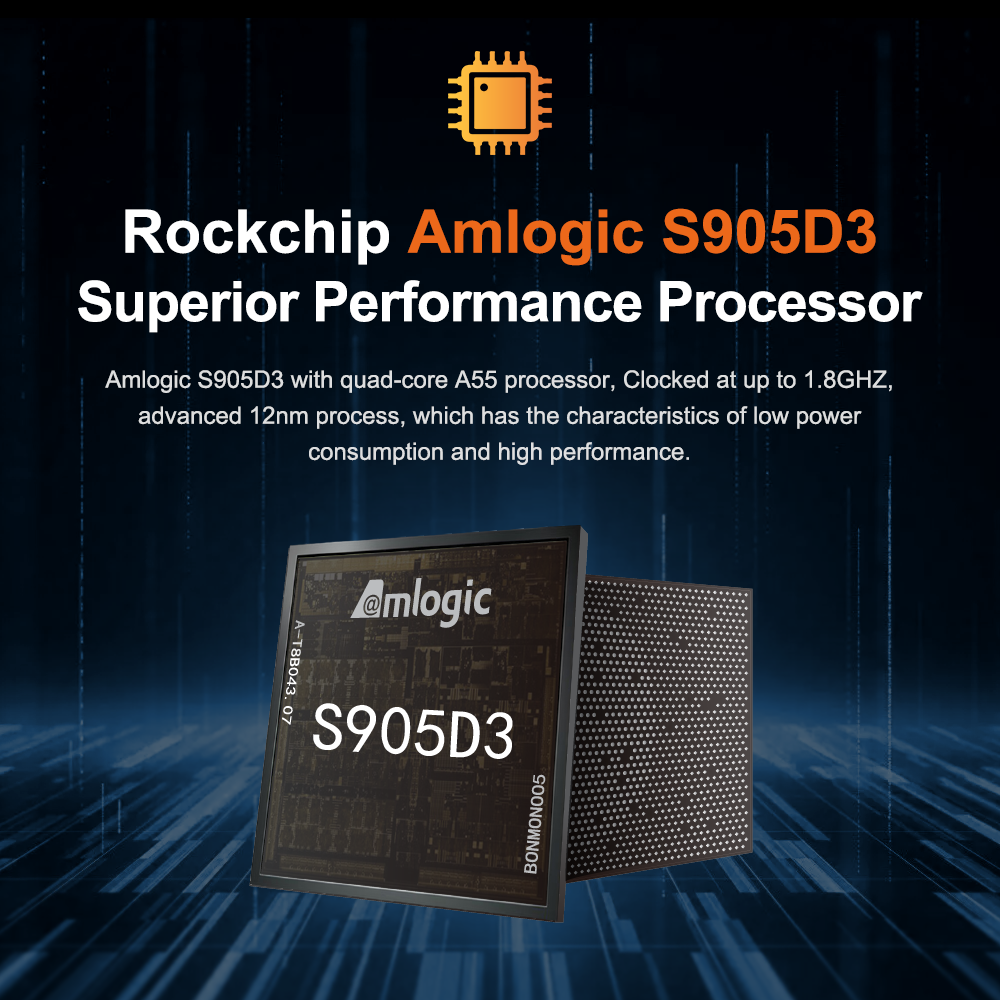

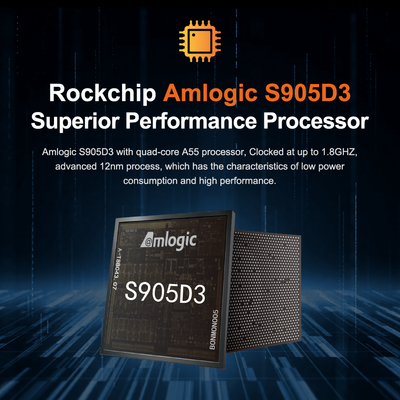

  • Amlogic S905D3, ARM quad-core CPU
  • Built-in independent NPU, supporting 1.2Tops computing power
  • Built-in LVDS and MIPI display supports up to 1080P
  • WiFi802.11b/g/n/ac and Bluetooth V5.2
  • Up to 4GB memory, 128GB storage
  • 6 USB2.0, 1 USB3.0
  • MiniPCle interface, external expansion 4G module
  • Up to 2 RS232, optional 1 RS485
  • 1 Gigabit Ethernet, 1 POE powered interface
  • Ultra-thin design, the thickness of the whole board is 9mm
  • Size 135mm*90mm
