Amlogic S905D3 Digital Sentinel IoT Motherboard | TTL Ports | Fi-S905D3

$67.00
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address

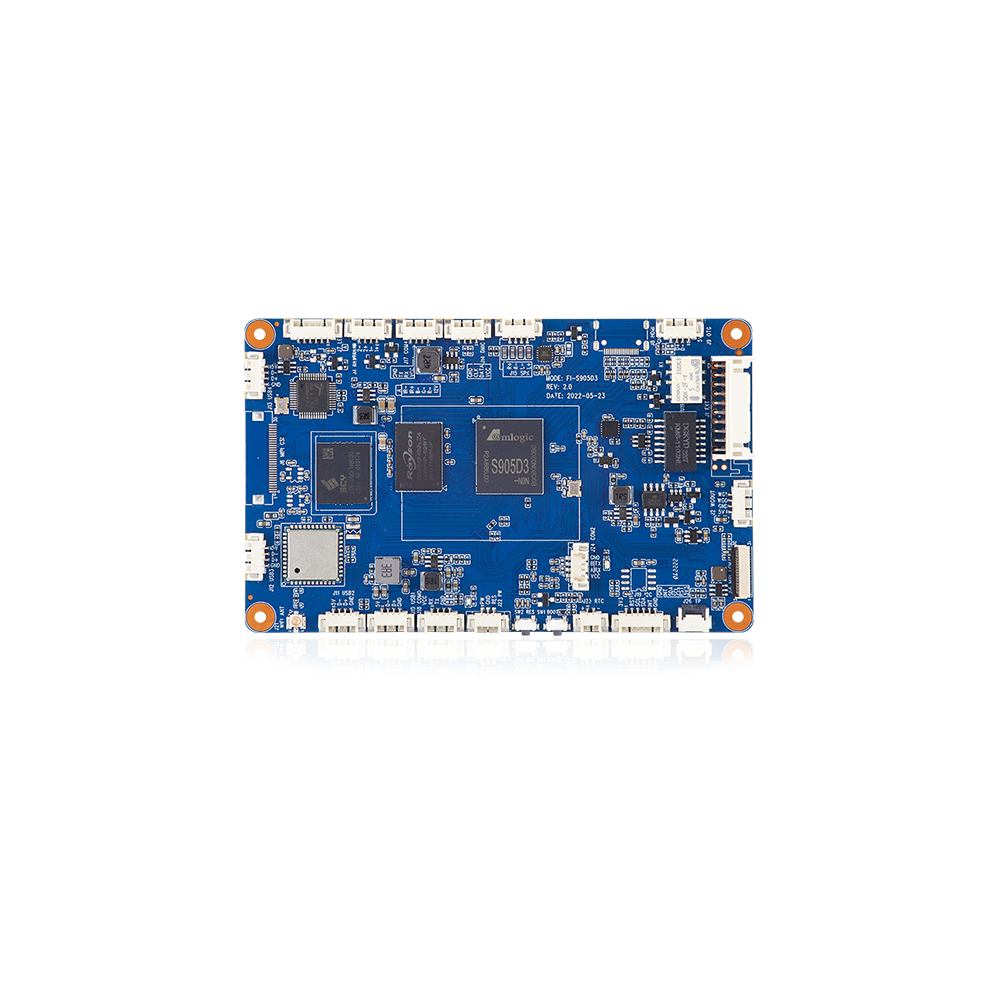

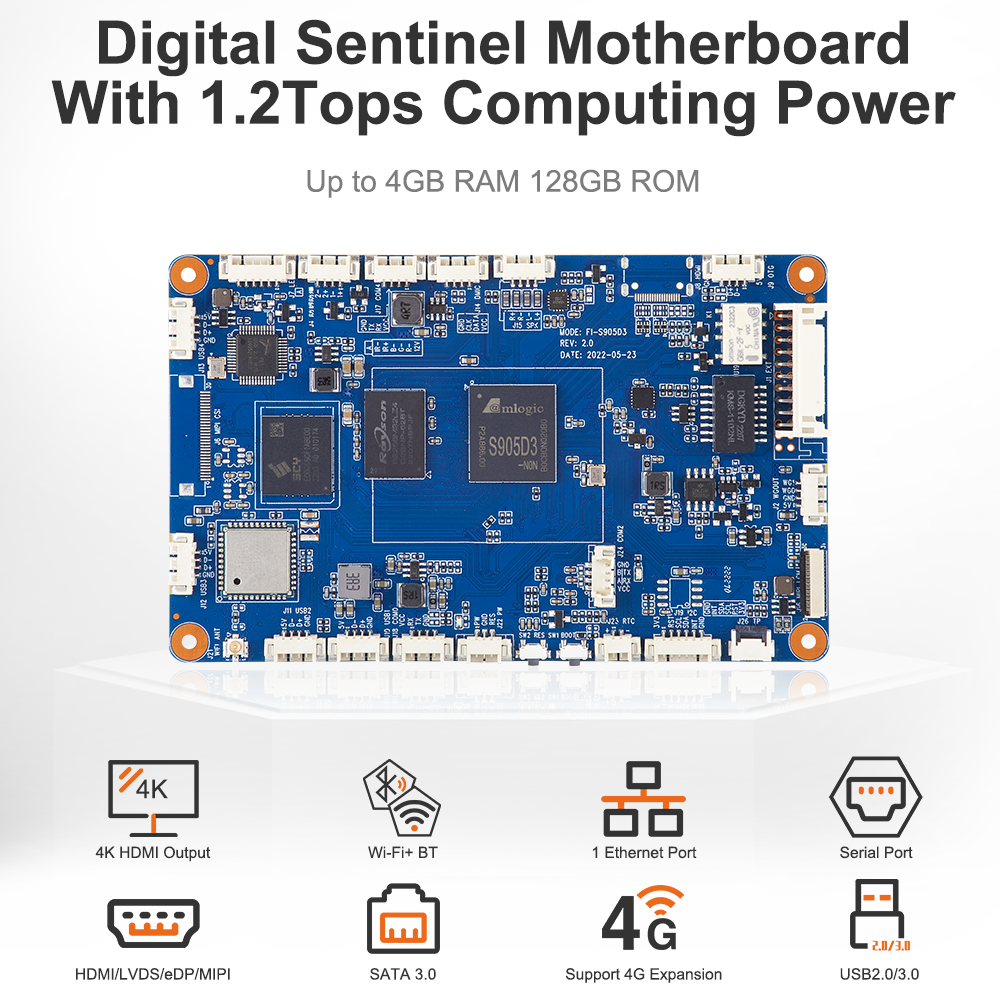

Amlogic S905D3 Digital Sentinel Motherboard 2GB RAM 16GB eMMC Fi-S905D3



Fi-S905D3 is an AI-enabled motherboard built around the Amlogic S905D3 quad-core processor with a 1.2 TOPS NPU for real-time edge inference. Supporting 4K video, integrated Wi-Fi/Bluetooth, and access control interfaces, it is ideal for digital security terminals and intelligent monitoring systems.

With support for both HDMI and MIPI displays, it combines multimedia power with industrial connectivity.

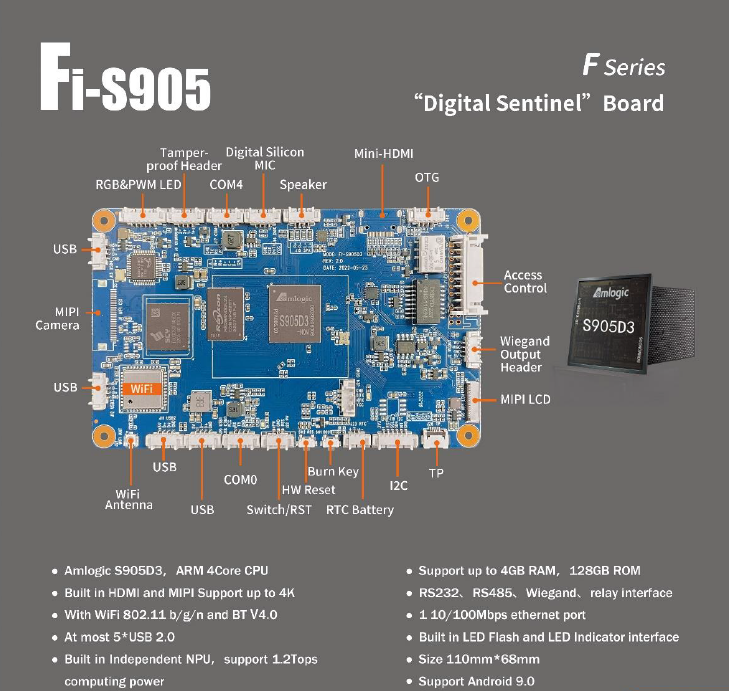

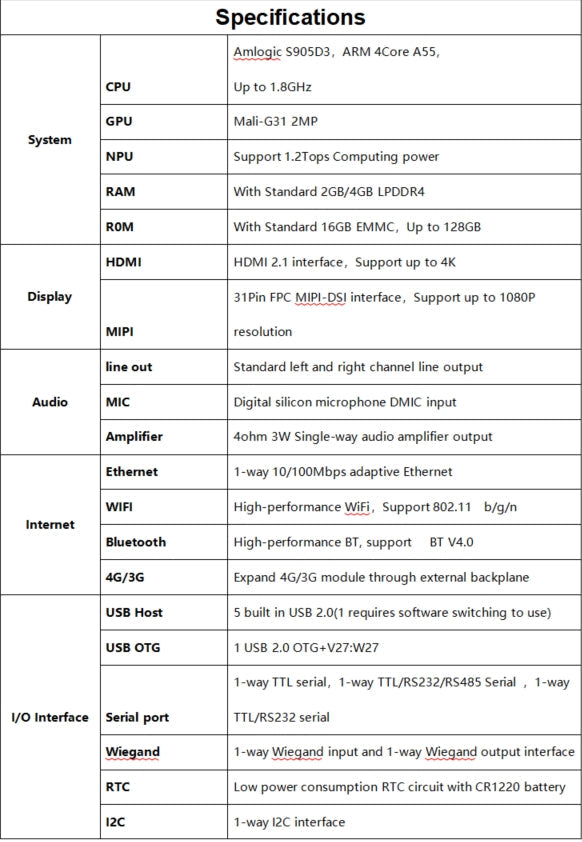

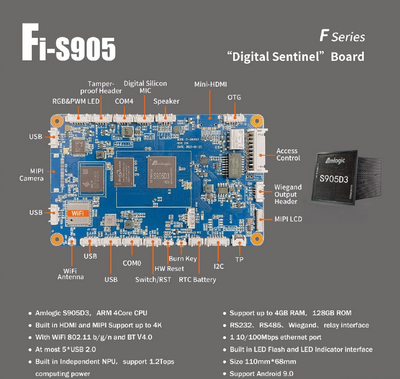

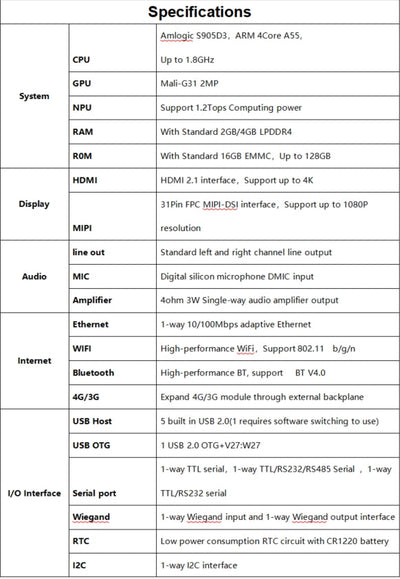

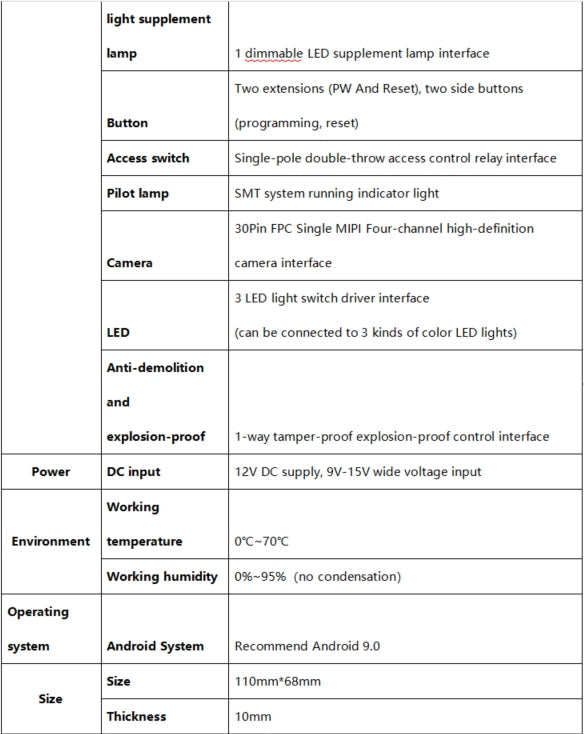

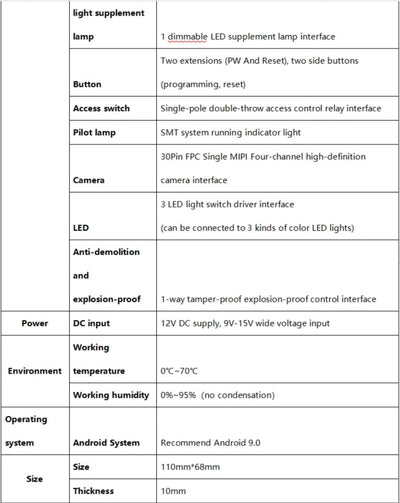

Key Features:

  • Processor: Amlogic S905D3, ARM quad-core CPU

  • AI Capability: Integrated NPU with 1.2 TOPS performance

  • Display Support: HDMI and MIPI interfaces, up to 4K resolution

  • Connectivity:

    • Up to 5 × USB 2.0

    • 1 × 10/100Mbps Ethernet

    • Wi-Fi 802.11 b/g/n

    • Bluetooth 4.0

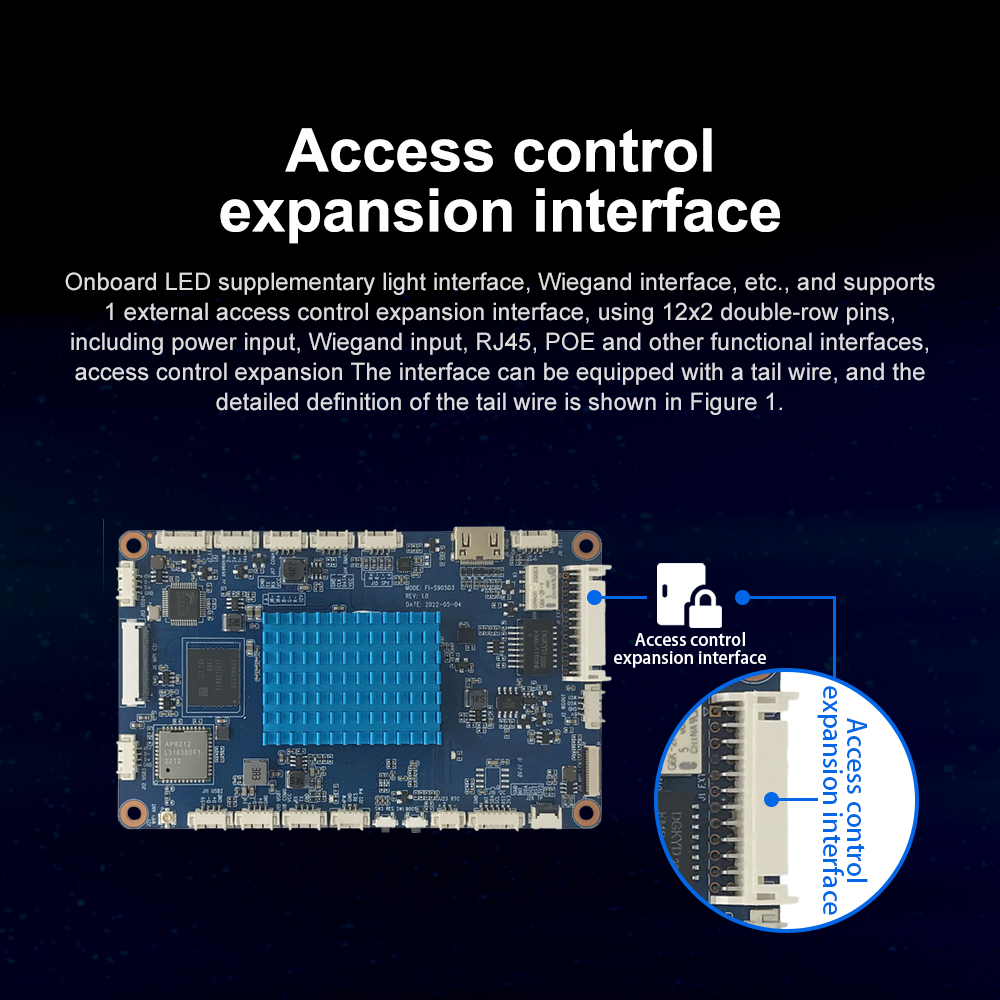

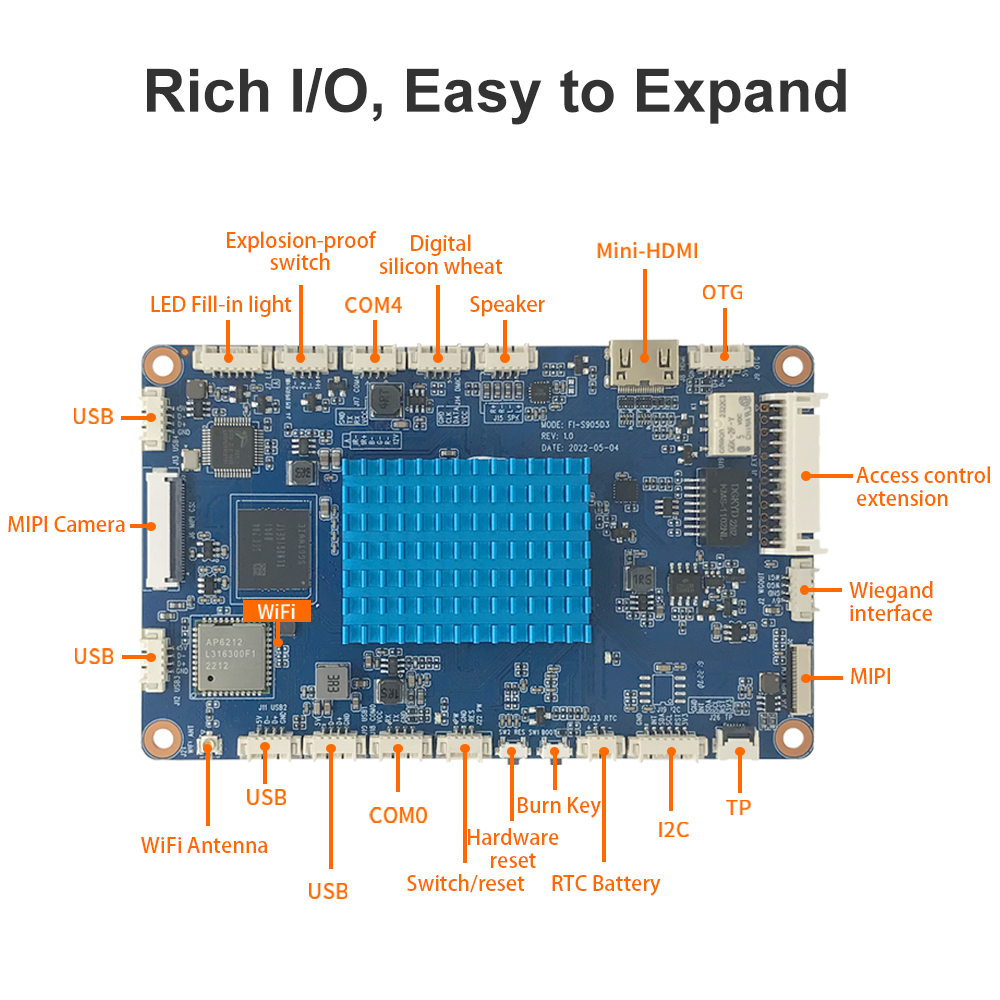

  • I/O Interfaces: RS-232, RS-485, Wiegand, relay control

  • Lighting Control: Built-in fill light and LED interface

  • Memory & Storage: 2GB RAM, 16GB eMMC (up to 4GB/128GB supported)

  • Power Supply: 9V–15V wide voltage DC input

  • Form Factor: 110mm × 68mm
