Genius Core Embedded Systems

Allwinner A40i Smart HMI Single Board Computer | LVDS MIPI HDMI | H0

$54.00
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address

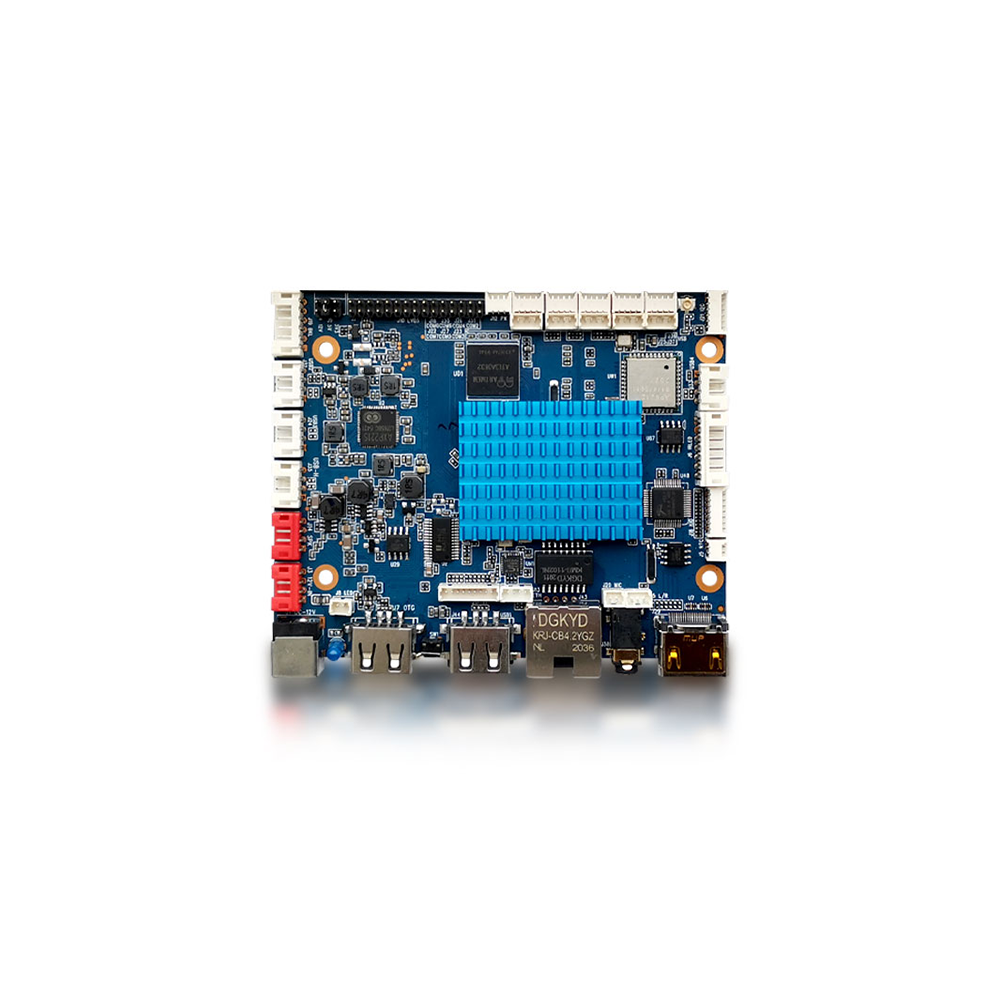

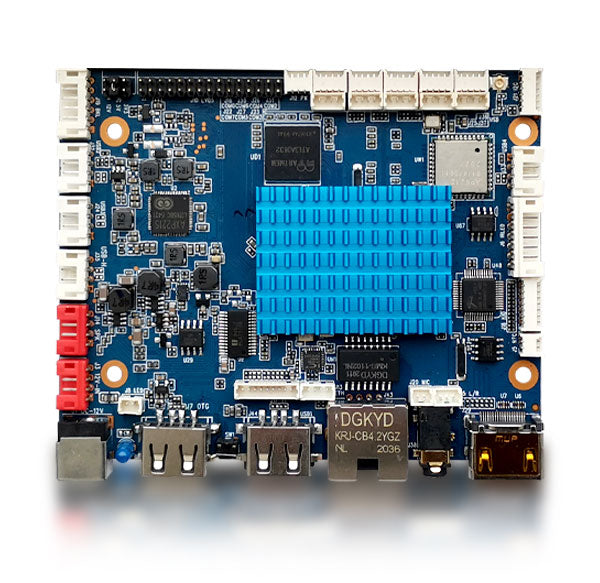

Allwinner A40i Smart HMI Single Board Computer 1GB RAM 8GB eMMC H0



H0 is a reliable Smart HMI board based on the Allwinner A40i quad-core processor, optimized for 1080p display, smooth control interface applications, and smart terminals. With built-in HDMI and LVDS output, multiple USB and serial ports, it is a cost-effective choice for HMI panels and embedded display devices.

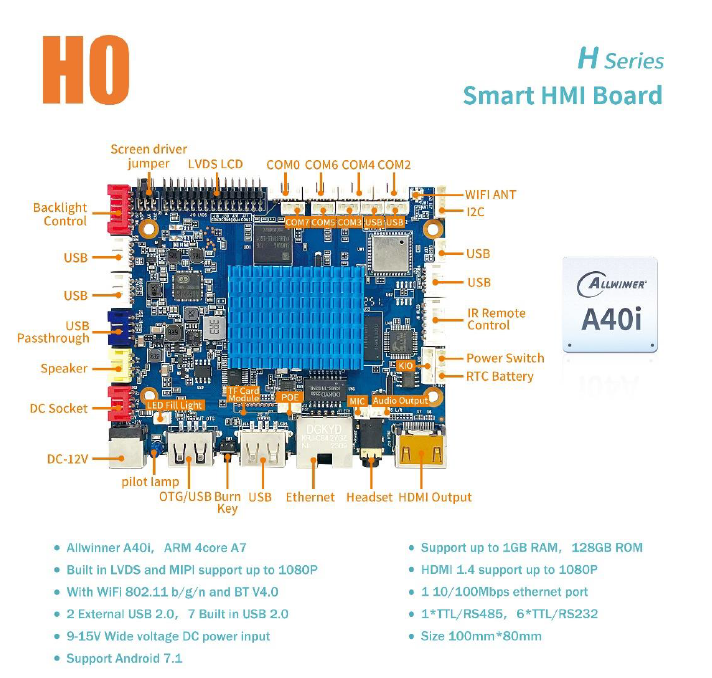

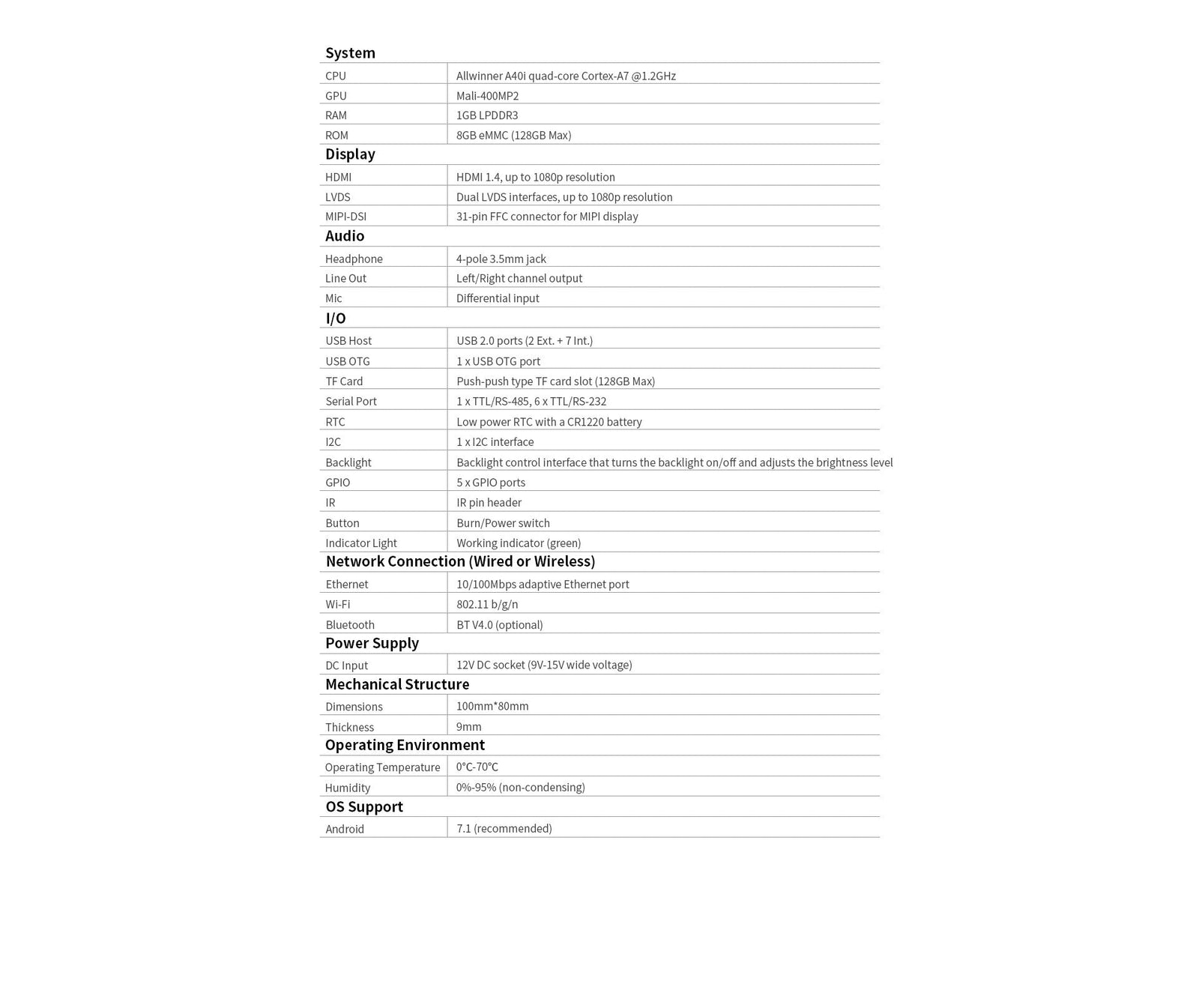

Key Features:

  • Processor: Allwinner A40i, ARM quad-core Cortex-A7

  • Graphics: Mali-400MP2 GPU, supports OpenGL ES 2.0 and 1080p encoding/decoding

  • Display Support: HDMI 1.4, LVDS (up to 1080p resolution)

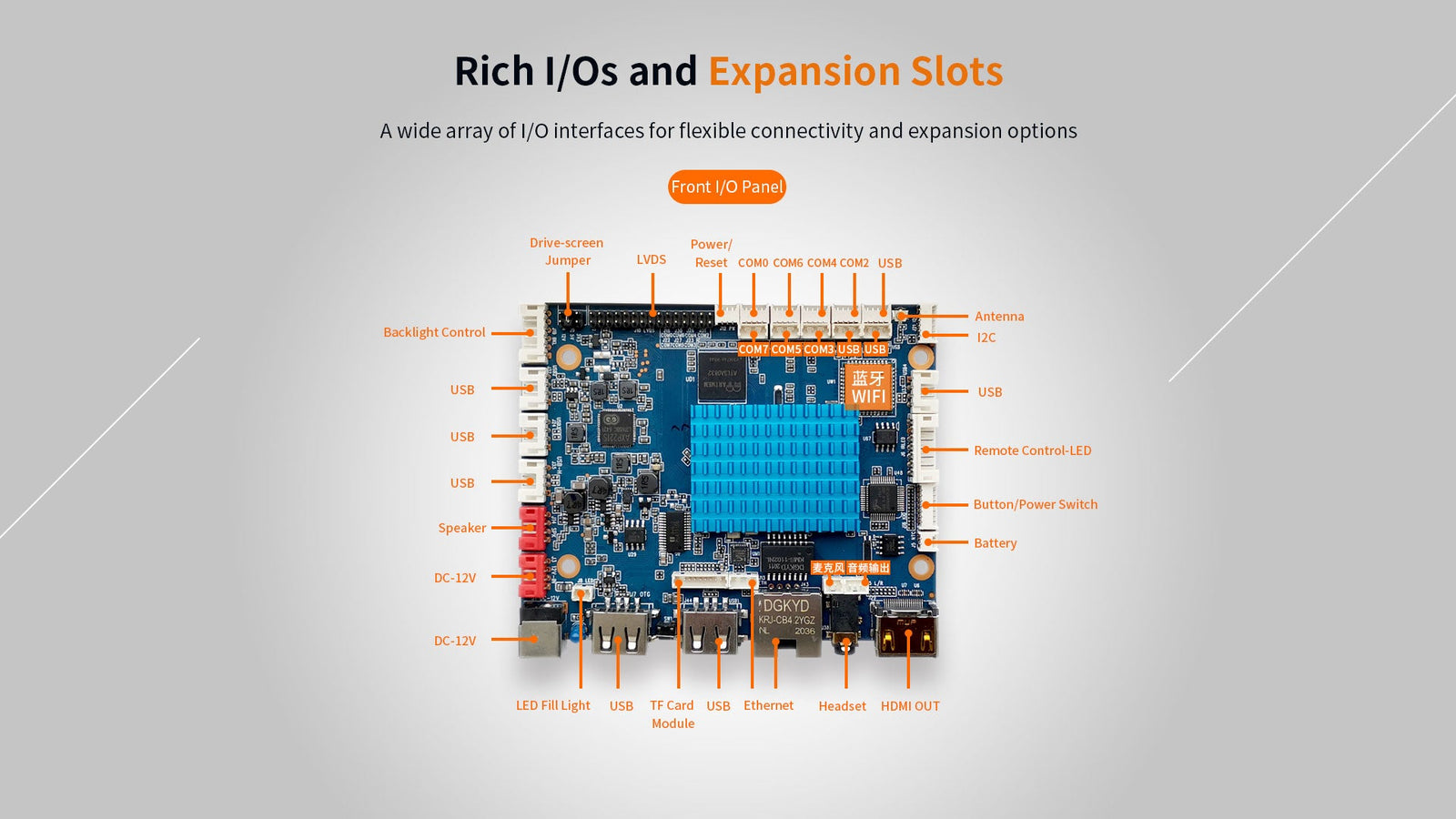

  • Connectivity:

    • 9 × USB 2.0 (2 external, 7 internal)

    • 1 × 10/100Mbps Ethernet

    • Wi-Fi 802.11 b/g/n

    • Bluetooth 4.0

  • Serial Ports: 6 × TTL/RS-232, 1 × TTL/RS-485

  • Memory & Storage: 1GB RAM, 8GB eMMC (supports up to 128GB)

  • Power Supply: 9V–15V wide voltage DC input

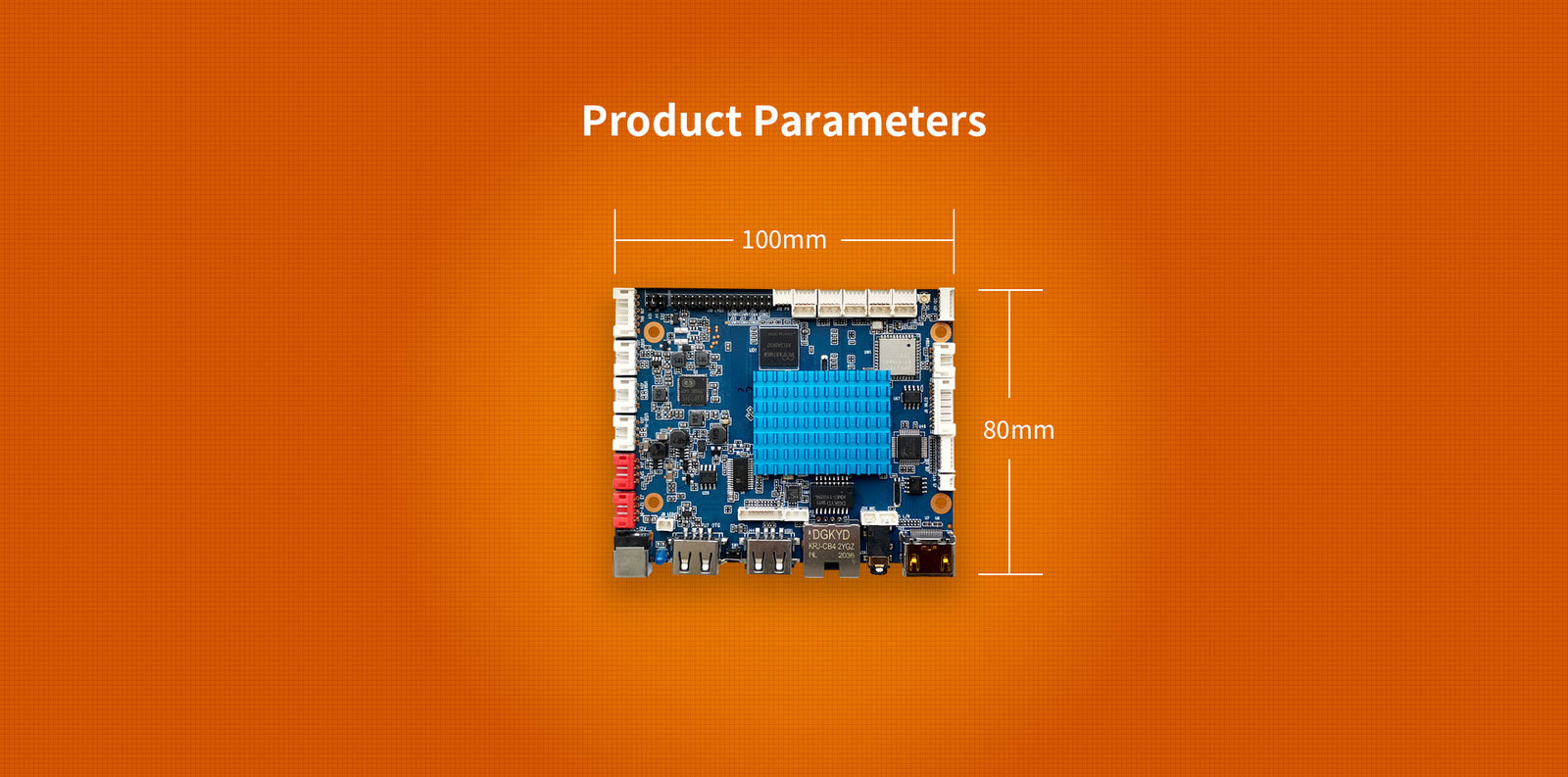

  • Form Factor: 100mm × 80mm
