Allwinner A40i Industrial Control Single Board Computer | VGA HDMI | C0

$63.00
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address

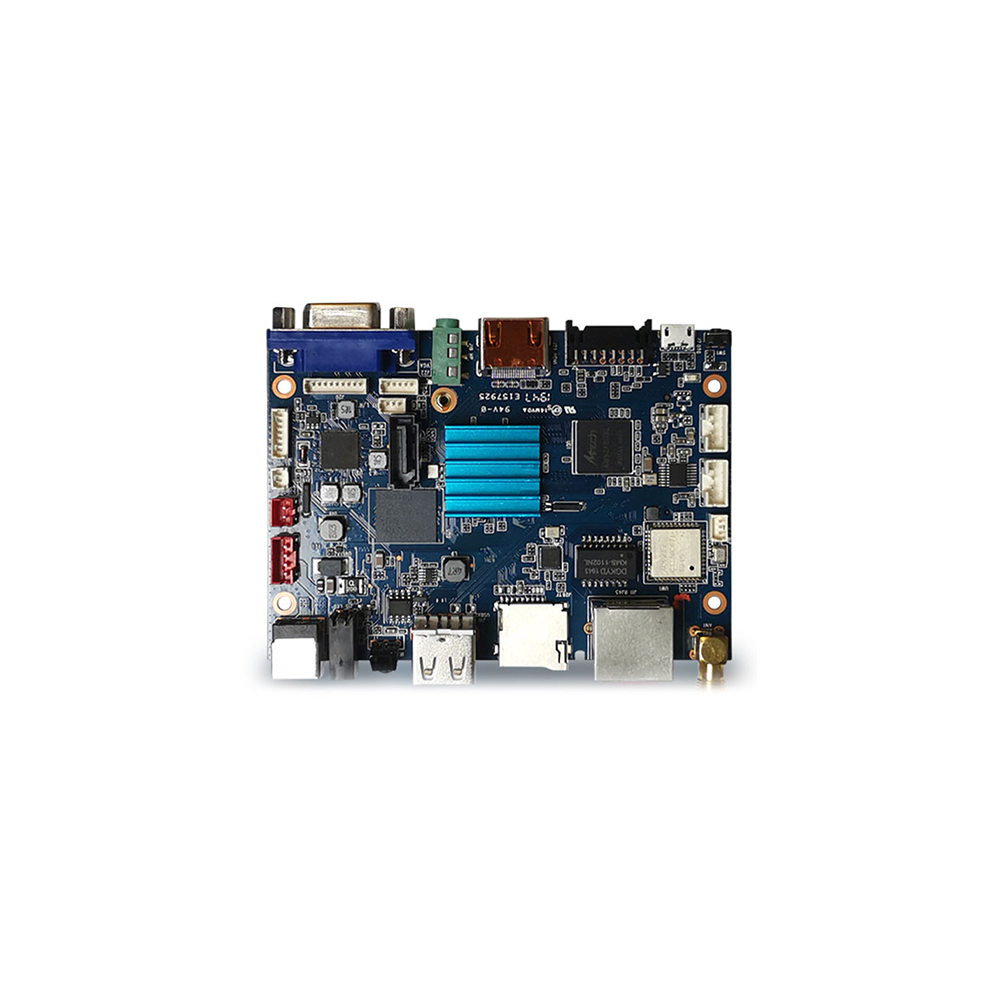

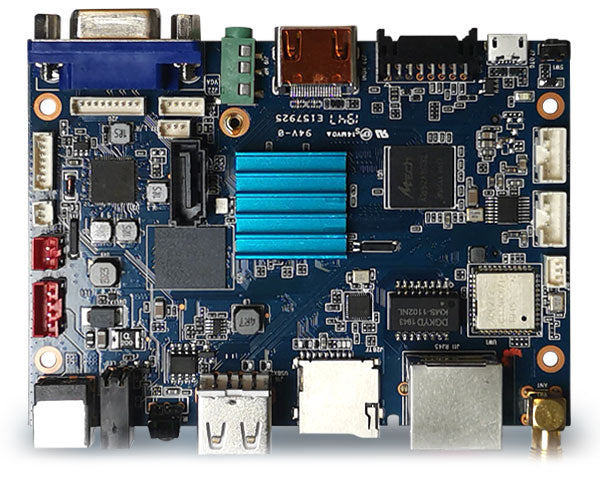

Allwinner A40i Smart Industrial Control Single Board Computer 1GB RAM 8GB eMMC C0

C0 is a compact industrial control single board computer built around the Allwinner A40i processor. Featuring a quad-core ARM Cortex-A7 CPU and Mali-400MP2 GPU, it delivers smooth performance for control interfaces, display applications, and industrial embedded systems.

With support for 1080P HDMI and VGA output, integrated Wi-Fi/Bluetooth, and a wide array of serial and USB interfaces, the C0 is ideal for secondary development in smart terminals, HMI panels, and control units.

Key Features:

  • Processor: Allwinner A40i, ARM quad-core Cortex-A7, up to 1.2GHz

  • Graphics: Mali-400MP2 GPU with OpenGL ES 2.0, supports 1080P video decoding

  • Display Support: HDMI 1.4 and VGA outputs, both supporting 1080P

  • Connectivity:

    • 4 × USB 2.0 (2 external, 2 internal)

    • 1 × 10/100Mbps Ethernet

    • Wi-Fi 802.11 b/g/n

    • Bluetooth 4.0

  • Serial Ports: 6 × TTL/RS232 external ports

  • Memory & Storage: Default 1GB RAM, 8GB eMMC (supports up to 128GB storage)

  • Power Supply: 9V–15V wide voltage DC input

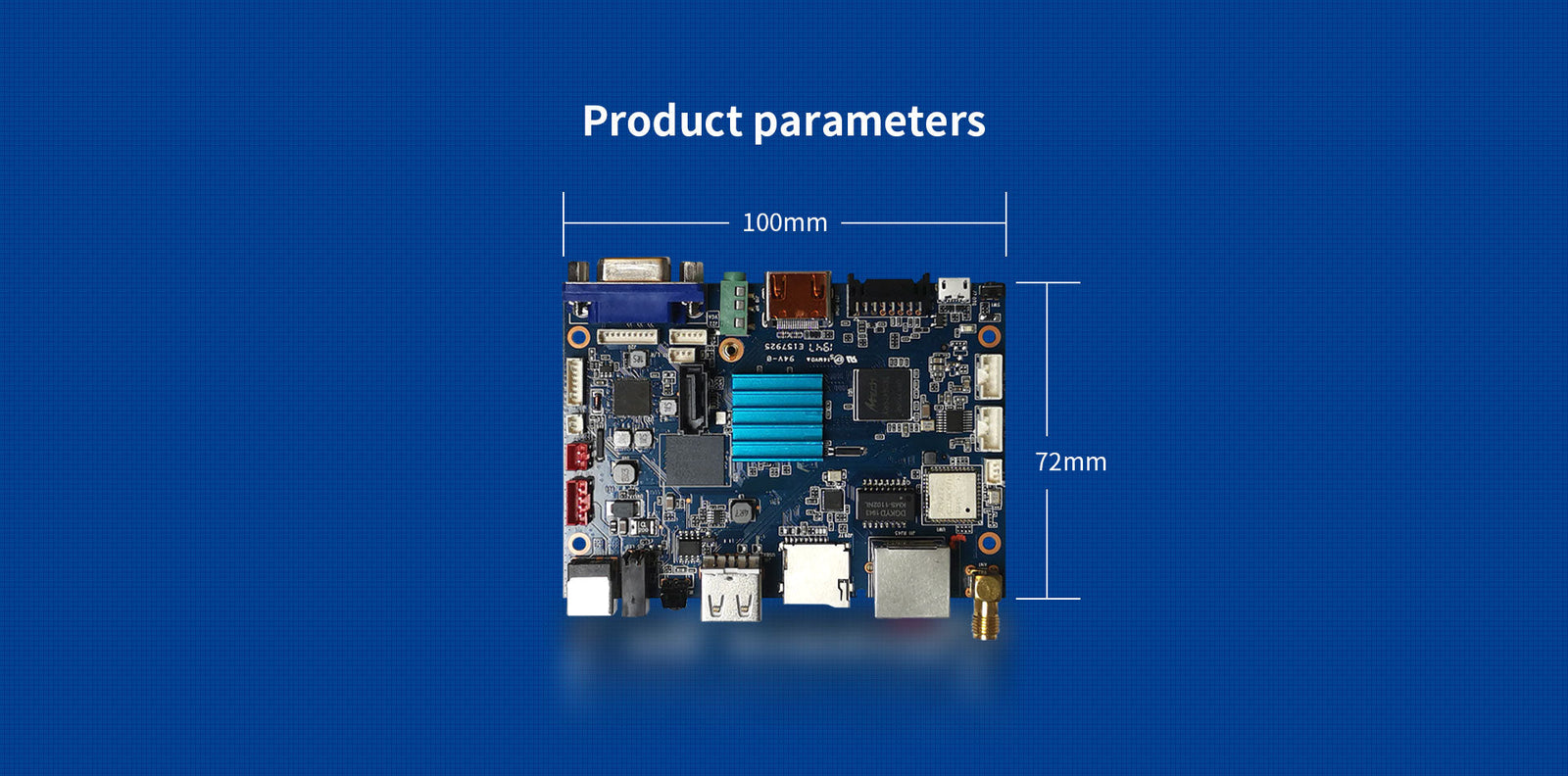

  • Form Factor: Compact 100mm × 72mm
