Allwinner A133 Smart HMI Android Motherboard | LVDS MIPI | H-A133L

$49.00
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address

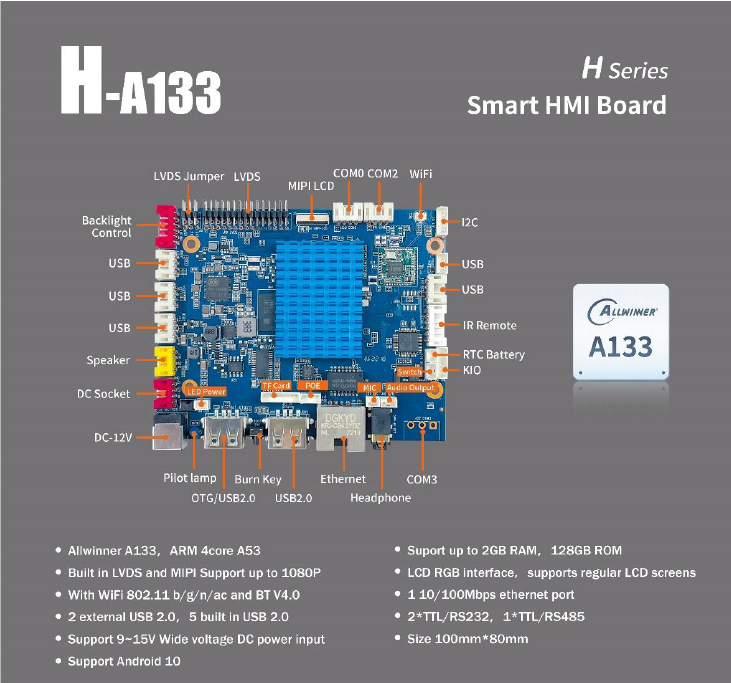

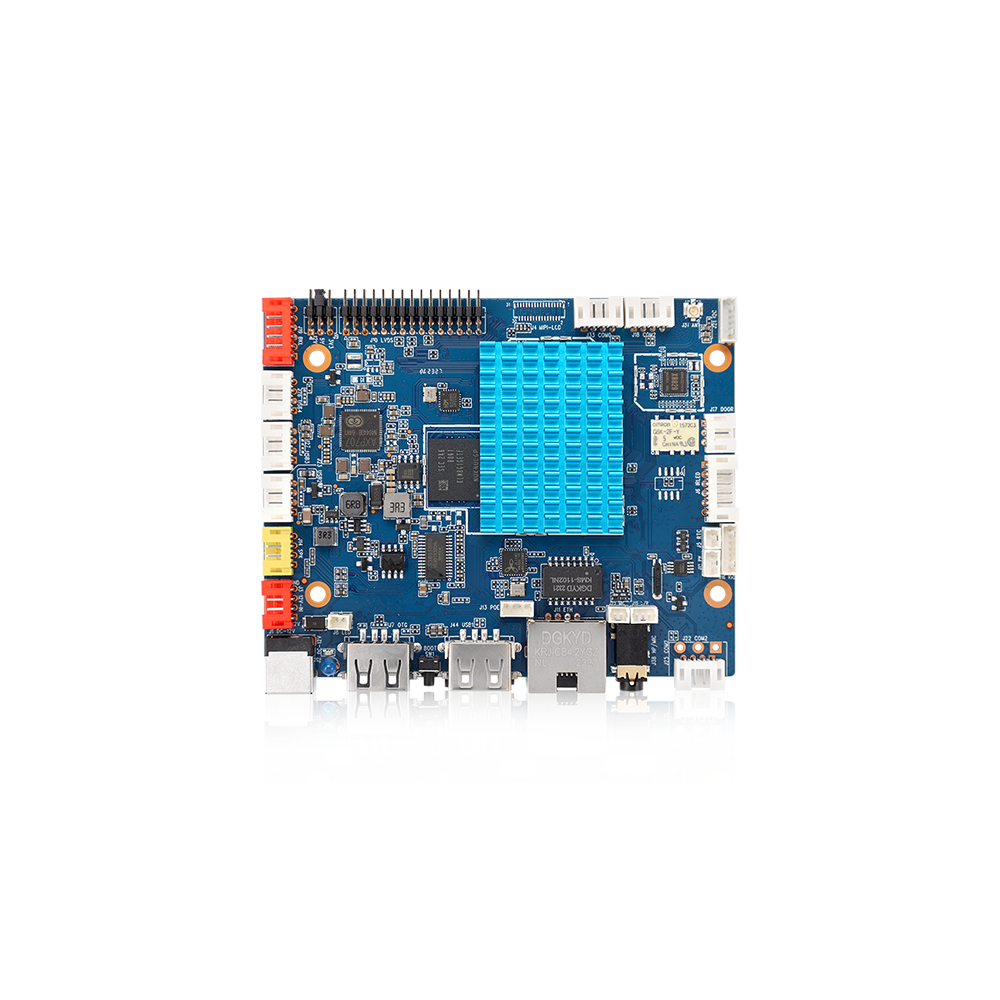

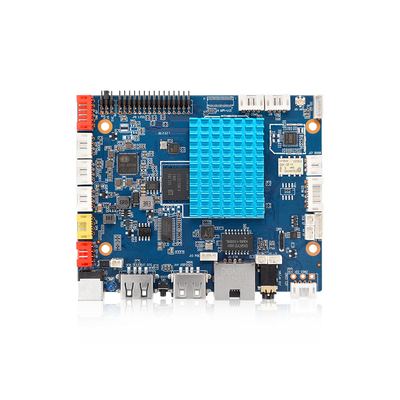

Allwinner A133 Smart HMI Motherboard 1GB RAM 8GB eMMC H-A133L

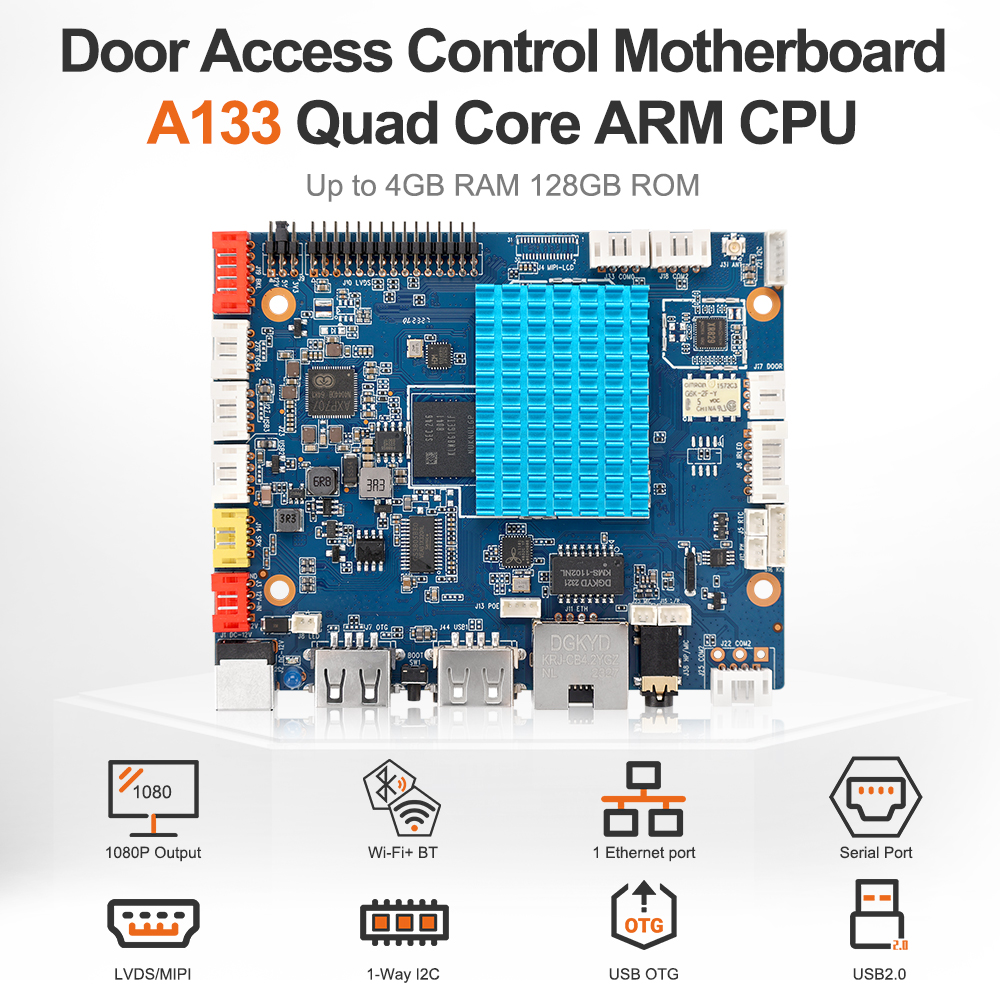

H-A133L is a compact Smart HMI motherboard built on the Allwinner A133 quad-core processor. With integrated Wi-Fi/Bluetooth, support for multiple display outputs, and optional access control interfaces, this board is tailored for smart terminals, info kiosks, and control panels.

Its slim profile and configurable I/O make it a solid choice for OEM integration in both commercial and industrial applications.

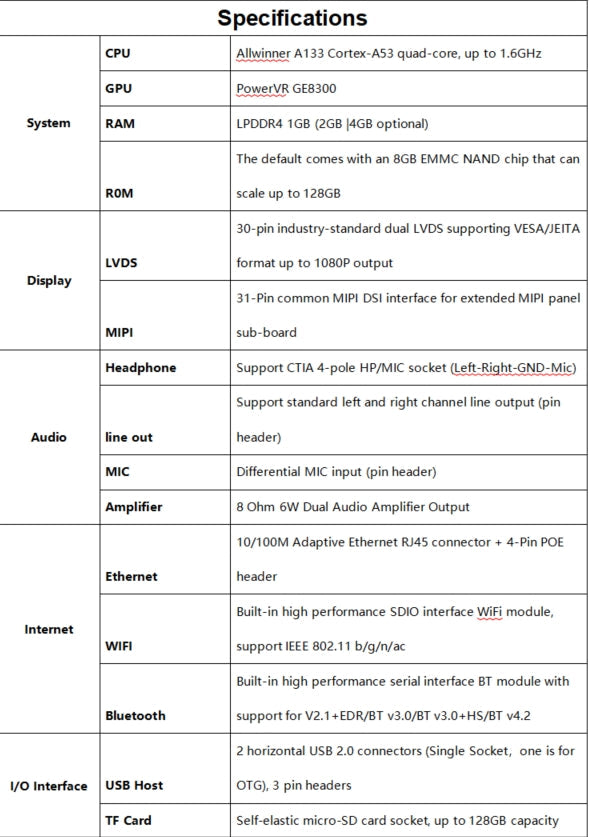

Key Features:

  • Processor: Allwinner A133, ARM quad-core Cortex-A53

  • Display Support: MIPI or optional LVDS (up to 1080p)

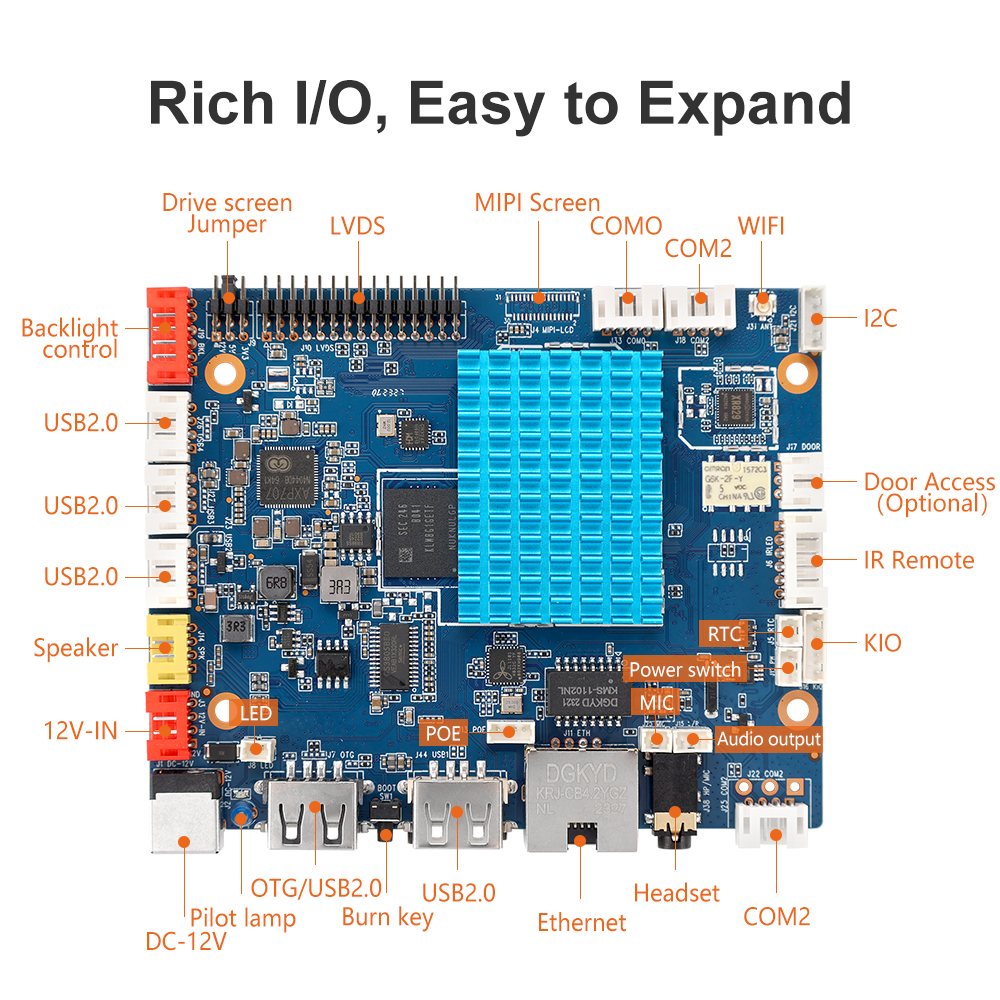

  • Connectivity:

    • 5 × USB 2.0

    • 1 × 100Mbps Ethernet

    • 1 × POE-powered Ethernet port

    • Wi-Fi 802.11 b/g/n/ac

    • Bluetooth 4.2

  • Serial Ports: Up to 2 × RS232, optional 1 × RS485

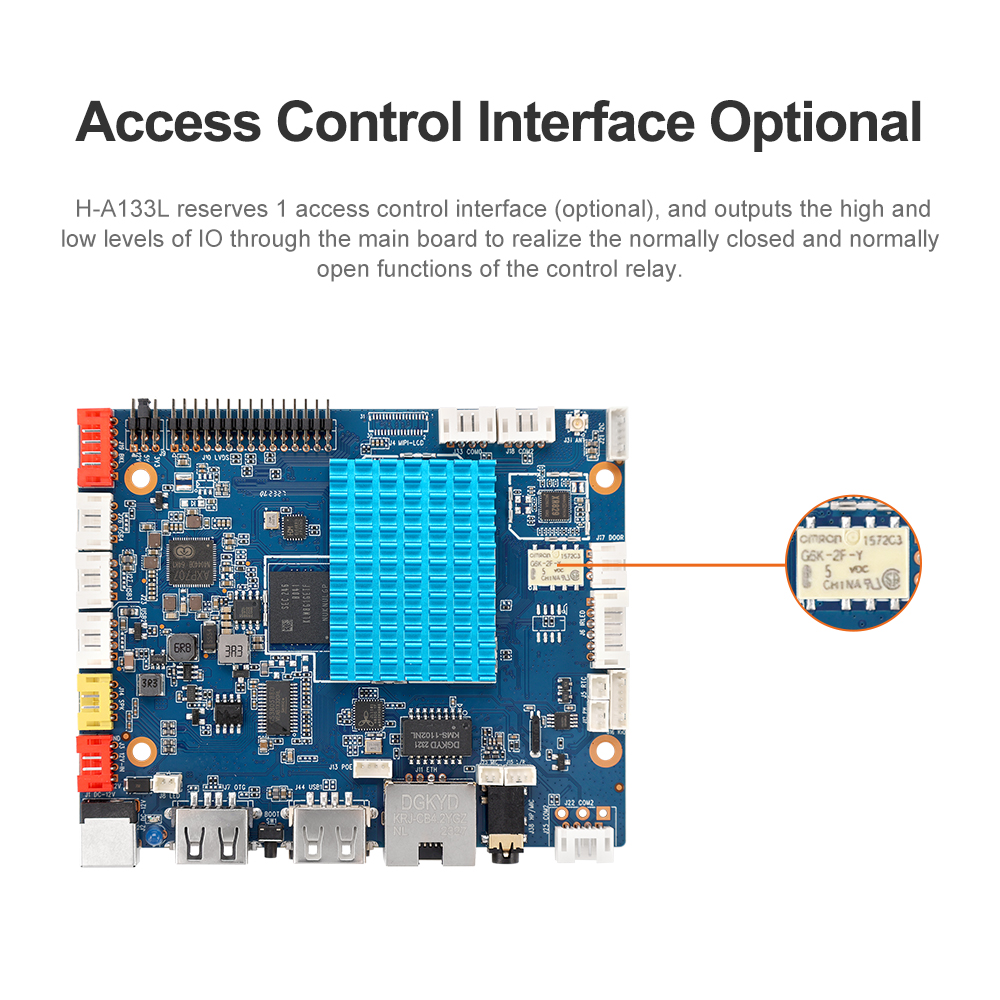

  • Expansion: Optional access control interface

  • Memory & Storage: 1GB RAM, 8GB eMMC (supports up to 4GB/128GB)

  • Power Supply: 9V–15V wide voltage DC input

  • Form Factor: 100mm × 80mm

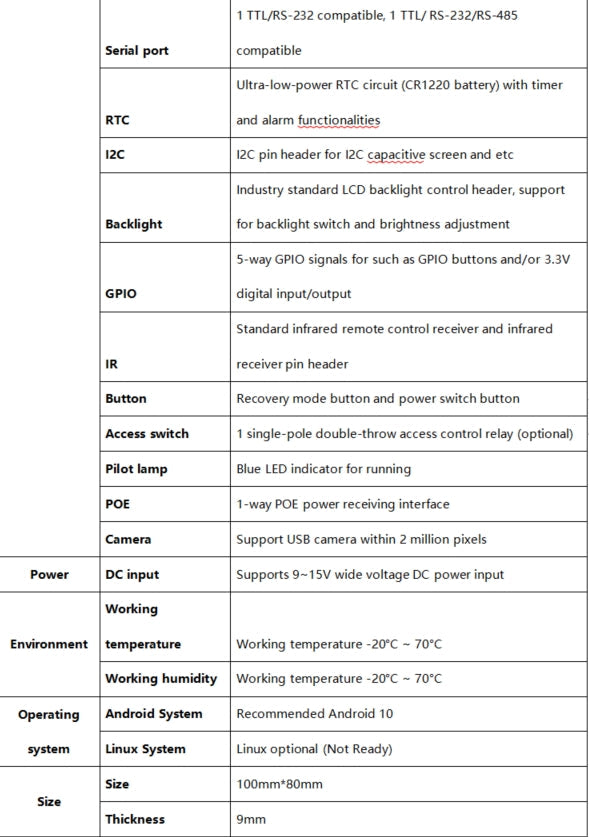

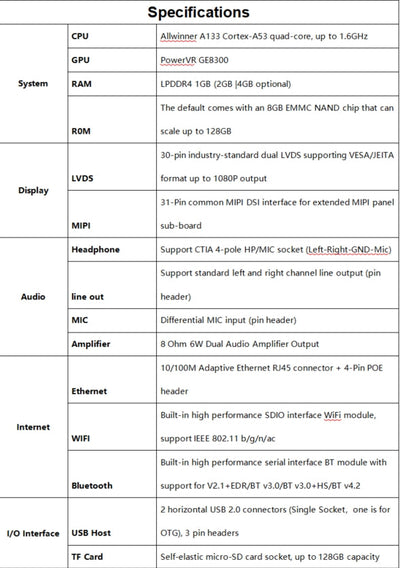

Technical specifications are loading…
