AUO

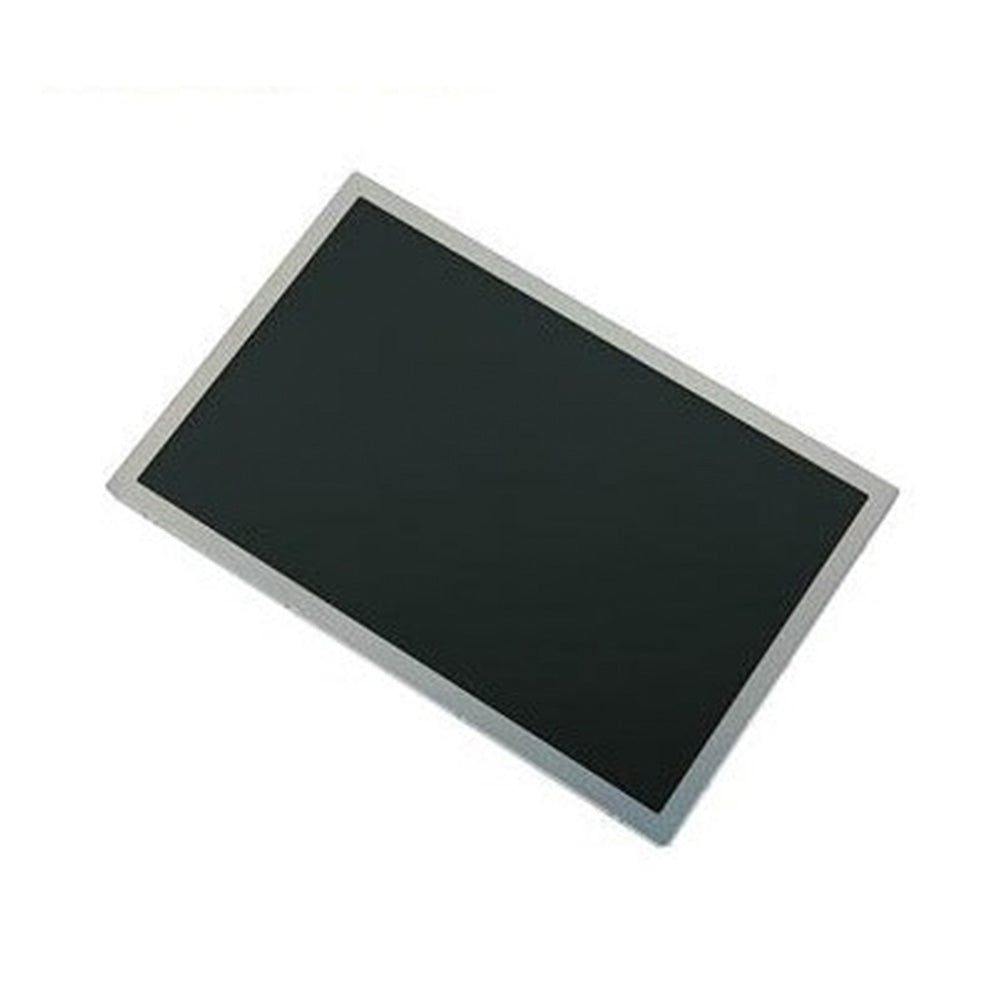

AUO A101VW01 V3

$65.00
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address
  • Module No:A101VW01 V3
  • Brand:AUO
  • Size:10.1 inch
  • Resolution:800*480
  • Brightness:300 cd/m²
  • Viewing angle:65/65/45/65
  • Interface:Parallel RGB (1 ch, 6-bit) , FPC , 60 pins
  • CR:500 : 1
  • Operating Temp.: -10 ~60 °C
Parameters
Manufacturer AUO
Model Name A101VW01 V3 
Screen Size 10.1
Pixel Number 800(RGB)×480 (WVGA)
Active Area(mm) 219.6 x 131.76 mm (H×V)
Outline(mm) 235(W) x 145.9(H) x 5.4mm (H×V×D)
Bezel Area(mm) 221.6 × 133.76 mm (H×V)
Treatment Hard coating
Luminance 300 cd/m² (Typ.)
Contrast Ratio 500 : 1 (Typ.) (TM)
Viewing Angle 65/65/45/65(CR≥10)
Left/Right/UP/Down
Response 12/18(Typ.)(Tr+Td) ms
Work Mode TN, Normally white Transmissive
Color Depth 262K , 48% NTSC
Backlight 20K hours,without LED Driver
Net Weight 315 g (Typ.)
Touchscreen without
Signal Type/interface Type Parallel RGB (1 ch, 6-bit) , FPC , 60 pins
Voltage Supply 3.3/8.8/15/-7.0V (Typ.)(VCC/AVDD/VGH/VGL)
Max. Ratings Storage Temp.: -20 ~70 °C
Operating Temp.: -10 ~60 °C
Package 20pcs/ carton

AUO 10.1 inch LCD screen A101VW01 V3 with 300 luminance and -10-60°C operating temp.
A101VW01 V3 has standard 800*480 resolution, it also has good-view angle.
This screen has 20000 hours lifetime of backlight, can support long term operating.
A101VW01 V3 has good viewing angle ,often be used in handheld devices and PAD.
