AUO A070VTN06.4 LCD Display

$28.00
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address

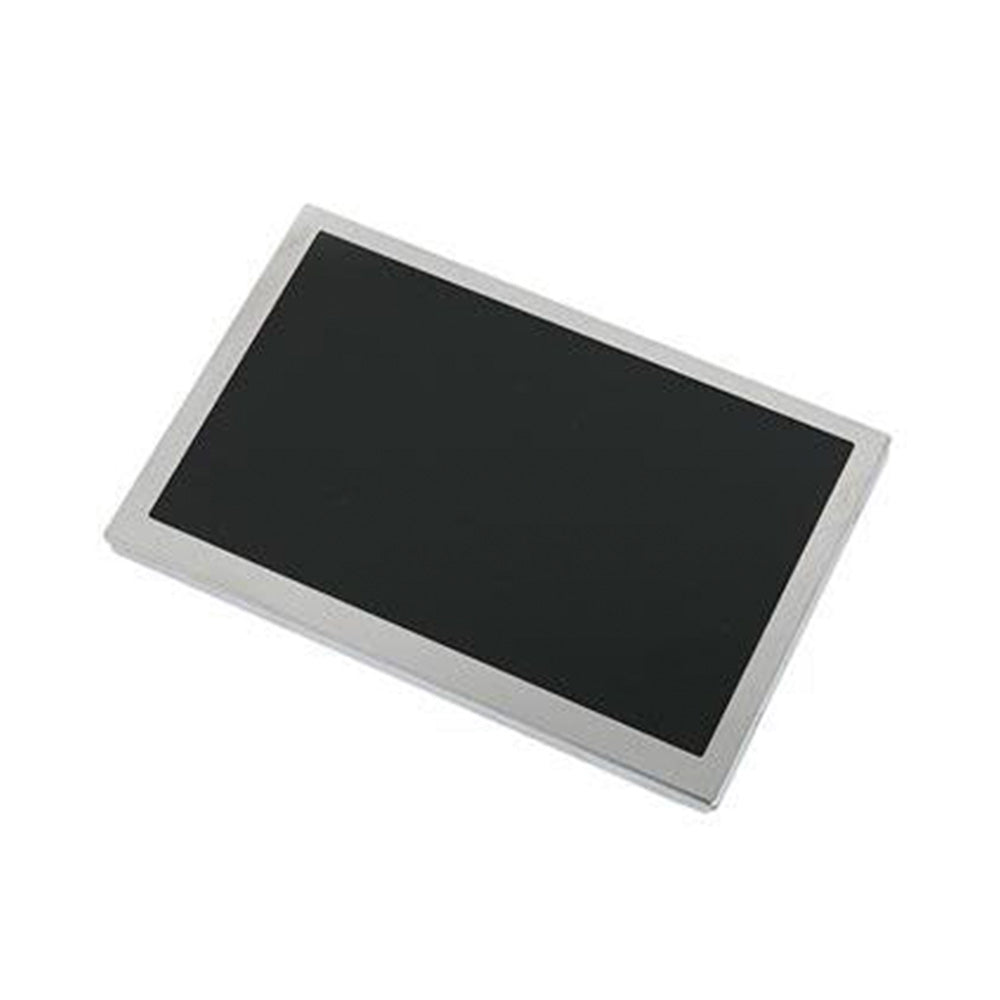

AUO A070VTN06.4 LCD Display

AU Optronics Corp. (hereafter called AUOA070VTN06.4 is a 7.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen.

  • Module No:A070VTN06.4
  • Brand:AUO
  • Size:7 inch
  • Resolution:800*480
  • Brightness:1250 cd/m²
  • Viewing angle:60/60/40/60
  • Interface:Parallel RGB (1 ch, 4-bit) , 51 pins , FPC
  • CR:500 : 1
  • Operating Temp.: -30-85℃
  • Parameters
Manufacturer AUO
Model Name A070VTN06.1
Screen Size 7
Pixel Number 800(RGB)×480, WVGA
Active Area(mm) 154.08×85.92mm (H×V)
Outline(mm) 166.43×102.2 ×6.6 (H×V×D)
Bezel Area(mm) 157.29×90.91 mm (H×V)
Treatment
Luminance 1250 cd/m² (Typ.)
Contrast Ratio 500 : 1 (Typ.) (TM)
Viewing Angle 60/60/45/60(CR≥10) Left / Right/UP /Down
Response 25 (Typ.)(Tr/Td) ms
Work Mode TN, Normally white, Transmissive
Color Depth 262K , 50% (CIE1931)
Backlight 10K hours,without LED Driver
Net Weight
Touchscreen without
Signal Type/interface Type  Parallel RGB (1 ch, 4-bit) , 51 pins , FPC
Voltage Supply 3.3V (Typ./Max.)
Max. Ratings Storage Temp.: -30 ~ 85 °C
Operating Temp.: -30 ~85 °C
Package 56 pcs/ carton

    AUO 7inch LCD screen A070VTN06.1 with 1250 luminance and -30-85 operating temp.

    A070VTN06.1 has standard 800*480 resolution.


    This screen has 10000 hours lifetime of backlight, can support long term operating.
