HD702E 7″ eDP LCD Display | Capacitive Touch | 800×1280 | eDP 30-Pin | Android Lubuntu

$60.00
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address

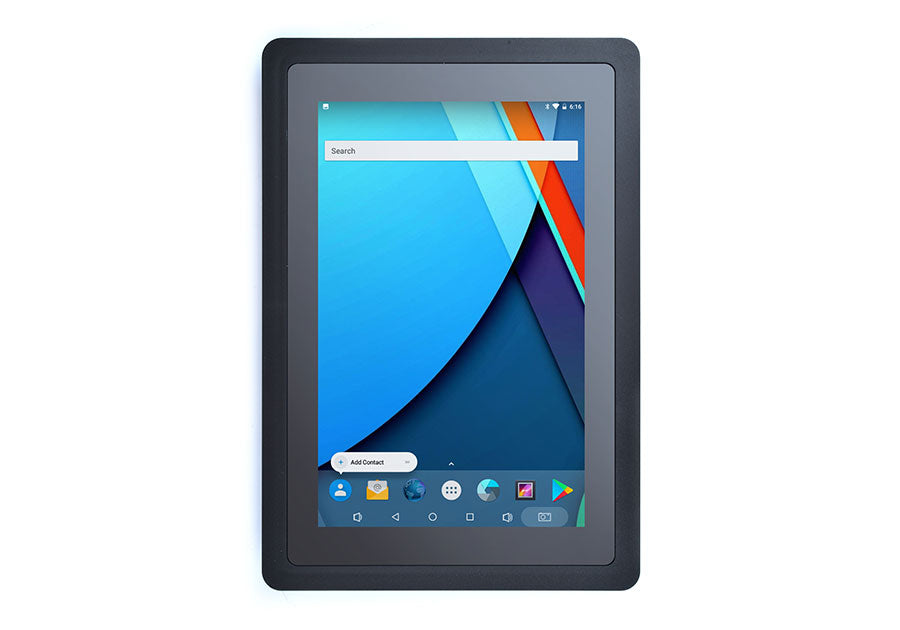

The HD702E 7″ eDP LCD Display by Friendly Elec is a compact high-resolution display module with capacitive touch, engineered for embedded HMIs, control panels, and development boards running Android or Lubuntu.

Featuring a portrait-oriented 800 × 1280 resolution and a standard 30-pin eDP connector (I-PEX-20455-030E), the HD702E delivers reliable signal integrity and sharp visuals in space-constrained designs.

✔ 7″ eDP LCD • 800×1280 Resolution
✔ Capacitive Touch Panel
✔ PWM Backlight Control • Open-Source Driver

Display Specifications

Screen size: 7 inches
Resolution: 800 × 1280
Display mode: Normally black
Response time: 50 ms (max)

Touch & Interface

Capacitive touch panel
eDP display interface

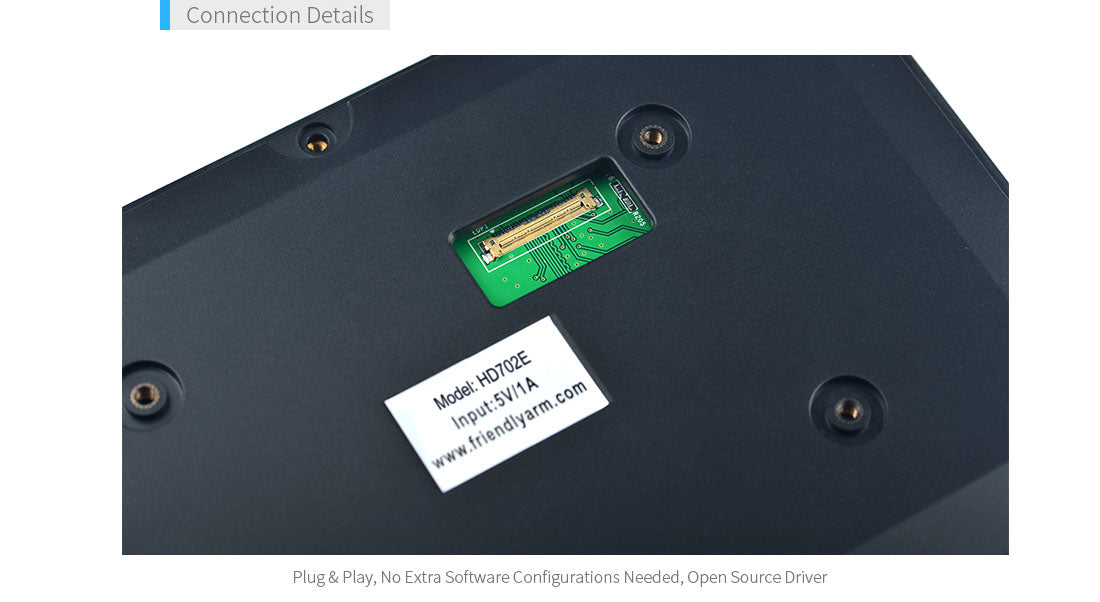

30-pin I-PEX eDP connector
Backlight adjustable via PWM

Optics & Color

Pixel pitch: 0.11775 × 0.11775 mm
Color arrangement: RGB vertical stripe
Color depth: 262K (6-bit) / 16.7M (8-bit)

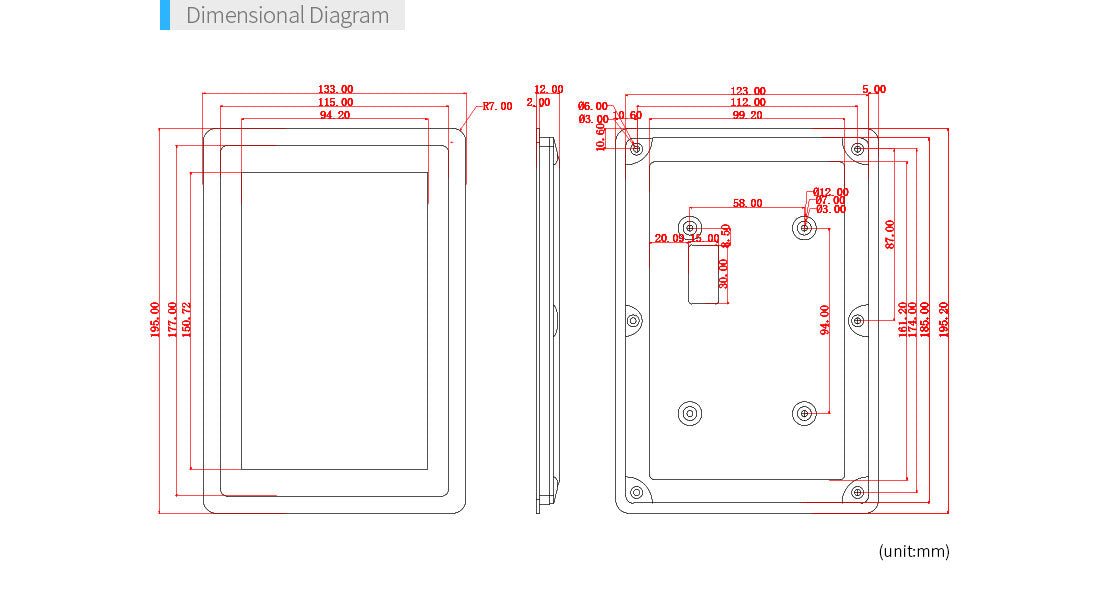

Mechanical Design & Compatibility

Active display area: 94.2 × 150.72 mm

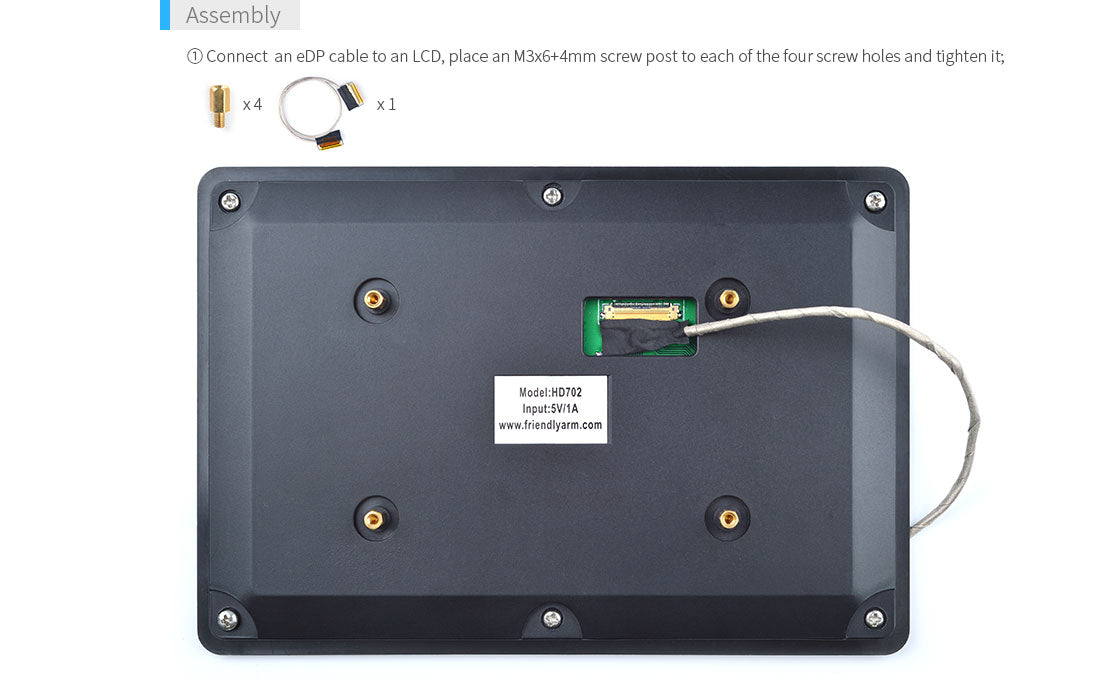

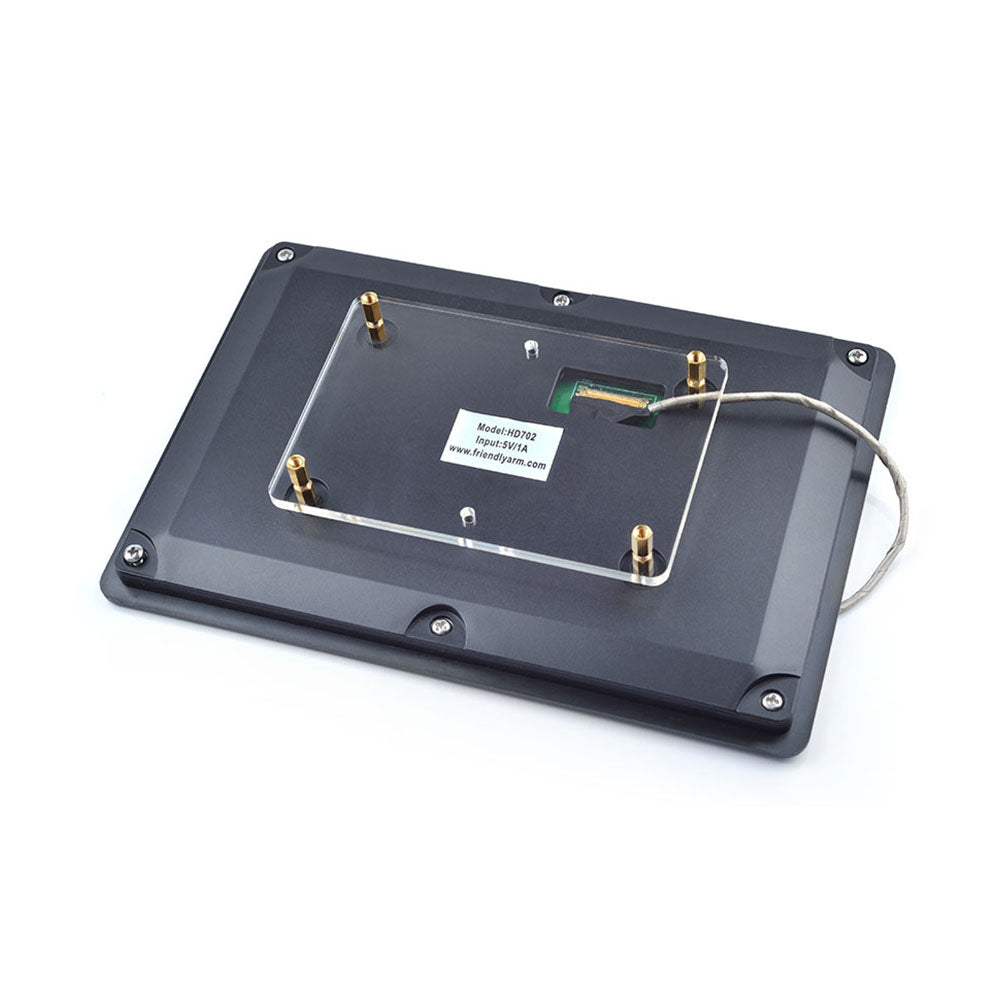

Black bezel with integrated mounting holes

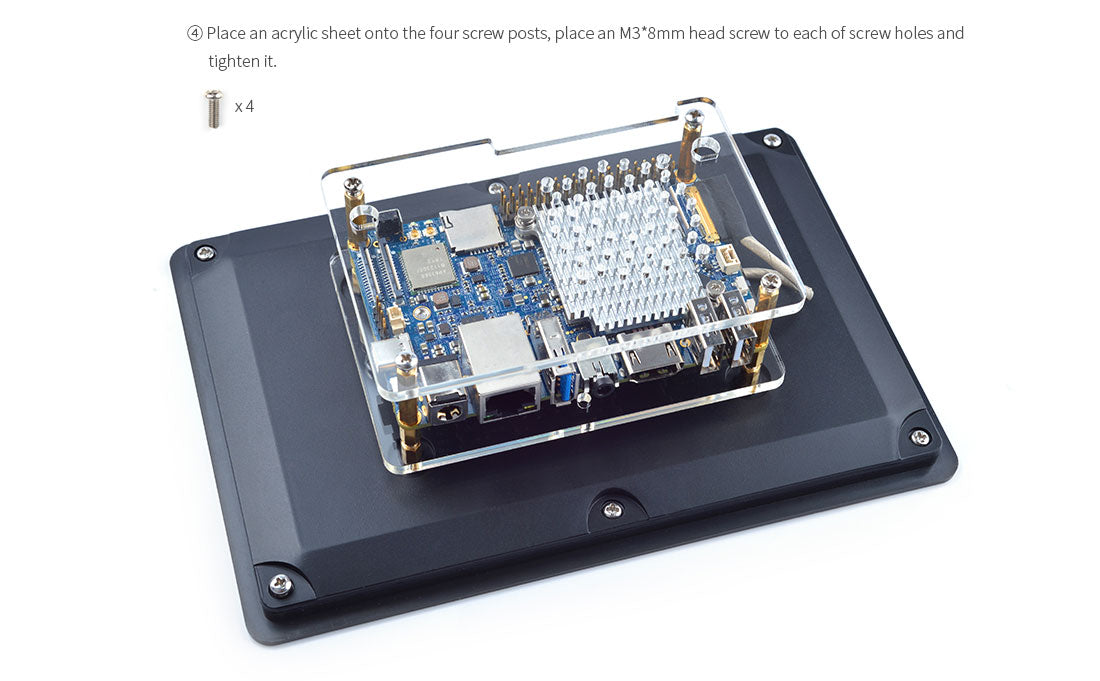

Designed for secure installation in embedded enclosures

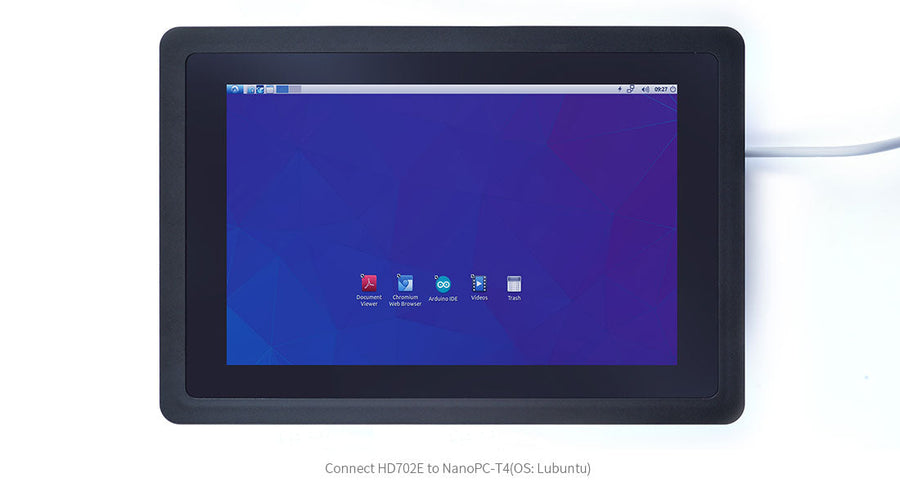

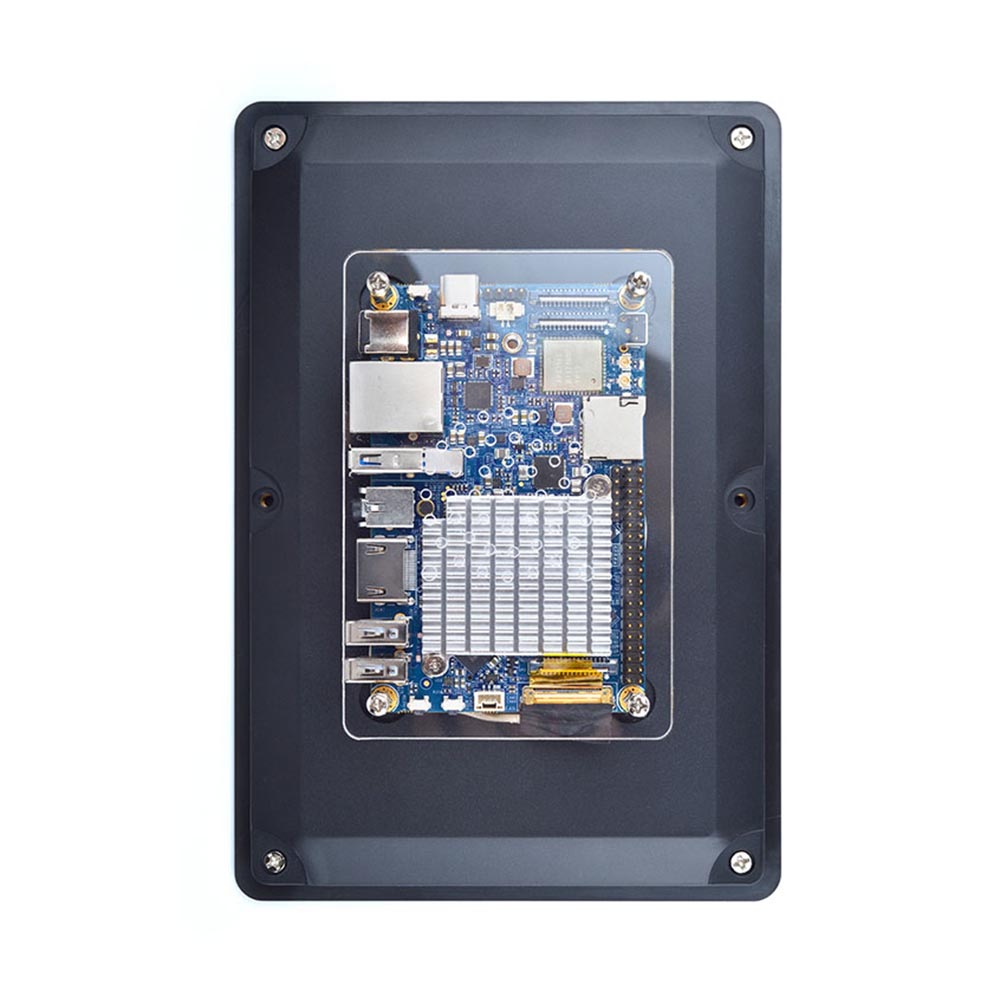

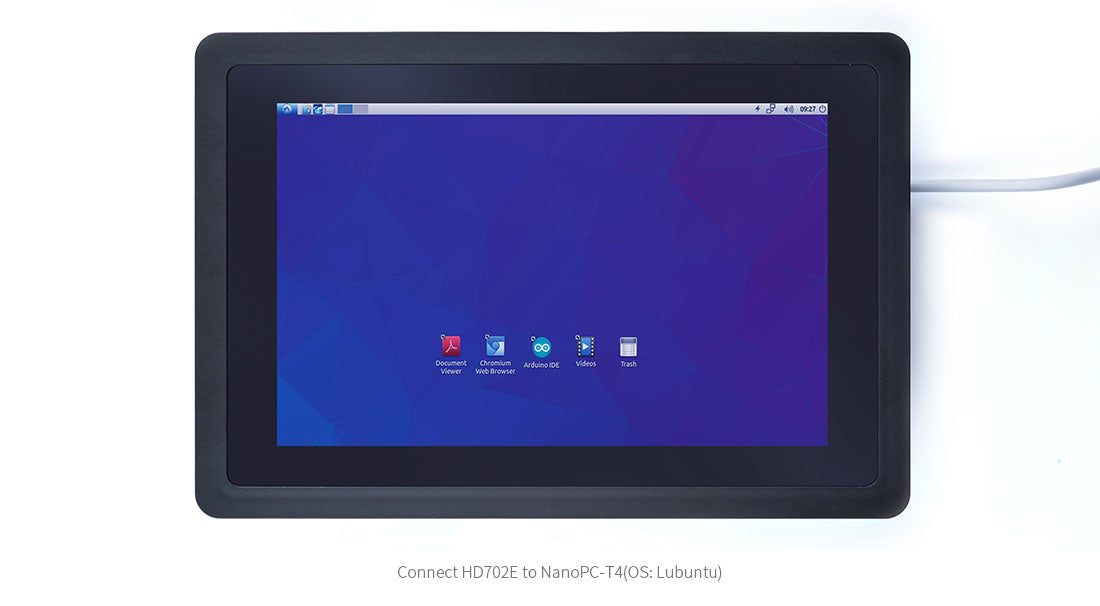

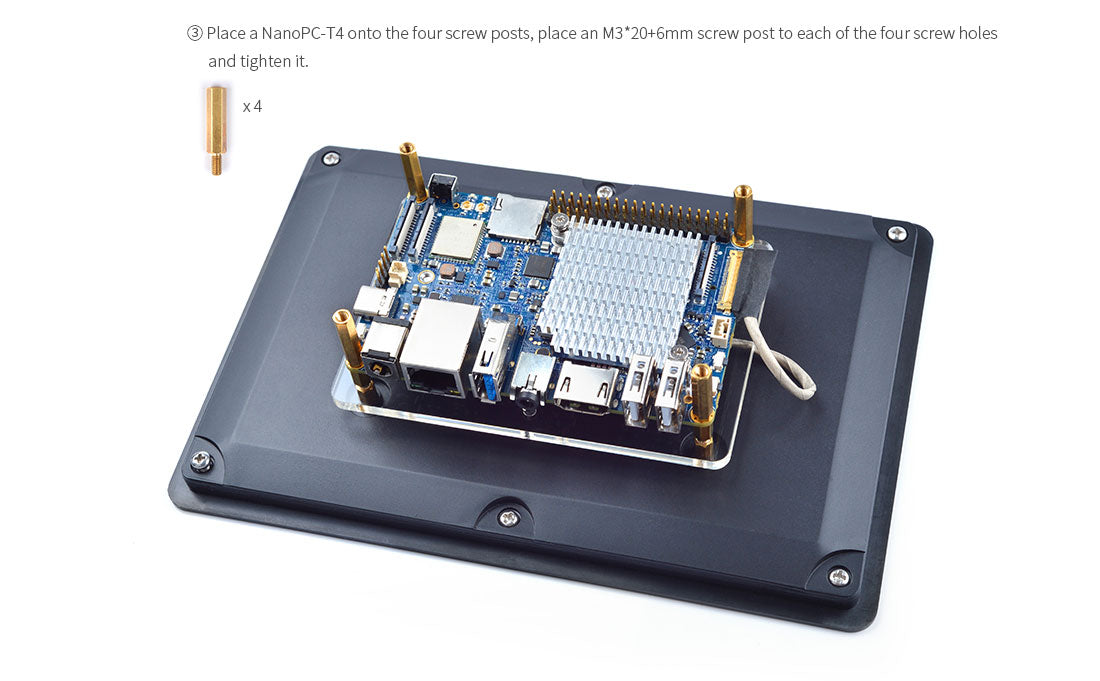

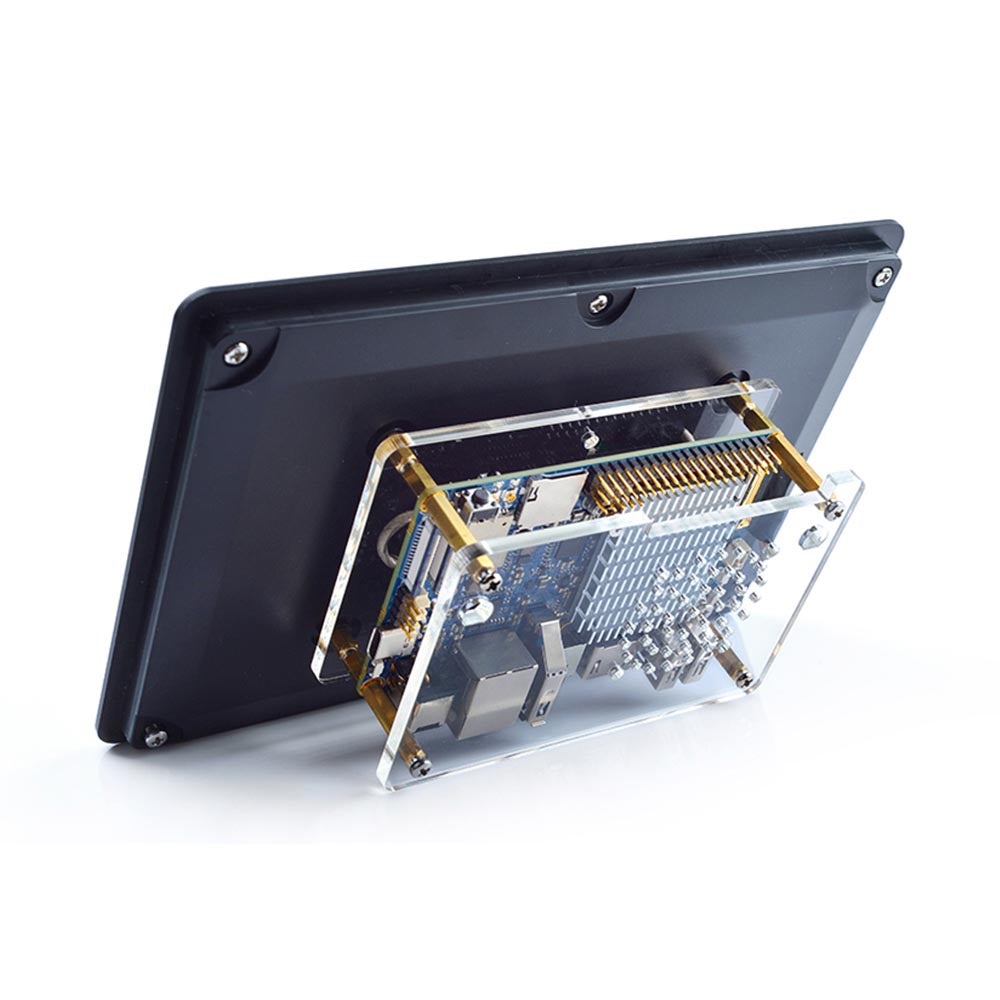

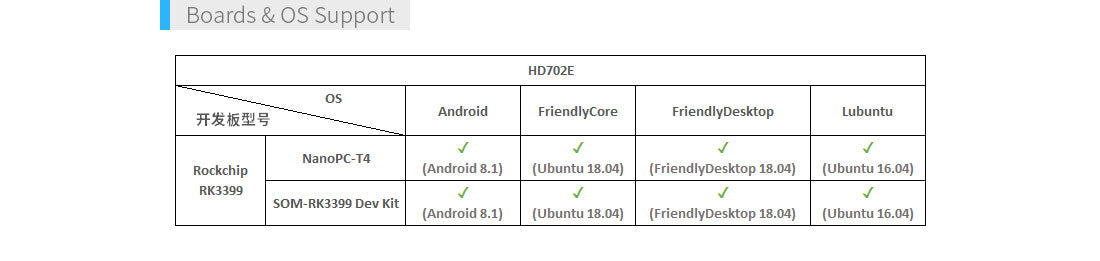

The HD702E is designed to work seamlessly with FriendlyELEC NanoPC-T4, making it an excellent choice for compact HMIs, portable terminals, and embedded visualization systems.

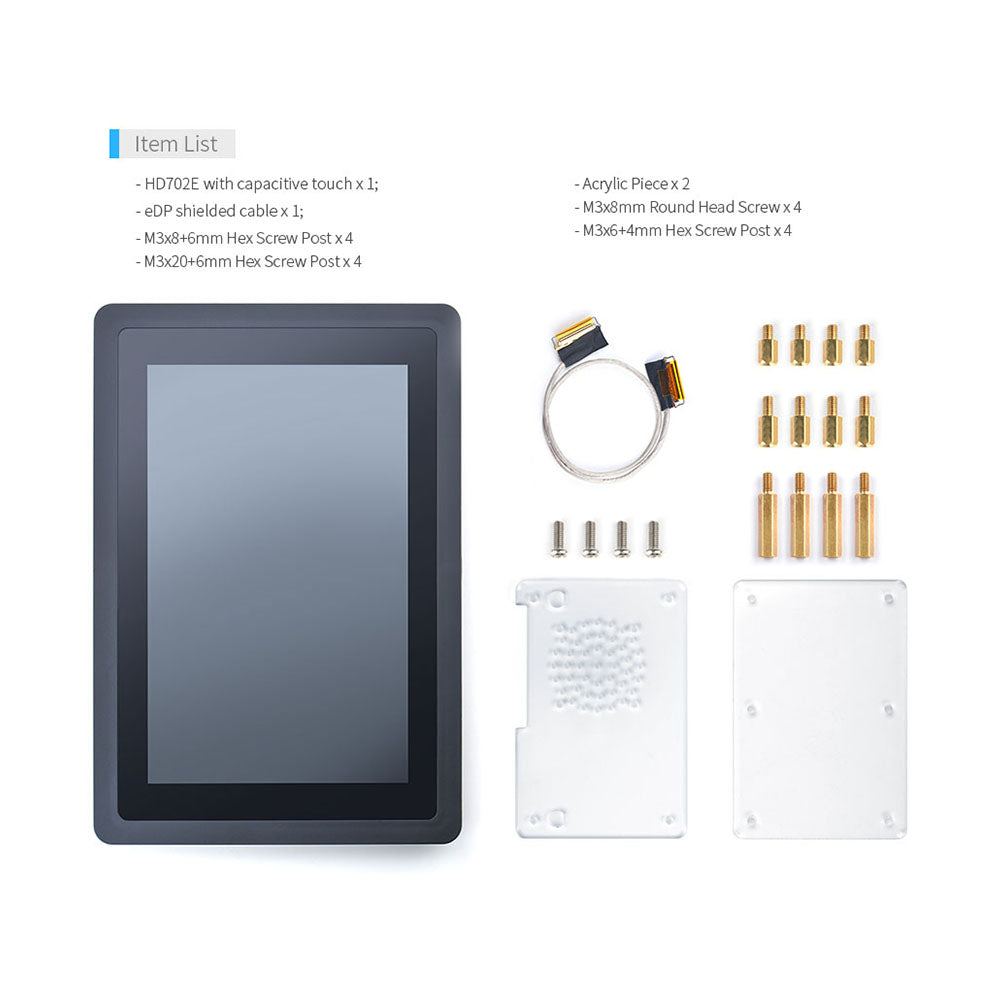

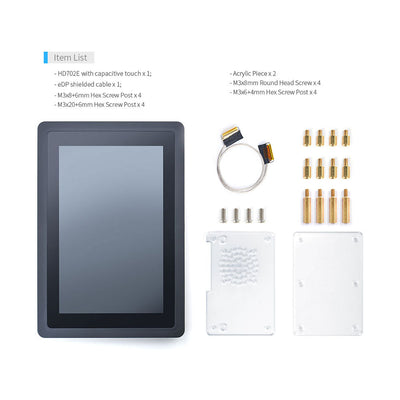

This product is supplied as a display module only. Host boards, cables, and mounting accessories are not included unless specified.
