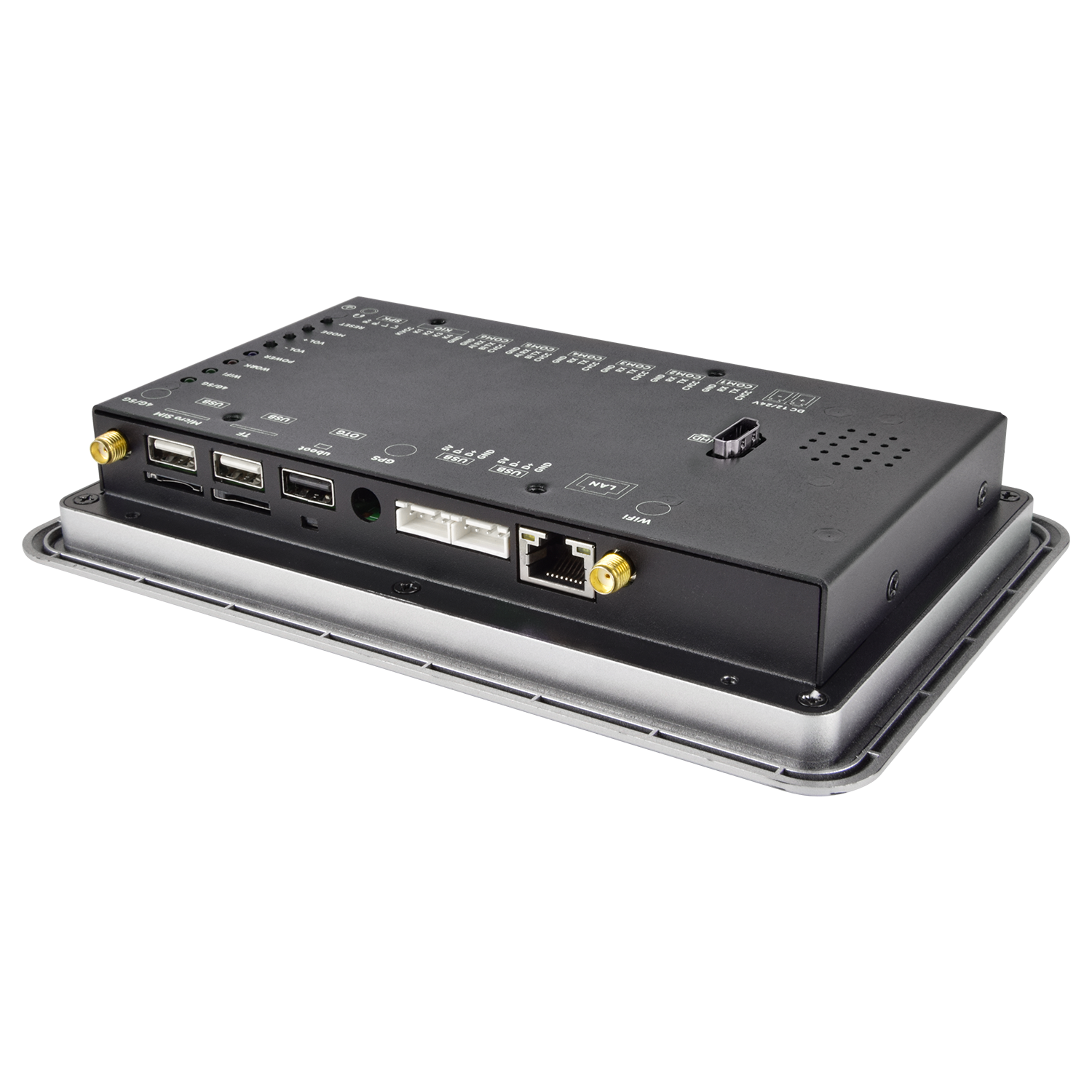

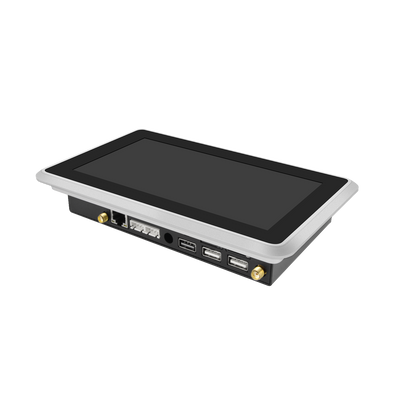

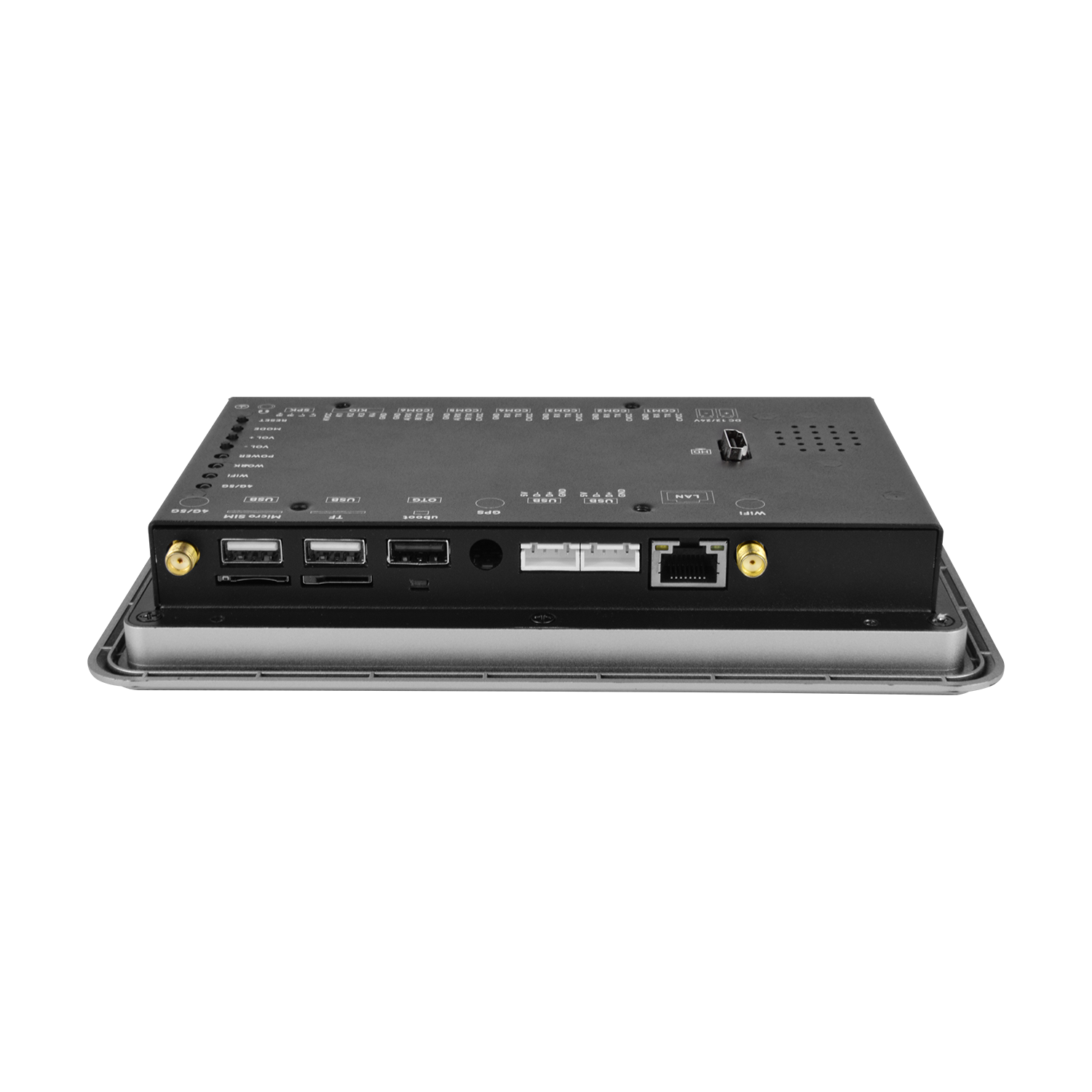

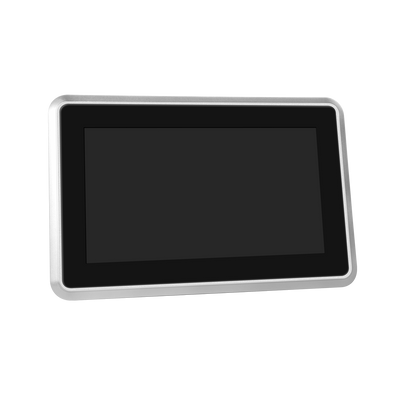

7" RK3288 2x INT SPK All in One HMI Android Panel PC, IPS, ABS Larger Frame

$158.00
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address

GeniusCore Embedded Systems "ControlHUB Series" Plastic Larger Frame Multiport Panel PC


7" inch IPS Screen, All in One HMI Android Panel PC, RK3288 2GB RAM 16GB ROM, Configurable 6COM TTL RS232 RS485



Model: GFCX-A070H3288-2G16

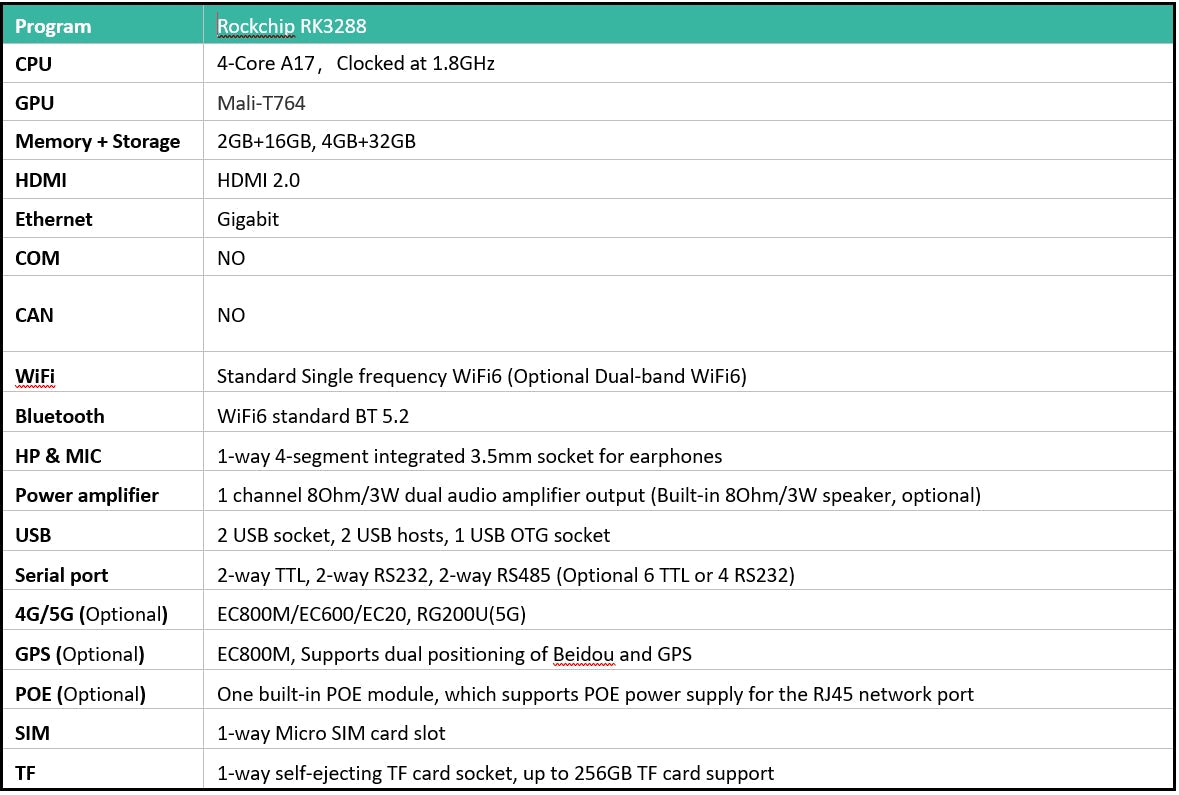

ControlHUB Series RK3288 Standard Configuration:
- CPU: RK3288 2GB RAM 16GB ROM Quad Core A17, Up to 1.8GHz

- GPU: Mali-T764

- Operating System: Android 7.1 / 5.1 / 6.0 / 8.1 / Ubuntu 18.04 / Linux QT / Debian 9

- IP65 Waterproof Front Panel

- Memory: Default 2GB RAM +16GB ROM (4G+32G Optional)

- Storage: Default 16GB EMMC NAND Chips, Expandable Up to 256GB

- External Storage: Support TF Card Up to 256GB /OTG

Ethernet: 1000Mbps

- Wifi: default Wifi6 2.4GHz Single-frequency (5GHz dual frequency optional)

- Bluetooth: Default WiFi6BT 5.2

- 4G/5G Optional: EC800M/EC600/EC20,RG200U(5G)

- 1-way Micro SIM card slot


- HDMI 2.0 Built in

- GPS (Optional): EC800M,Supports dual positioning of Beidou and GPS

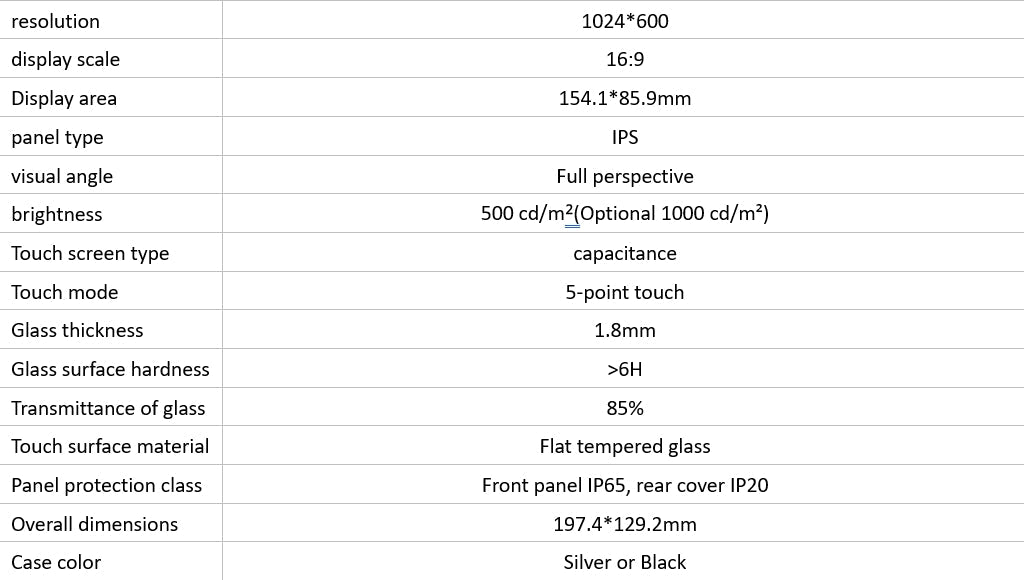

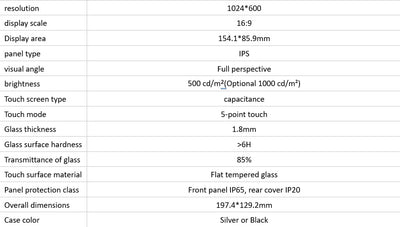

- Screen: 7 Inch, 1024*600 Pixel, IPS Capacitive LCD Panel, display scale 16:9

- Brightness: 500 cd/m2 (Optional 1000cd/m2)

- USB: 4*External USB 2.0 Socket, 1*External USB-OTG Socket, Support USB Camera Within 2M Pixels

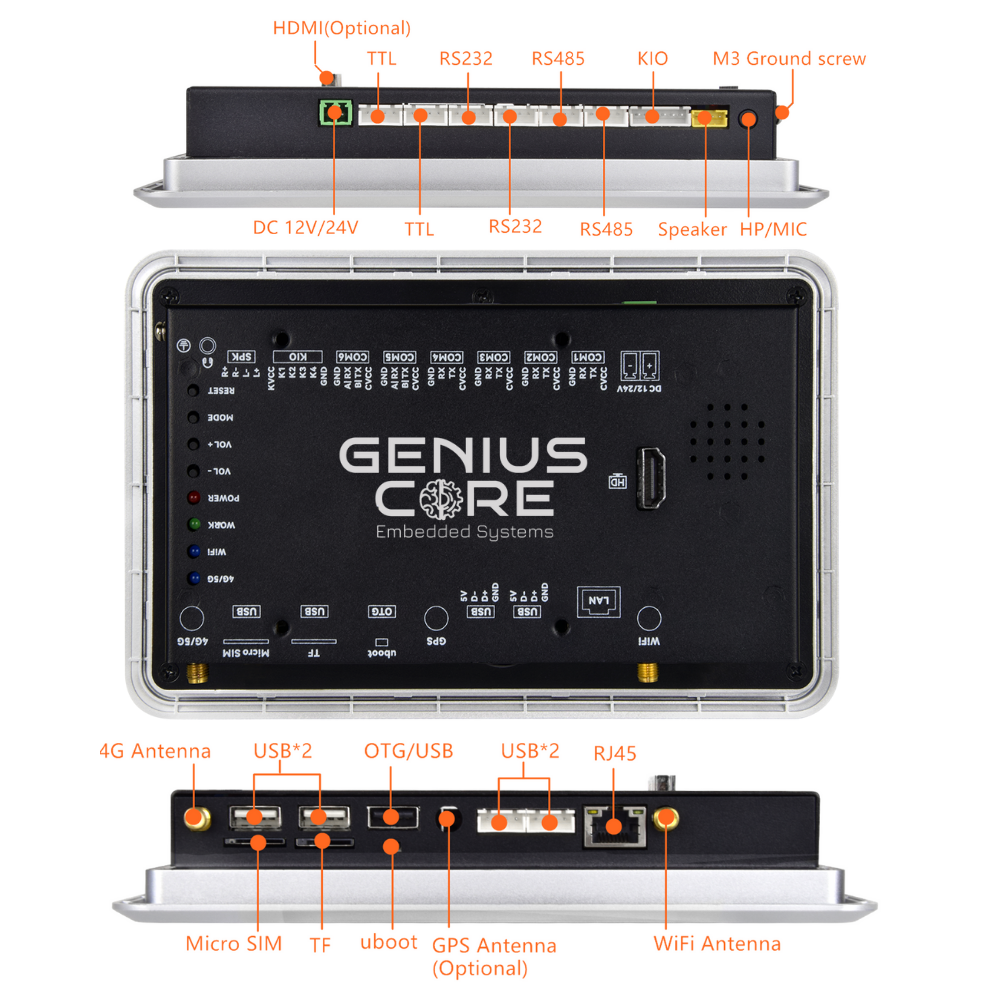

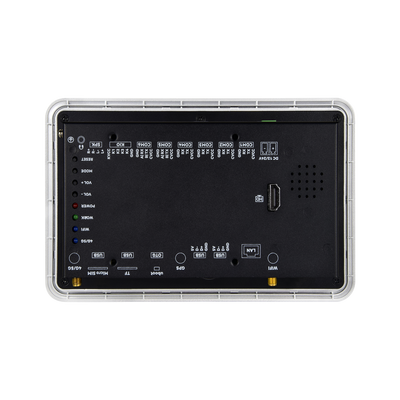

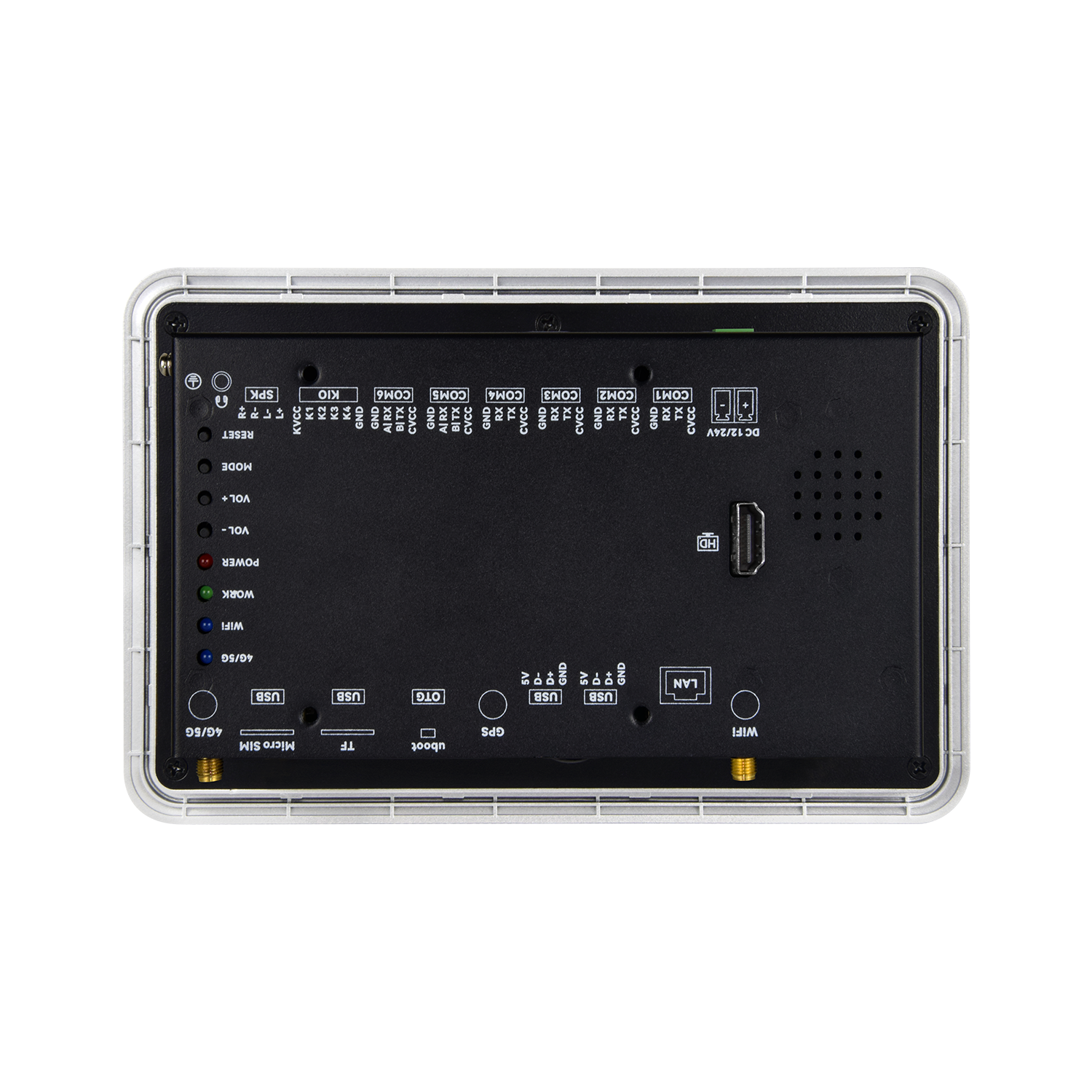

- Serial Interface: 6 COM Ports: Default: RS232, RS485, TTL Optional Configurable TTL/RS232/RS485 (Data Serial Port and Debugging Serial Port)

- 4-way GPIO Signal, Expandable GPIO Button or 3.3V Input / Output

- Reset button, back button, volume + and volume -, burn button

- LED: Power indicator, operation indicator, Wifi indicator, 4G/5G network indicator

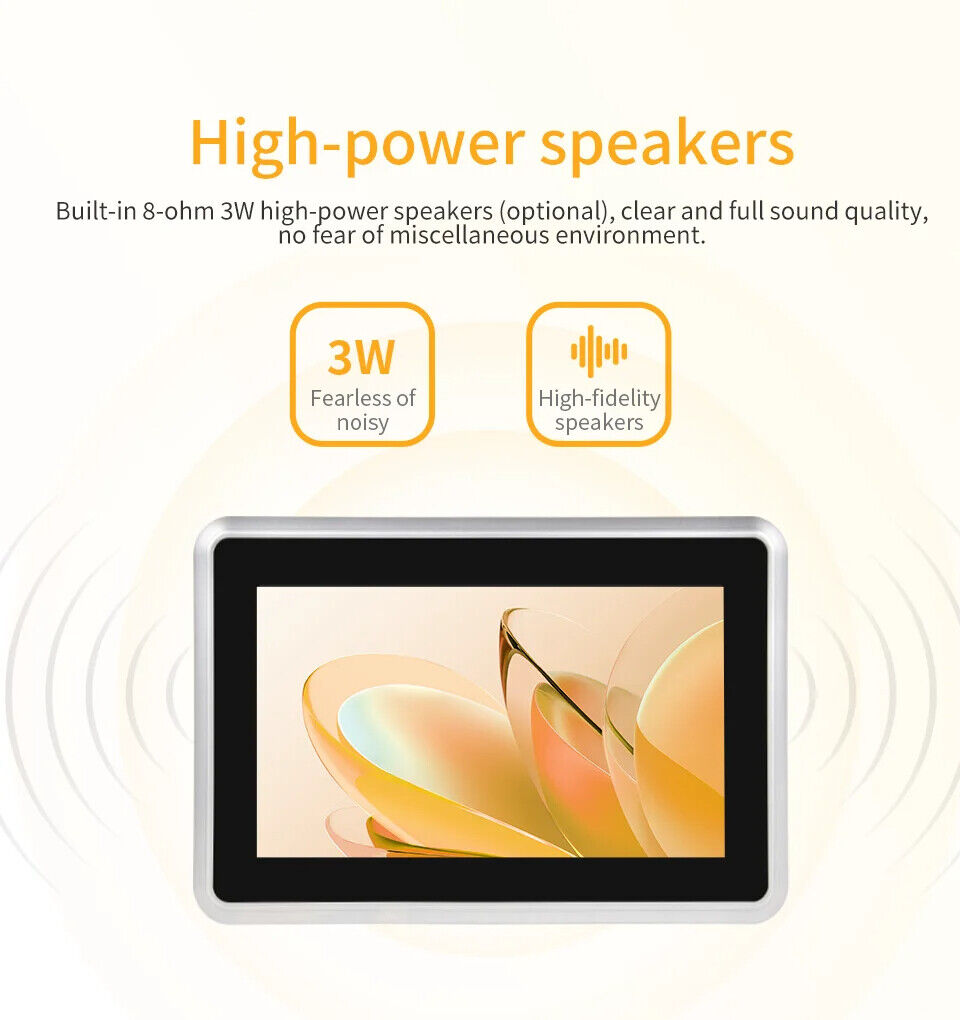

- Amplifier 8 ohm 6W Dual-channel Audio Amplifier Output

- Earphone:  4-band headset integrated 3.5mm socket

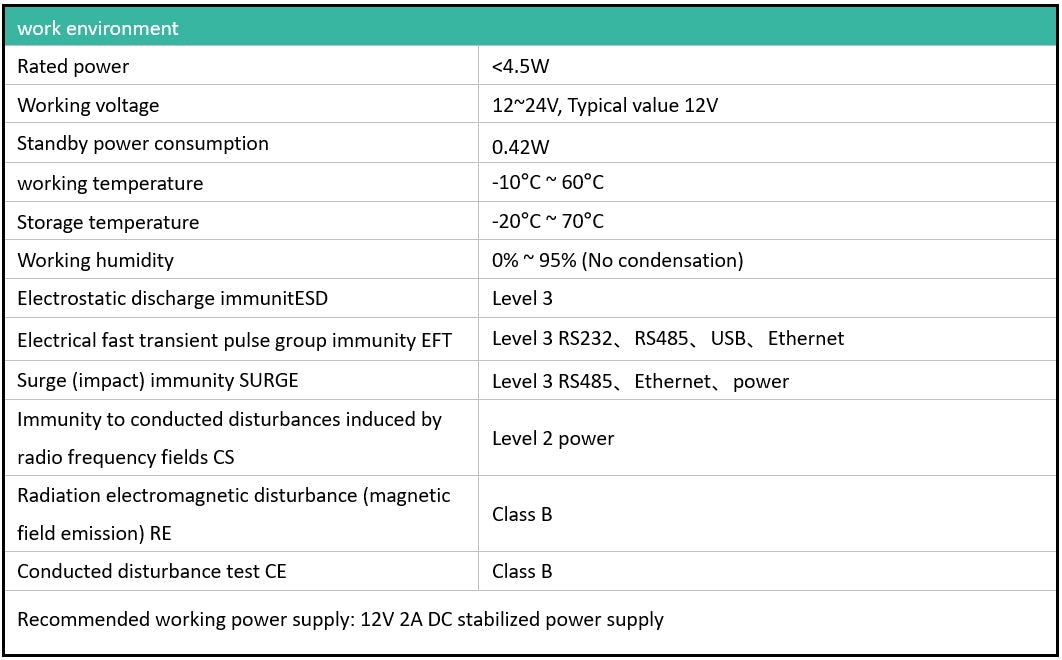

- Power: 1 circuit, DC12V ± 5%/DC24V ± 5% power supply, DC 2P-3.81MM

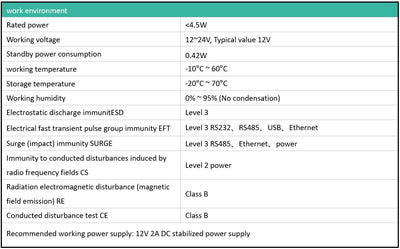

- Working Voltage: 9-24V, typical value 12V

- Working Temperature:-10°C-60°C

- Storage Temperature: -20°C-70°C

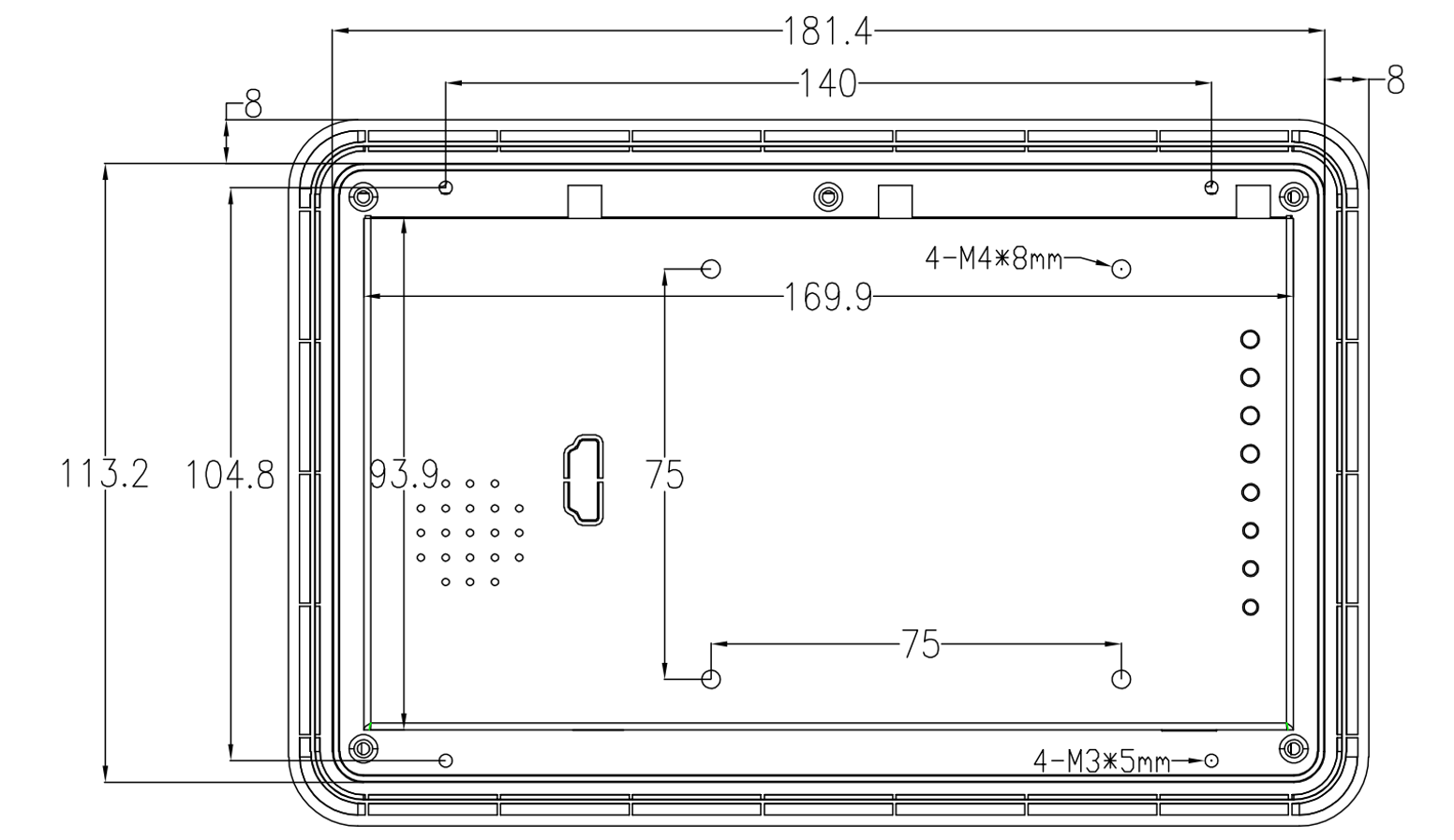

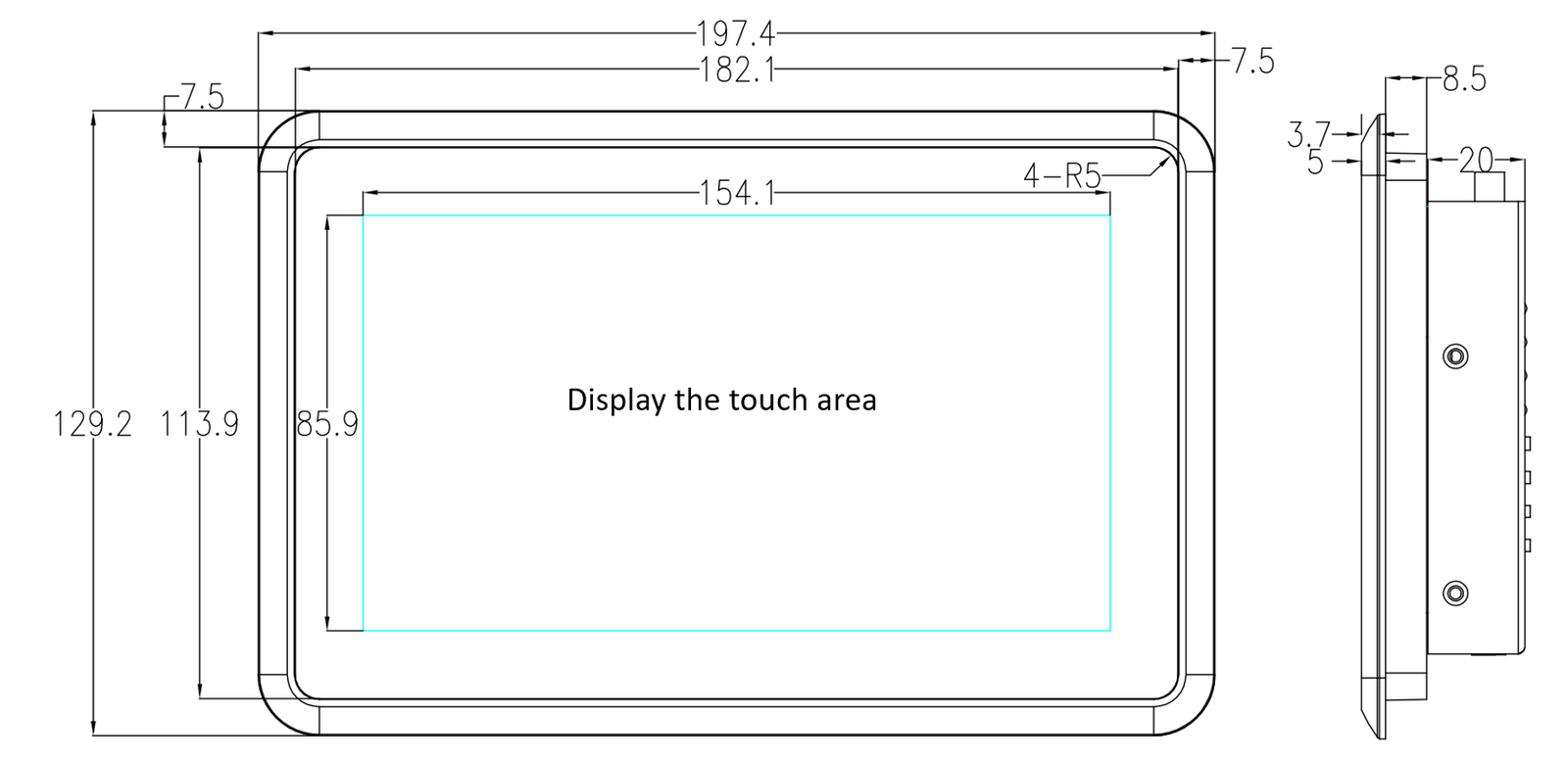

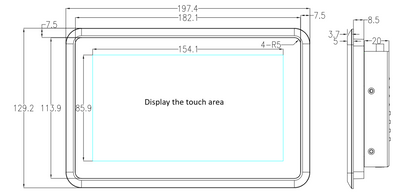

- Overall Dimension: L*W*H 197,4*129,2*31,8mm

- Display Dimension:182,8*114,6mm
