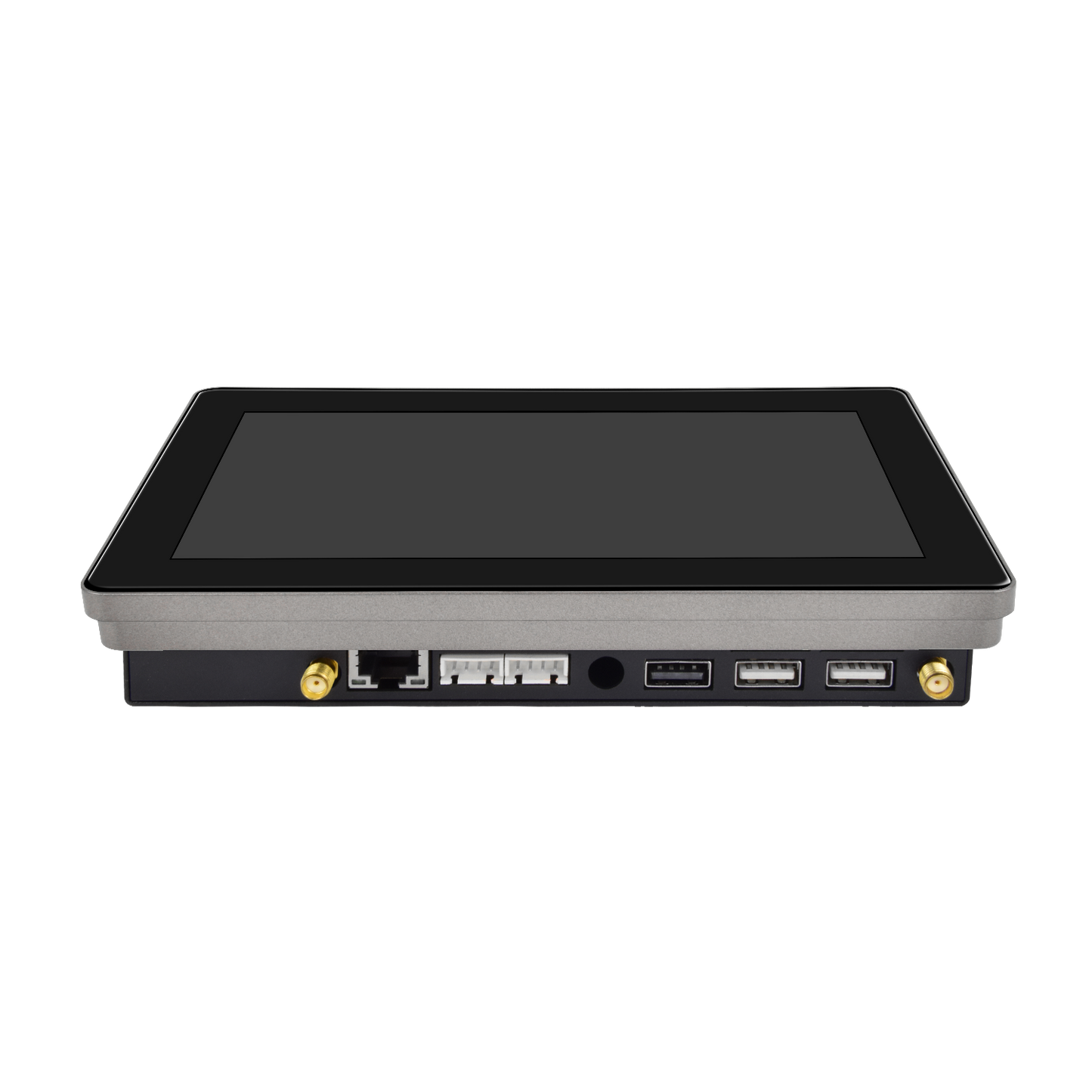

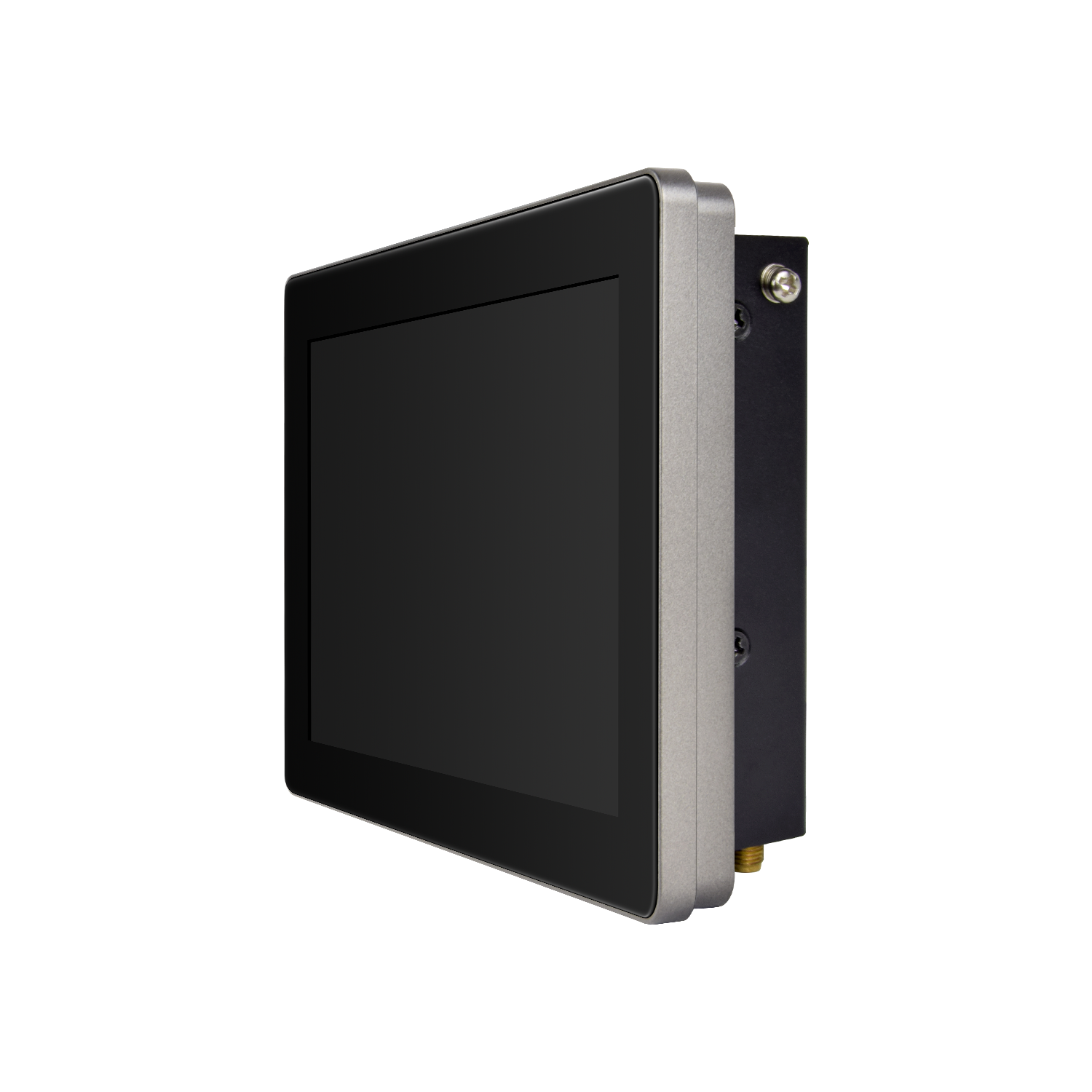

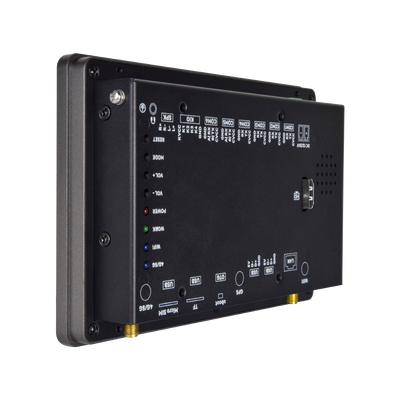

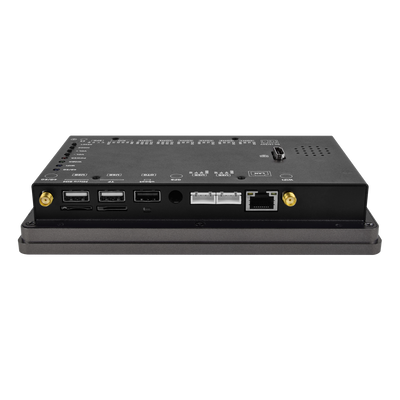

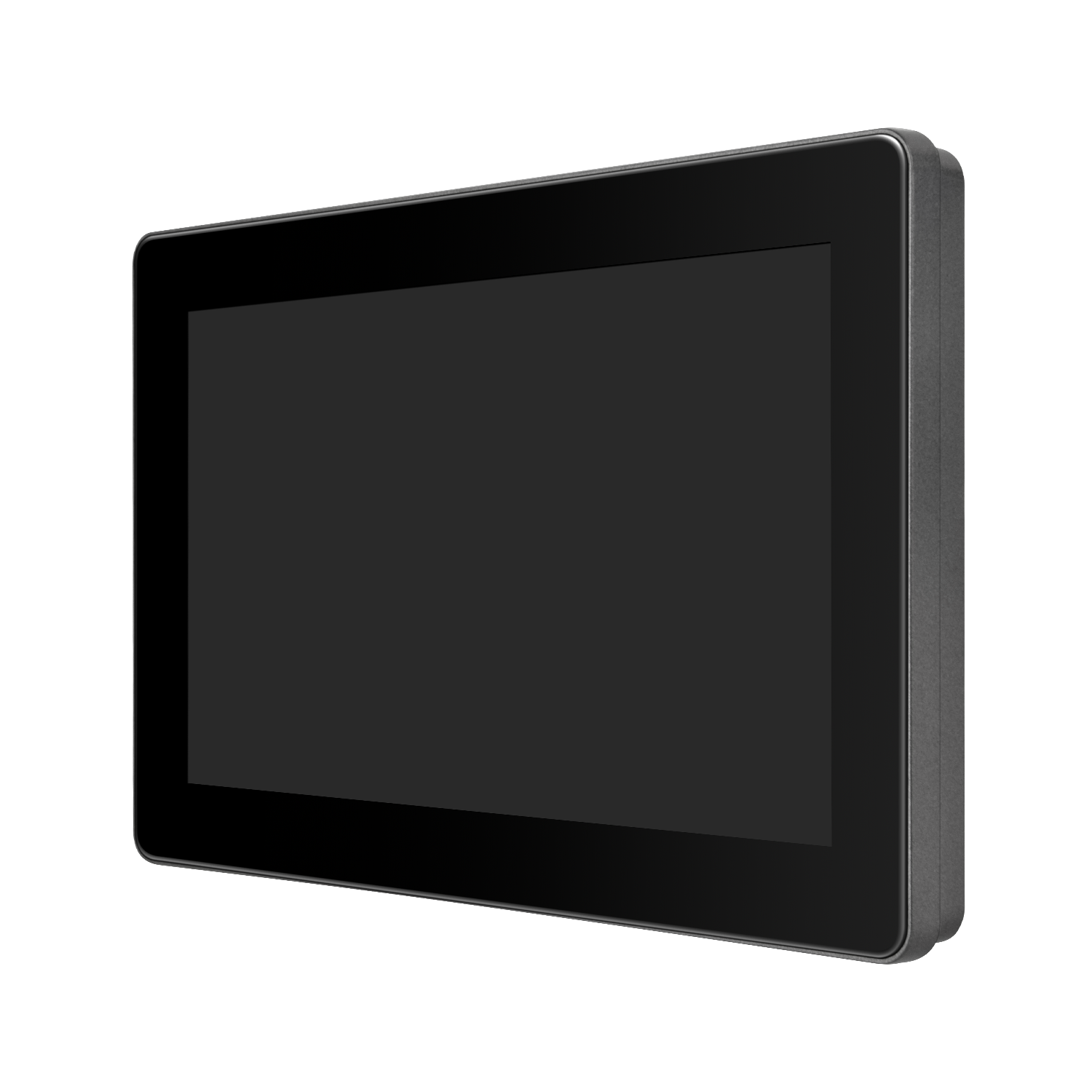

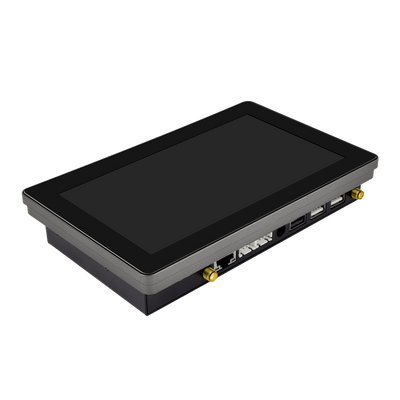

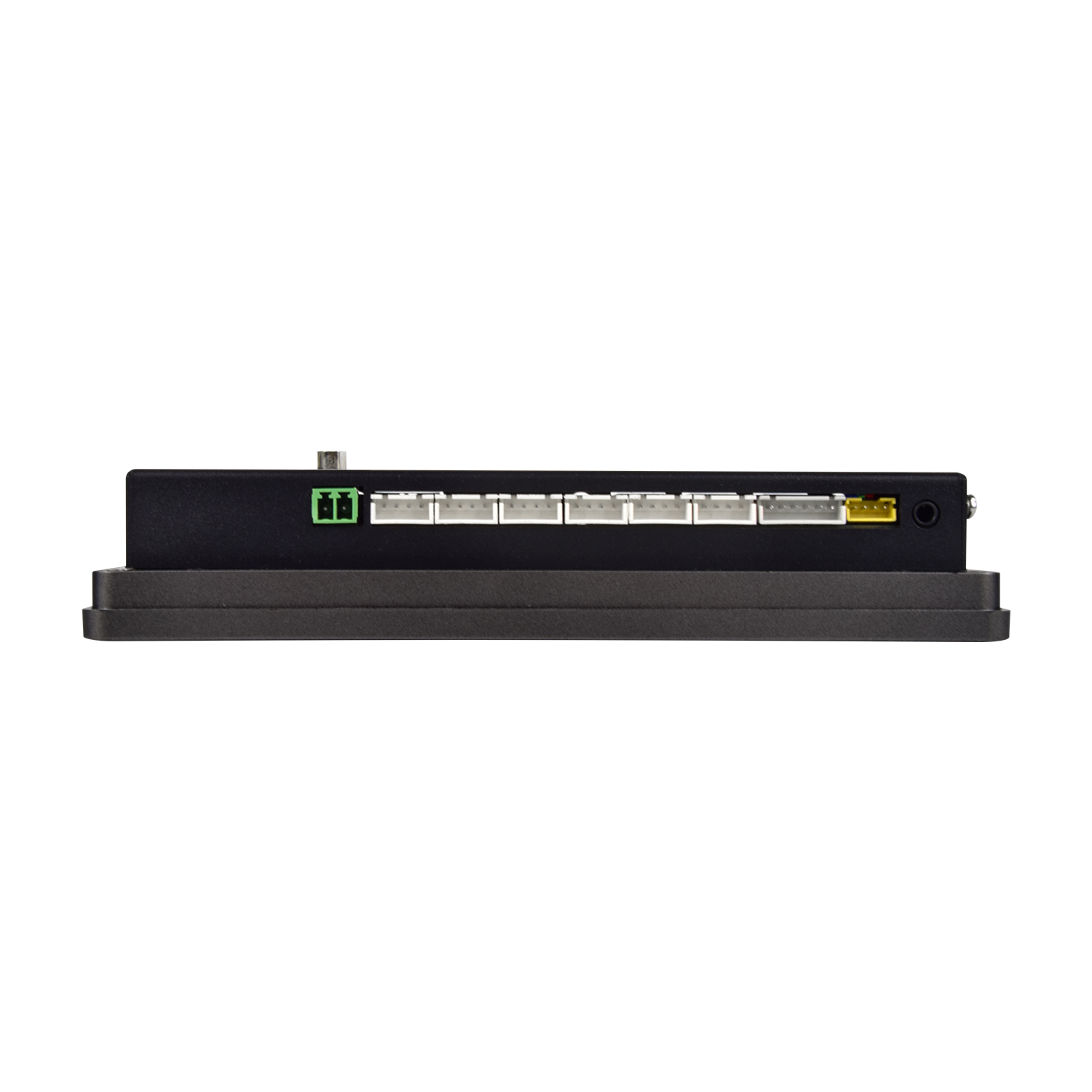

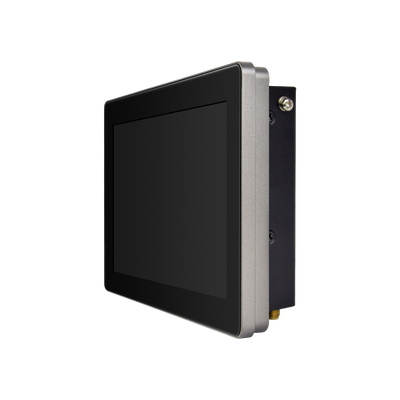

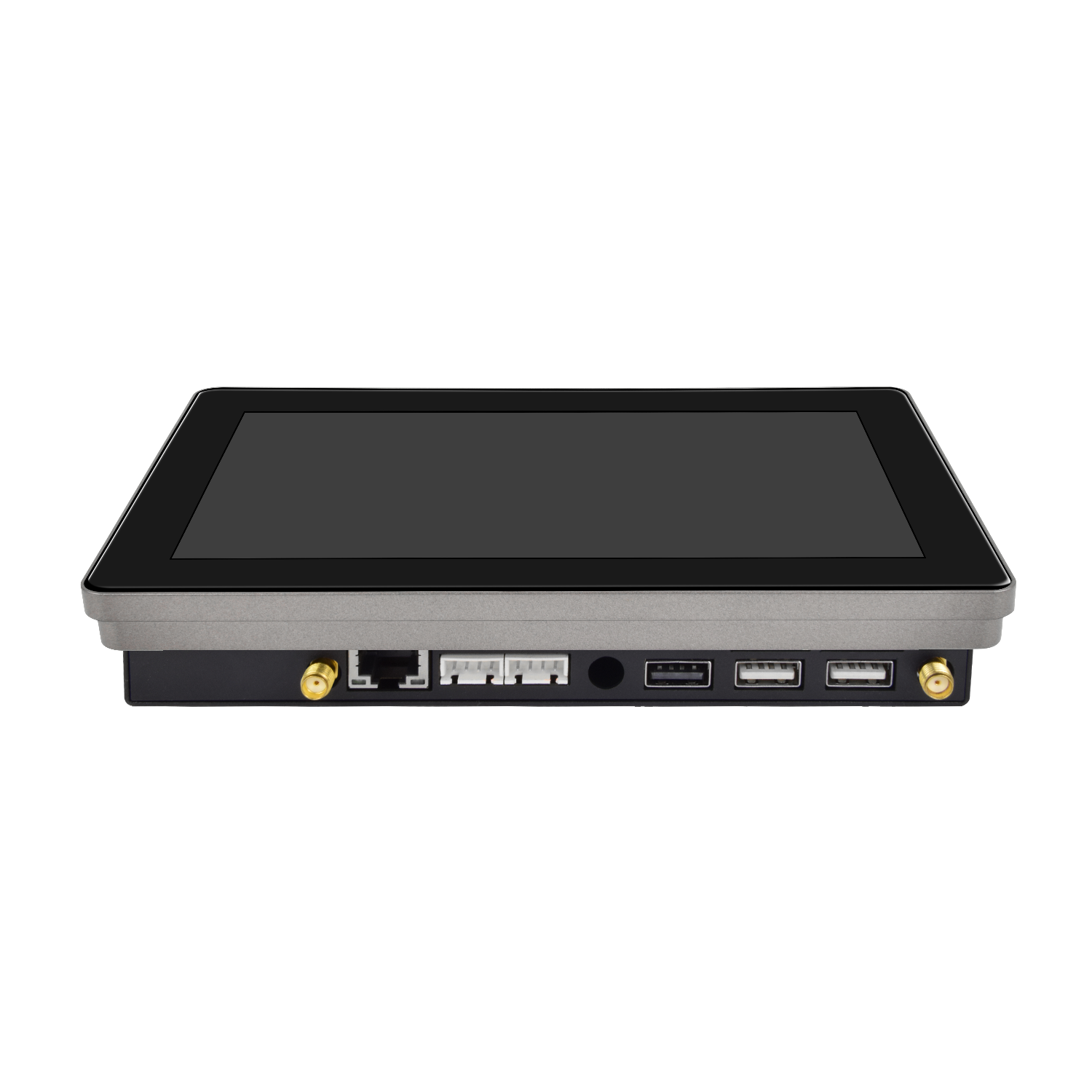

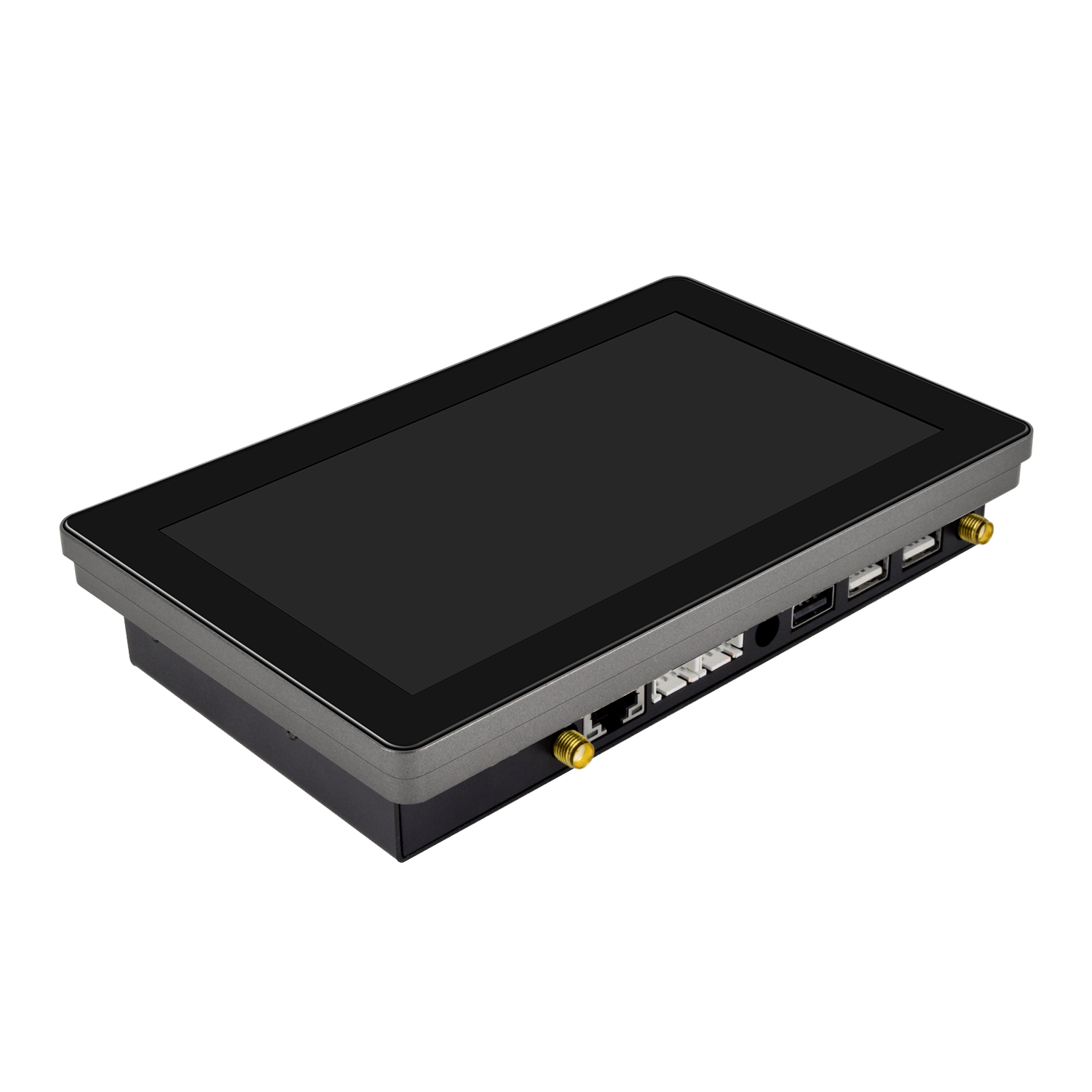

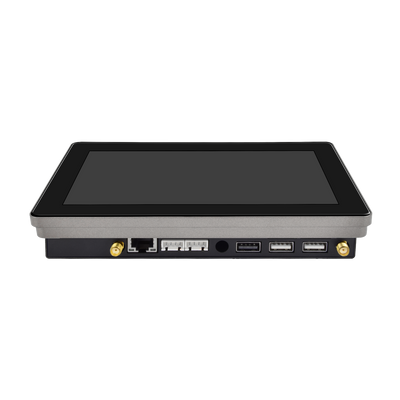

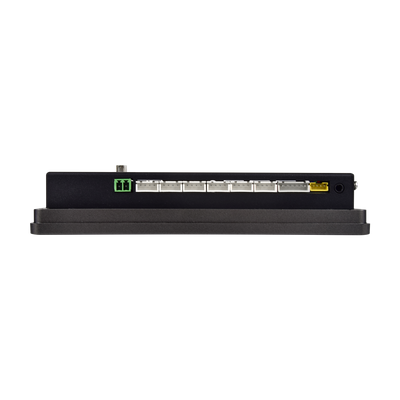

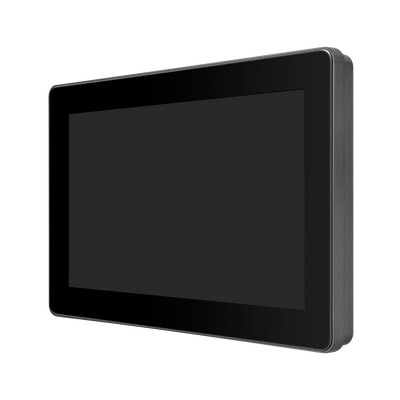

7" inch A133P 2x INT SPK All in One HMI Android Panel PC, IPS, ABS Frame

$121.00
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address

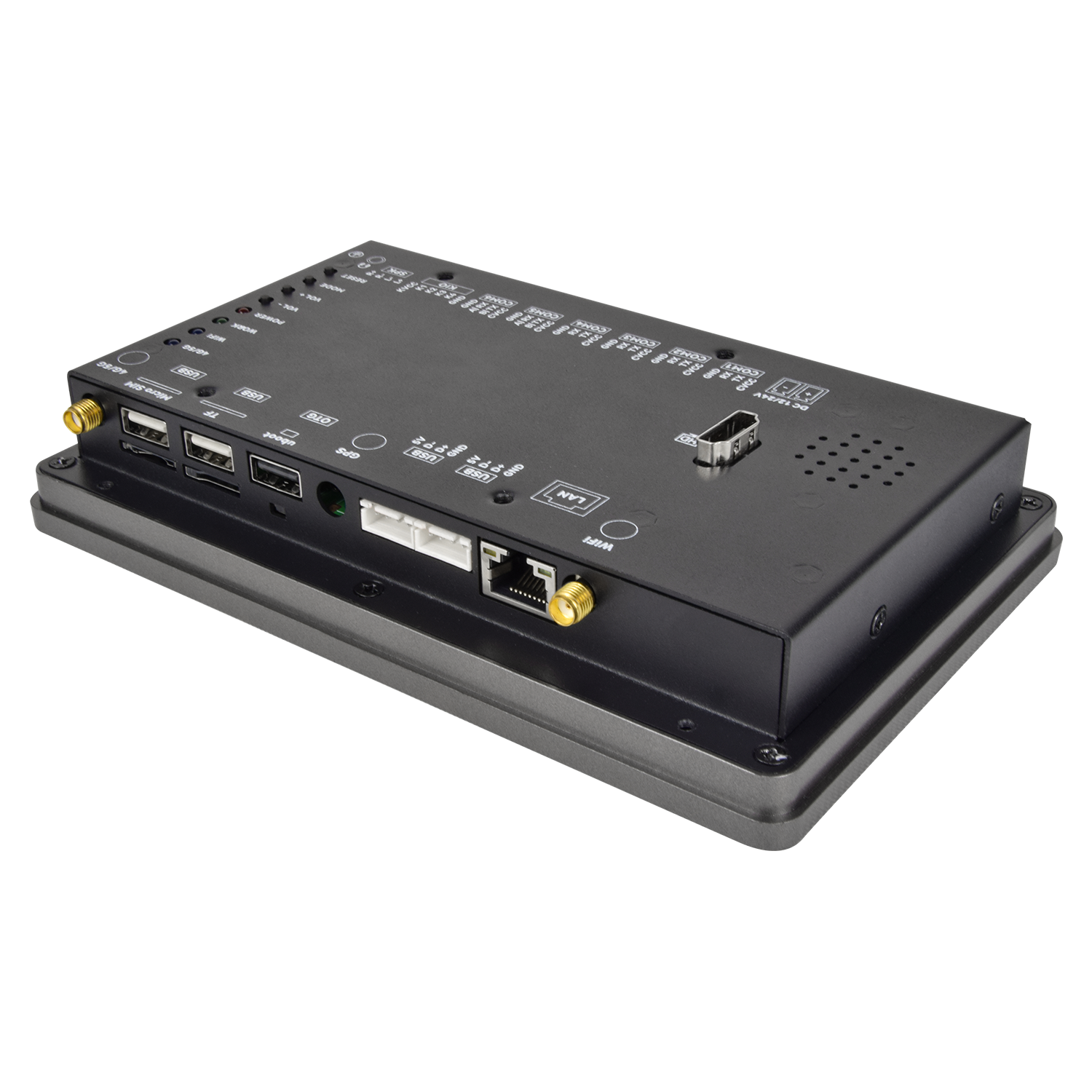

GeniusCore Embedded Systems "ControlHUB Series" Plastic Frame Multiport Panel PC


7" inch IPS Screen, All in One HMI Android Panel PC, A133P 1G RAM 8G ROM, Built in GPIO, Configurable 6COM TTL RS232 RS485, Optional Relay



Model: GFCX-A070P133P-1G08

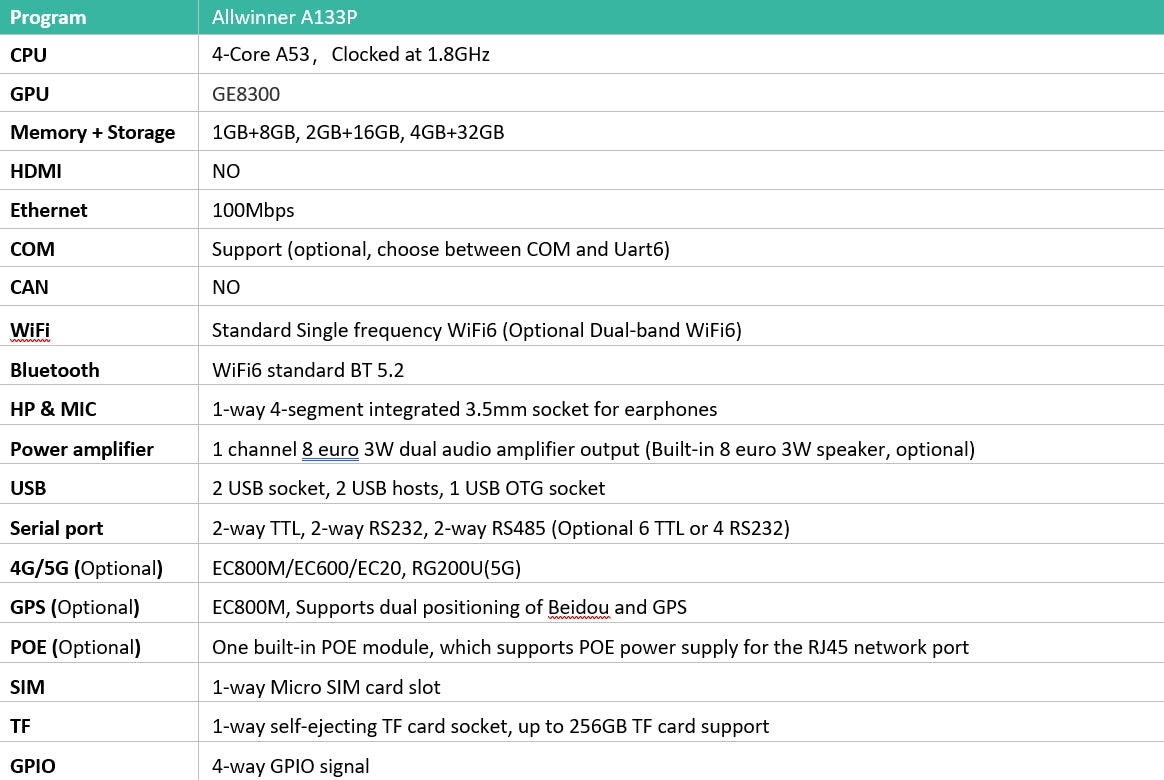

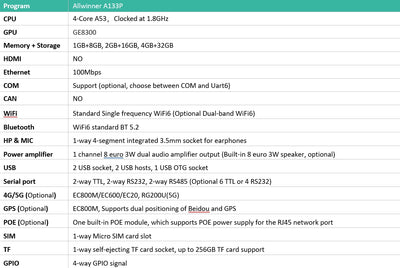

ControlHUB Series A133P Standard Configuration:

- CPU: Allwinner A133P Quad Cortex-A53, Clocked Up to 1.8GHz

- GPU: GE8300

- Line Output: Support standard left and right channel line output (pin header)

- Capacitive Touch Panel

- Memory: Default 1GB (2GB/4GB Optional)

- Storage: Default 8GB EMMC NAND Chips, Expandable Up to 128GB

- External Storage: Support TF Card/U Disk/UART/OTG

- AI Chips (optional): Supports Megvii face chip and provides algorithm hardware authorization

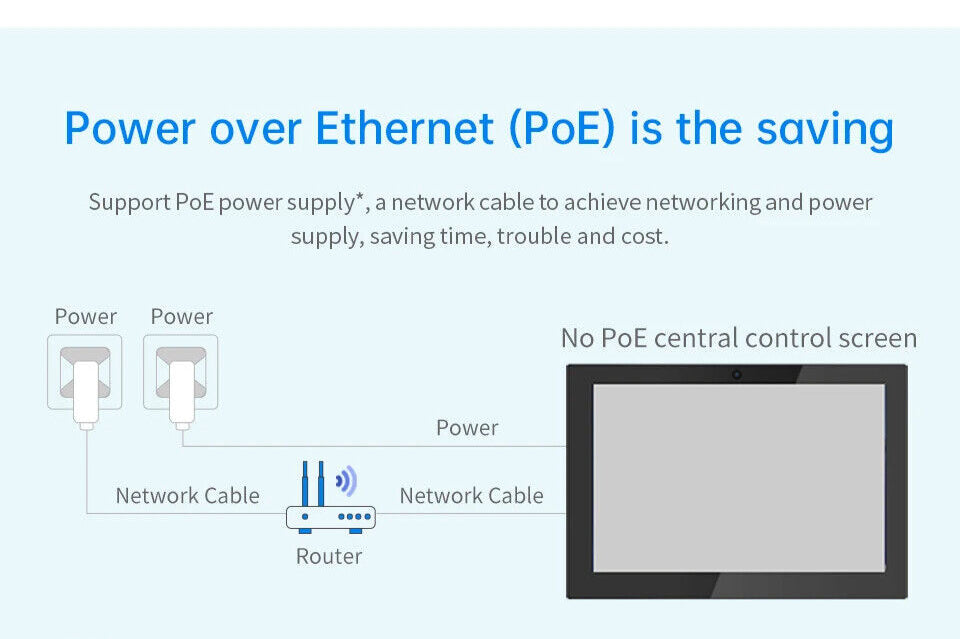

Ethernet: 10/100M Auto-adaptive Ethernet RJ45 Interface + 2 Chips PoE PD Socket

- Wifi Module: Internal XR829 Module, Support IEEE 802.11 b/g/b + HS/BT v4.2, default Single-frequency 2.4GHz WiFi Module.

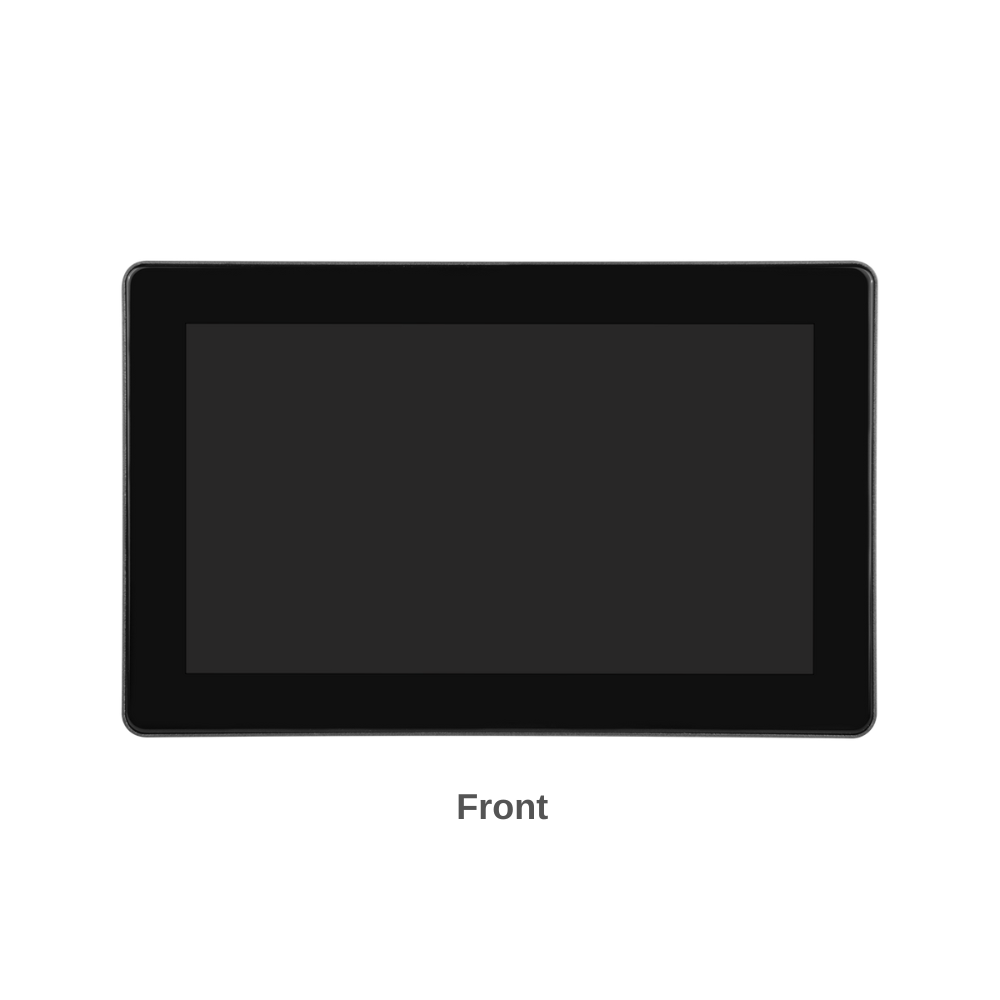

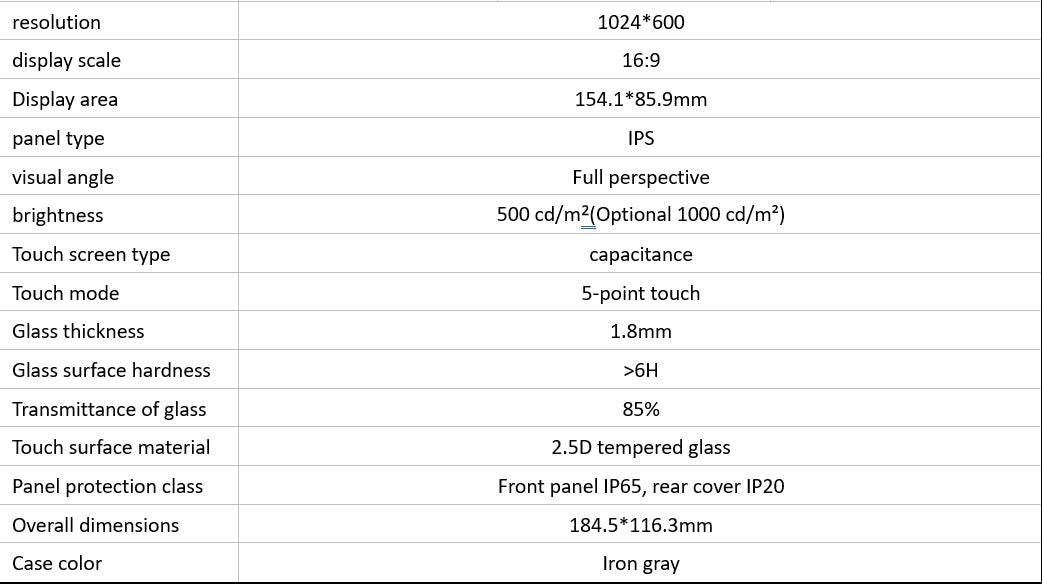

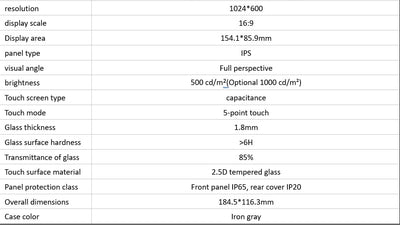

- Screen: 7 Inch, 1024*600 Pixel, IPS Capacitive LCD Panel

- Brightness: 500 cd/m2

- Install Angle: Support 0°, 90°, 180° and 270° Multi-Angle Display Installing

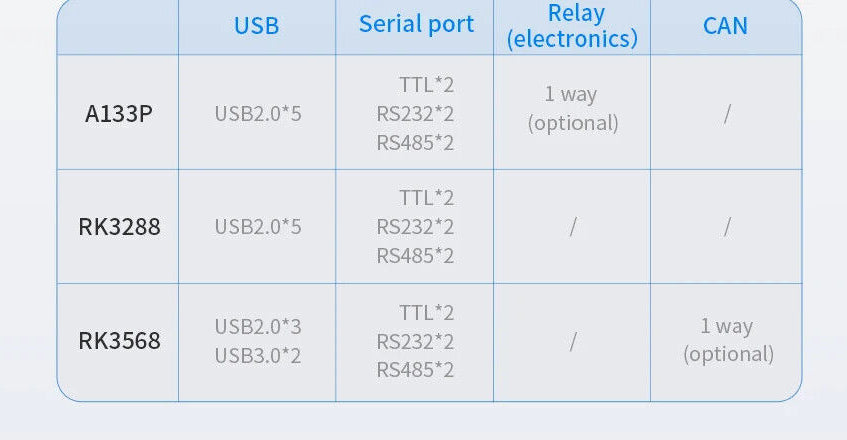

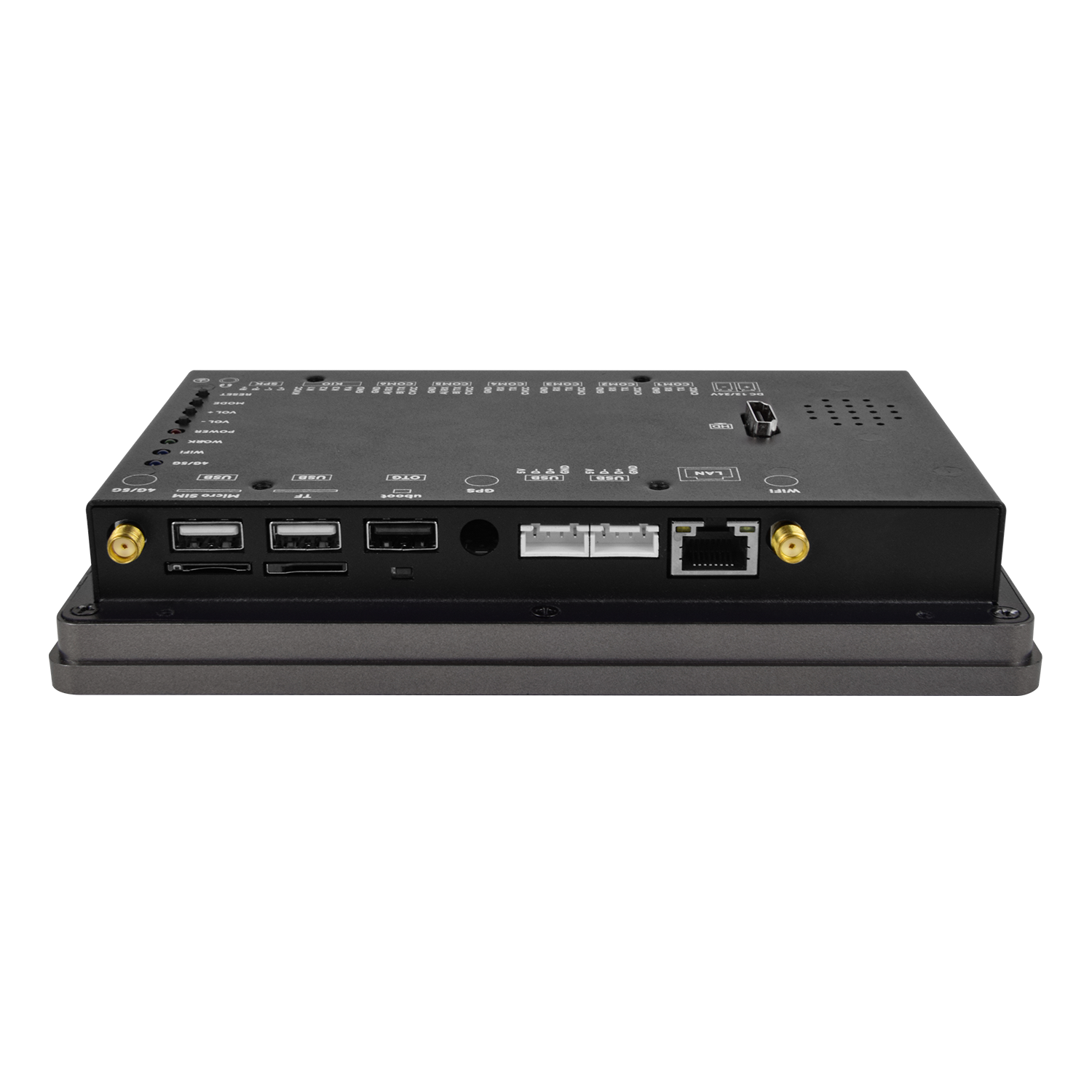

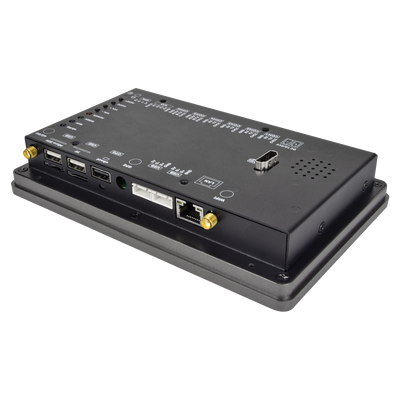

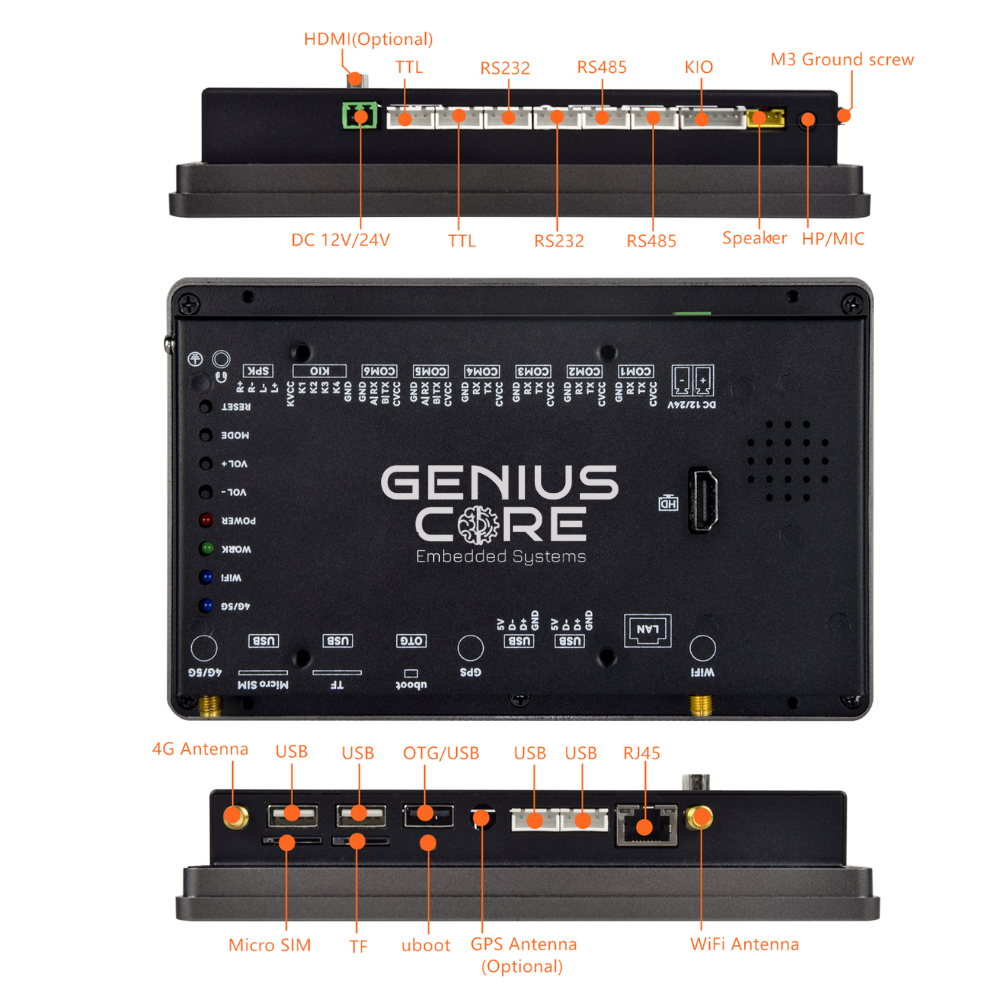

- USB: 4*External USB 2.0 Socket, 1*External USB-OTG Socket, Support USB Camera Within 2M Pixels

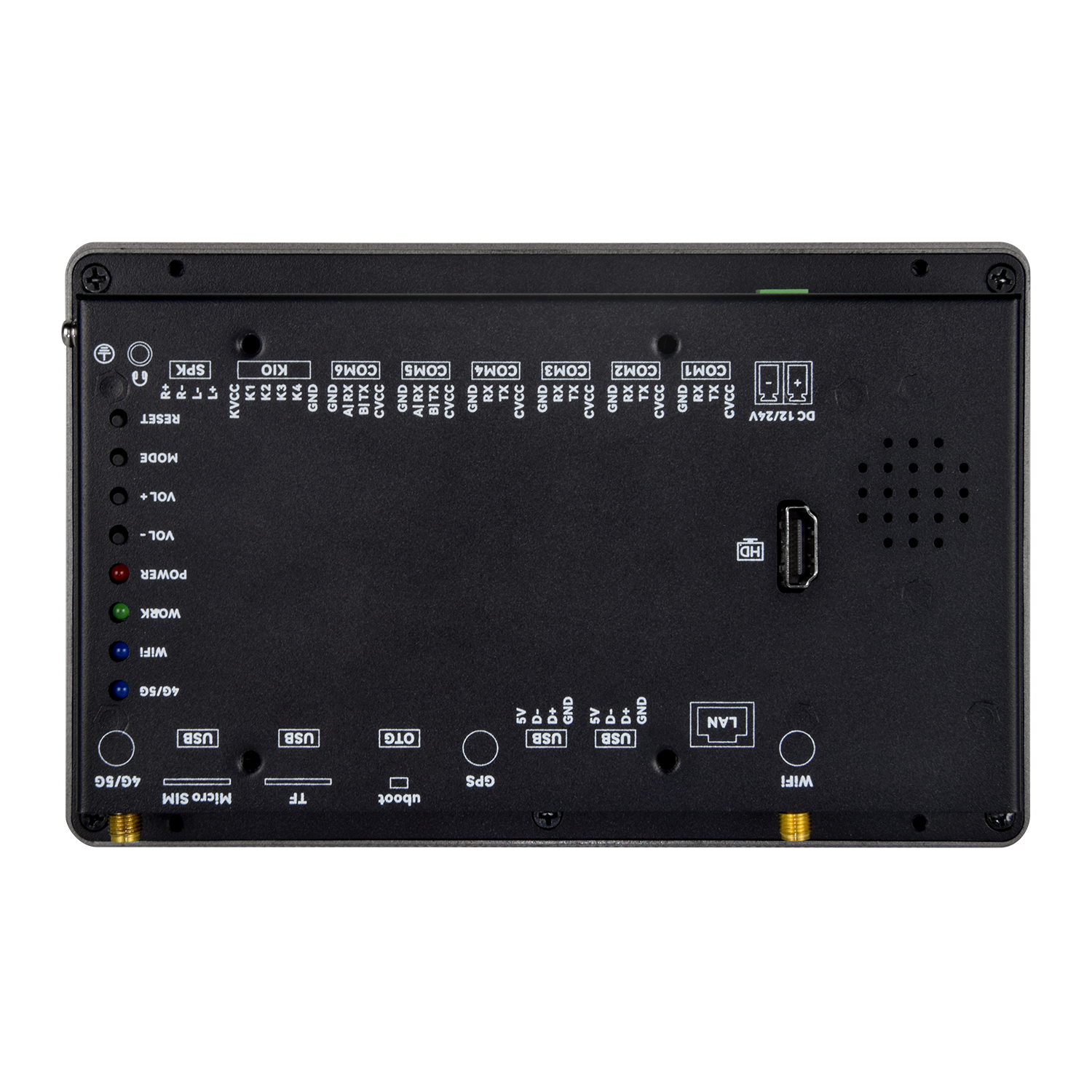

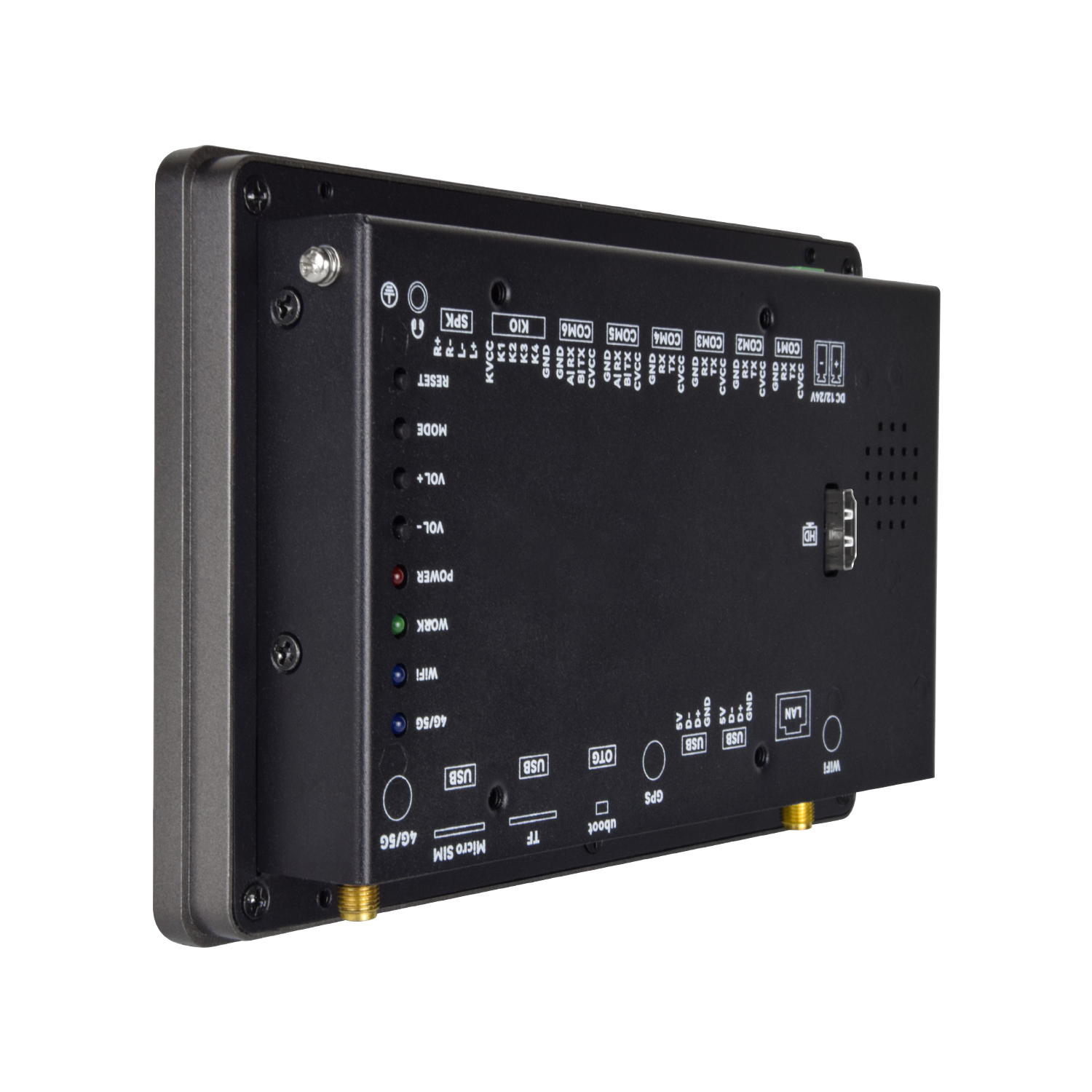

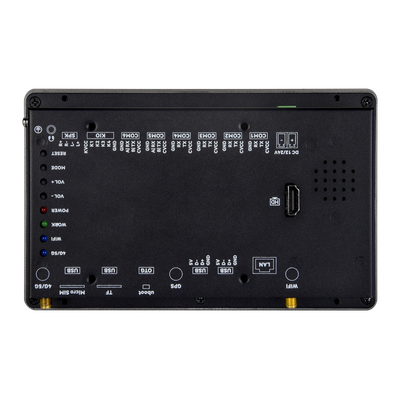

- Serial Interface: 6 COM Ports: Default: RS232, RS485, TTL Optional Configurable TTL/RS232/RS485 (Data Serial Port and Debugging Serial Port)

- 4-way GPIO Signal, Expandable GPIO Button or 3.3V Input / Output

- Relay (Optional): Single Pole Double Throw Access Control Relay Signal

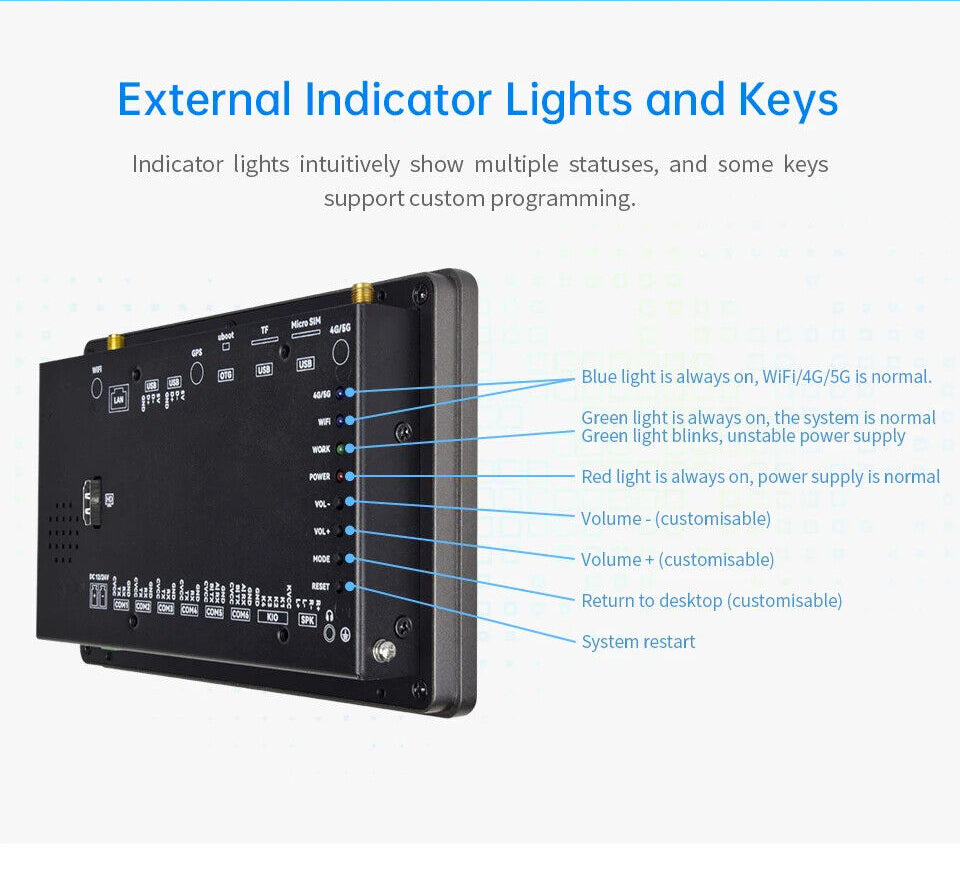

- Reset and Burn Button

- TF Card: Self-elastic TF Card Socket, Supports Up to 256GB TF Card

- Amplifier 80•6W Dual-channel Audio Amplifier Output

- Mic 1-channel Single-ended MIC Input (Pin Header Interface)

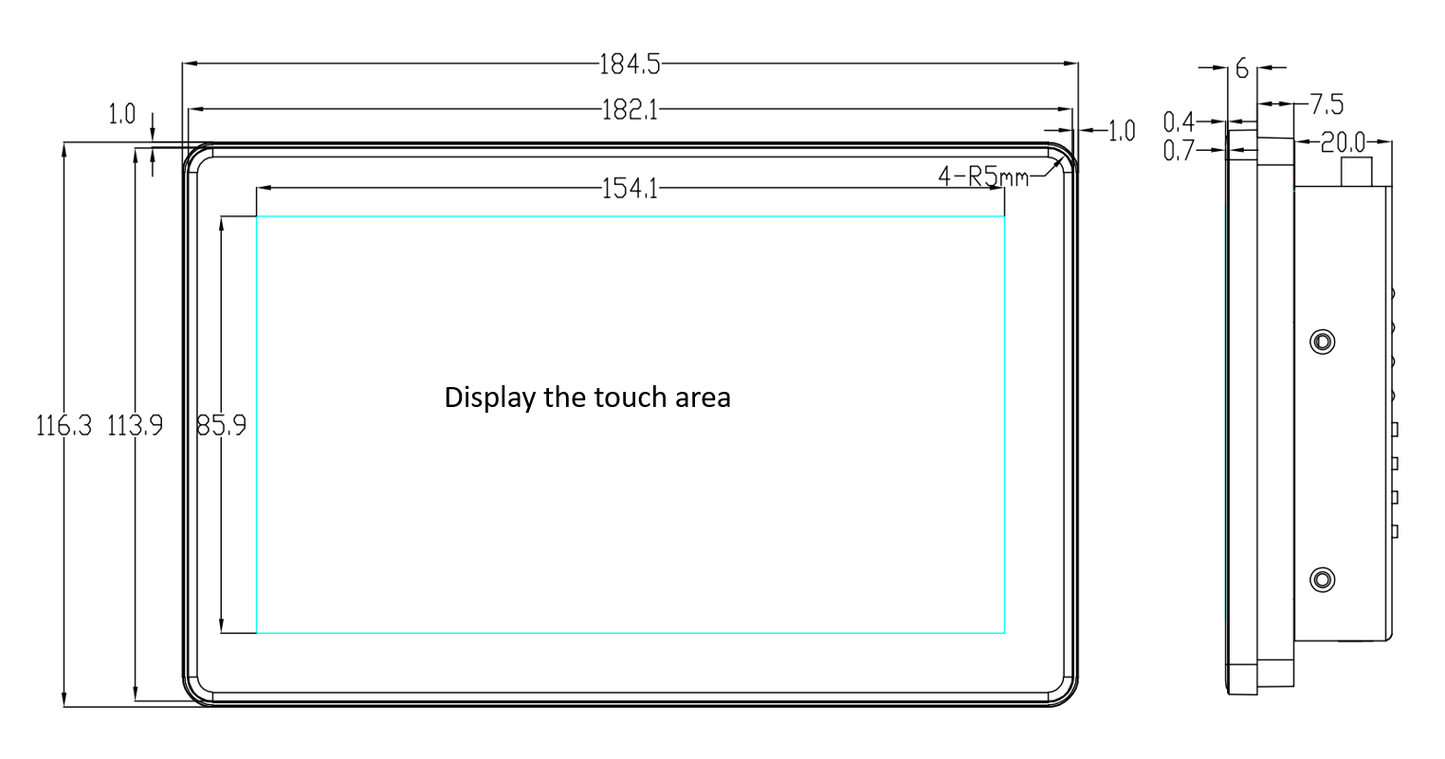

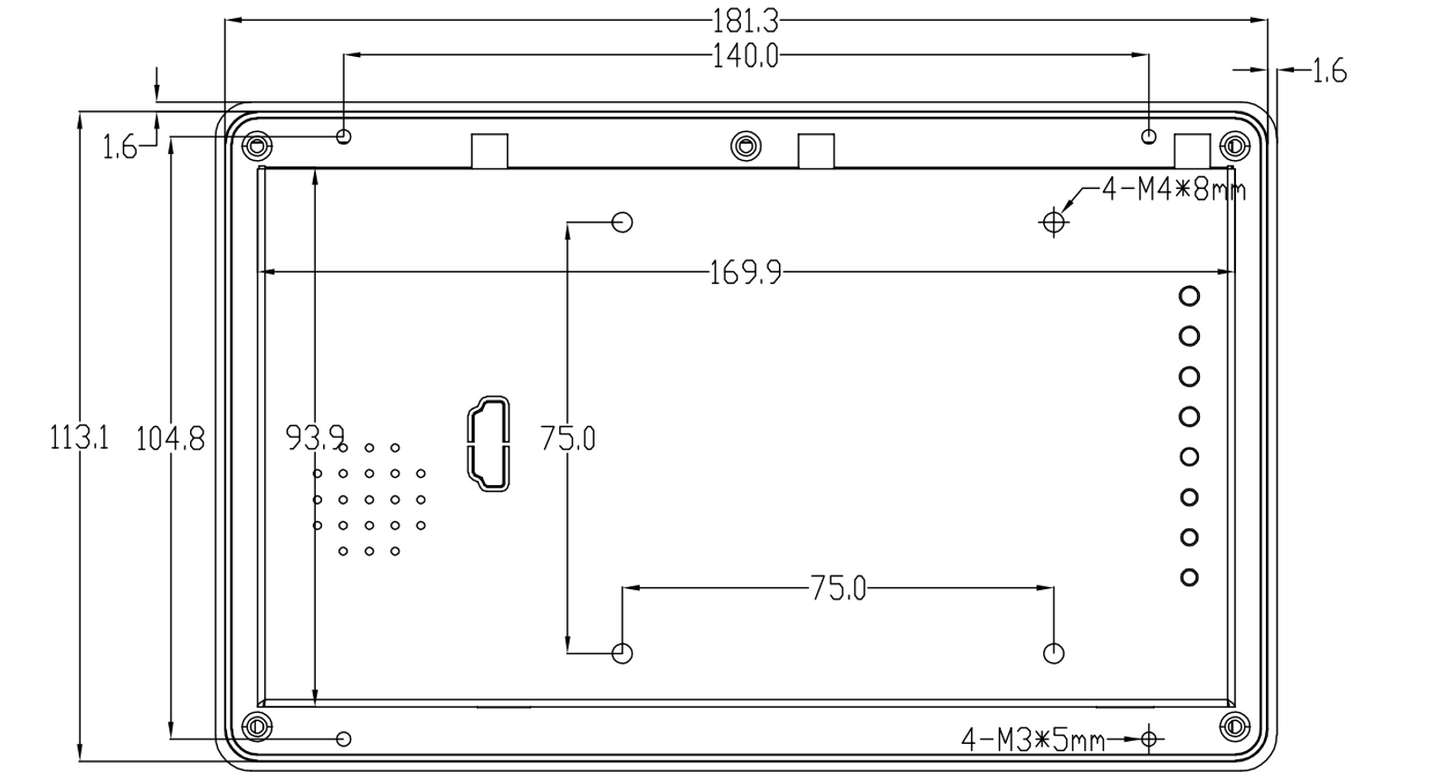

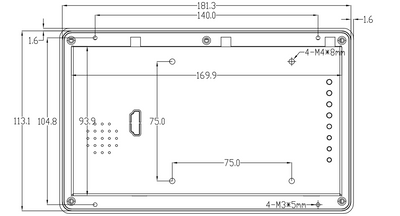

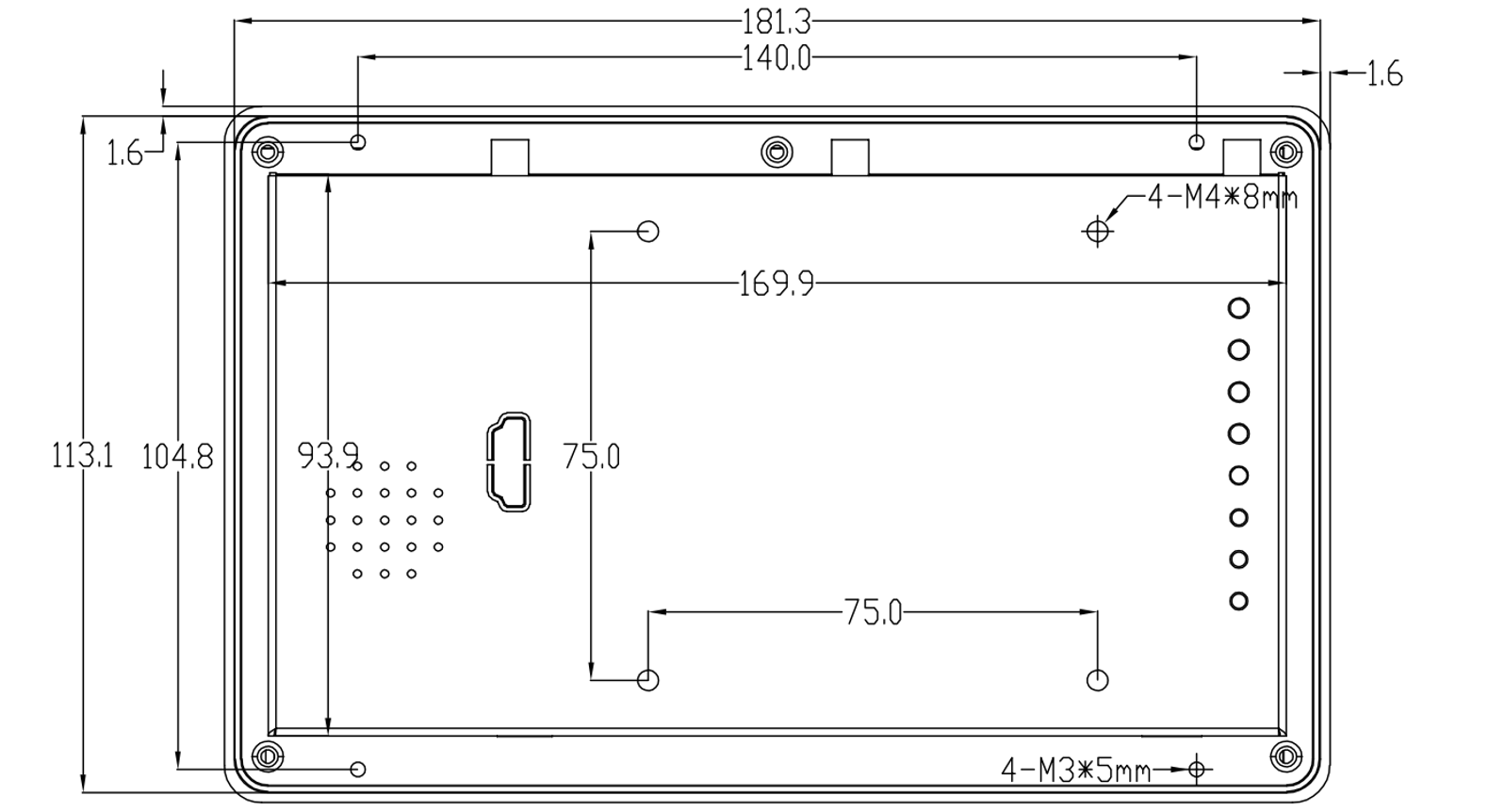

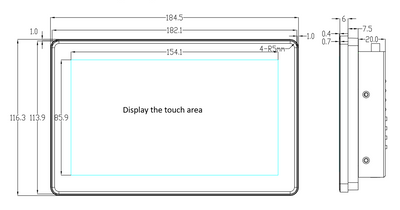

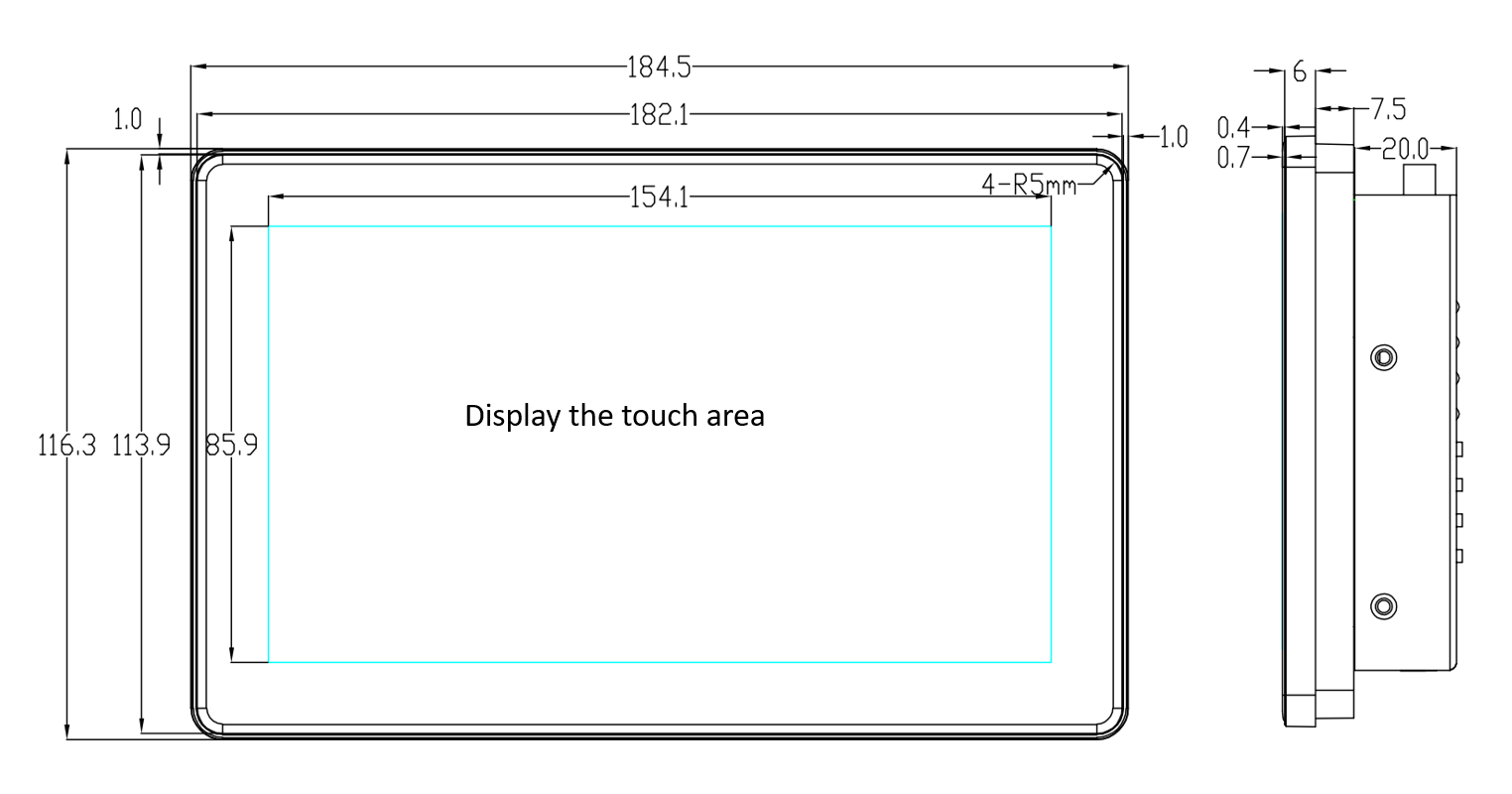

- Overall Dimension: L*W*H 184,5*116,3*34,2mm

- Display Dimension:182,8*114,6mm

- Operating System: Default Android 10.0, Linux QT, Ubuntu18,04 Optional
