4x SATA HAT for NanoPi M4

$24.50

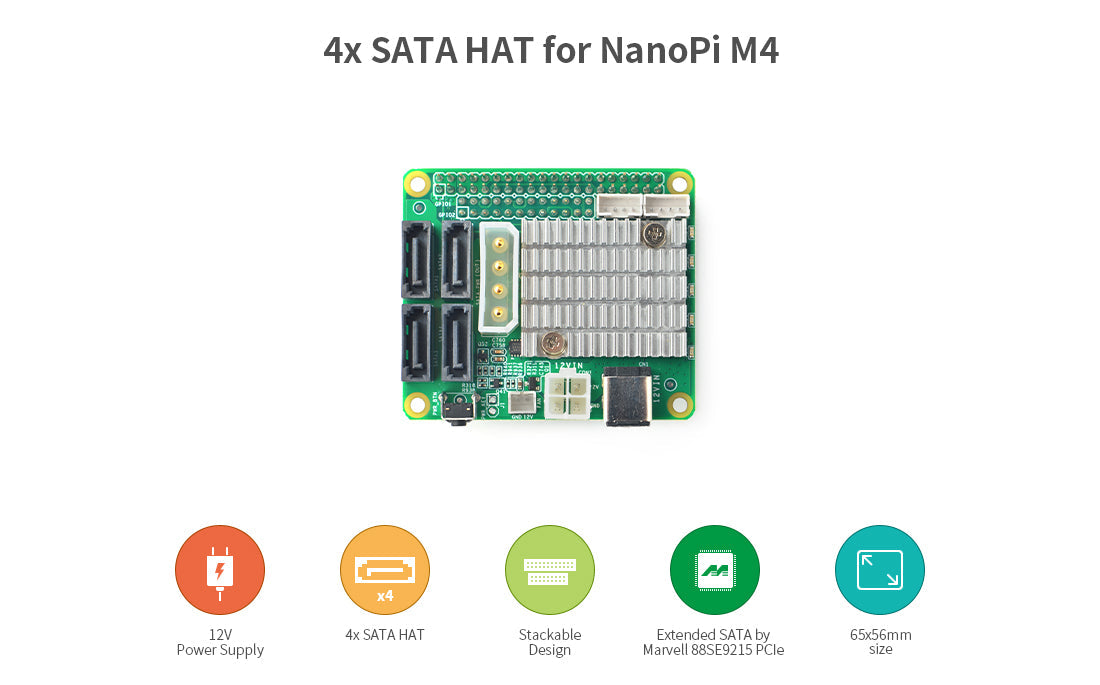

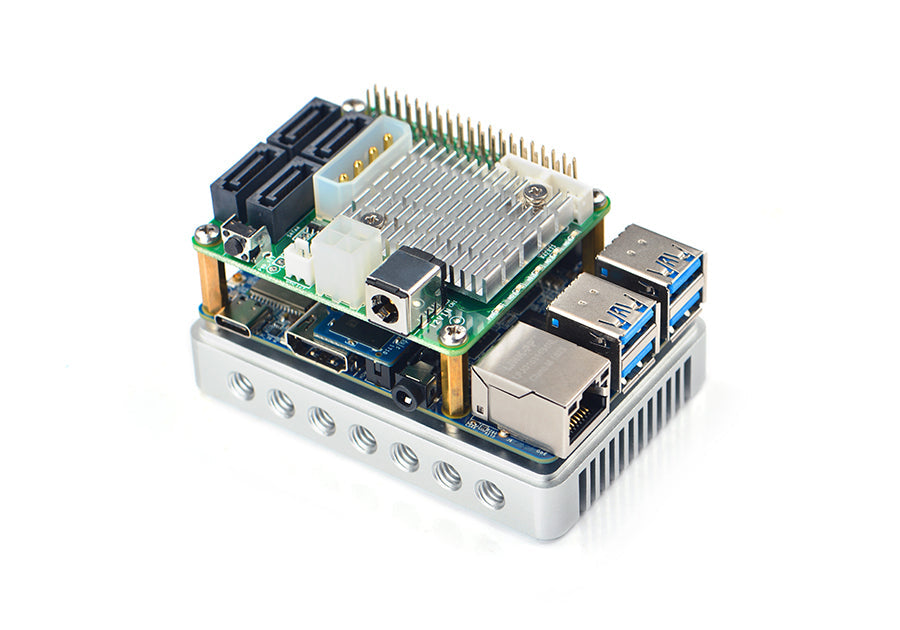

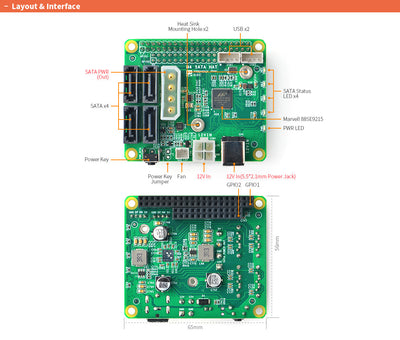

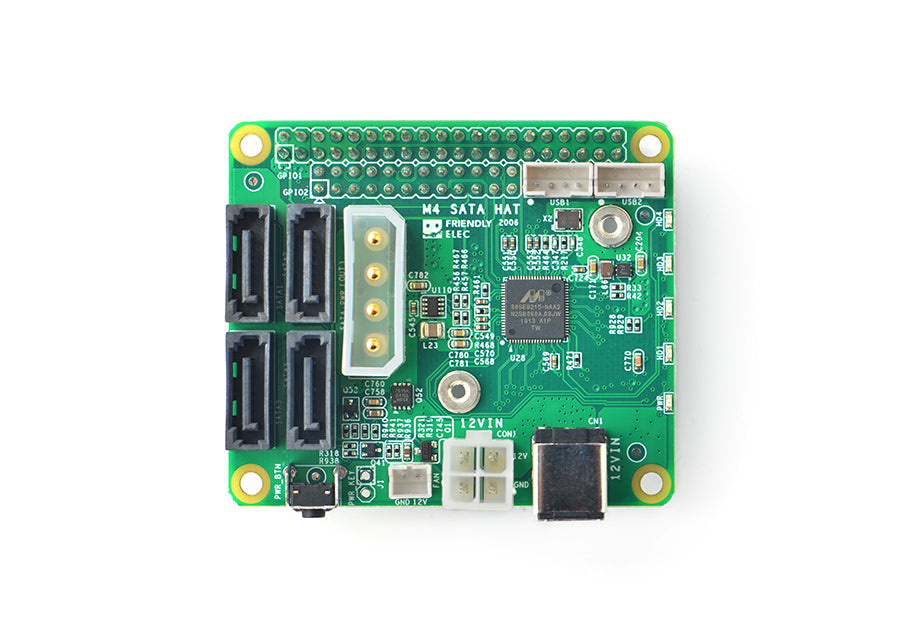

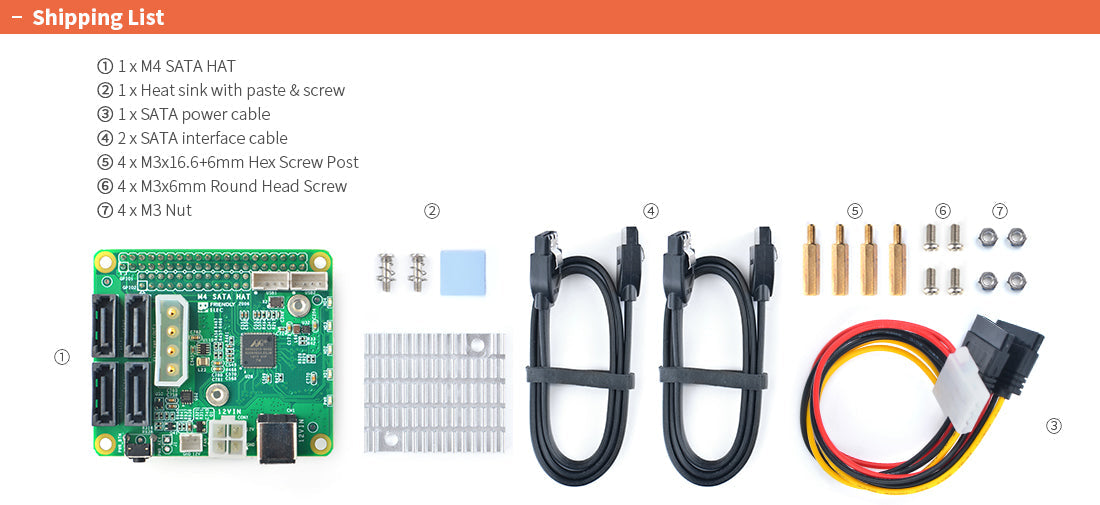

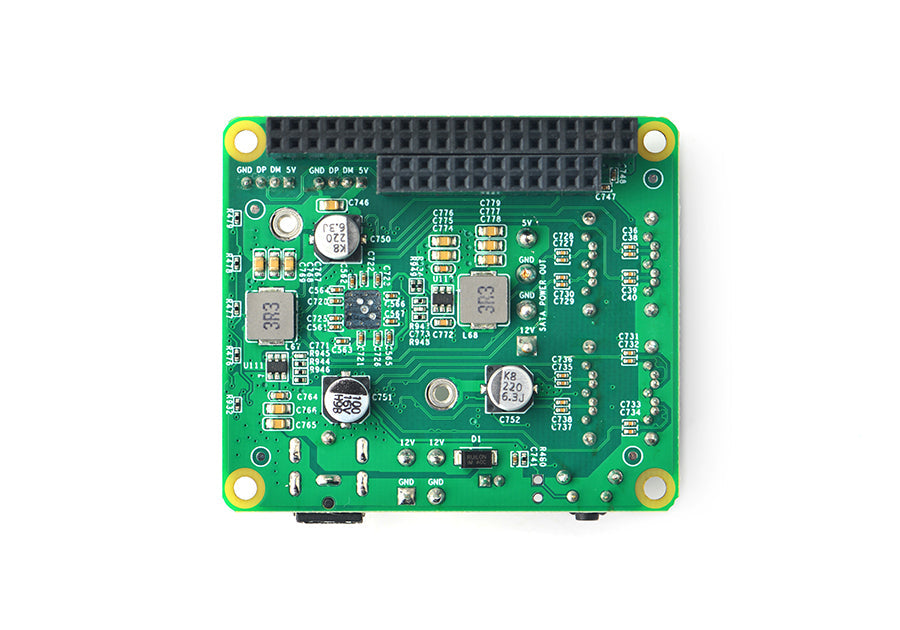

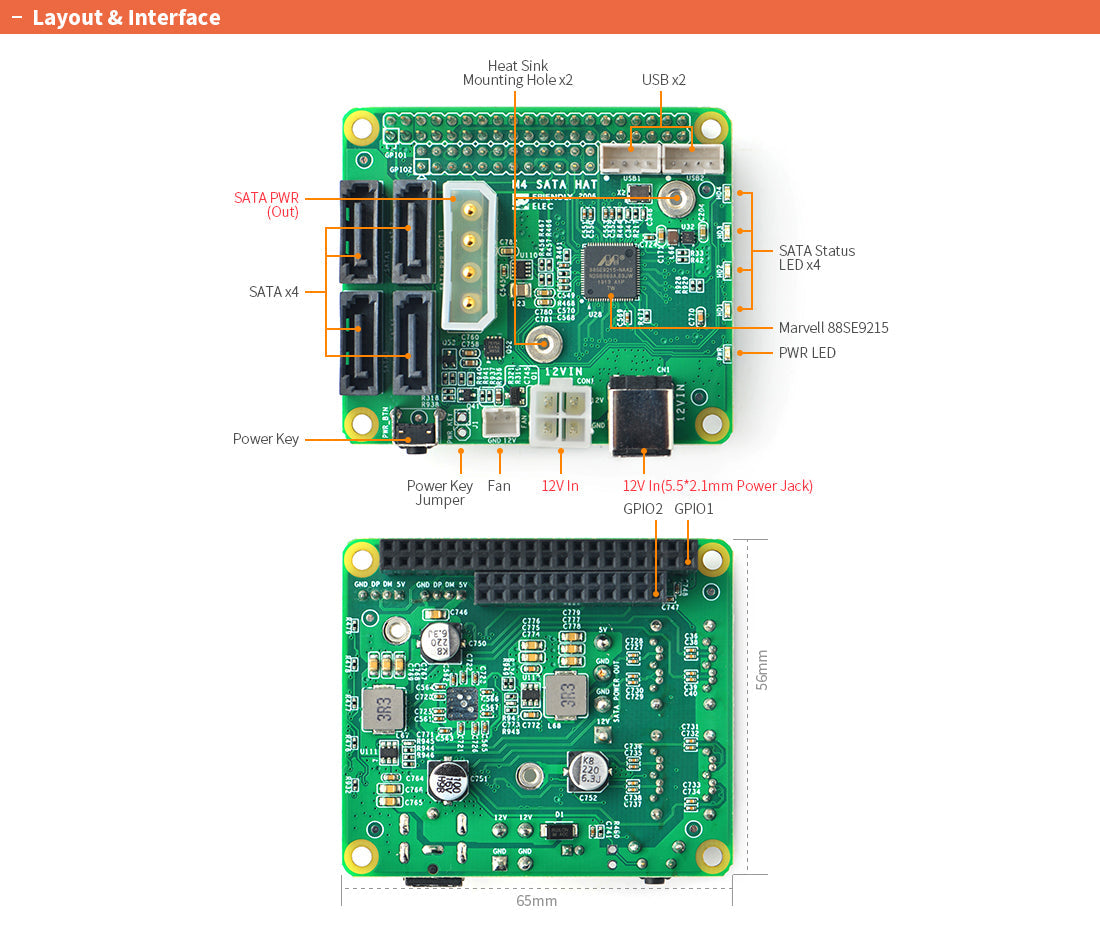

The NanoPi M4 SATA HAT has four SATA ports which support three communication rates: 6 Gbps, 3 Gbps, and 1.5 Gbps. Its 4-Pin power connector includes a 12V and 5V outputs and is able to carry large currents. It has four LEDs for Indicating the status of each SATA port. It has two 12V-power input options: one DC-Jack and one 5566-04A connector. The output current of the 12V to 5V DC/DC regulator is up to 8A. It has a PowerKey button, a PowerKey jumper and two 4-PIN PH2.0 USB 2.0 host connectors.

It has two PCB nuts for mounting a heatsink above the PCIe to SATA brigde and one 2-PIN PH2.0 connector for a fan. The 12V output is modulated by PWM1
It populates all the signals from the NanoPi M4's 40-PIN connector.


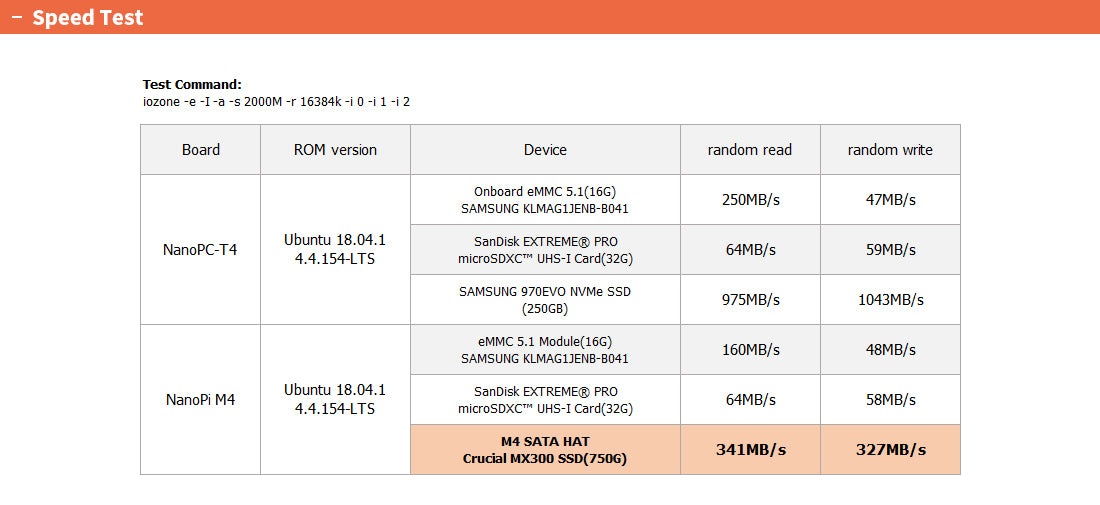

SATA
  • Use Marvell 88SE9215 Four-Port 6 Gbps SATA I/O Controller
  • Four Sata Ports. It supports three communication rates:6 Gbps, 3 Gbps, and 1.5 Gbps
  • One 4-Pin power connector. It includes a 12V and a 5V outputs and is able to carry large currents Four LEDs for indicating the status of each rata port
Power
  • Two 12V Power Input options. It includes a 5.5*2.1mm DC-Jack and a 5566-04A connector
  • The output current of the 12V to 5V DC/DC regulator is up to 8A
  • One PowerKey button and PowerKey jumper
USB
  • Two 4-PIN PH2.0 USB 2.0 host connectors

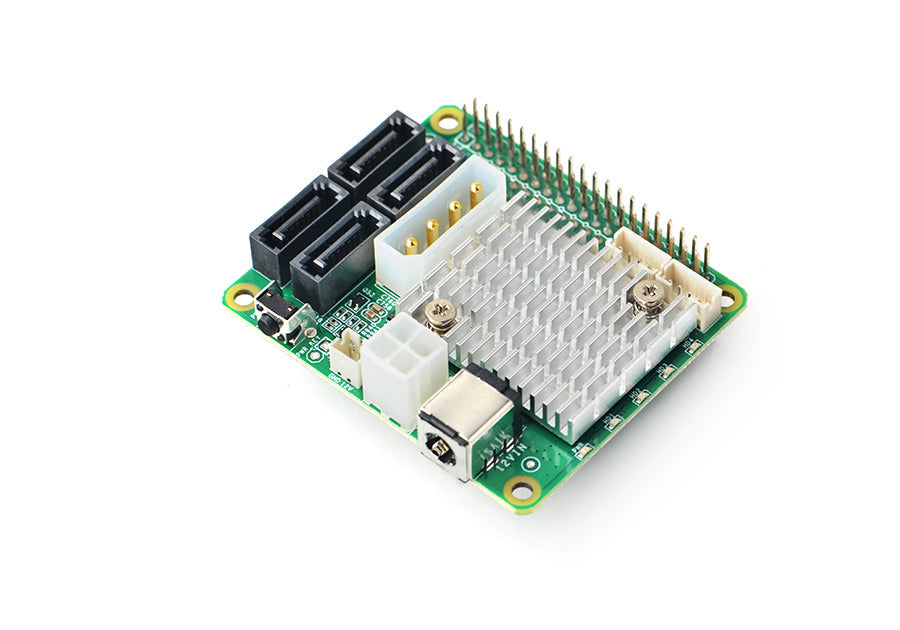

Heat dissipation
  • Two PCB nuts for mounting a heatsink above the PCIe to SATA bridge
  • One 2-PIN PH2.0 connector for fan. The 12V output is modulated by PWM1
GPIO
  • ALL the signals of the NanoPi M4's 40-PIN connector are populated

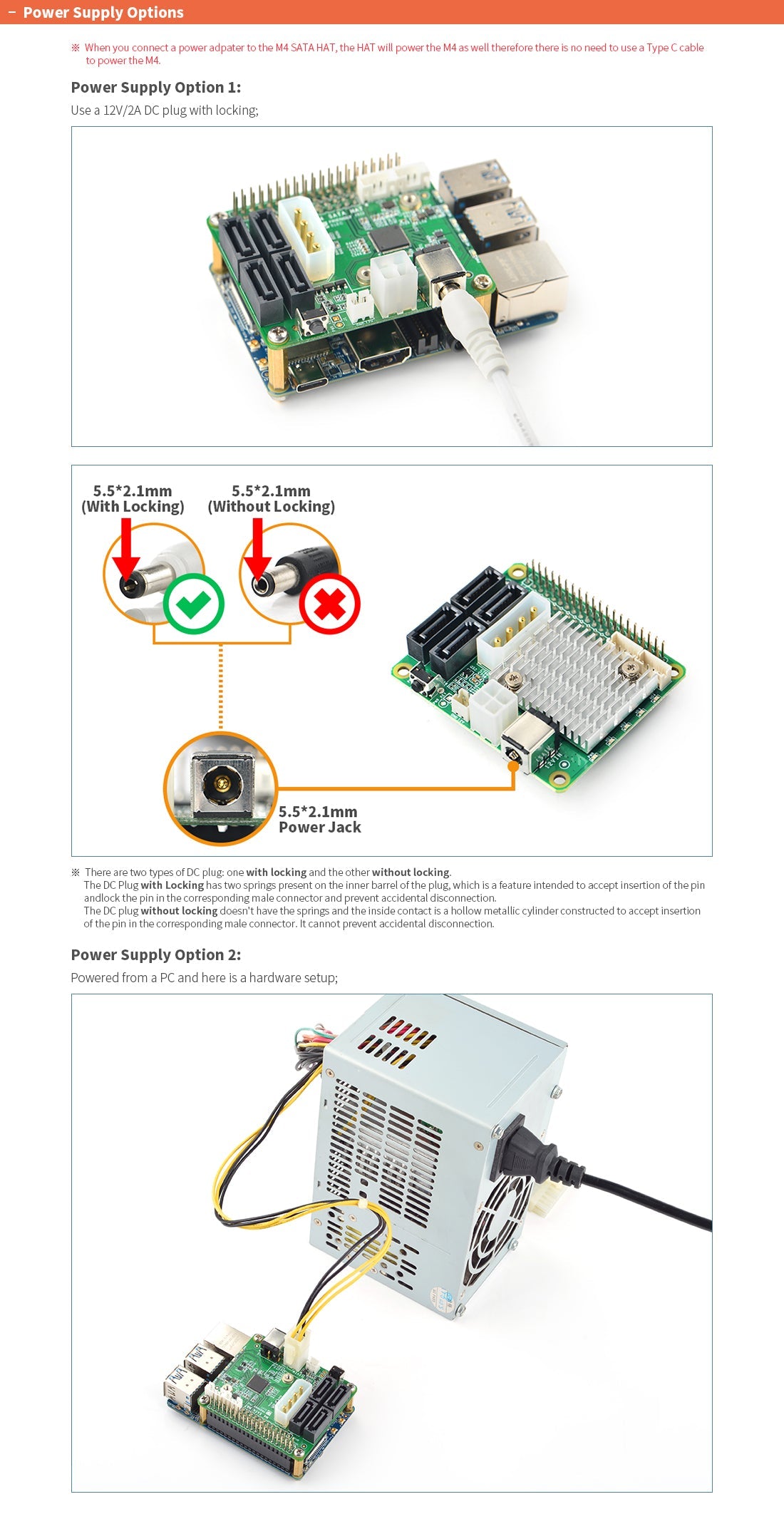

Power
  • DC 12V/2A
  • (A 12V/2A power can drive one 3.5" hard disk or four 2.5" hard disks. To drive four 3.5" hard disks a 12V/5Apower is needed)
OS Support
  • FriendlyCore 18.04 (64-bit)
  • FriendlyDesktop 18.04 (64-bit) Lubuntu 16.04 (32-bit)
Kernel version
  • Linux-4.4-LTS
  • U-boot-2014.10
Board Support NanoPi iv14
Weight 33.48g
Dimension 65 x 56mm
