GeniusCore

23.8″ Intel Core i5-8260U Fan-Cooled IP65 Industrial Panel PC

$665.00

The 23.8″ Intel Core i5-8260U – Fan-Cooled, IP65 Industrial Panel PC powered by Intel® Core™ i5-8260U is designed for industrial automation, machine control, factory terminals and kiosk systems requiring stable long-term performance.

This model features a fan-cooled enclosed chassis with IP65-rated aluminum front panel, making it suitable for harsh industrial environments and continuous operation.

Built on an 8th Gen Intel® Core™ architecture, the i5-8260U delivers reliable computing power for industrial UI rendering, data acquisition and control applications.

✔ Fan-cooled industrial Panel PC
✔ IP65 aluminum front panel
✔ Rich serial, LAN and expansion options

Processor & Performance

Intel® Core™ i5-8260U
Quad-core / 8 threads
Optimized for industrial workloads
Fan-cooled thermal design

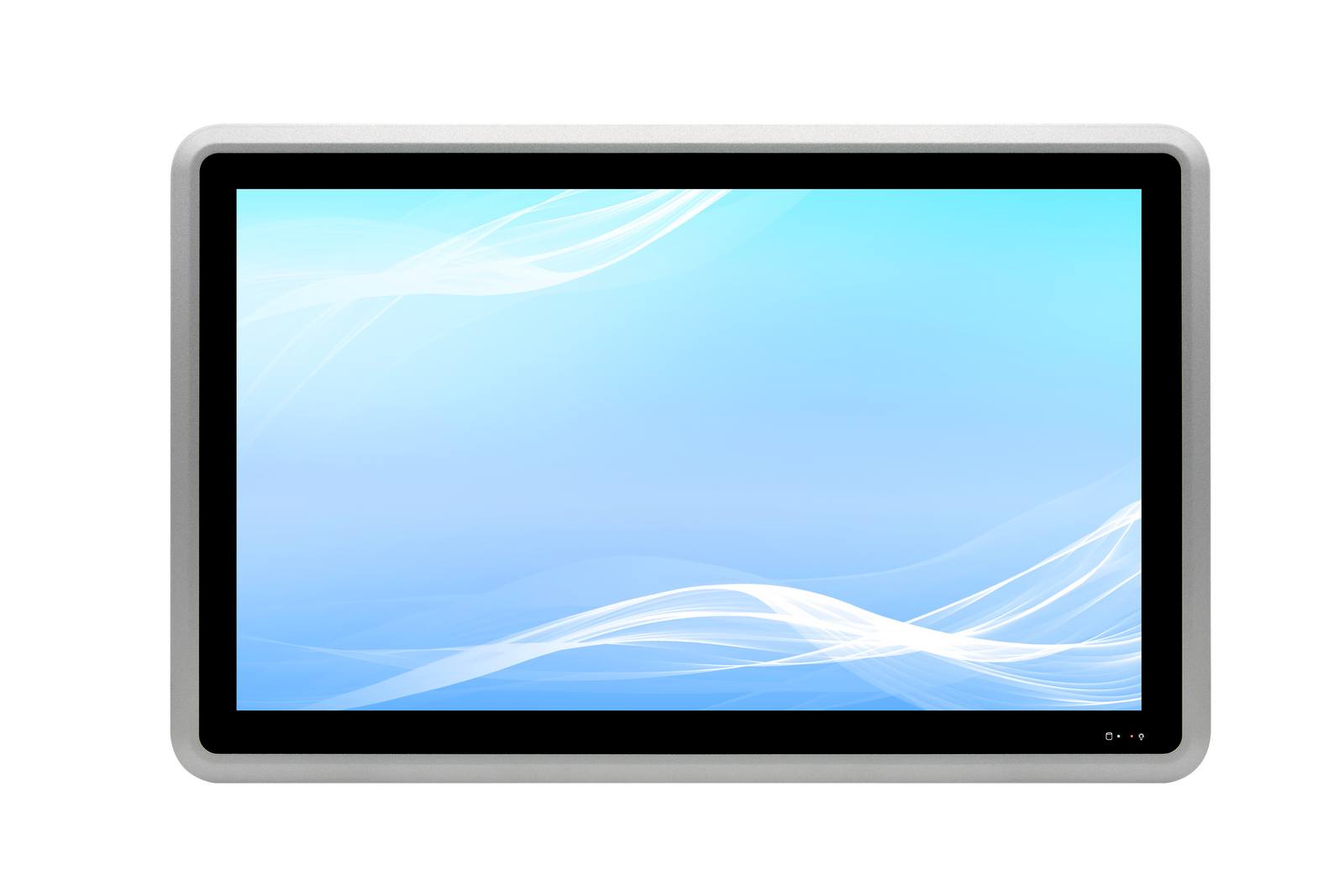

Display

23.8″ LCD Panel
Resolution: 1920 × 1080 (16:9)
Brightness: 300 cd/m²
Capacitive or Resistive Touch (optional)

Memory & Storage

2× DDR4 slots (up to 64GB)
mSATA SSD support
M.2 NVMe SSD support
2.5″ SATA SSD support

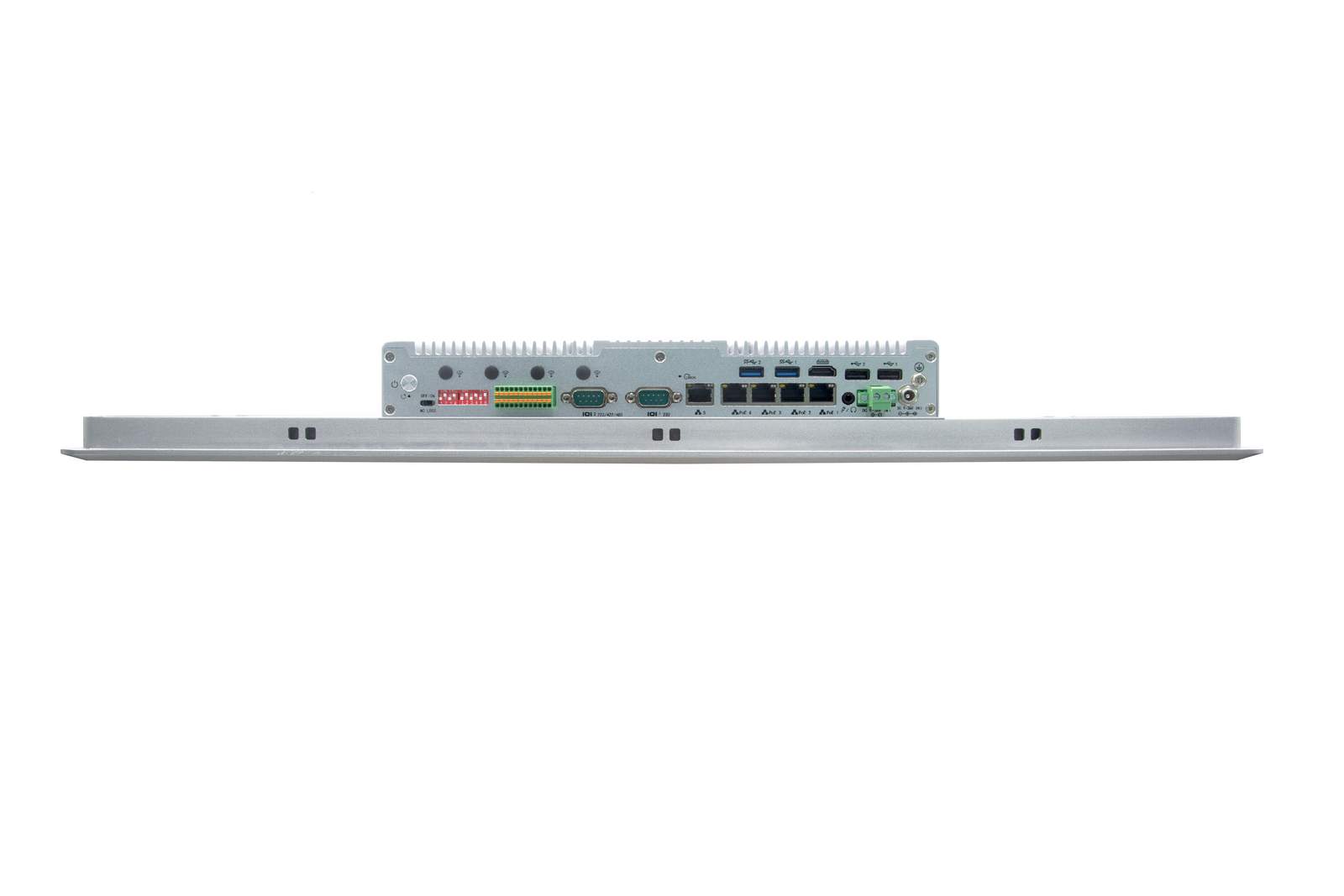

Connectivity & I/O

5× LAN ports (4× PoE supported)
4× RS232 (configurable RS232 / RS485 / RS422 options)
2× USB 3.0 + 2× USB 2.0
HDMI display output
Wi-Fi and 4G/5G module support (optional)

Power Input: DC 9–36V
Operating System: Windows (standard), Linux Ubuntu (optional)
Mounting: VESA / Embedded

Specifications may vary depending on configuration.

Specification Details
Cooling / structure Fanless
Screen size 23.8"
Aspect ratio 16:9
Resolution 1920*1080
CPU I5-8260U
Memory (RAM) SC: 2*DDR4 slot (4/8/16/32/64GB options)
Storage 1*mSATA (32/64/128/256/512GB options) 1*M.2 Nvme SSD (128/256/512GB/1TB options) 1*2.5 inch SATA SSD (128/256/512GB/1TB/2TB options)
USB SC: 4*USB3.0, 2*USB2.0
HDMI SC: 1* HDMI
Serial (COM) SC: 6*RS232 Option: 5*RS232+1*RS485 5*RS232+1*RS422 4*RS232+1*RS485+1*RS422 4*RS232+2*RS485 COM1 RS232 DB9 serial port COM2 RS232/RS485/RS422 DB9 serial port COM3 RS232/RS485 serial port on the 2*15pin phoenix connector COM4-COM6 RS232 serial port on the 2*15pin phoenix connector COM1-COM2 support 9th Pin charged
Ethernet (LAN) SC: 2*LAN
Power input DC 9~36V
Wi-Fi 1* Wifi/WIfi 6 Module option
4G / 5G 1* 4G/5G Module option
Operating system SC: Windows Linux Ubuntu option
LCD / touch SC: Capacitive Touch Option: Resistive Touch
Brightness SC: 300 cd/㎡
Operating temperature (-10-+50)
Enclosure SC: Aluminum alloy, Front panel IP65
Mounting VESA/Embedded
CPU / SoC Intel i5
Cooling Fan-cooled
