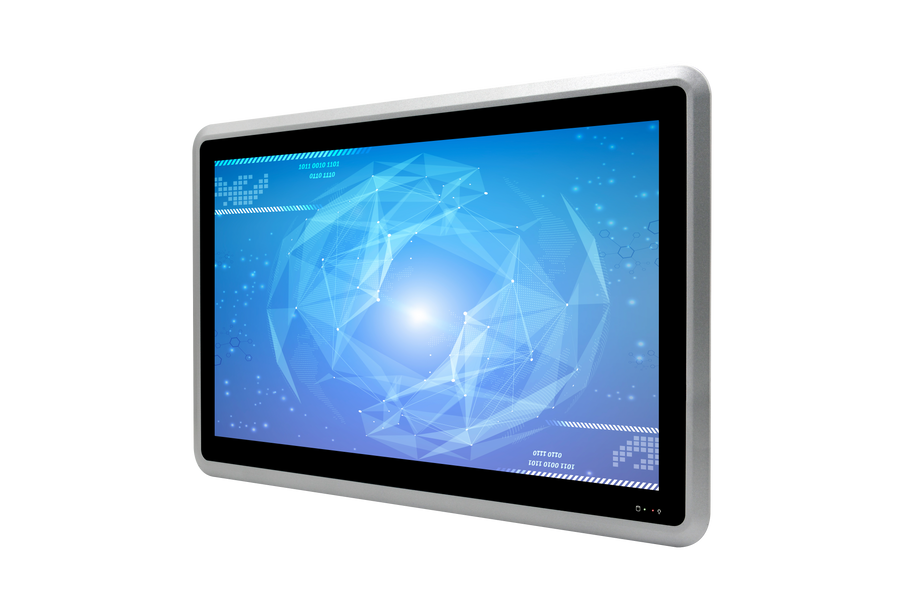

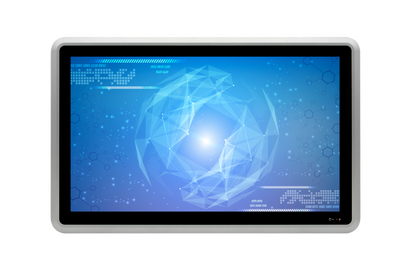

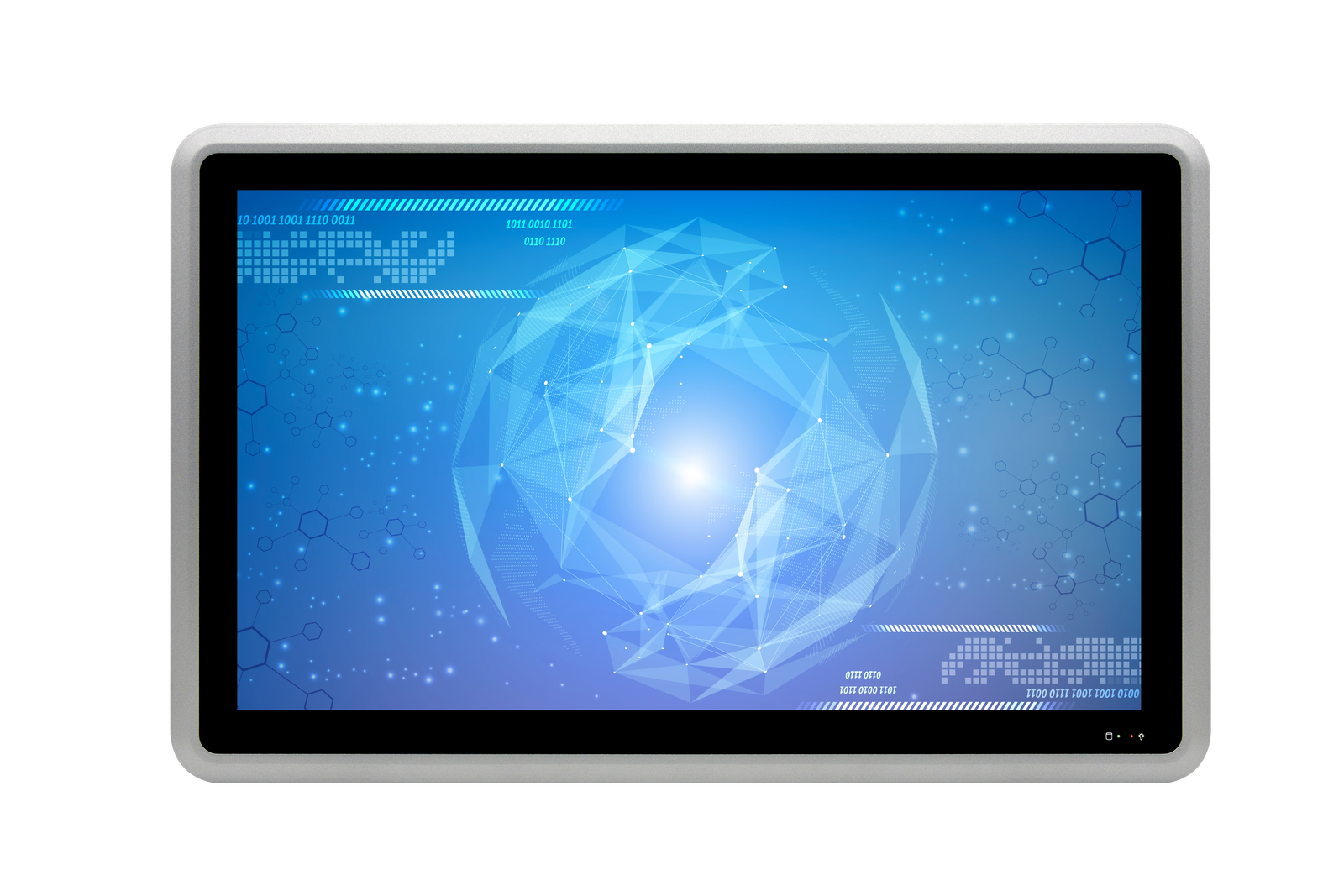

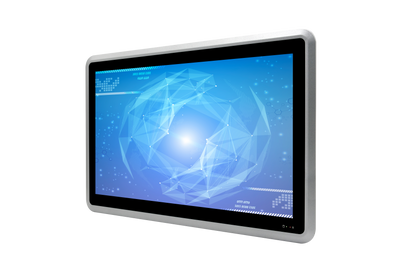

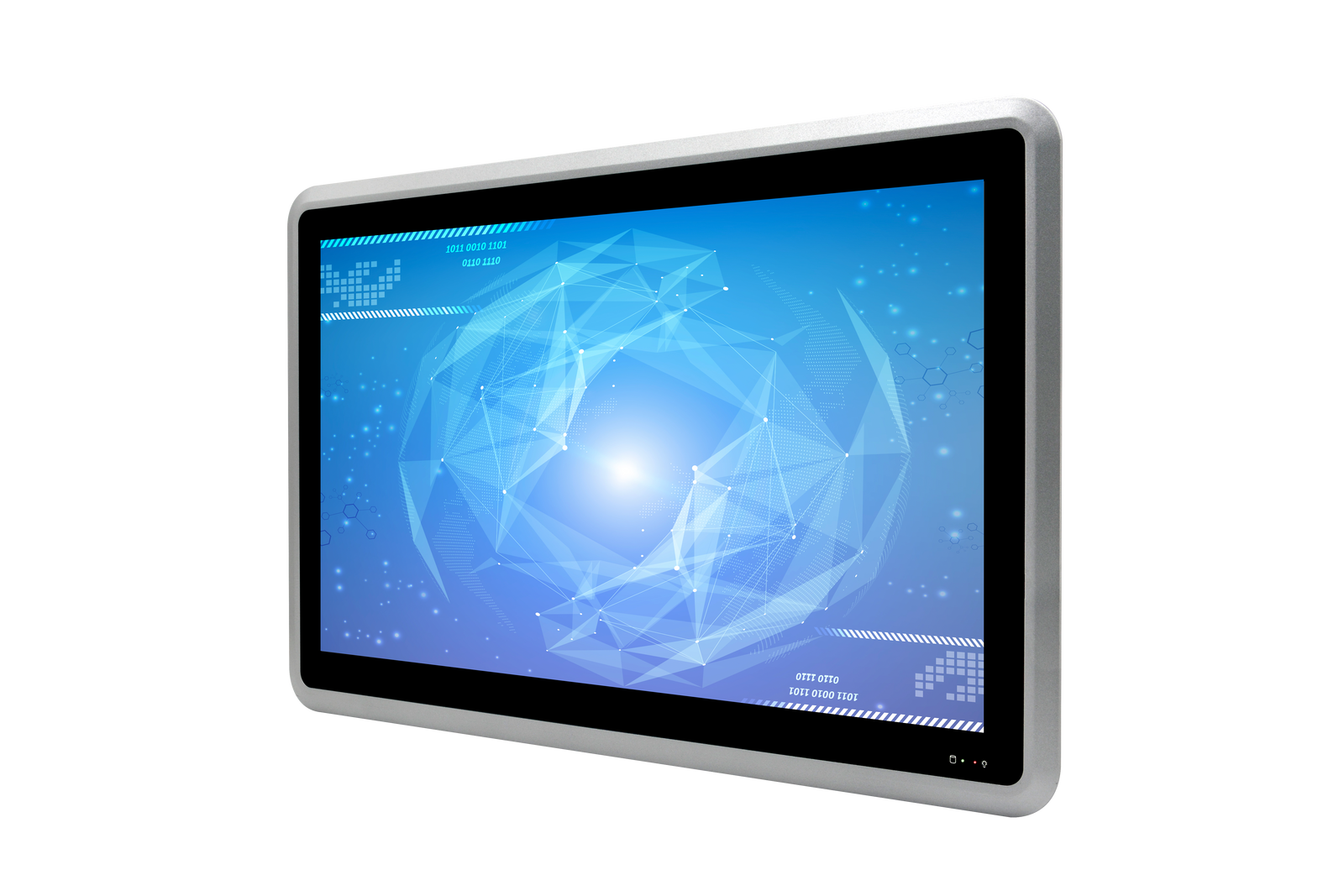

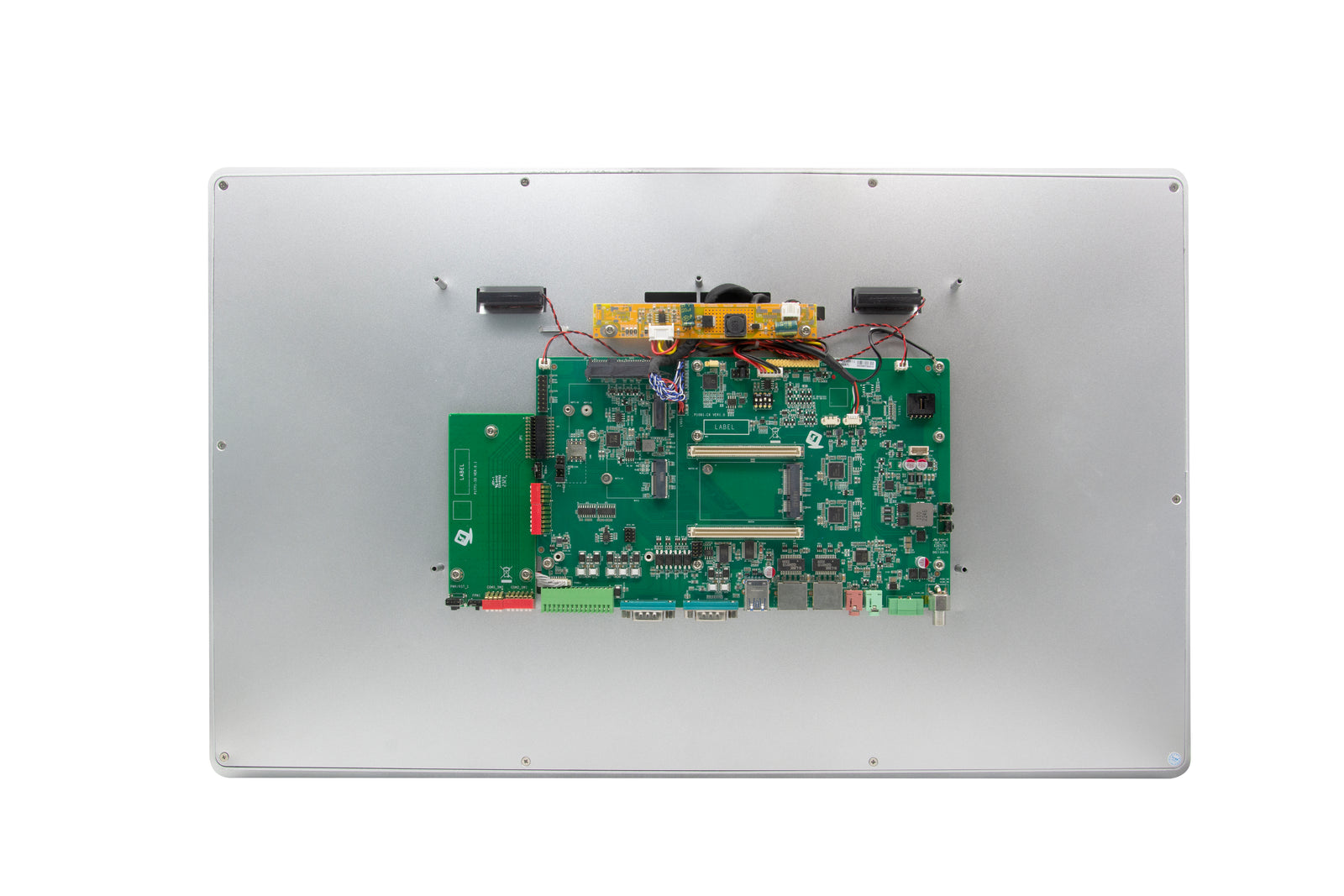

21.5″ Intel Core i5-8260U – 5-LAN PoE Edge Industrial Panel PC System

$626.00

The 21.5″ Intel Core i5-8260U – 5-LAN PoE Edge Industrial Panel PC System powered by Intel Core i5-8260U is a fan-cooled embedded industrial system designed for industrial networking, PoE-based edge devices and gateway applications.

This model integrates 5 × Gigabit LAN interfaces, with 4 PoE-enabled ports, allowing direct power and data delivery to IP cameras, sensors and edge devices without external injectors.

The 21.5″ Full HD (1920 × 1080) industrial display provides a large and clear visualization area, making this system suitable for NVR panels, industrial dashboards and control room terminals.

✔ Integrated 5-LAN industrial networking
✔ 4-port PoE for cameras and edge devices
✔ Large-format industrial visualization

Processor & Performance

Intel Core i5-8260U
Quad-core industrial processor
Fan-cooled thermal design
Optimized for edge and network workloads

Display & Touch

21.5″ Industrial LCD Panel
Resolution: 1920 × 1080 (16:9)
Brightness: 300 cd/m²
Capacitive Touch (Optional Resistive)

Memory & Storage

2 × DDR4 Slots (4–64GB)
1 × mSATA SSD
1 × M.2 NVMe SSD
1 × 2.5″ SATA SSD

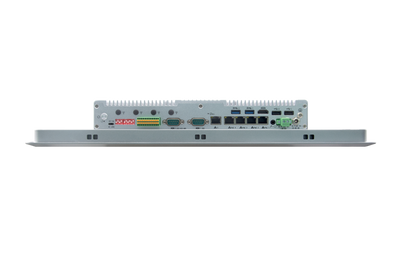

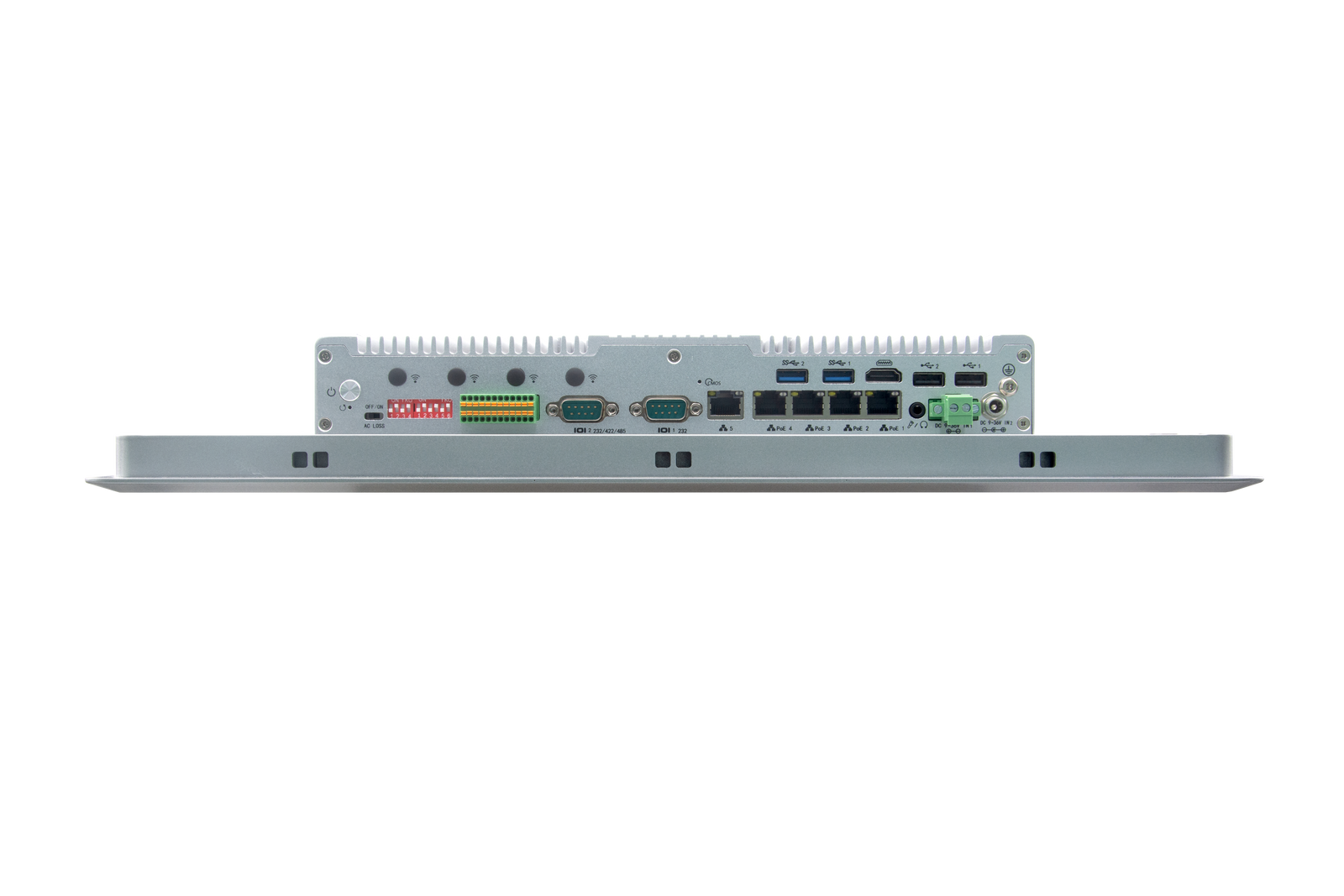

Networking & I/O

5 × Gigabit LAN
4 × PoE-enabled LAN ports
HDMI Output
4 × RS232 (Configurable RS485 / RS422)

Connectivity & Power

WiFi Module (Optional)
4G / 5G Module (Optional)
DC 9–36V Wide Voltage Input

The system supports Windows and Linux Ubuntu, ensuring compatibility with long-term industrial and networking software stacks.

Ideal for video surveillance panels, industrial gateways, edge servers, automation hubs and smart factory dashboards.

Specification Details
Cooling / structure Fanless
Screen size 21.5"
Aspect ratio 16:9
Resolution 1920*1080
CPU I5-8260U
Memory (RAM) SC: 2*DDR4 slot (4/8/16/32GB options)
Storage 1*mSATA (32/64/128/256/512GB options) 1*M.2 Nvme SSD (128/256/512GB/1TB options) 1*2.5 inch SATA SSD (128/256/512GB/1TB/2TB options)
USB SC: 4*USB3.0, 2*USB2.0
HDMI SC: 1* HDMI
DisplayPort SC: 1* DP
Serial (COM) SC: 6*RS232 Option: 5*RS232+1*RS485 5*RS232+1*RS422 4*RS232+1*RS485+1*RS422 4*RS232+2*RS485 COM1 RS232 DB9 serial port COM2 RS232/RS485/RS422 DB9 serial port COM3 RS232/RS485 serial port on the 2*15pin phoenix connector COM4-COM6 RS232 serial port on the 2*15pin phoenix connector COM1-COM2 support 9th Pin charged
Ethernet (LAN) SC: 2*LAN
Power input DC 9~36V
Wi-Fi 1* Wifi/WIfi 6 Module option
4G / 5G 1* 4G/5G Module option
Operating system SC: Windows Linux Ubuntu option
LCD / touch SC: Capacitive Touch Option: Resistive Touch
Brightness SC: 300 cd/㎡
Operating temperature (-10-+50)
Enclosure SC: Aluminum alloy, Front panel IP65
Mounting VESA/Embedded
CPU / SoC Intel i5
