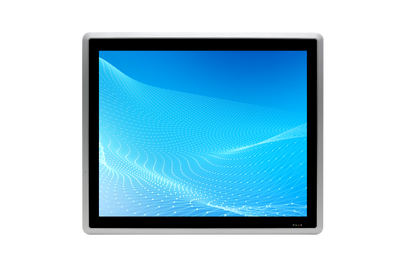

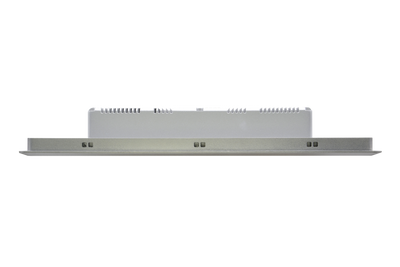

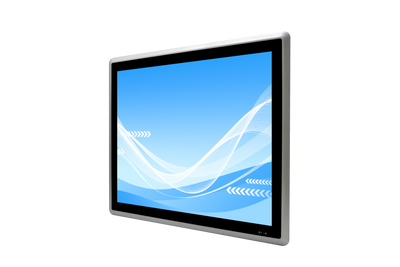

19″ Intel Core i5-8260U Fan-Cooled 4:3 Industrial Panel PC System

$636.00

The 19″ Intel Core i5-8260U Fan-Cooled 4:3 Industrial Panel PC System powered by Intel Core i5-8260U is a fan-cooled embedded industrial system designed for factory automation, machine control and legacy 4:3 applications.

Featuring a 4:3 SXGA (1280×1024) display, this model is ideal for industrial environments where traditional resolution formats are still required, such as control cabinets, CNC systems and production lines.

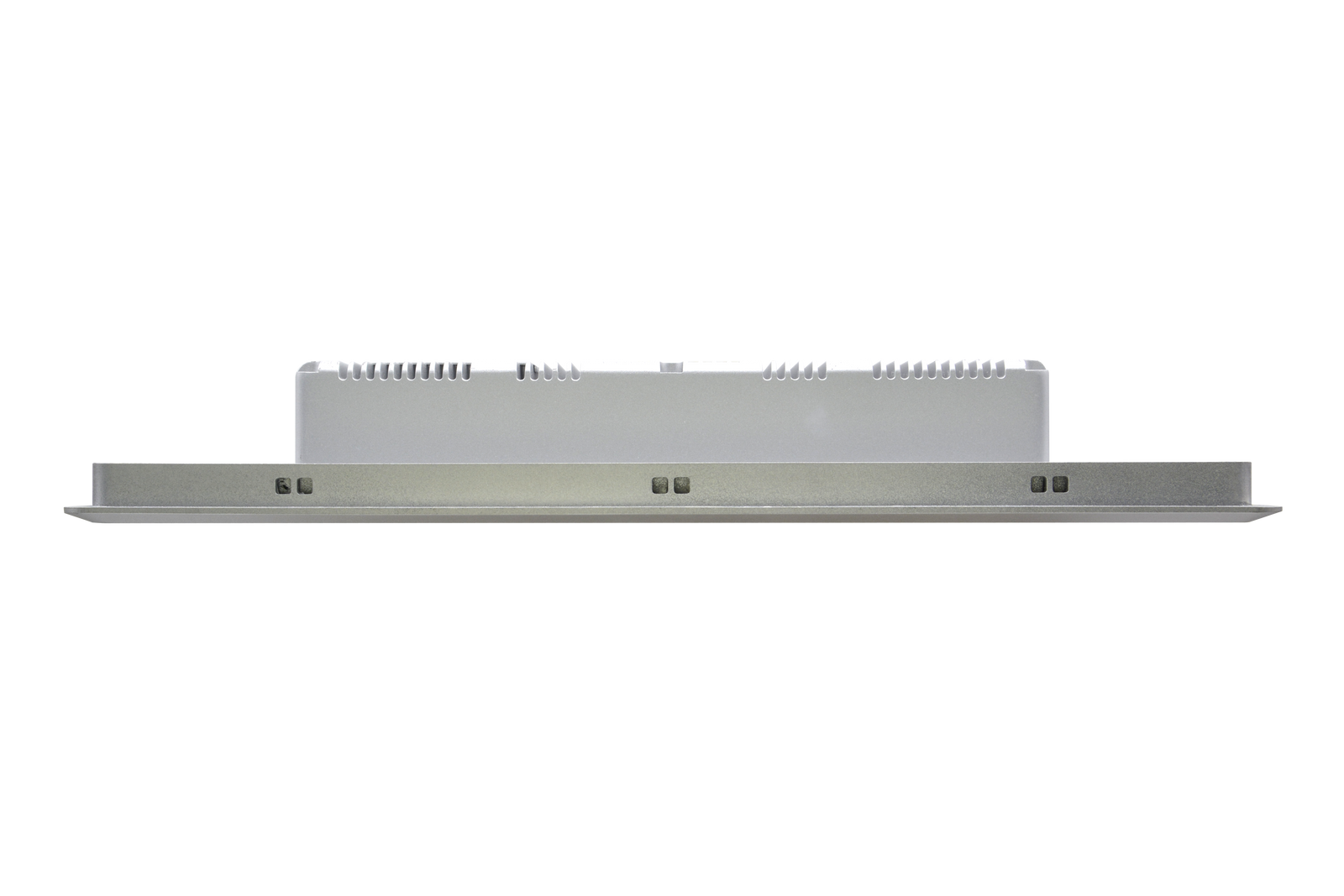

The system is built with a rugged aluminum alloy enclosure and a front panel rated IP65, ensuring reliable operation in dusty, humid and vibration-prone industrial environments.

✔ Classic 4:3 industrial panel format
✔ Fan-cooled Intel Core i5 performance
✔ Extensive serial and storage expansion

Processor & Performance

Intel Core i5-8260U
Quad-core industrial processor

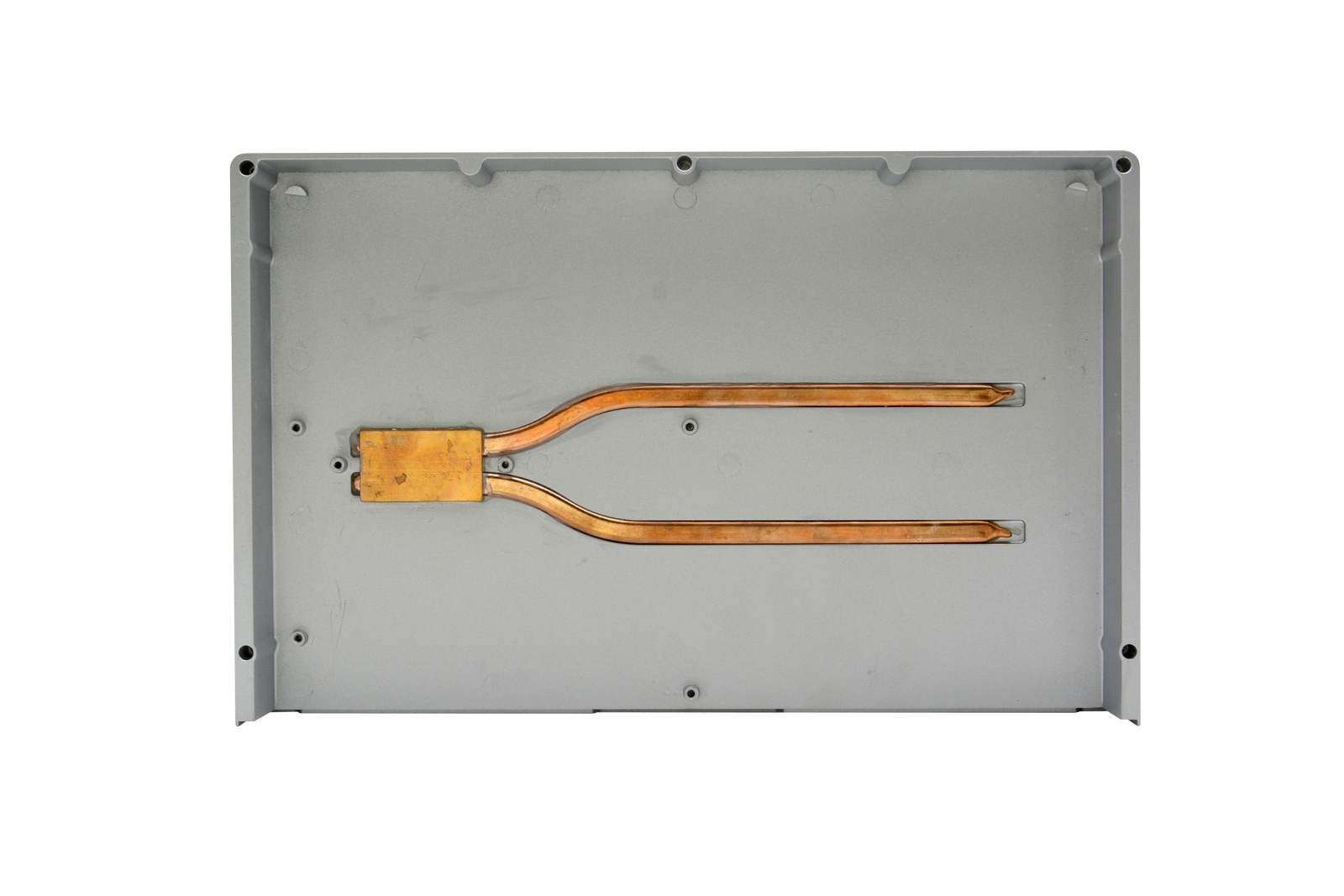

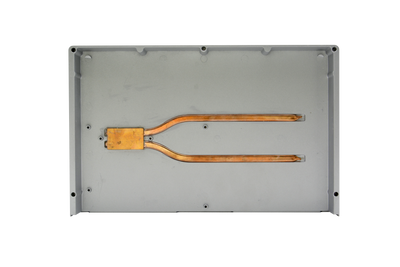

Fan-cooled thermal design
Optimized for industrial control workloads

Display & Touch

19″ Industrial LCD Panel
Resolution: 1280 × 1024 (4:3)
Brightness: 250 cd/m²
Capacitive Touch (Optional Resistive)

Memory & Storage

2 × DDR4 Slots (4–64GB)
1 × mSATA SSD
1 × M.2 NVMe SSD
1 × 2.5″ SATA SSD

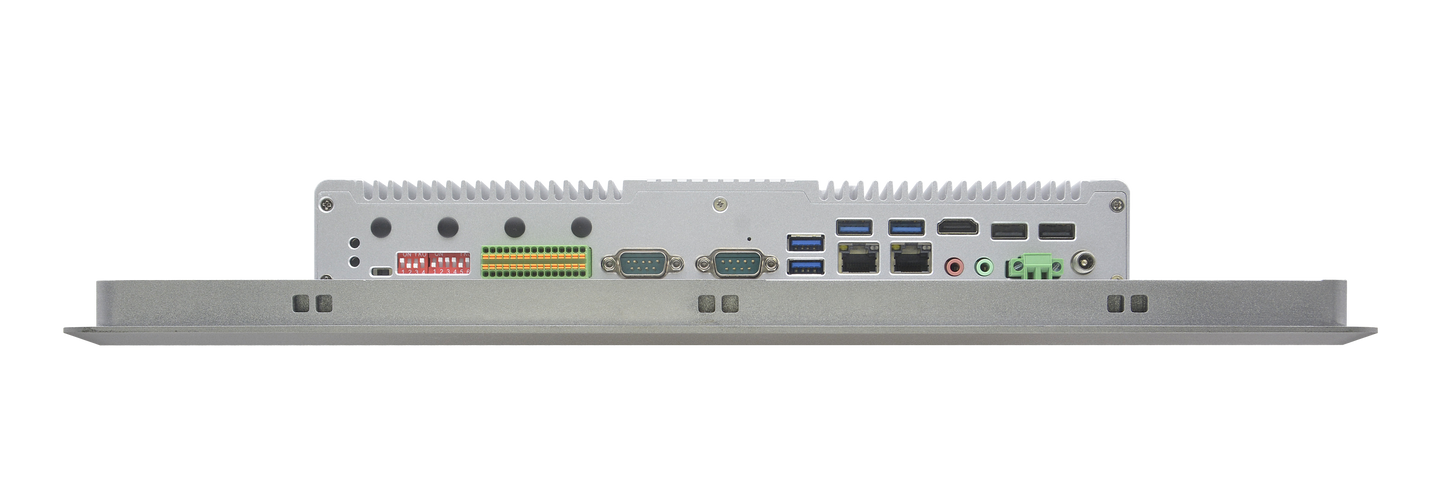

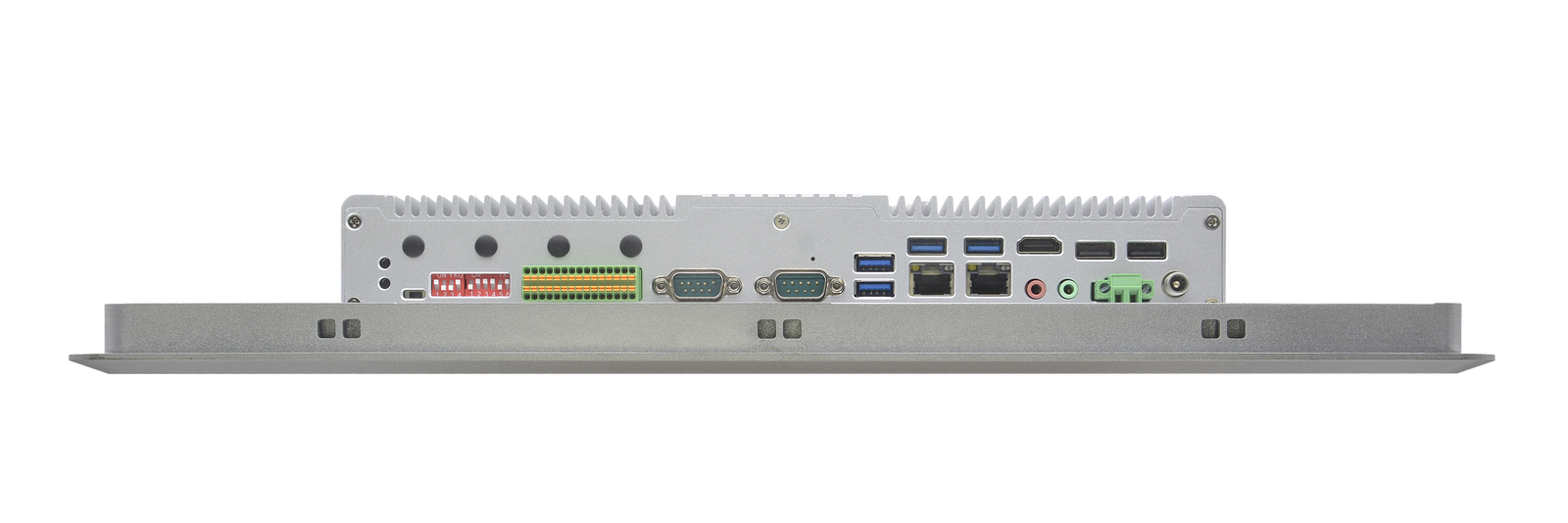

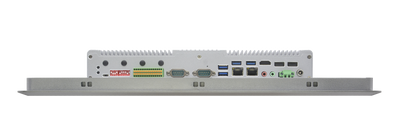

I/O & Expansion

4 × USB 3.0, 2 × USB 2.0
HDMI Output
6 × RS232 (Configurable RS485 / RS422)
2 × Gigabit LAN

Connectivity & Power

WiFi Module (Optional)
4G / 5G Module (Optional)
DC 9–36V Wide Voltage Input

The system supports Windows and Linux Ubuntu, providing long-term compatibility for industrial software platforms.

Designed for industrial Panel PC use cases such as PLC visualization, machine interfaces, process monitoring and legacy system upgrades.

Specification Details
Cooling / structure Fanless
Screen size 19"
Aspect ratio 4:3
Resolution 1280*1024
CPU I5-8260U
Memory (RAM) SC: 2*DDR4 slot (4/8/16/32/64GB options)
Storage 1*mSATA (32/64/128/256/512GB options) 1*M.2 Nvme SSD (128/256/512GB/1TB options) 1*2.5 inch SATA SSD (128/256/512GB/1TB/2TB options)
USB SC: 4*USB3.0, 2*USB2.0
HDMI SC: 1* HDMI
Serial (COM) SC: 6*RS232 Option: 5*RS232+1*RS485 5*RS232+1*RS422 4*RS232+1*RS485+1*RS422 4*RS232+2*RS485 COM1 RS232 DB9 serial port COM2 RS232/RS485/RS422 DB9 serial port COM3 RS232/RS485 serial port on the 2*15pin phoenix connector COM4-COM6 RS232 serial port on the 2*15pin phoenix connector COM1-COM2 support 9th Pin charged
Ethernet (LAN) SC: 2*LAN
Power input DC 9~36V
Wi-Fi 1* Wifi Module option
4G / 5G 1* 4G/5G Module option
Operating system SC: Windows Linux Ubuntu option
LCD / touch SC: Capacitive Touch Option: Resistive Touch
Brightness SC: 250 cd/㎡
Operating temperature (-10-+50)
Enclosure SC: Aluminum alloy, Front panel IP65
Mounting VESA/Embedded
CPU / SoC Intel i5
Cooling Fan-cooled
