GeniusCore

17″ Fanless Industrial Panel PC| Intel Core i5-10210U| HDMI Only| IP65 Front

$727.00
Opens WhatsApp with this product and current options

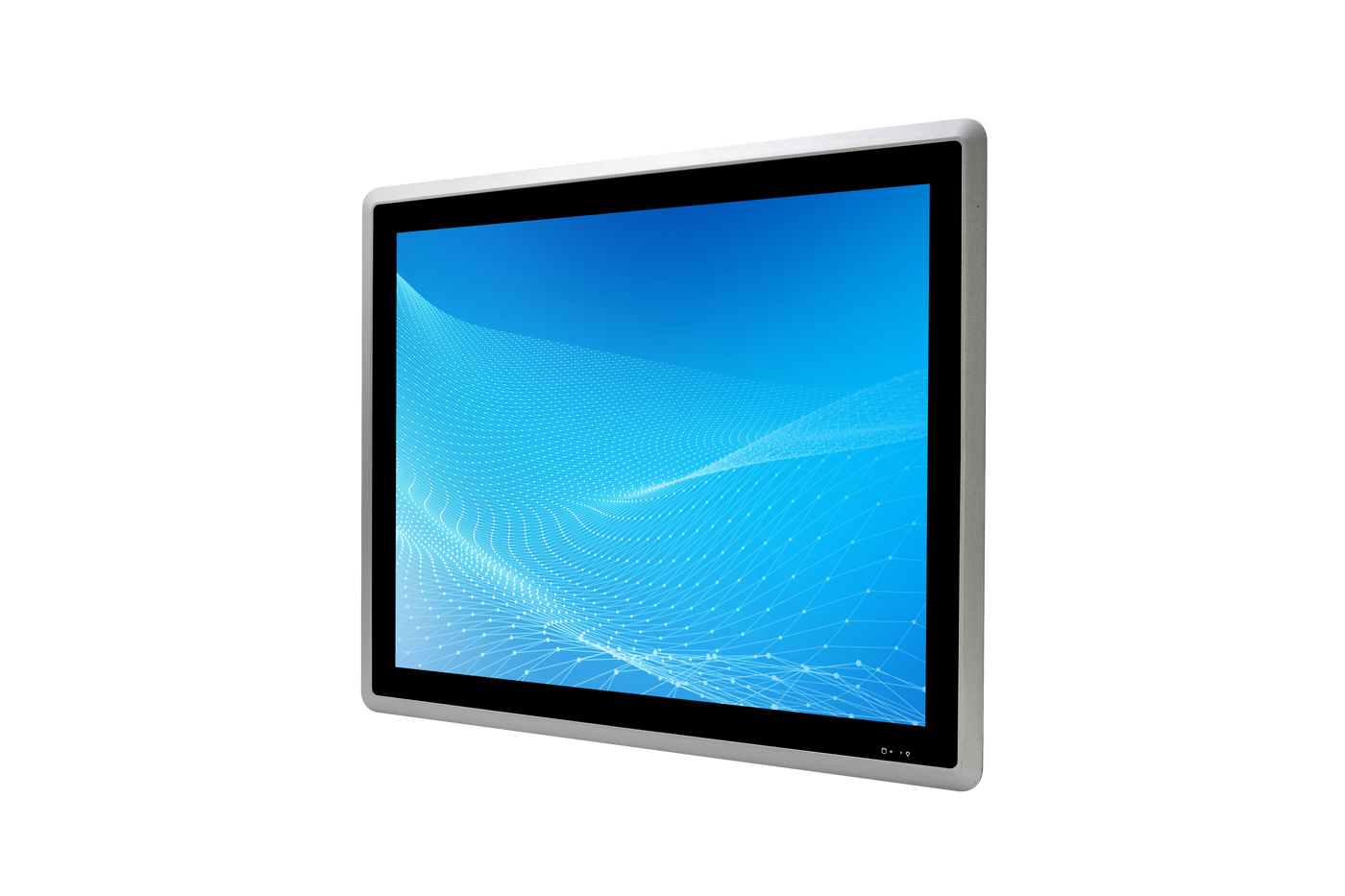

17″ Fanless Industrial Panel PC| Intel Core i5-10210U| HDMI Only| IP65 Front

SKU GH-PC17-i510-V1G

17″ Fanless Industrial Panel PC| Intel Core i5-10210U| HDMI Only| IP65 Front is an industrial Android HMI panel PC with a 17" touch display. Designed for machine control, SCADA operator stations, kiosk and embedded HMI projects. GeniusCore.

Highlights
Industrial SoC
17" IPS capacitive multi-touch display
Industrial panel housing for flush / embedded mounting
Android OS — HMI, kiosk and SCADA-ready application stack
Industrial I/O: USB, serial (RS232/RS485), Ethernet / Wi-Fi (model dependent)
12–24 V DC industrial power input (typical)
Technical specifications
Model / SKU GH-PC17-i510-V1G
Display 17" IPS LCD, capacitive multi-touch
CPU Industrial SoC
GPU —
OS Android (version by configuration)
Storage / RAM eMMC + LPDDR (configuration dependent)
Networking Ethernet RJ45 and/or Wi-Fi (model dependent)
Serial RS232 / RS485 (model dependent)
USB Multiple USB ports (model dependent)
Expansion TF / MicroSD, SIM (4G optional on selected models)
Power DC 12–24 V industrial input (typical)
Form factor Enclosed industrial panel
Applications Machine HMI, SCADA, kiosk, IoT gateway UI

I/O and memory options vary by SKU. Contact us for project-specific configuration.

Specification Details
Cooling / structure Fanless
Screen size 17"
Aspect ratio 4:3
Resolution 1280*1024
CPU I5-10210U
Memory (RAM) SC: 2*DDR4 slot (4/8/16/32/64GB options)
Storage 1*mSATA (32/64/128/256/512GB options) 1*M.2 Nvme SSD (128/256/512GB/1TB options) 1*2.5 inch SATA SSD (128/256/512GB/1TB/2TB options)
USB SC: 4*USB3.0, 2*USB2.0
HDMI SC: 1* HDMI
Serial (COM) SC: 6*RS232 Option: 5*RS232+1*RS485 5*RS232+1*RS422 4*RS232+1*RS485+1*RS422 4*RS232+2*RS485 COM1 RS232 DB9 serial port COM2 RS232/RS485/RS422 DB9 serial port COM3 RS232/RS485 serial port on the 2*15pin phoenix connector COM4-COM6 RS232 serial port on the 2*15pin phoenix connector COM1-COM2 support 9th Pin charged
Ethernet (LAN) SC: 2*LAN
Power input DC 9~36V
Wi-Fi 1* Wifi Module option
4G / 5G 1* 4G/5G Module option
Operating system SC: Windows Linux Ubuntu option
LCD / touch SC: Capacitive Touch Option: Resistive Touch
Brightness SC: 250 cd/㎡
Operating temperature (-10-+50)
Enclosure SC: Aluminum alloy, Front panel IP65
Mounting VESA/Embedded
CPU / SoC Intel i5
Cooling Fanless
