17″ Fanless Industrial Panel PC | Intel Core i5-8260U / i5-1135G7 | XGA+ | IP65 | PoE LAN

$784.00
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address

The 17″ Fanless Industrial Panel PC (P1771Y-P4 V2.0 – Modern Intel Core i5 Series) is designed for modern industrial HMI, SCADA visualization, machine control, and edge computing applications that require higher processing power while maintaining silent, fanless operation.

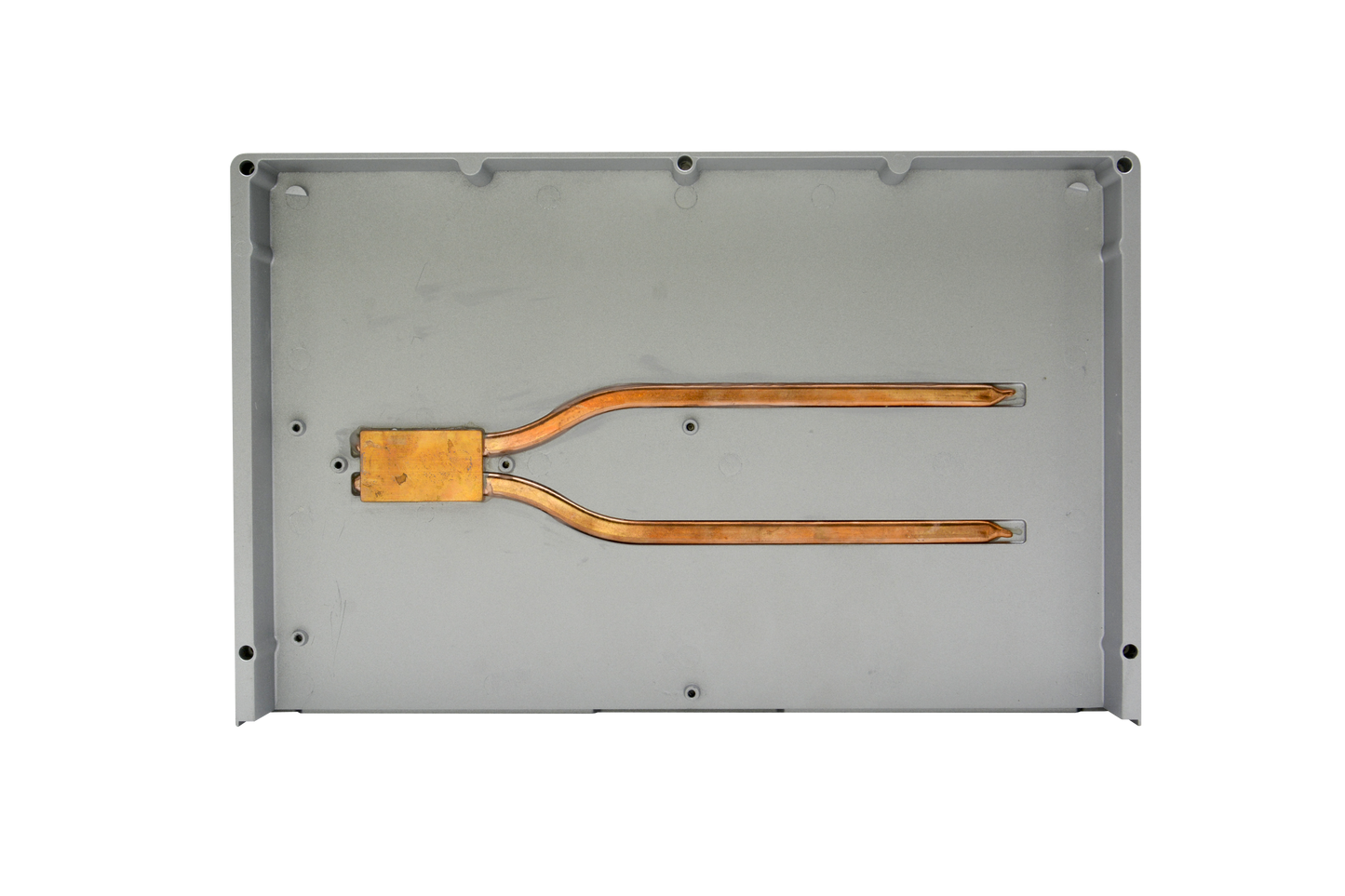

Its fanless aluminum alloy enclosure combined with an IP65-rated front panel ensures reliable long-term operation in harsh industrial environments with dust, humidity, and continuous operation.

✔ 17″ Industrial LCD • 4:3 Aspect Ratio
✔ 1280×1042 (XGA+) • 250 cd/m² Brightness

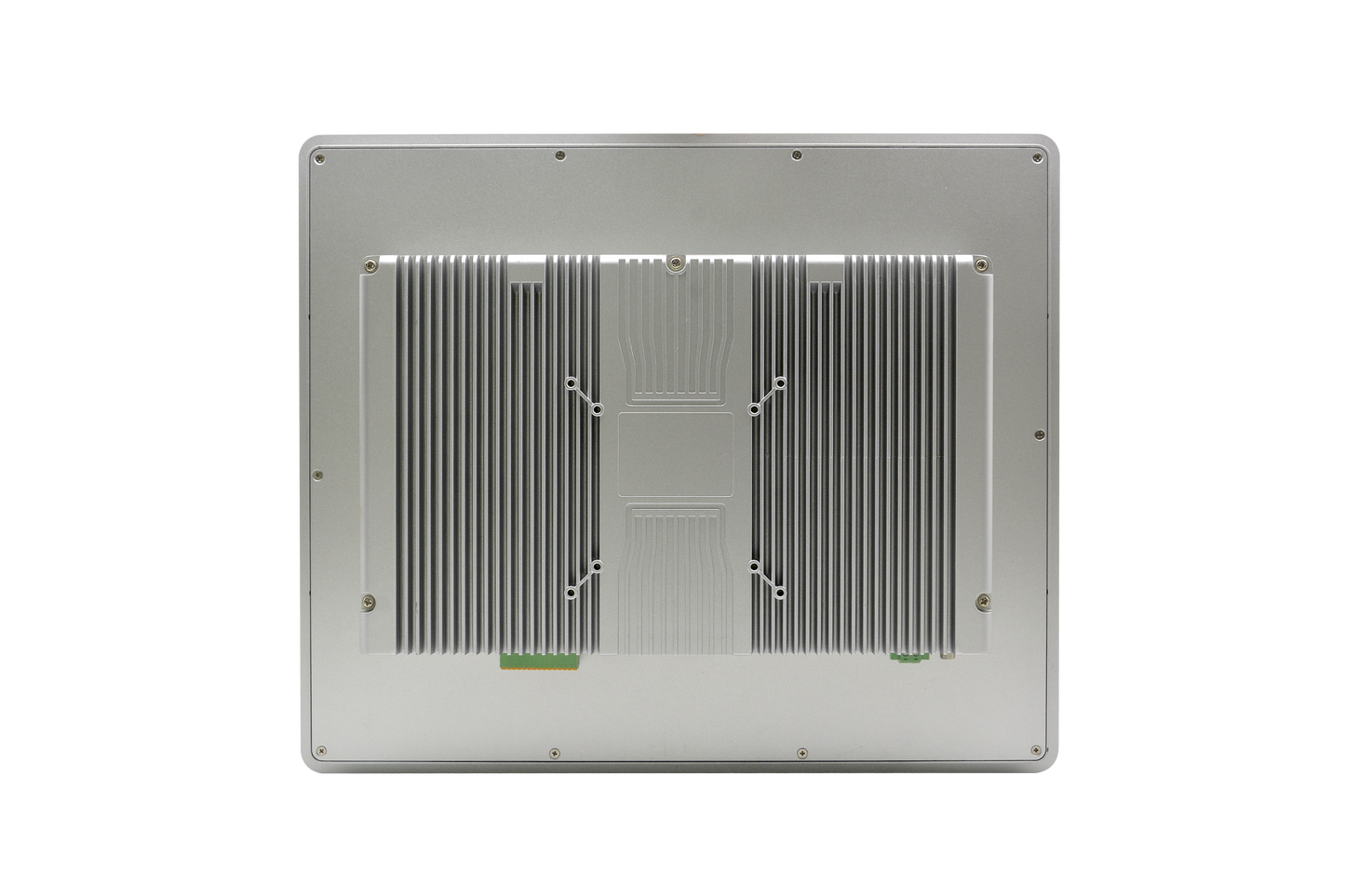

✔ Fanless • Aluminum Alloy • Front IP65

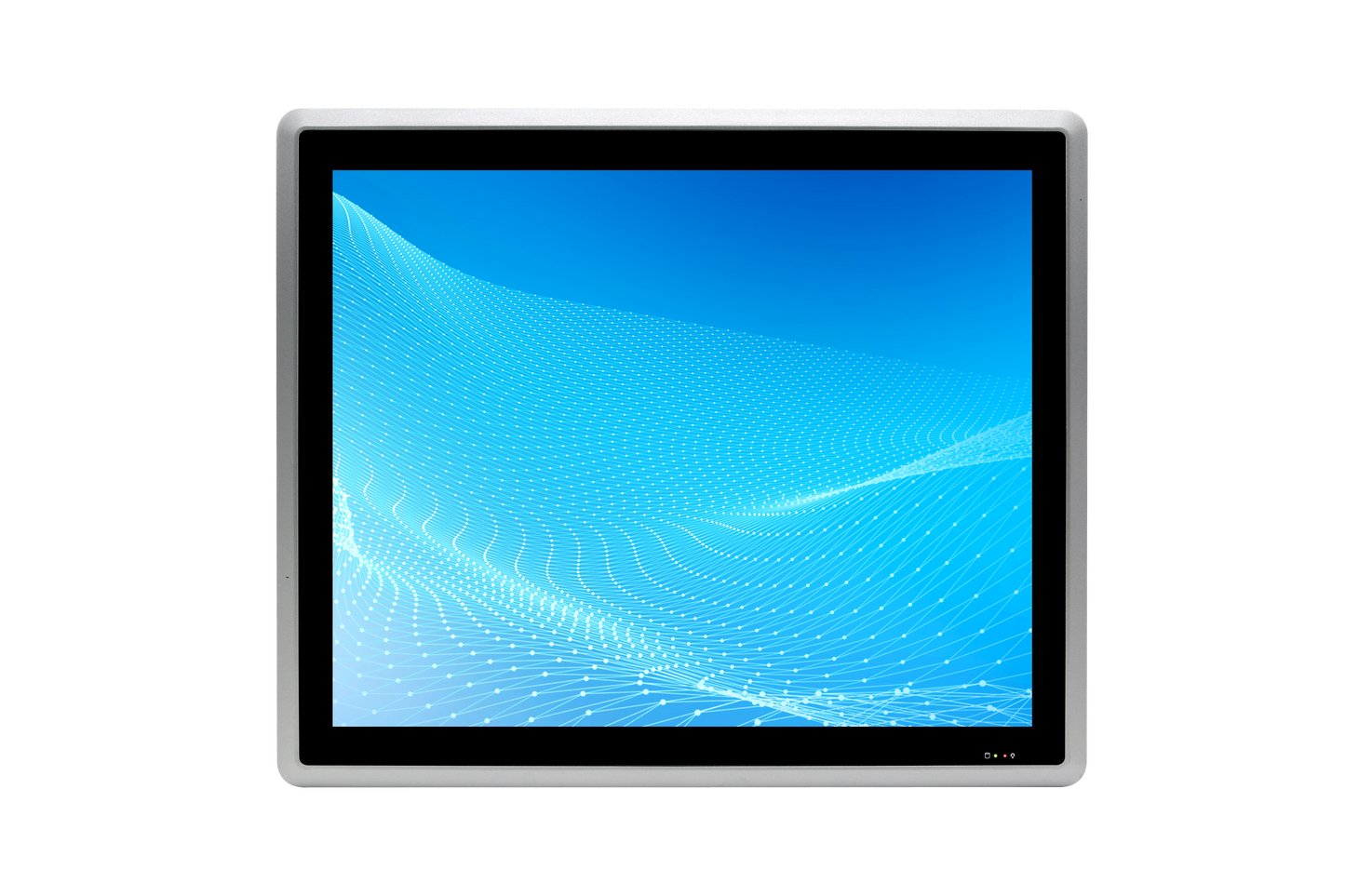

Display & Touch

17″ industrial-grade LCD panel
4:3 aspect ratio for industrial HMI software
1280×1042 native resolution (XGA+)
Capacitive touch (optional resistive touch)

CPU Options

Intel Core i5-8260U
Intel Core i5-1135G7
Balanced multi-core performance for modern industrial workloads

Memory & Storage

2× DDR4 slots (4 / 8 / 16 / 32 / 64 GB)
1× mSATA SSD (32–512 GB)
1× M.2 NVMe SSD (128 GB–1 TB)
1× 2.5″ SATA SSD (up to 2 TB)

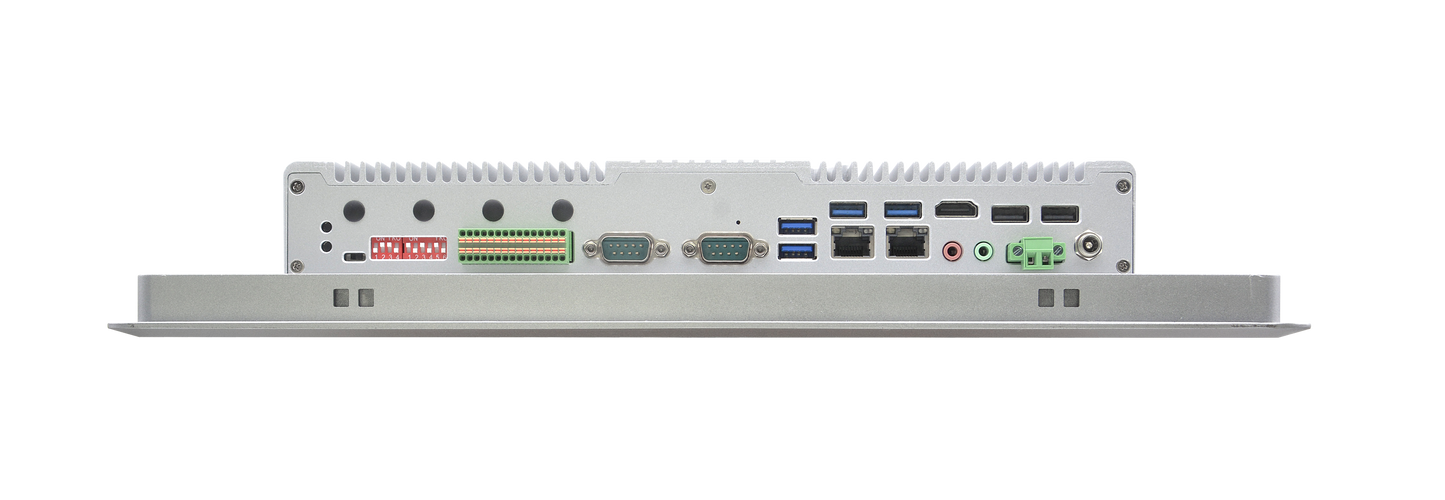

Industrial Connectivity & Power

2× USB 3.0 + 2× USB 2.0
HDMI + DisplayPort outputs
5× Gigabit LAN (4× PoE supported)
4× RS232 with RS485 / RS422 combination options
COM1–COM2 support 9th-pin power output
Wide-range DC 9–36V industrial power input

Wireless & OS Support

Wi-Fi / Wi-Fi 6 module support (optional)
4G / 5G cellular module support (optional)
Windows & Linux Ubuntu support

Operating Temperature: −10°C to +50°C
Mounting: VESA / Embedded panel mount
Weight: approx. 5.2 kg

Specifications and interfaces may vary depending on selected CPU and configuration.
