Genius Core Embedded Systems

15″ Fanless Industrial Panel PC | Intel N97 or N305 | IP65 Front | HDMI+DP

$559.00
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address

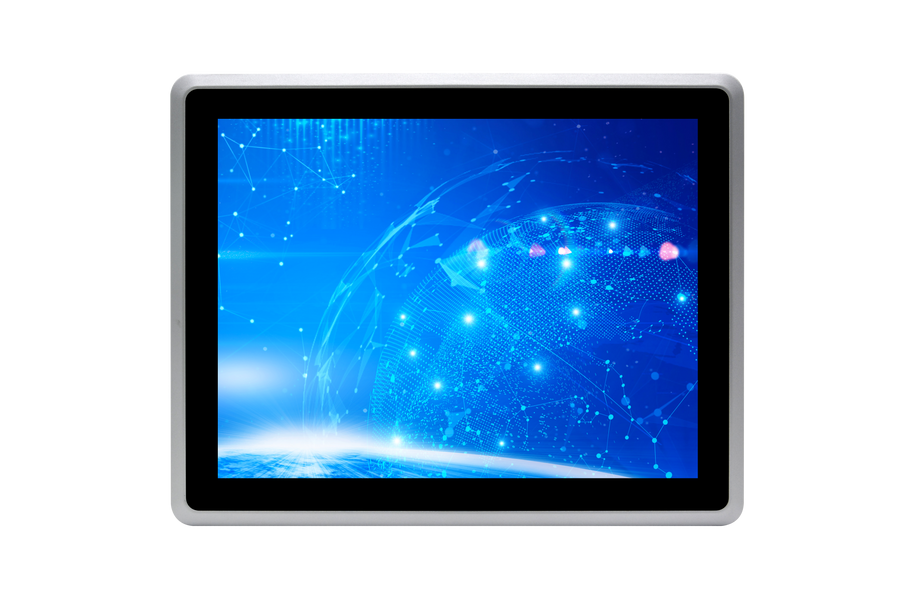

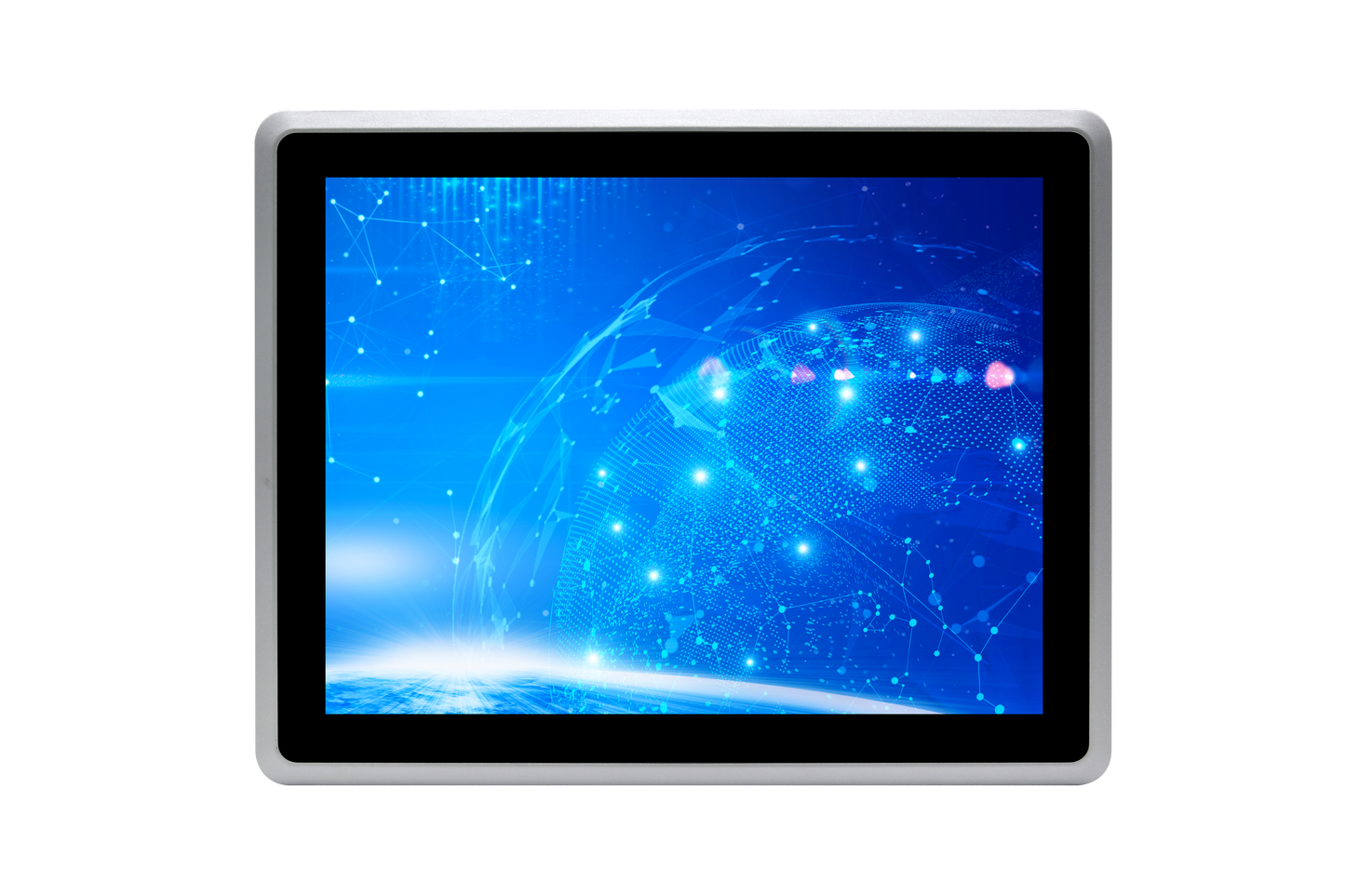

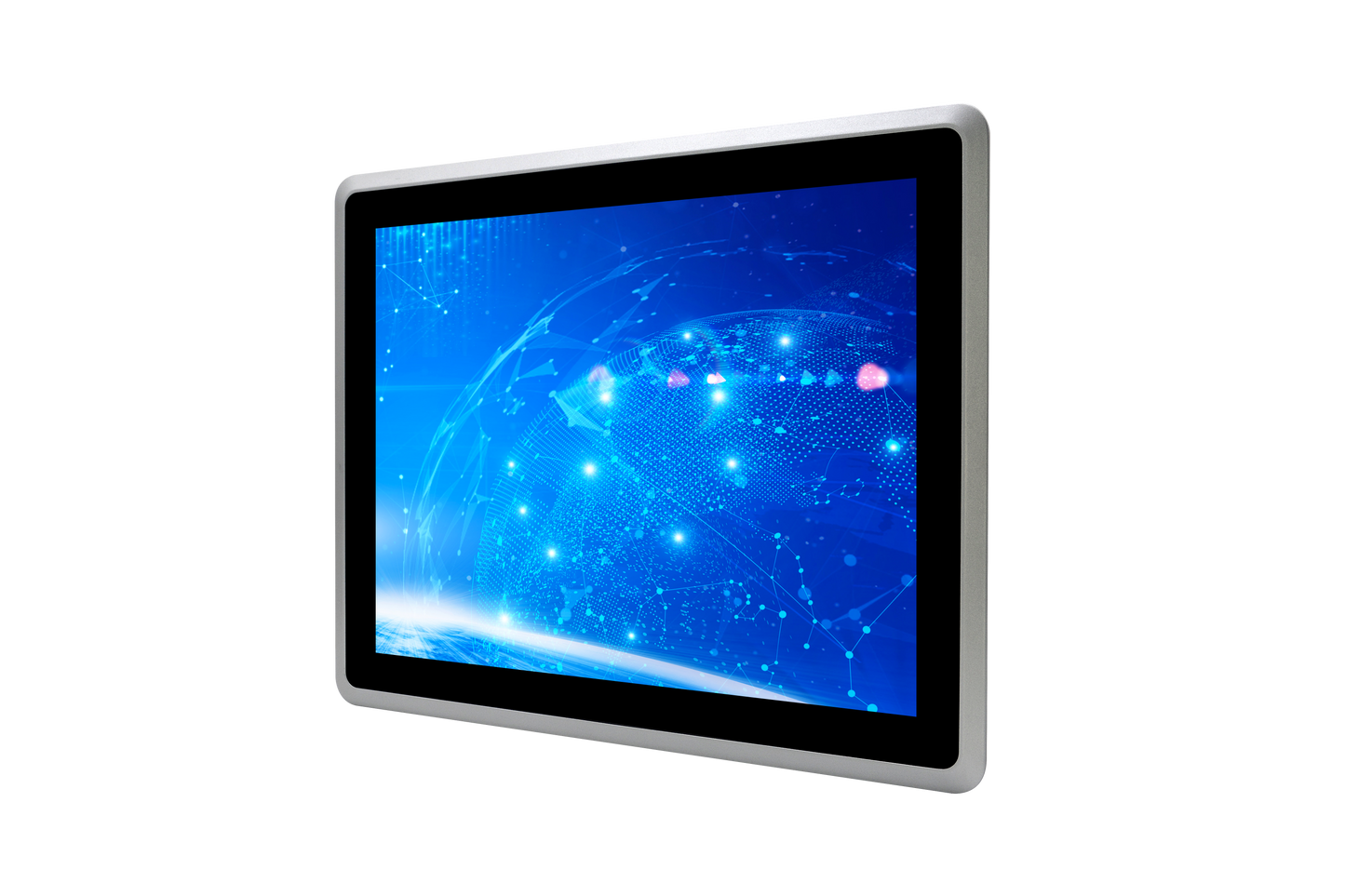

P1571Y-C6 V2.0 is a 15″ fanless industrial panel PC for 24/7 HMI, automation, and shop-floor control. Choose your CPU: Intel® Processor N97 or Intel® Processor N305. Built with a rugged IP65 front panel and wide-range DC 9–36V input.

✔ 15″ 4:3 • 1024×768 • 350 cd/㎡
✔ Fanless • Aluminum alloy • IP65 front
✔ HDMI + DP • 2×LAN • RS232 • DC 9–36V

CPU Options

Intel® Processor N97
Intel® Processor N305
(select from options)

Memory & Storage

1× DDR4 slot (4/8/16GB options)
mSATA / M.2 NVMe / 2.5″ SATA SSD

I/O & Network

4× USB 3.0 + 2× USB 2.0
HDMI + DisplayPort
2× LAN

Industrial Serial Interfaces

Standard 6× RS232 with optional RS485 / RS422 combinations. DB9 and Phoenix connectors available. COM1–COM2 support 9th-pin power output.

Wireless, OS & Touch Options

Optional WiFi / WiFi 6 and 4G/5G modules.
OS support: Windows / Linux Ubuntu
Touch options: Capacitive / Resistive

Final specifications depend on selected configuration.

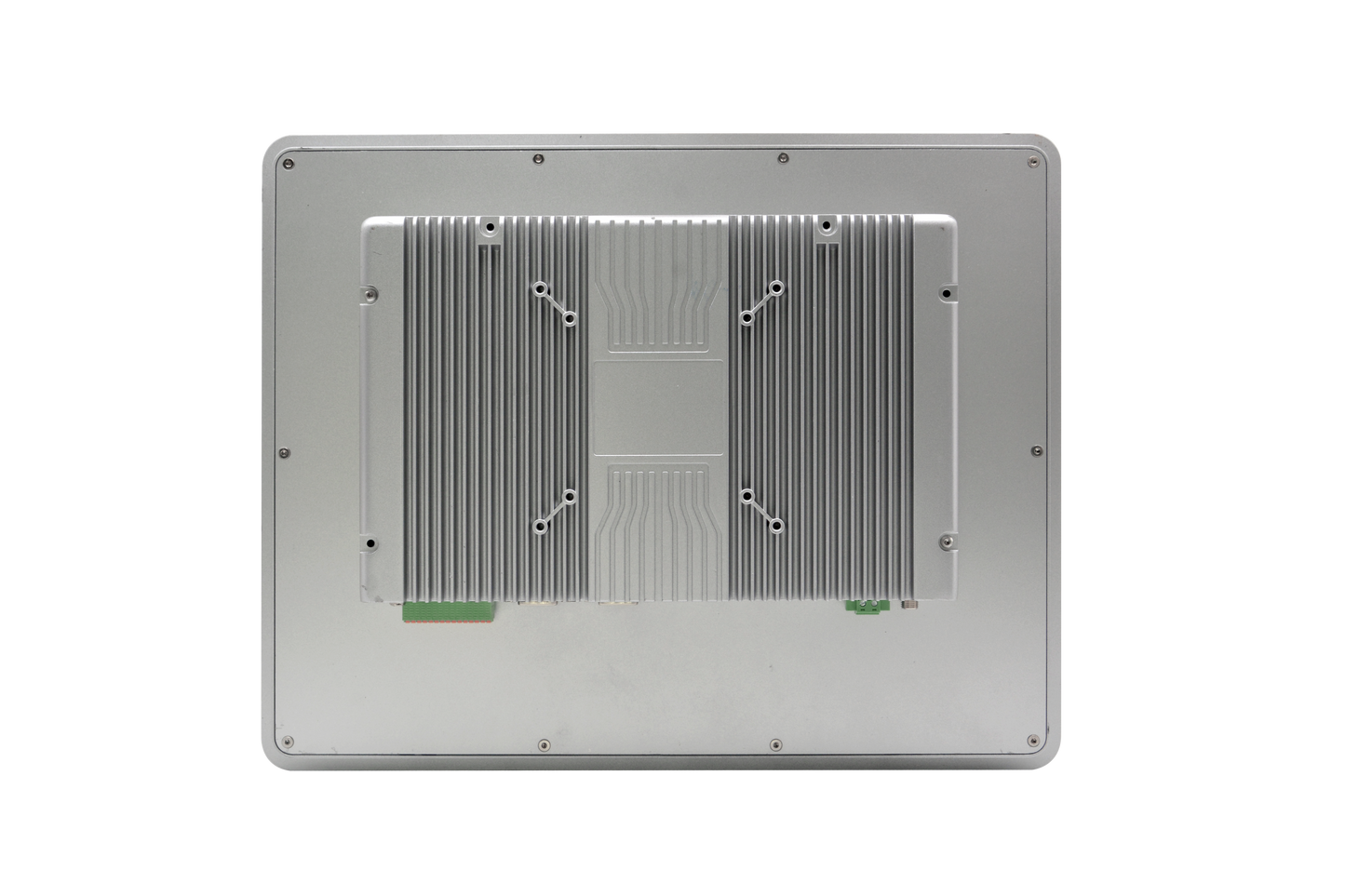

Mounting: VESA / Embedded  |  Operating temp: −10°C to +50°C

Specifications and options may vary by configuration and region.
