12.1″ Fanless Industrial Panel PC | Intel N-Series (Configurable) | IP65 Front Panel

$586.00
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address

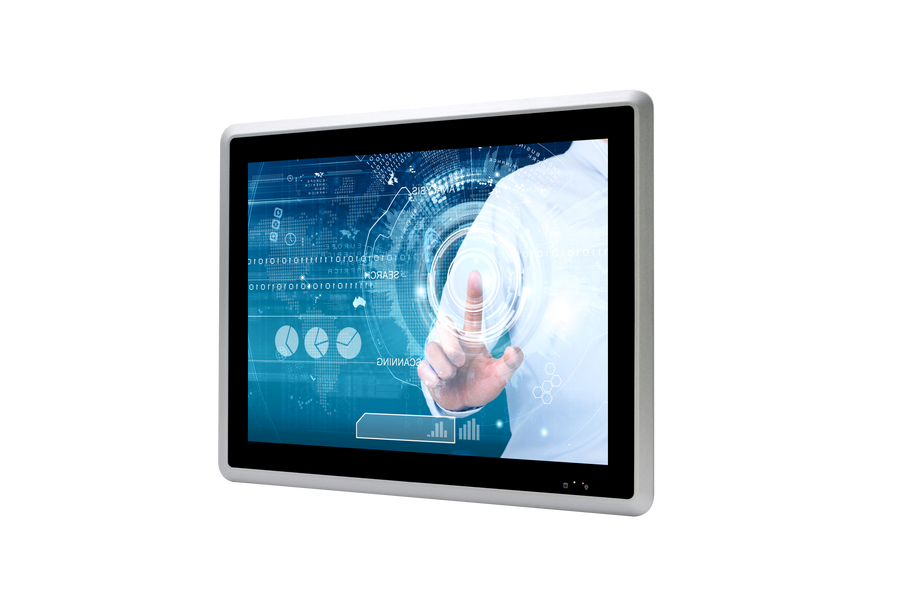

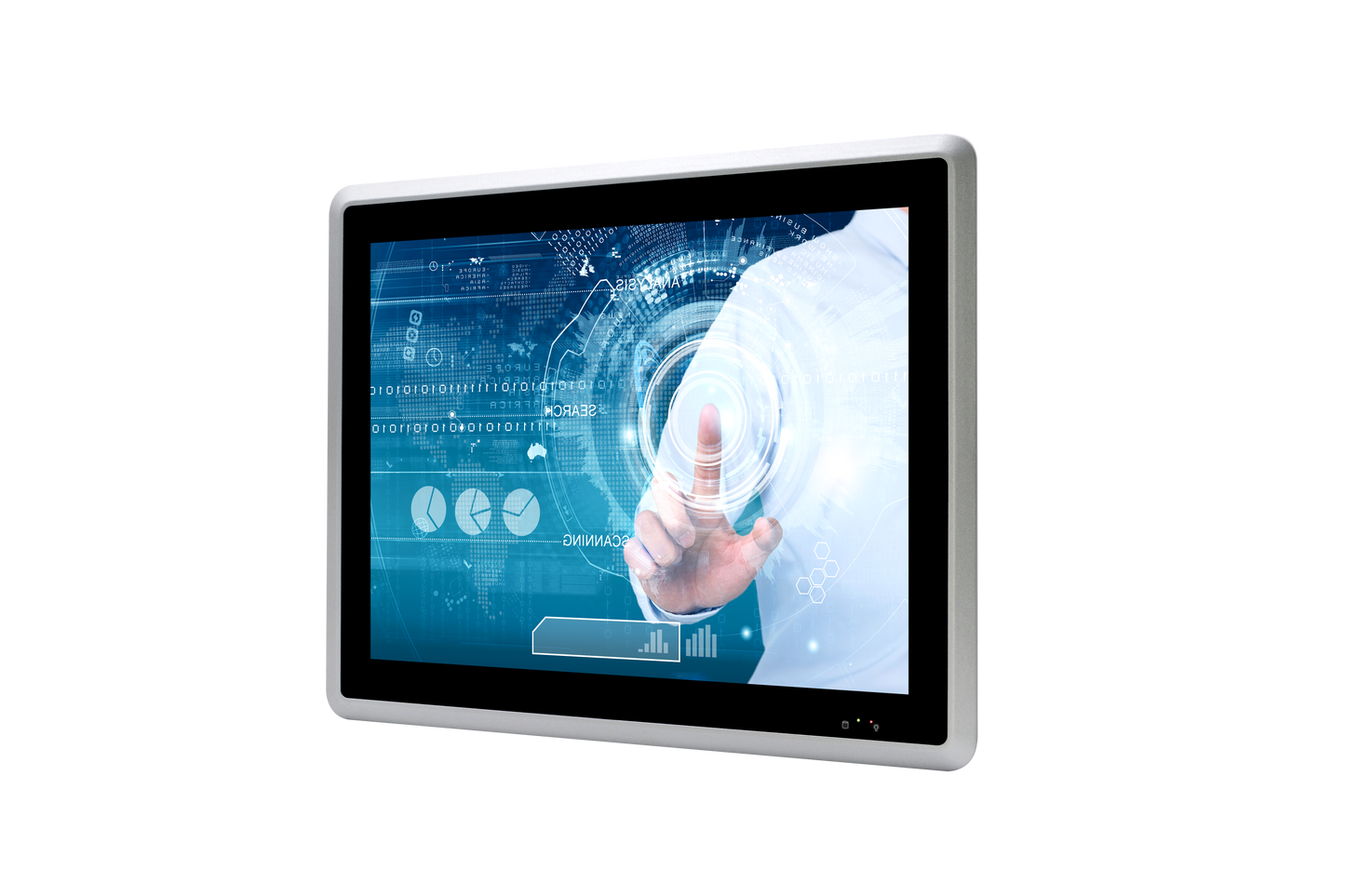

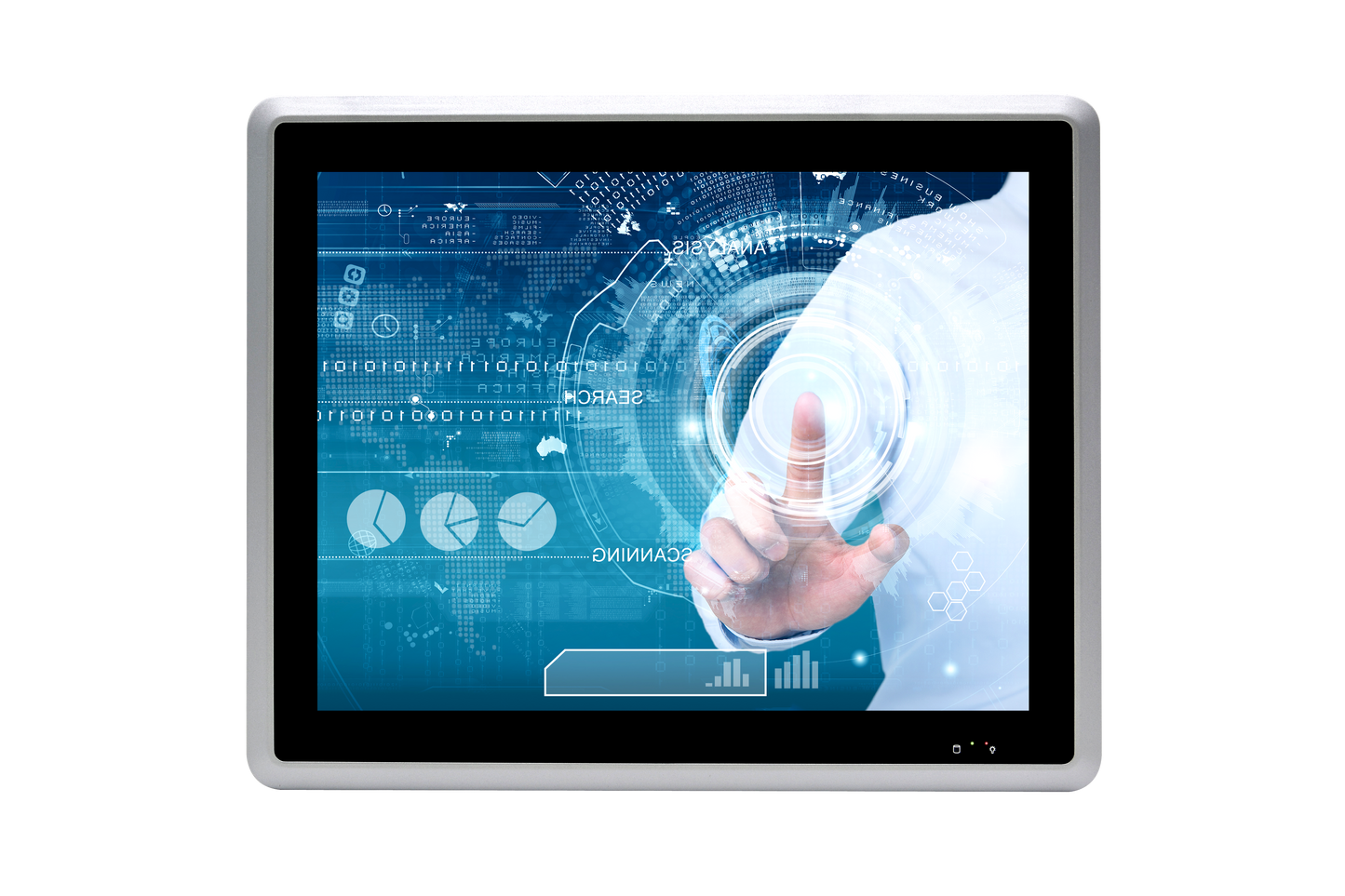

P1271Y-C6 V2.0 is a 12.1-inch fanless industrial panel PC with configurable Intel® N-series CPU options, designed for reliable industrial HMI and embedded control environments.

The system features an IP65-rated aluminum alloy front panel and a high-brightness 500 cd/㎡ display, optimized for control cabinets and industrial applications requiring stable 24/7 operation.

✔ 12.1″ high-brightness display (500 cd/㎡)
✔ Fanless design for silent, low-maintenance operation
✔ IP65 front panel for industrial protection

Display

12.1″ LCD (4:3)
1024×768
500 cd/㎡

Memory & Storage

1× DDR4 slot (up to 16GB)
mSATA / M.2 NVMe / 2.5″ SATA SSD

Connectivity

2× LAN
HDMI + DisplayPort
Optional WiFi / WiFi 6 / 4G / 5G modules

Processor Options (CPU)

Choose the CPU that matches your workload:

  • Intel N97 (cost-efficient)
  • Intel N305 (performance upgrade)

Final price and performance characteristics vary by selected CPU configuration.

Industrial Serial Interfaces

Standard 6× RS232 with optional RS485 / RS422 combinations. Interfaces via DB9 and Phoenix connectors. COM1–COM2 support 9th-pin power output.

Power input: DC 9–36V  |  OS support: Windows / Linux Ubuntu  |  Mounting: VESA / Embedded

Operating temperature: −10°C to +50°C

Specifications and options may vary depending on configuration and region.
