10.4″ Fanless Industrial Panel PC | Intel N-Series (Configurable) | IP65 Front Panel

$566.00
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address

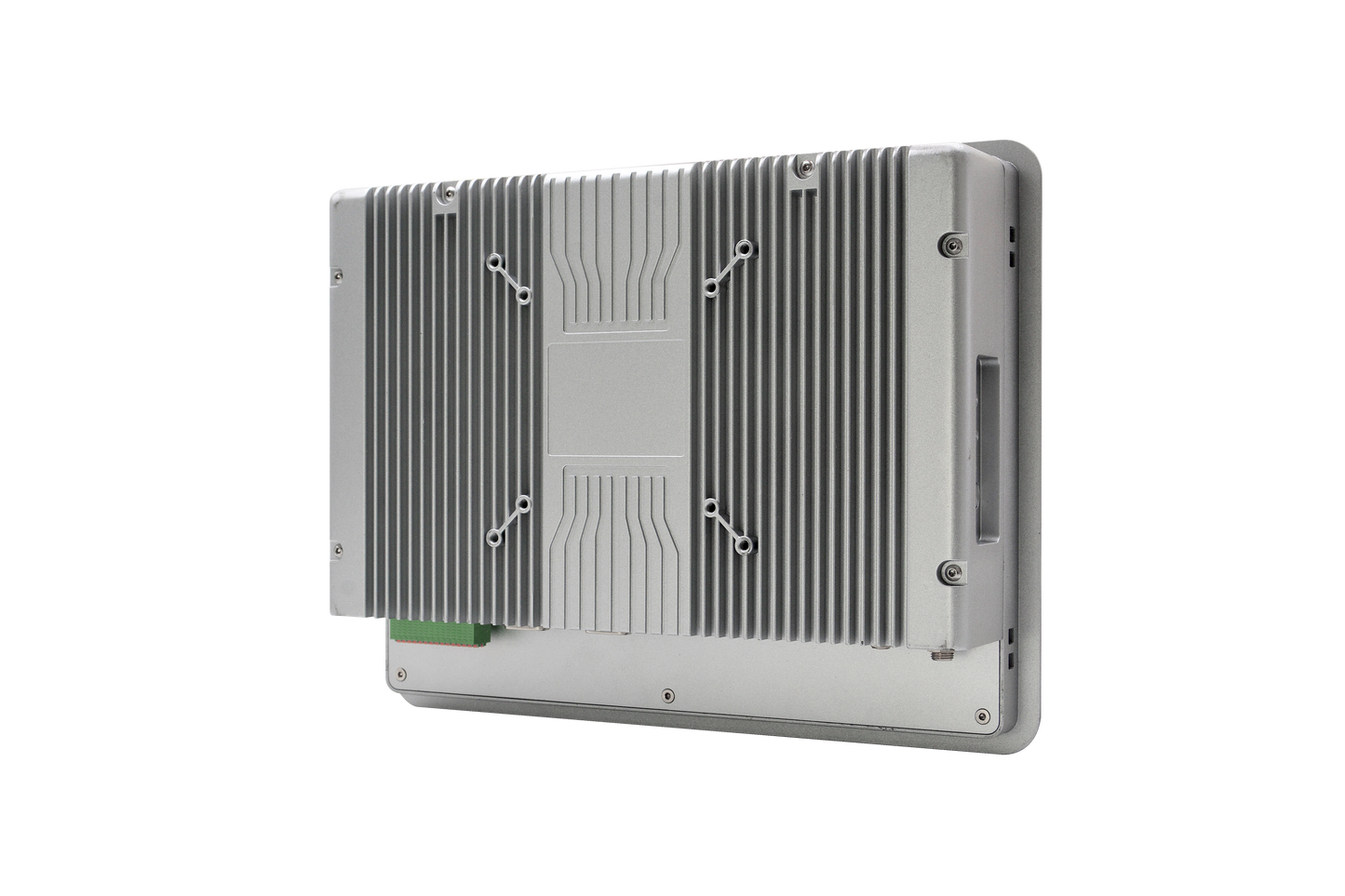

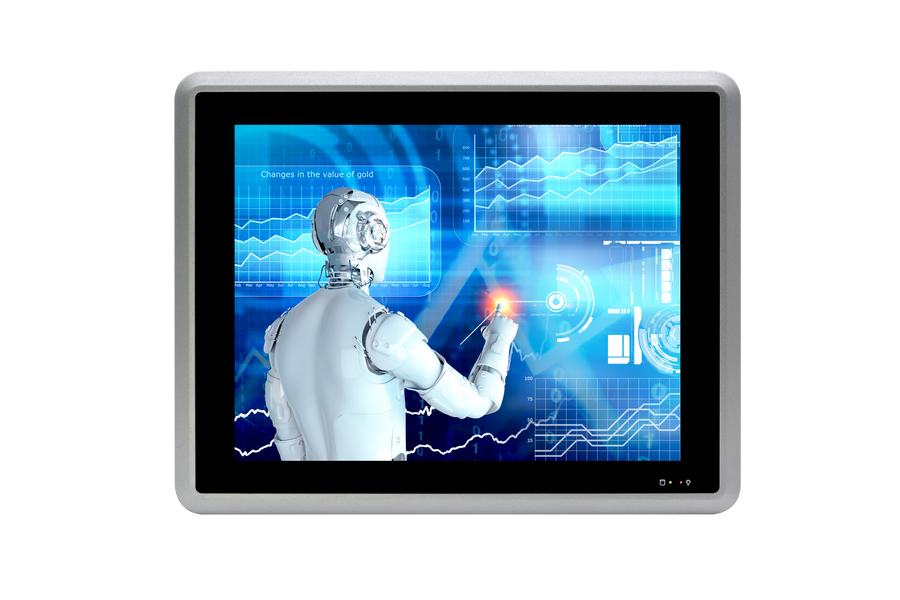

P1071Y-C6 V2.0 is a 10.4-inch fanless industrial panel PC with configurable Intel® N-series CPU options, designed for stable industrial HMI and embedded control applications.

With an aluminum alloy front panel rated IP65 and wide DC input, this unit is built for control cabinets, industrial automation lines and 24/7 operation.

✔ Compact 10.4″ HMI format (4:3)

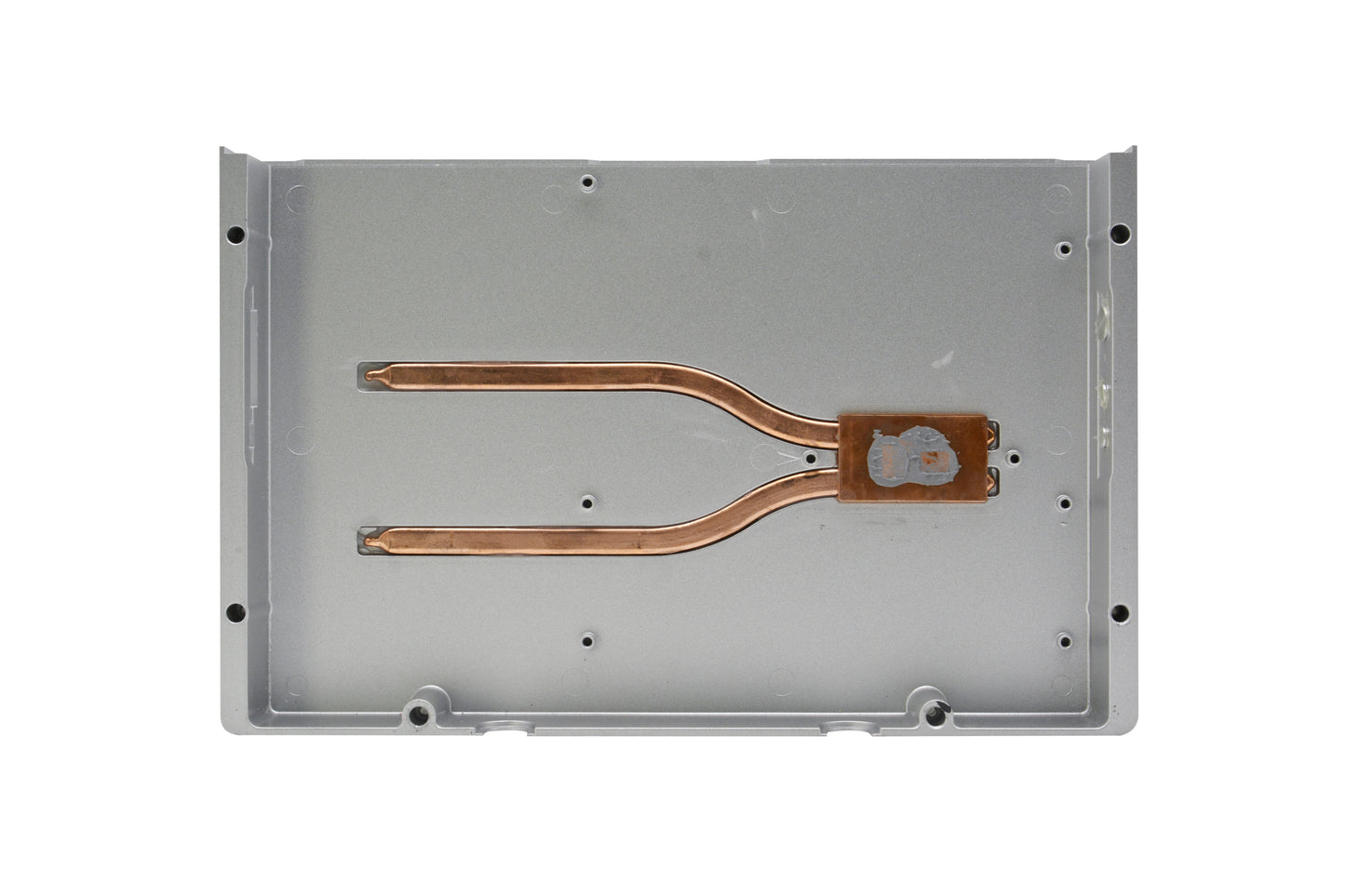

✔ Fanless design for silent, low-maintenance operation
✔ IP65 front panel for industrial protection

Display

10.4″ LCD (4:3)
800×600
350 cd/㎡

Memory & Storage

1× DDR4 slot (up to 16GB)
mSATA / M.2 NVMe / 2.5″ SATA SSD

Connectivity

2× LAN
HDMI + DisplayPort
Optional WiFi / WiFi 6 / 4G / 5G modules

Processor Options (CPU)

Choose the CPU that matches your workload:

  • Intel N97 (cost-efficient)
  • Intel N305 (performance upgrade)

Final price and performance characteristics vary by selected CPU configuration.

Industrial Serial Interfaces

Standard 6× RS232 with optional RS485 / RS422 combinations. Interfaces via DB9 and Phoenix connectors. COM1–COM2 support 9th-pin power output.

Power input: DC 9–36V  |  OS support: Windows / Linux Ubuntu  |  Mounting: VESA / Embedded

Operating temperature: −10°C to +50°C

Specifications and options may vary depending on configuration and region.
