Genius Core Embedded Systems

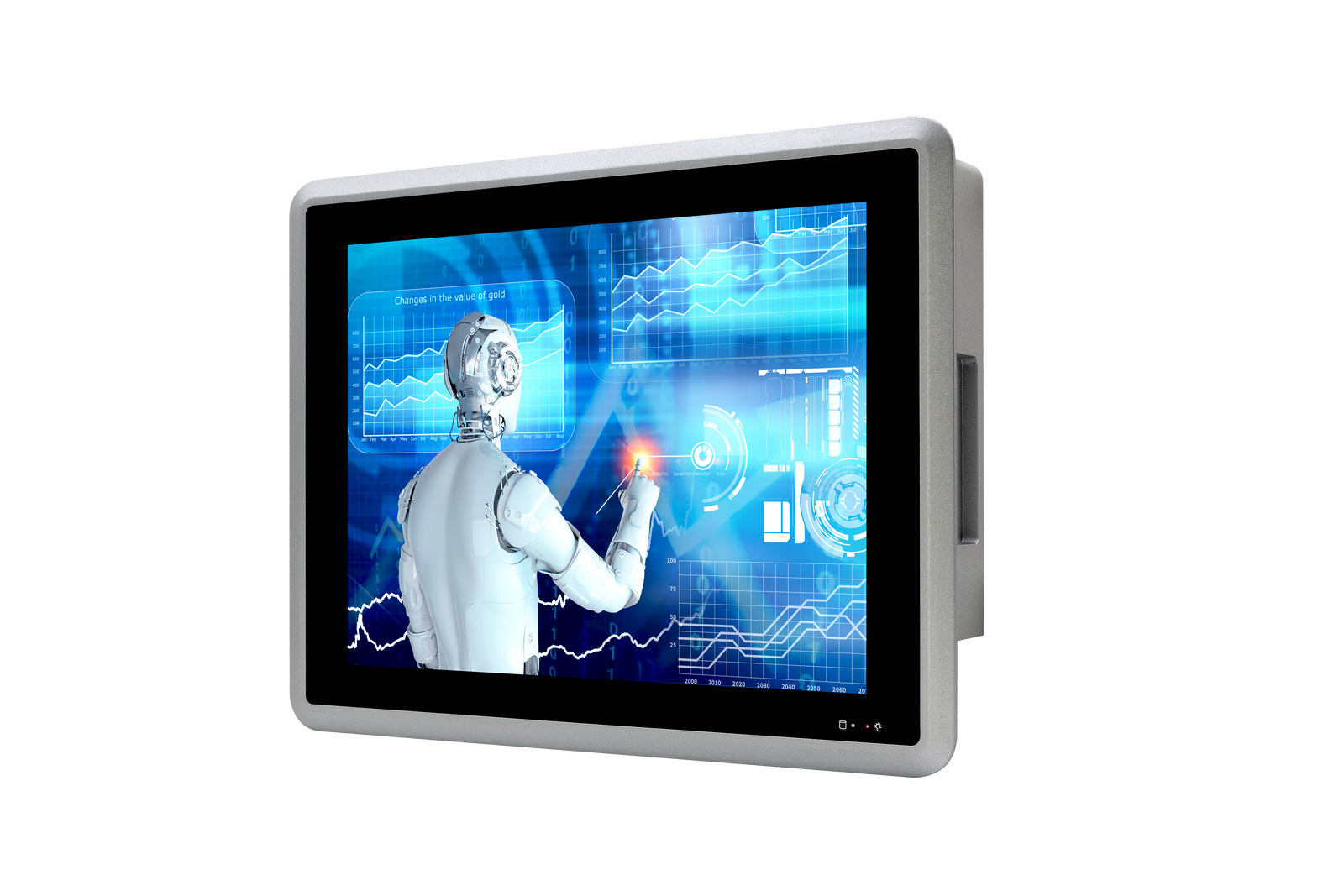

10.4″ Fanless Industrial Panel PC | Core i5 (Configurable) | HDMI+DP | IP65 Front

$511.00
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address

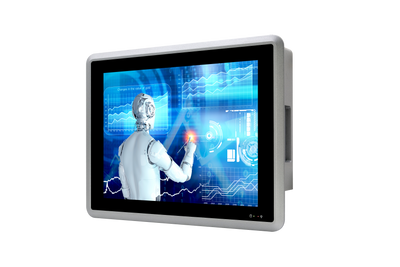

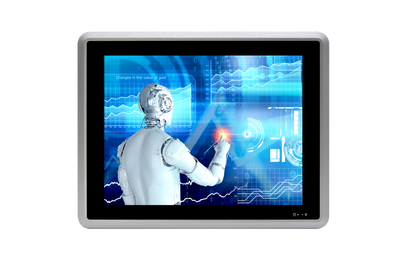

P1071Y-C6 V2.0 is a 10.4″ fanless industrial panel PC built for 24/7 HMI and automation environments. Select the Intel® Core™ i5 CPU option that matches your workload—same rugged platform, scalable performance.

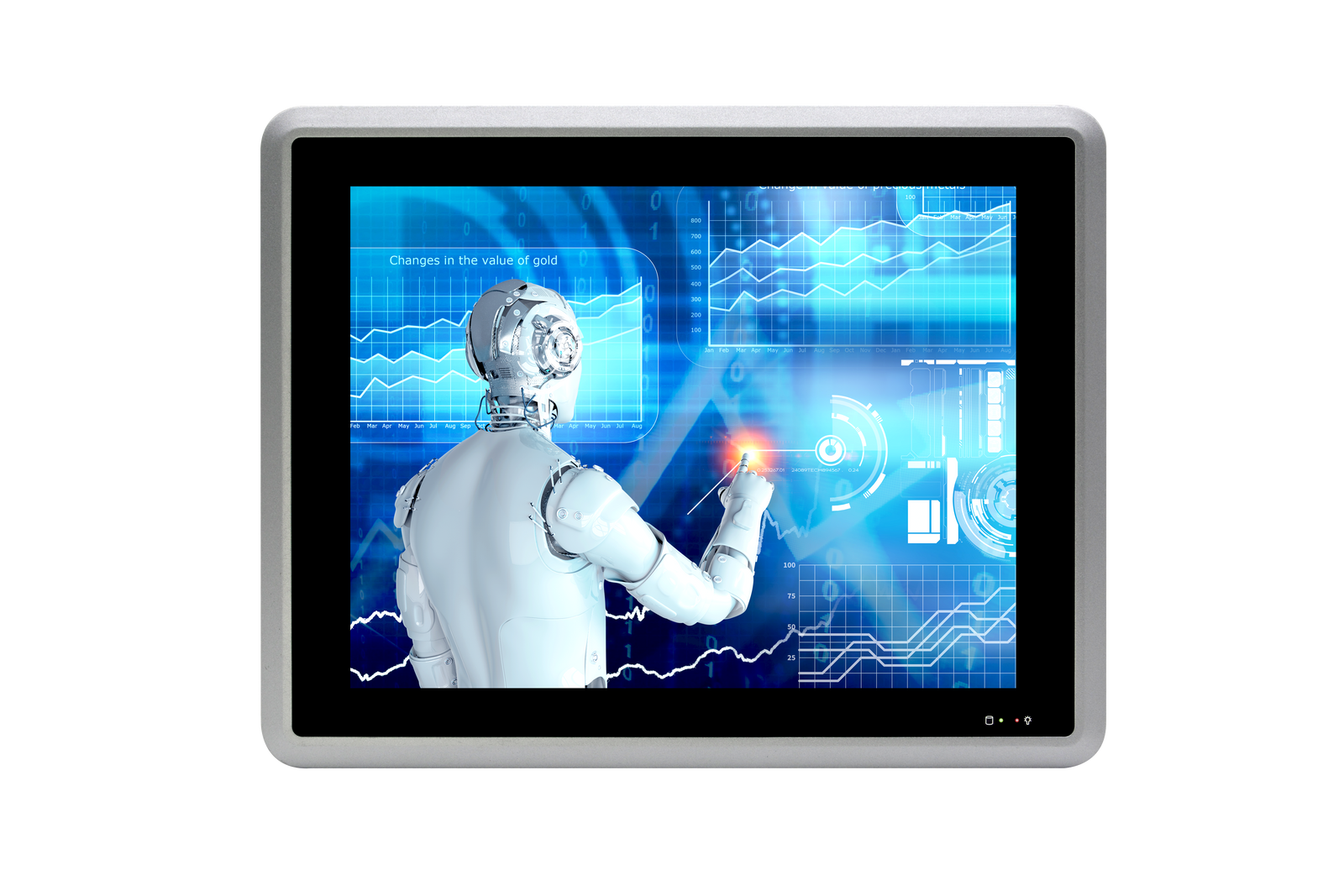

✔ 10.4″ 4:3 • 800×600 • 350 cd/㎡

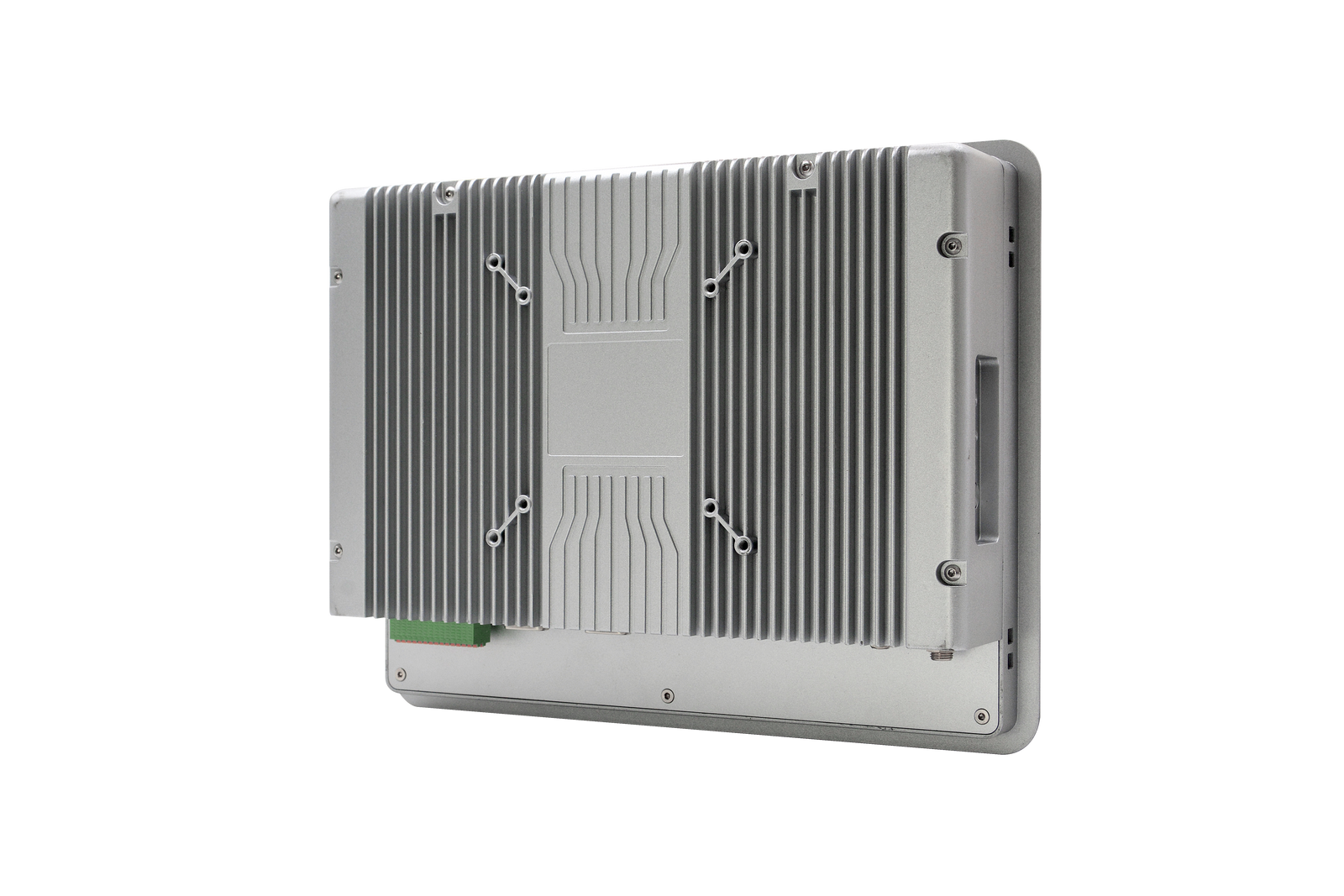

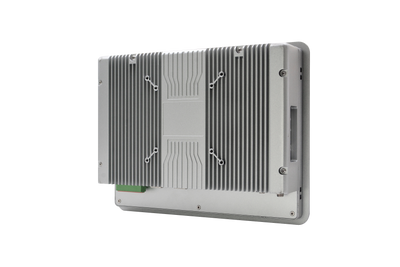

✔ Fanless aluminum chassis • IP65 front panel
✔ HDMI + DisplayPort • Dual LAN • DC 9–36V

Core Platform

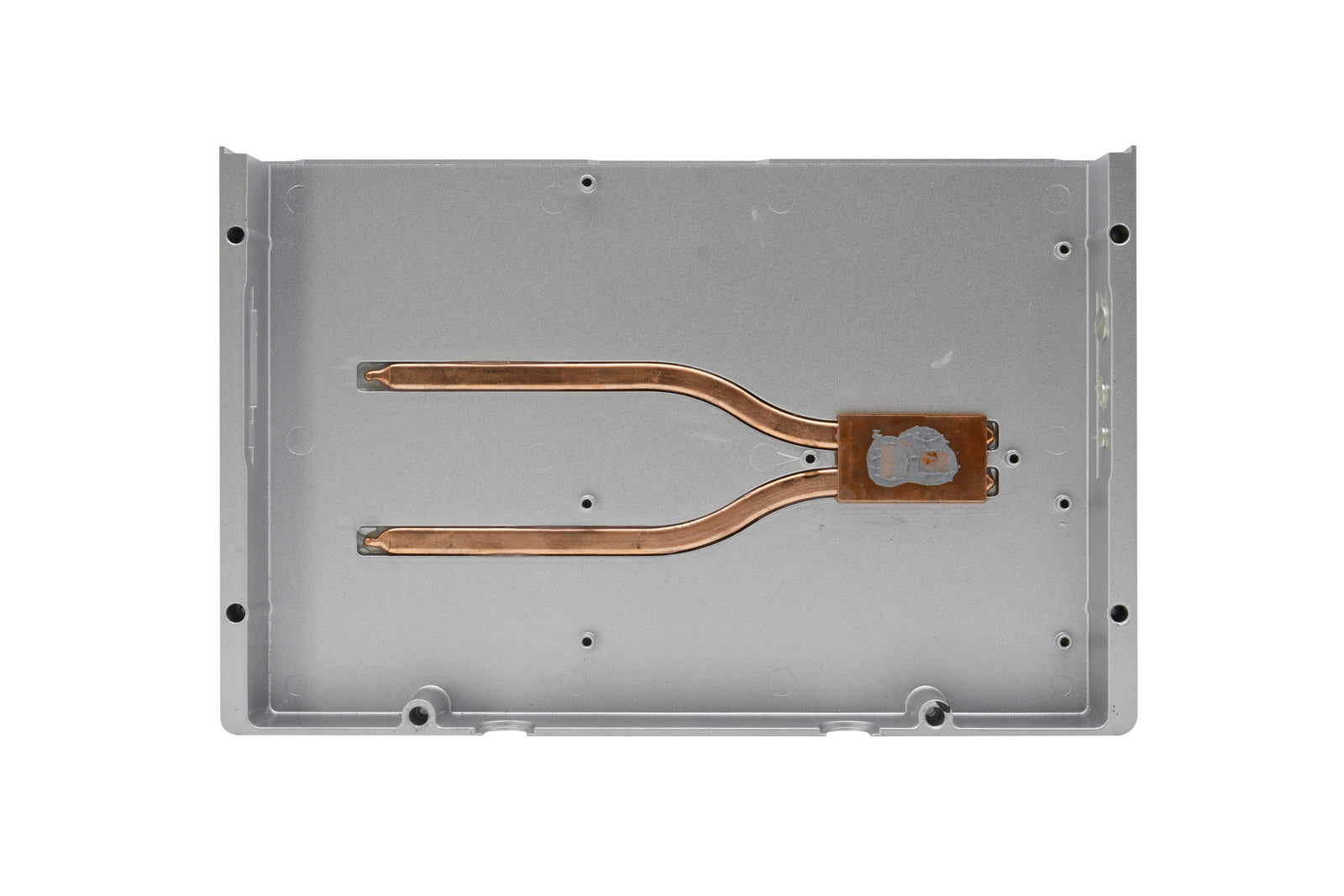

Fanless industrial design
IP65 front panel
Operating: −10°C to +50°C

Memory & Storage

2× DDR4 slots
mSATA / M.2 NVMe / 2.5″ SATA SSD

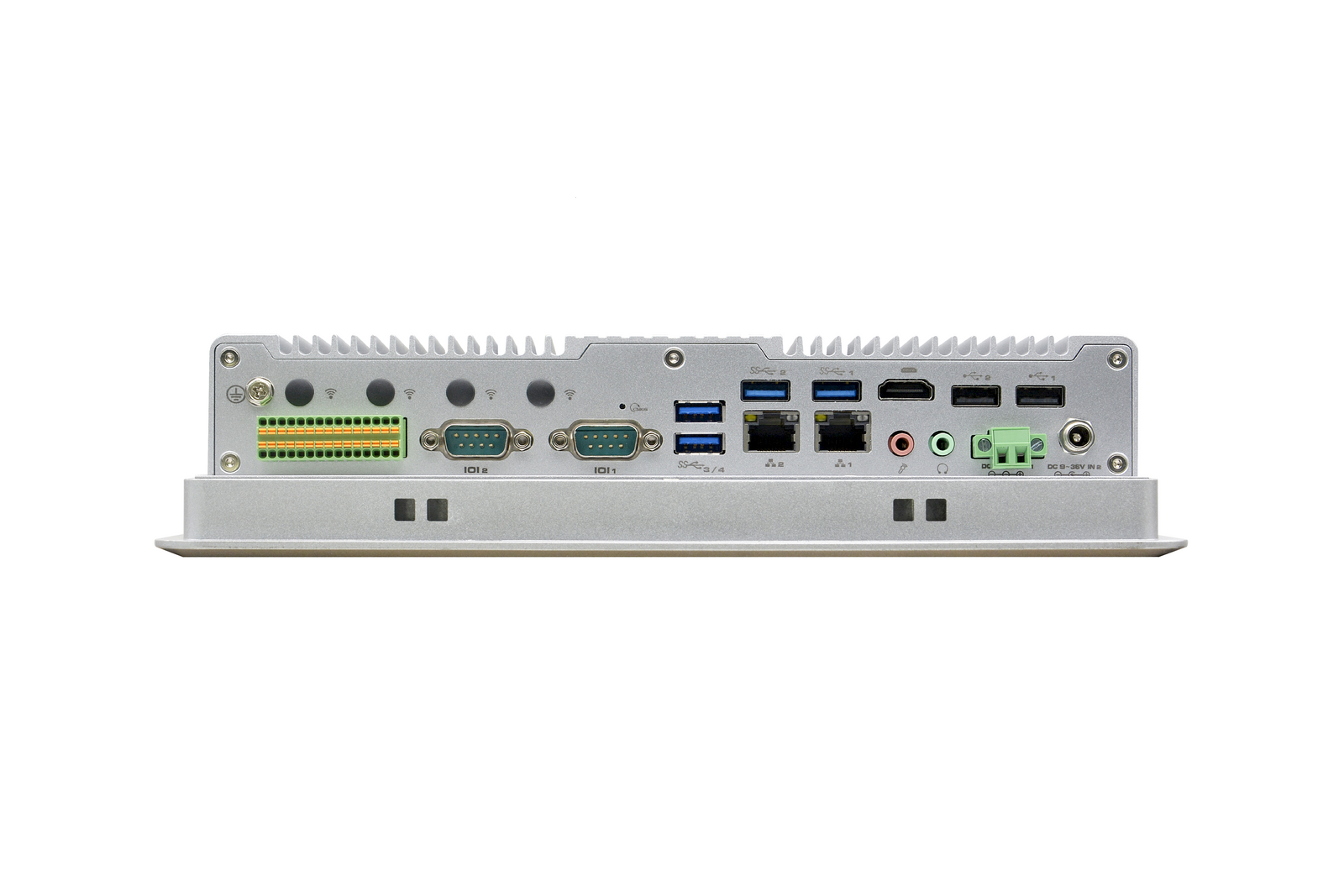

I/O & Network

4× USB 3.0 + 2× USB 2.0
HDMI + DisplayPort
2× LAN

Processor Options (CPU)
  • Intel Core i5-7300U
  • Intel Core i5-8260U
  • Intel Core i5-10210U
  • Intel Core i5-1135G7
  • Intel Core i5-1235U
Memory Support (by CPU)
  • Core i5-7300U: up to 32GB (2×DDR4)
  • Core i5-8260U / i5-10210U / i5-1135G7 / i5-1235U: up to 64GB (2×DDR4)

Maximum memory depends on the selected CPU configuration.

Final price and performance depend on selected configuration.

Industrial Serial Interfaces

Standard 6× RS232 with optional RS485 / RS422 combinations. DB9 and Phoenix connectors available. COM1–COM2 support 9th-pin power output.

Wireless, OS & Touch

Optional WiFi / WiFi 6 and 4G/5G modules.
OS support: Windows / Linux Ubuntu
Touch options: Capacitive / Resistive

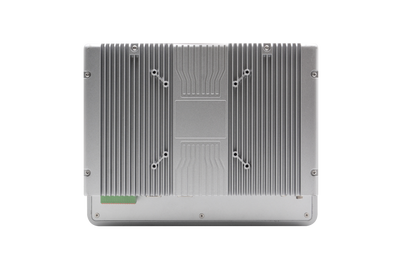

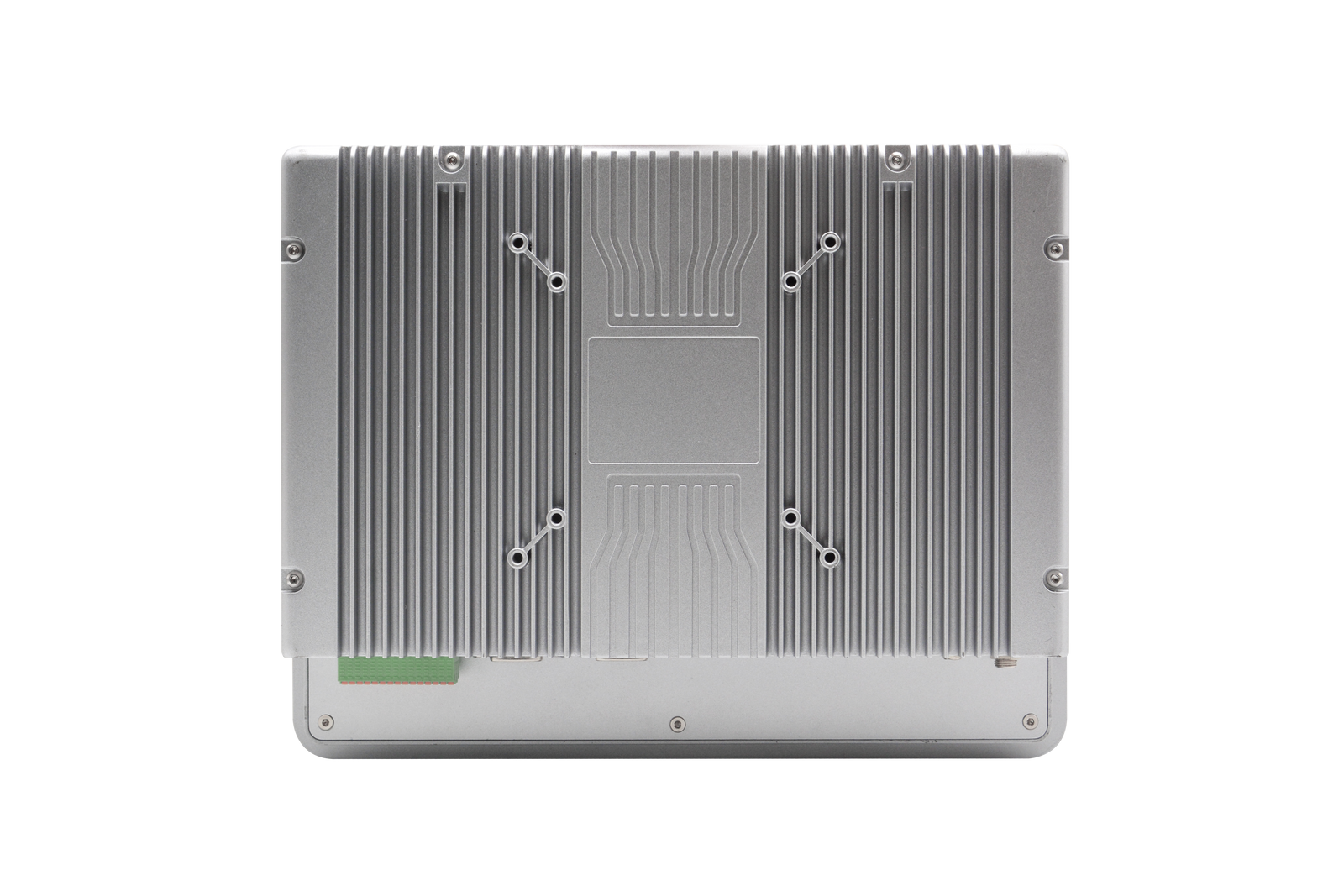

Mounting: VESA / Embedded  |  Power: DC 9–36V

Specifications and options may vary by configuration and region.
