GeniusCore

10.1″ Touch Android Panel PC– Fanless– Rockchip RK3588– 1280×800– 16:9

$602.00


10.1″ Touch Android Panel PC – Fanless – Rockchip RK3588 – 1280×800 – 16:9

SKU GZ-APC101-ZS3

10.1″ Touch Android Panel PC – Fanless – Rockchip RK3588 – 1280×800 – 16:9

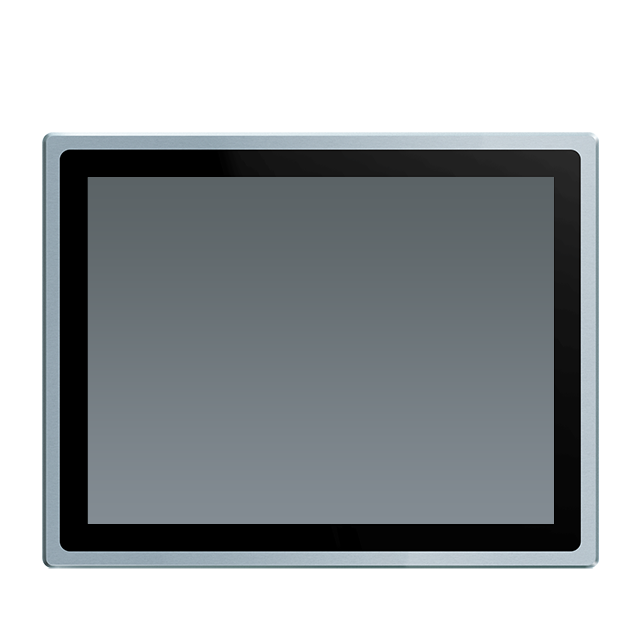

The 10.1″ Fanless Rockchip RK3588 Industrial Panel PC is engineered for 24/7 industrial HMI, automation, kiosk and control applications. Its Fanless aluminum alloy chassis combined with an IP65-rated front panel ensures stable operation in harsh environments such as factories, production lines, and outdoor cabinets.

✔ 10.1″ 1280×800 (16:9) Capacitive Touch (Non-touch optional)
✔ Fanless design · Aluminum alloy, Front panel IP65
✔ HDMI video output · DC 12V (option: 12-24V / 12-36V)

Technical specifications
SoC & Performance Rockchip RK3588 Android / Linux Ubuntu support
Parameter Value RAM 4 GB
Storage (mSATA & M.2 NVMe) 64 GB
4G / 5G & M.2 wireless 1 × 4G/5G Module option
Display & touch Capacitive Touch (Non-touch optional)
Brightness 300 nit / 1000 nit optional
Power input DC 12V (option: 12-24V / 12-36V)
Operating system Android 12 / Linux Ubuntu option
Wi‑Fi & Bluetooth WIFI 6 / +BT5.0
Mounting VESA/Embedded
Port / interface Specification Video HDMI video output
USB 2*USB / (HOST+OTG)
LAN 2*LAN
Serial 2*RS232 / 1*RS232+1*RS485 / Or 6*RS232 / 5*RS232+1*RS485
Audio 1*Earphone
Wireless WIFI 6 / +BT5.0
Parameter Value DC input DC 12V (option: 12-24V / 12-36V)
Operating temperature -20~70℃
Housing Aluminum alloy, Front panel IP65

Specifications may vary by configuration. Contact us for project-specific options.

Specification Details
Screen size 10.1″
Resolution 1280×800
Aspect ratio 16:9
Cooling Fanless
CPU / SoC Rockchip RK3588, Octa-Core (4×A76 + 4×A55) with NPU
GPU Arm Mali-G610 MP4
NPU Up to 6 TOPS
Operating system Android; Linux Ubuntu support
Display Multi-display LVDS / MIPI / HDMI / DP (model dependent)
I/O USB 3.0 / 2.0, RS232 / RS485, 2.5G/1G Ethernet (model dependent)
Wireless Wi-Fi / BT; optional 4G/5G (model dependent)
Power input DC 12–24 V
Operating temperature −10 °C to +60 °C (typical industrial)
SoC & Performance Rockchip RK3588 · Android / Linux Ubuntu support
RAM 4 GB
Storage (mSATA & M.2 NVMe) 64 GB
4G / 5G & M.2 wireless 1 × 4G/5G Module option
Brightness 300 nit / 1000 nit optional
Wi‑Fi & Bluetooth WIFI 6 / +BT5.0
Mounting VESA/Embedded
Video HDMI video output
USB 2*USB / (HOST+OTG)
LAN 2*LAN
Serial 2*RS232 / 1*RS232+1*RS485 / Or 6*RS232 / 5*RS232+1*RS485
Audio 1*Earphone
DC input DC 12V (option: 12-24V / 12-36V)
Housing Aluminum alloy, Front panel IP65
