10.1″ Open Frame Android Panel PC A133P – Embedded Industrial Platform

$113.00
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address

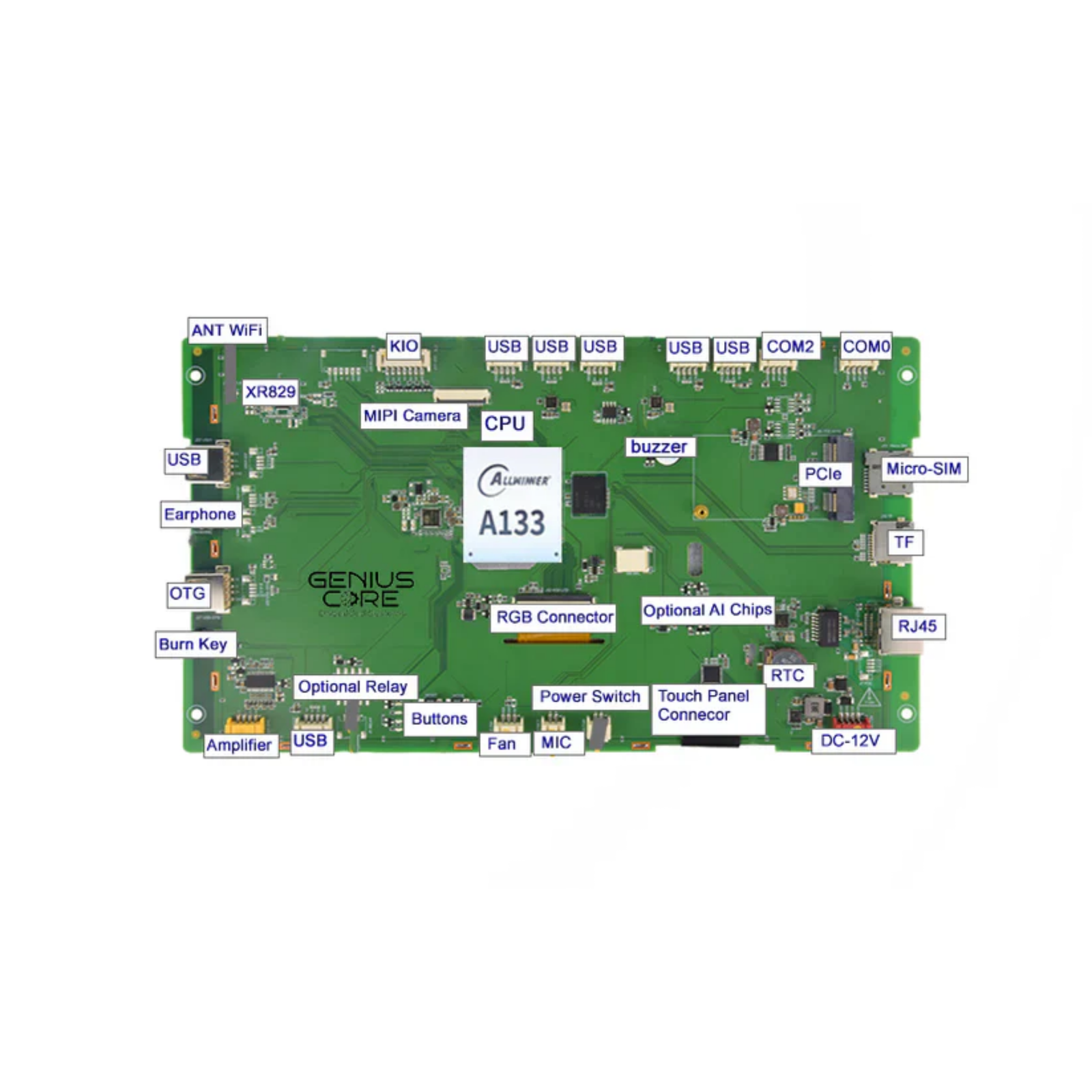

The 10.1″ Open Frame Android Panel PC, model GC-S10-A133P, is designed as a compact embedded Android platform for industrial control systems, OEM panels and custom integrations.

This product is supplied as an open frame Android Panel PC. Touch panel, front glass, enclosure and mechanical design are intentionally left to the system integrator, providing maximum flexibility for customized installations.

Powered by the Allwinner A133P quad-core ARM Cortex-A53 processor (clock speed up to 1.8GHz), the platform delivers stable performance with low power consumption, suitable for continuous industrial operation.

✔ Open Frame Android Panel PC architecture
✔ Optimized for embedded and industrial use
✔ Flexible serial, GPIO and expansion options

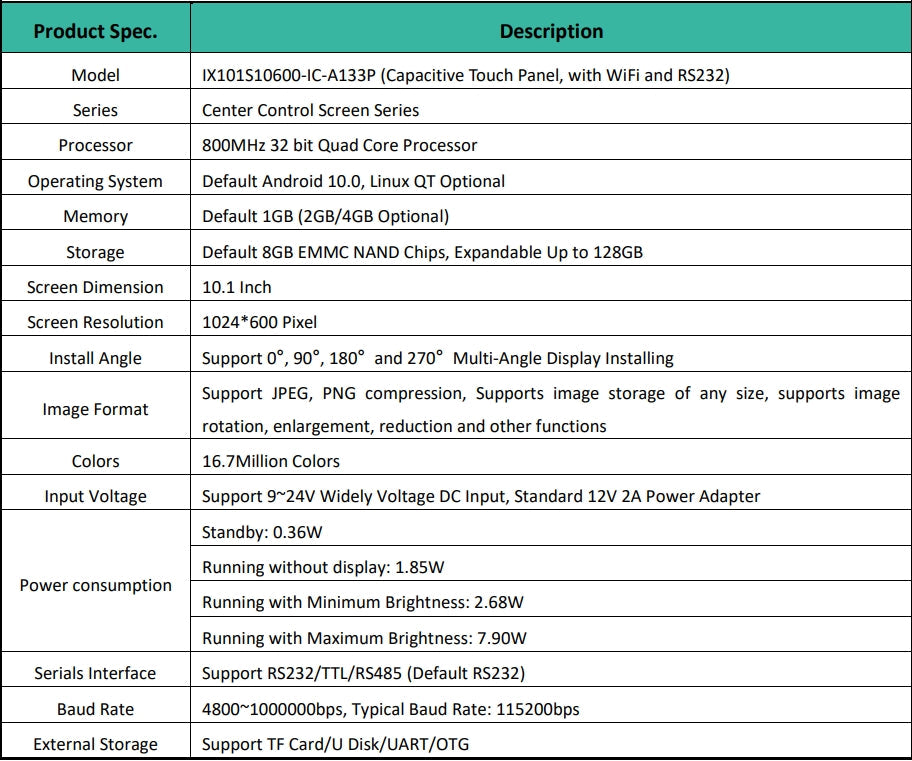

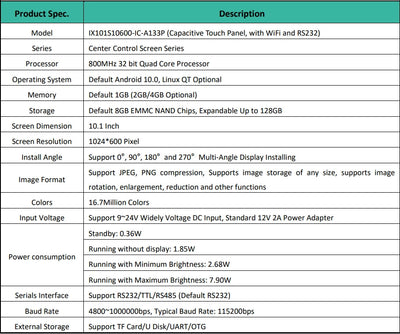

Processor & Graphics

Allwinner A133P
Quad-core ARM Cortex-A53 (up to 1.8GHz)
GE8300 GPU
Designed for embedded Android UI and control applications

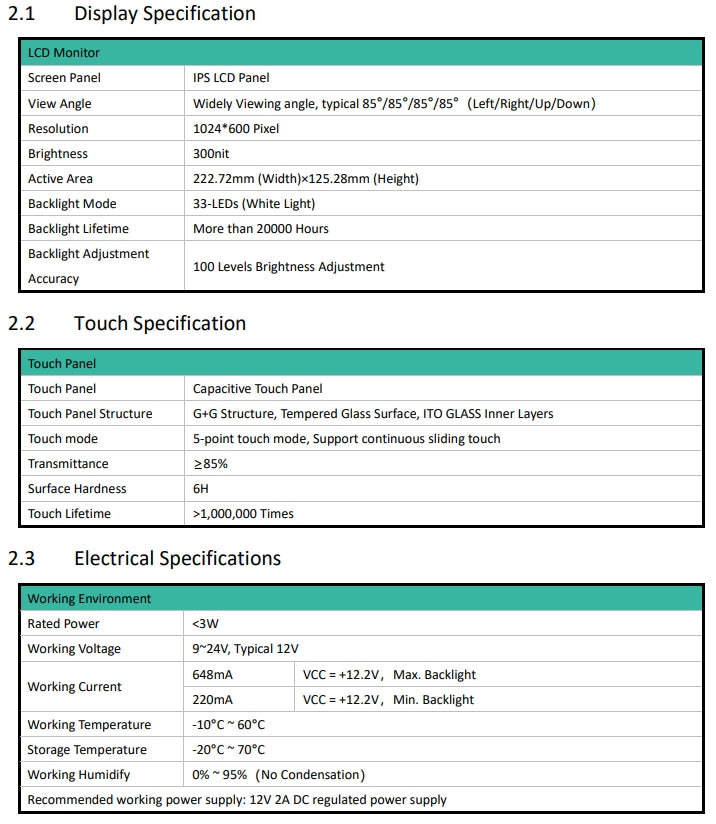

Display

10.1″ IPS LCD Panel
Resolution: 1024 × 600
Capacitive Touch Support
Brightness: 300 nits

Memory & Storage

RAM: 1GB (2GB / 4GB Optional)
eMMC: 8GB (Expandable up to 128GB)
TF Card Support (up to 256GB)

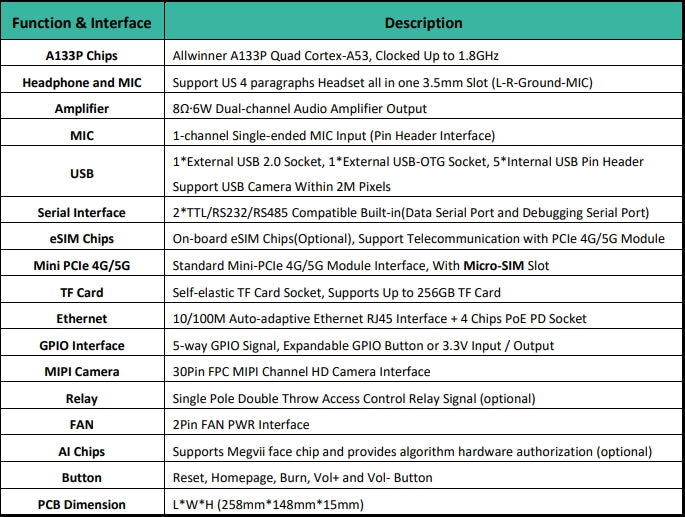

Connectivity & I/O

10/100Mbps Ethernet (RJ45)
2× COM Ports (RS232 Default)
Optional TTL / RS485
Optional Relay Output
USB 2.0 & USB OTG
WiFi 2.4GHz + Bluetooth 4.2

Operating System & Power

Android 10 (Default)
Optional Linux QT / Ubuntu
DC 12V ±5% / DC 24V ±5%
Reset & Burn Button

The GC-S10-A133P is ideal for industrial Android control panels, automation terminals, IoT gateways, access systems and custom embedded solutions requiring a reliable open frame Android Panel PC platform.
