10.1″ Android Panel PC – RK3568 – Open Frame | D-3568

$235.00

The 10.1" Android Panel PC (Open Frame) is built for industrial HMI panels, embedded control systems and automation terminals where compact size, flexible integration and long-term stability are required.

Powered by the Rockchip RK3568 quad-core Cortex-A55 processor, this model delivers efficient performance with low power consumption, making it suitable for continuous operation.

✔ Open Frame Design for Panel Integration

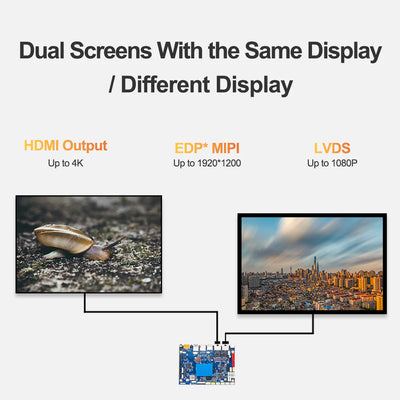

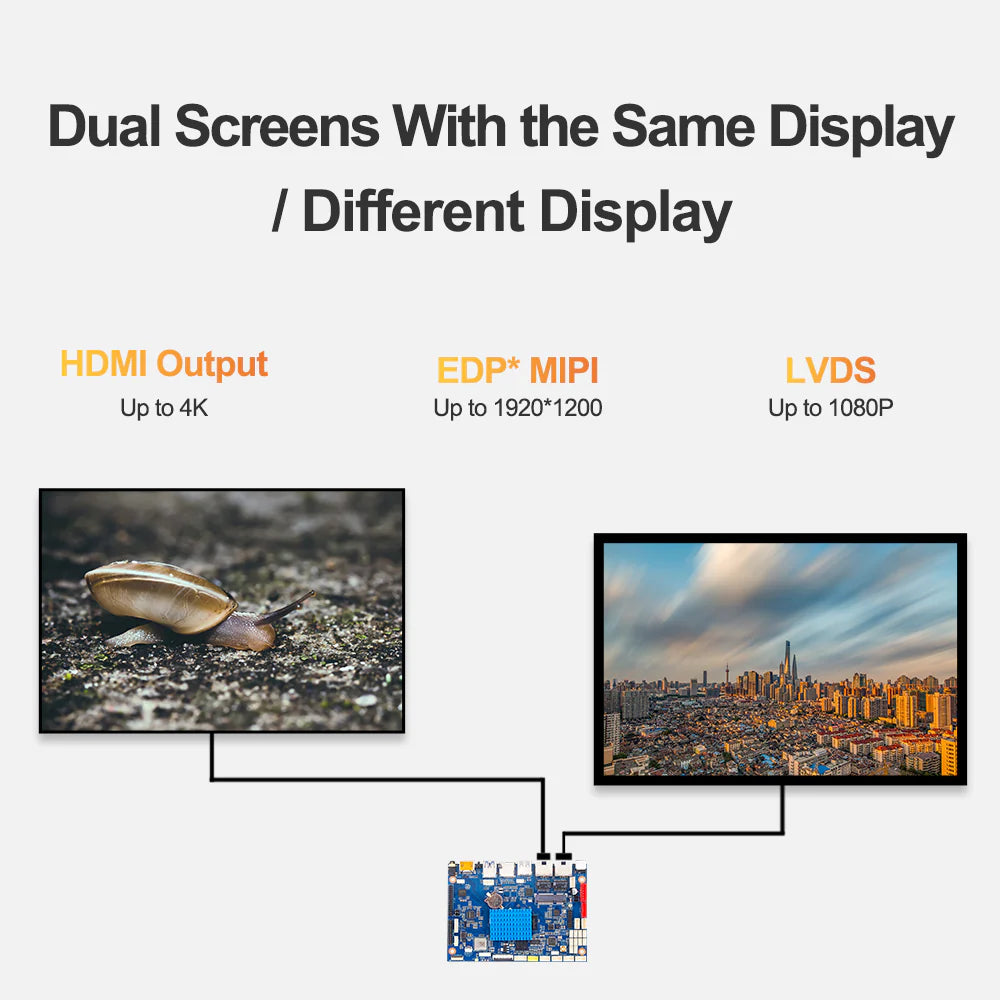

✔ Dual Display Output Support
✔ Industrial Interfaces & Expansion Options

Display & Touch

10.1" IPS LCD panel
1024×600 resolution
Capacitive touch panel
Open frame mounting

Processor & Memory

Rockchip RK3568
Quad-core ARM Cortex-A55
Up to 4GB RAM
eMMC storage

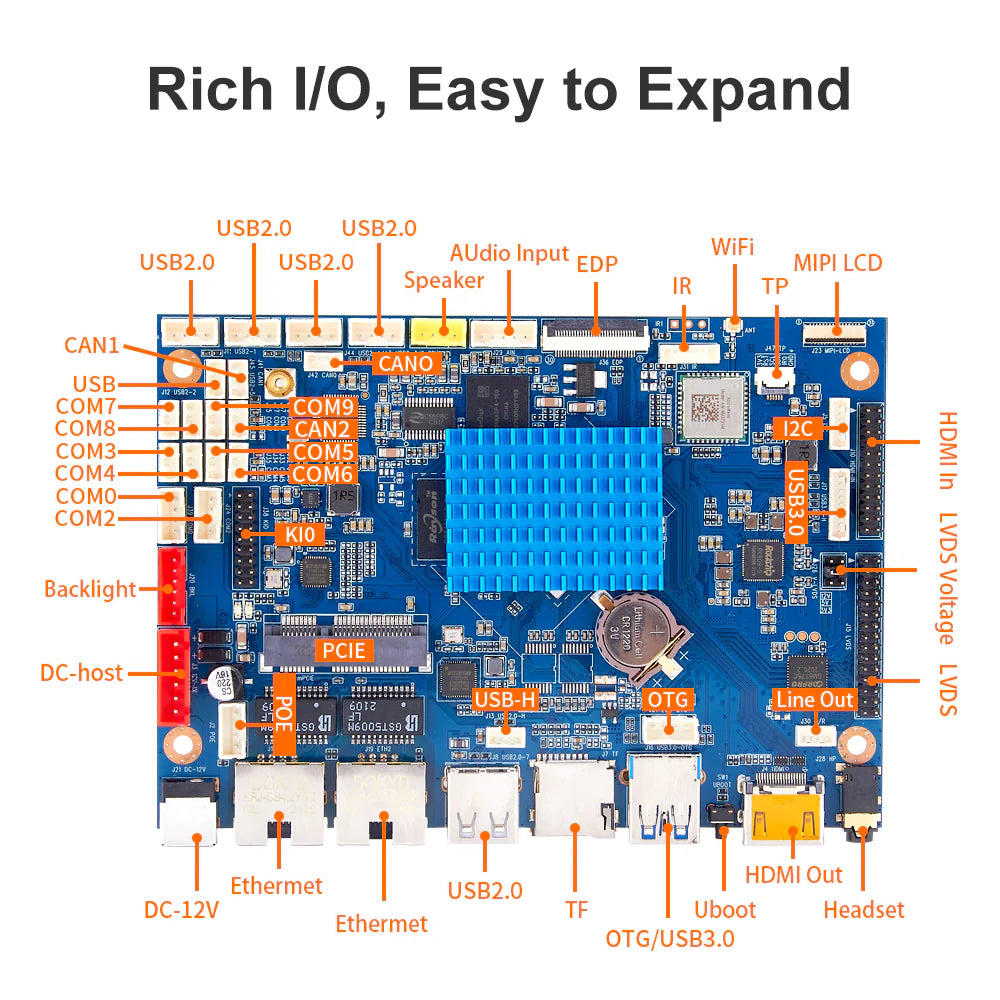

Interfaces

HDMI output up to 4K
LVDS / eDP / MIPI display interfaces
USB 2.0 / USB 3.0 / OTG

Connectivity & Expansion

Ethernet LAN
Optional WiFi & Bluetooth
Mini PCIe for 4G module

Operating System: Android 11
Linux: Debian / Ubuntu / Buildroot (optional)
Application: HMI panels, automation systems, embedded displays

Specifications may vary depending on configuration.

Specification Details
Screen size 10.1″
Form factor Open Frame
CPU / SoC Rockchip RK3568, Quad-Core Arm Cortex-A55 @ up to 2.0 GHz
GPU Arm Mali-G52
NPU 0.8 TOPS
Operating system Android; Linux Ubuntu support
Display LVDS / MIPI / HDMI (model dependent)
I/O USB 3.0 / 2.0, RS232 / RS485, Gigabit Ethernet (model dependent)
Wireless Wi-Fi / BT; optional 4G/5G (model dependent)
Power input DC 12–24 V
Operating temperature −10 °C to +60 °C (typical industrial)
