FriendlyELEC

1-bay NAS Dock

$7.49

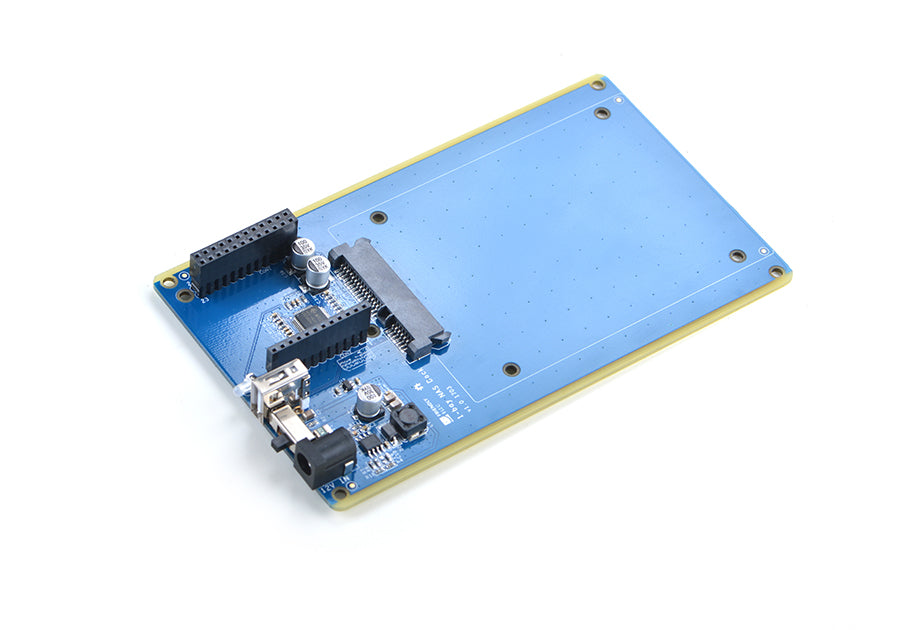

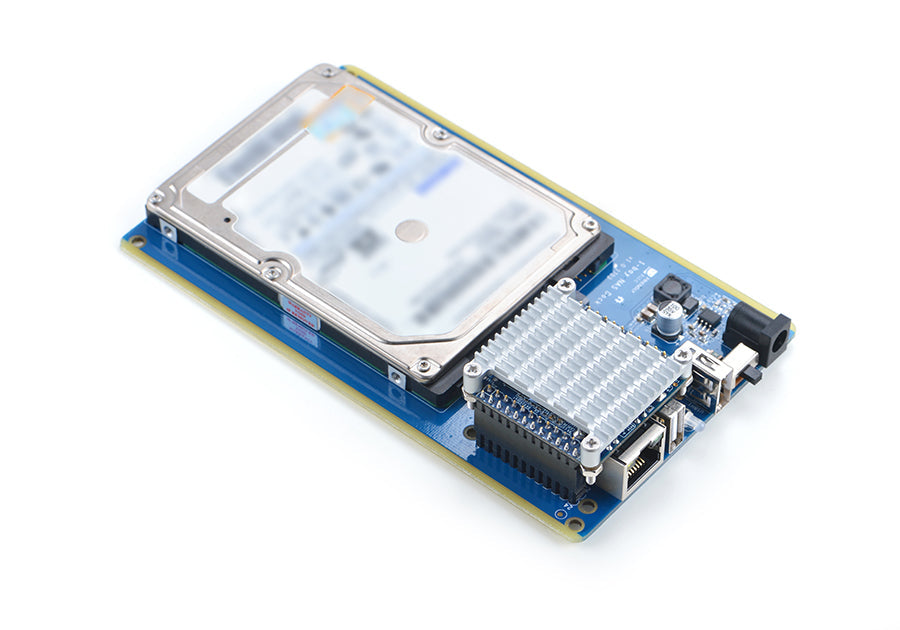

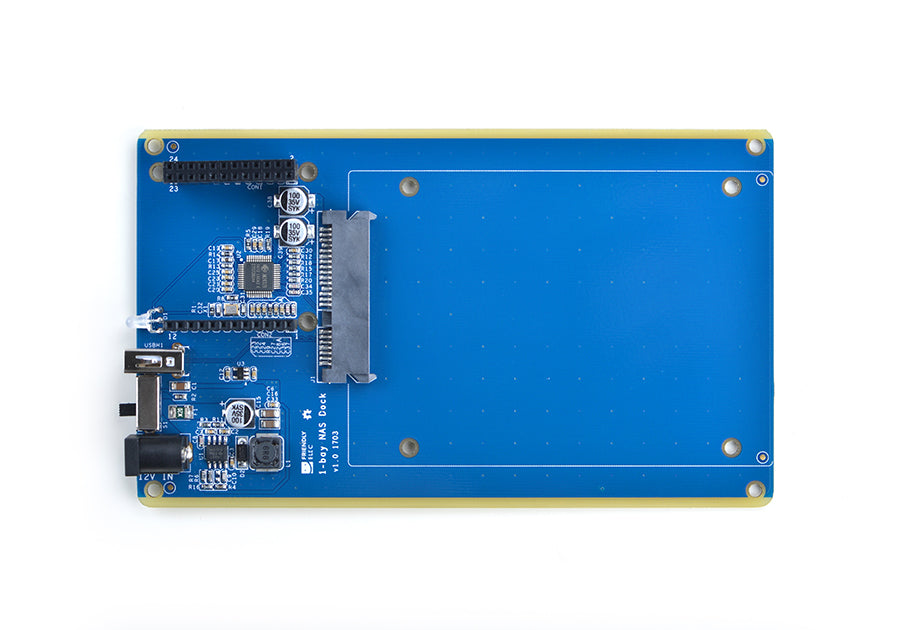

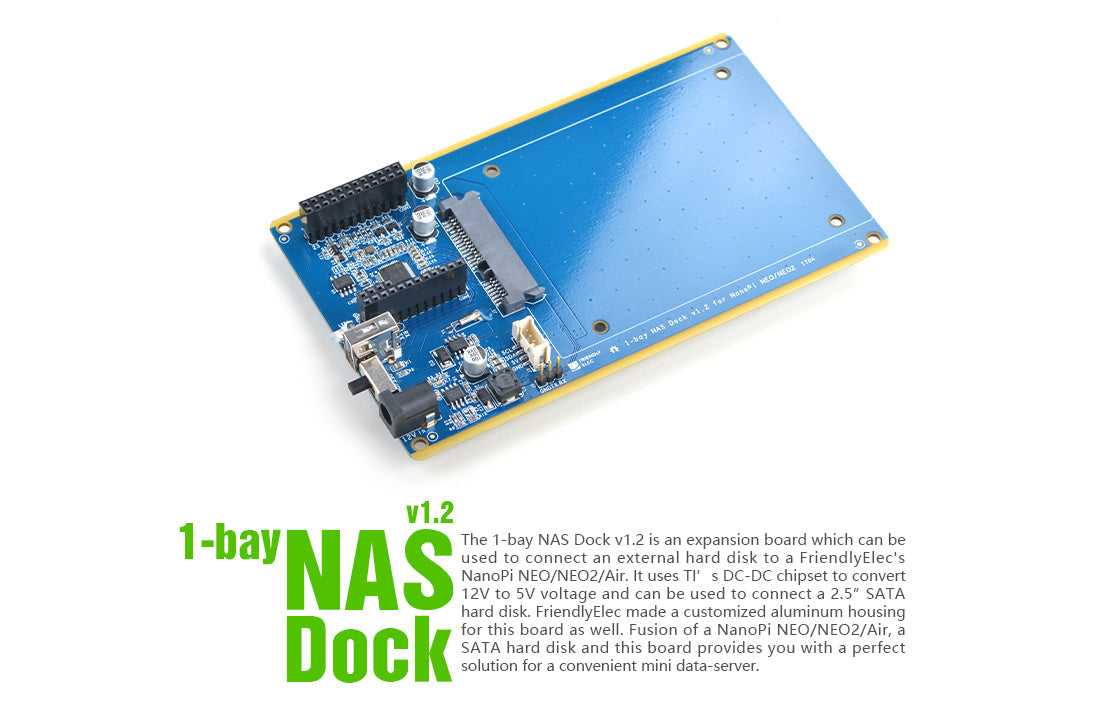

The 1-bay NAS Dock v1.2 is an expansion board which can be used to connect an external hard disk to a FriendlyElec's NanoPi NEO/NEO2/Air. It uses TI’ s DC-DC chipset to convert. 12V to 5V voltage and can be used to connect a 2.5" SATA hard disk. FriendlyElec made a customized aluminum housing for this board as well. Fusion of a NanoPi NEO/NEO2/Air, a SATA hard disk and this board provides you with a perfect
solution for a convenient mini data-server.

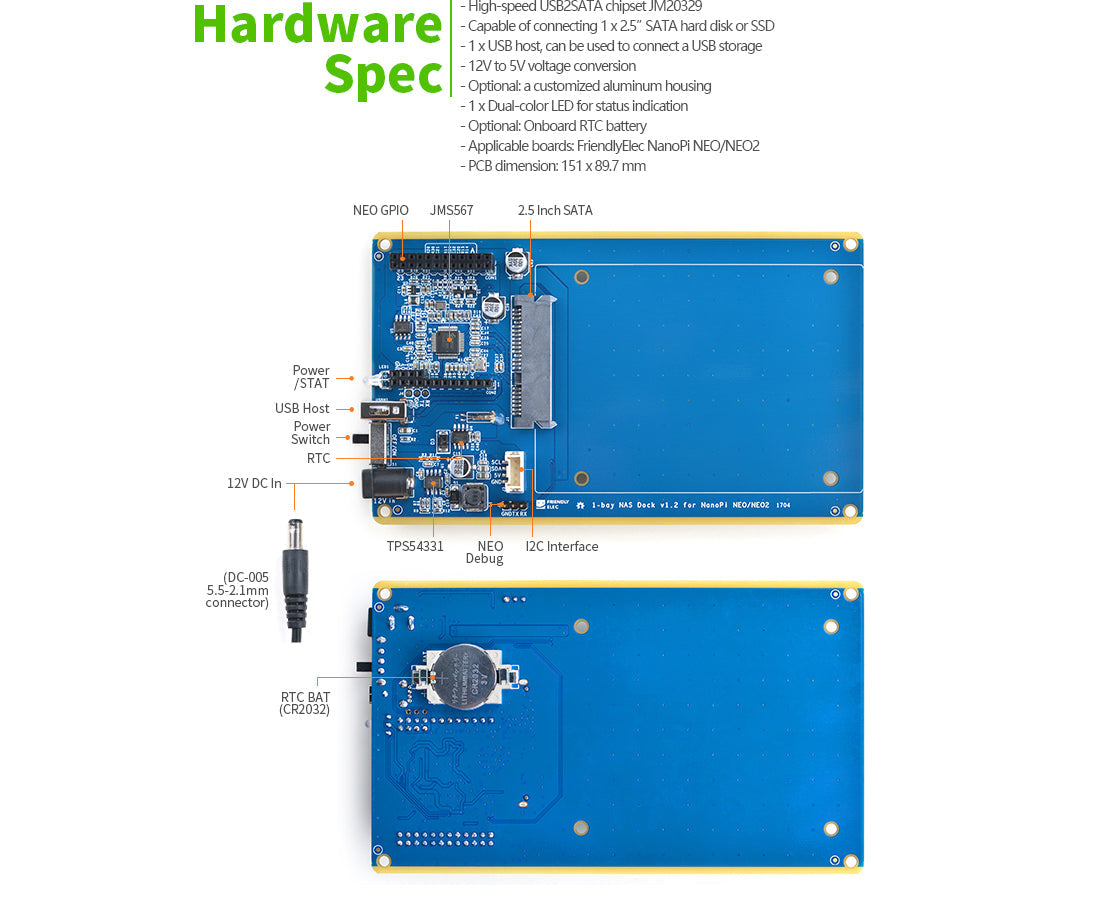

Hardware Spec

~ High-speed USBESATA chipset JM20529

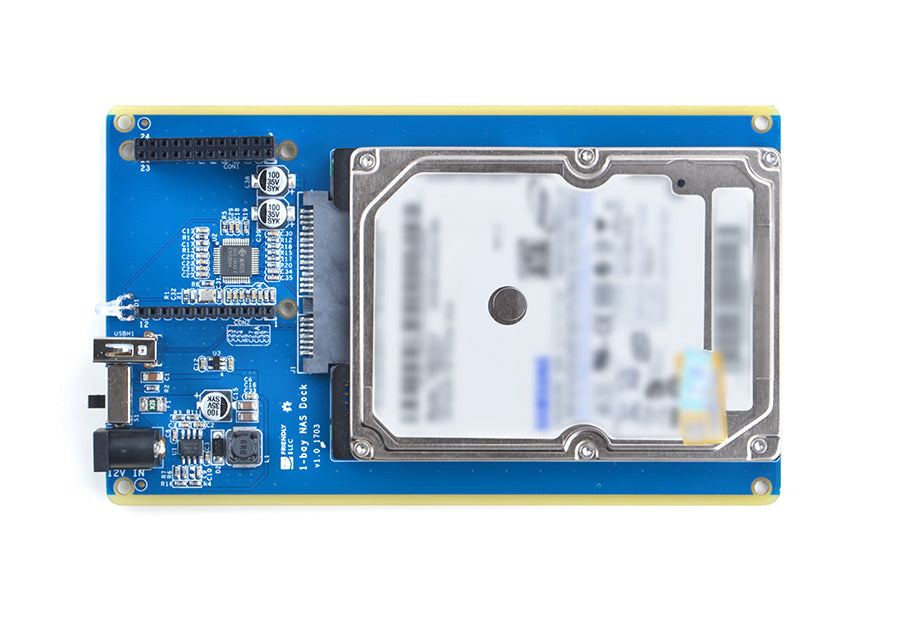

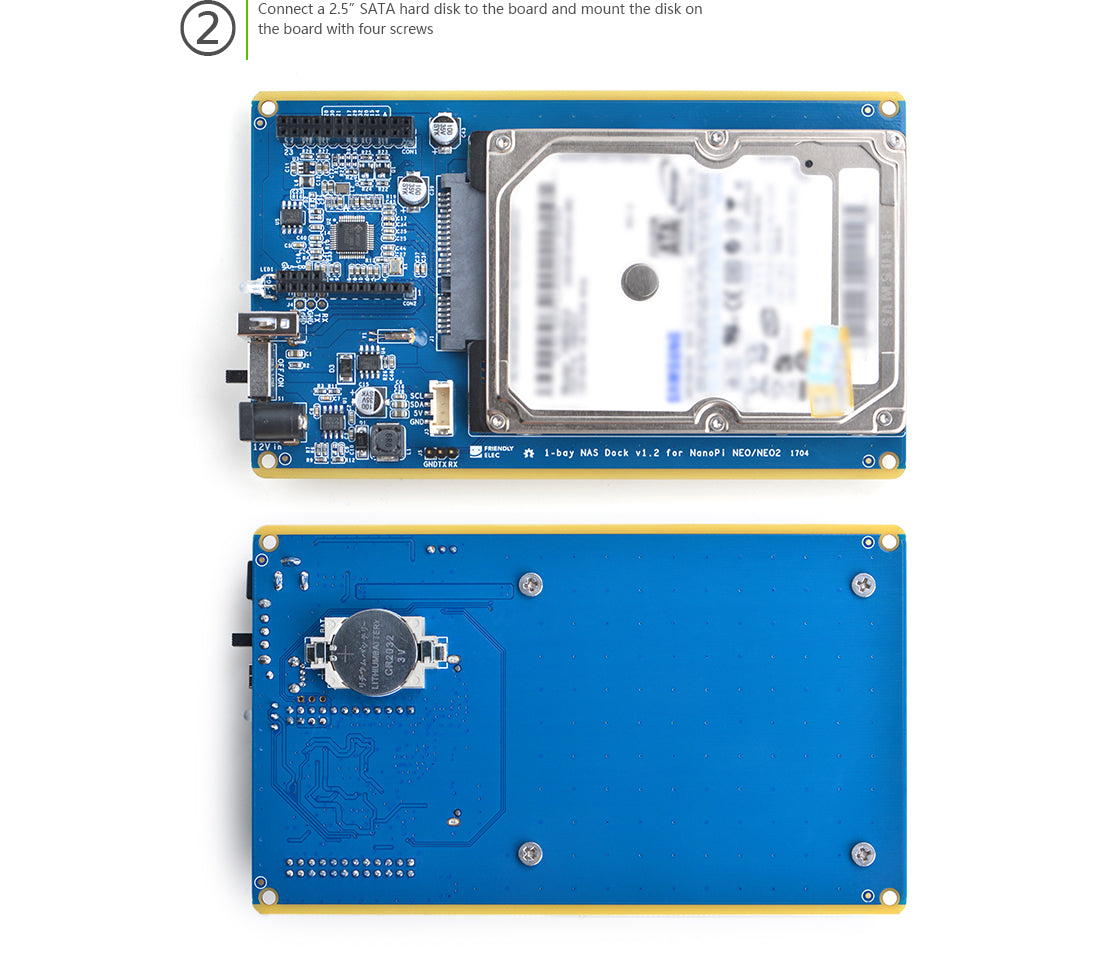

~Capable of connecting 1 x 25" SATA hard disk or SSD
~1x USB host, can be used to connect a USB storage

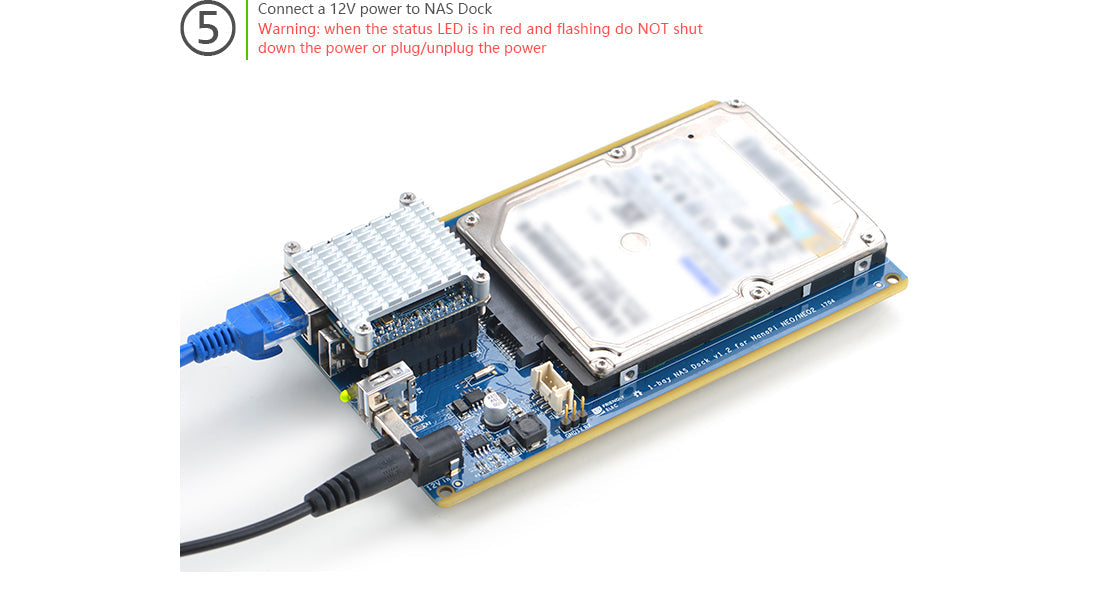

~12V to SV voltage conversion
~ Optional a customized aluminum housing
~1x Dual-color LED for status indication
~Optional: Onboard RTC battery

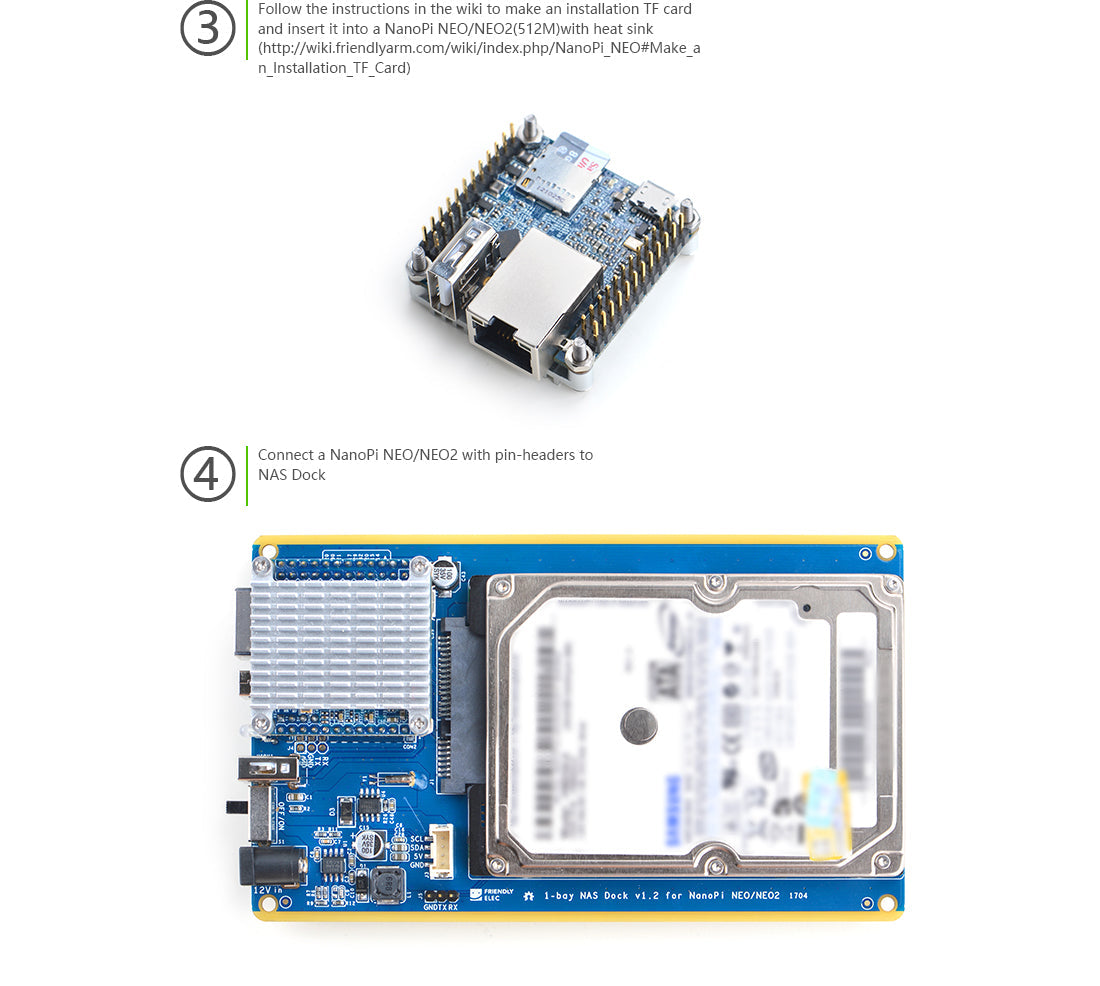

~ Applicable boards: FriendlyElec NanoPi NEO/NEO2

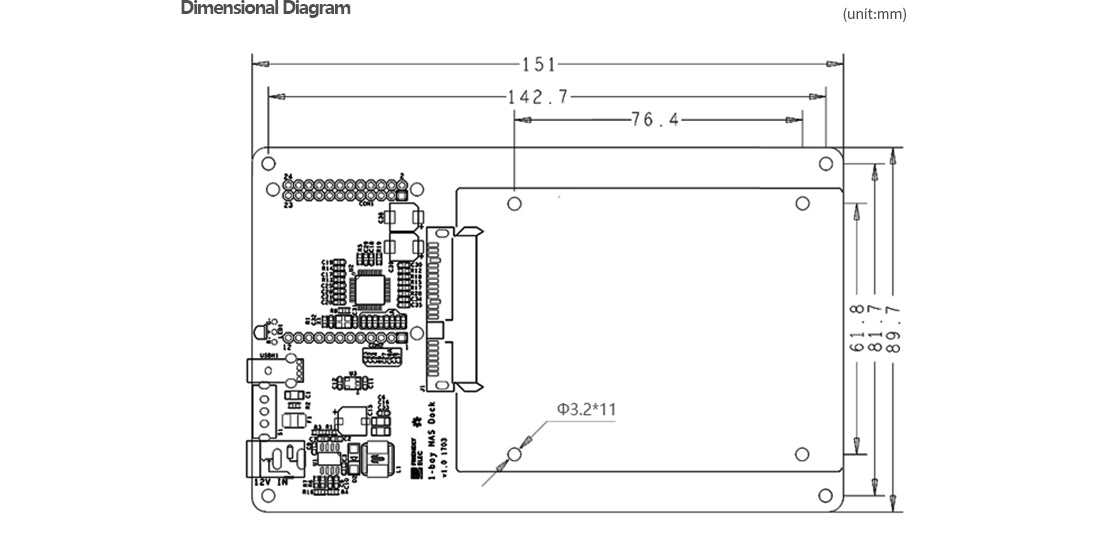

~PCB dimension: 151 x 89.7 mm
