AUO

AUO G185HAN01.0

$284.00
  • Module No:G185HAN01.0
  • Brand:AUO
  • Size:18.5 inch
  • Resolution:1920*1080
  • Brightness:350 cd/m²
  • Viewing angle:89/89/89/89
  • Interface:LVDS (1 ch, 6/8bit) , 20 pins
  • CR:1000 : 1
  • Operating Temp.: -20-70℃
  • Parameters
Manufacturer AUO
Model Name G185HAN01.0
Screen Size 18.5
Pixel Number 1920×1080, FHD
Active Area(mm) 409.8×230.4mm (H×V)
Outline(mm) 430.4×254.6×12.5mm(H×V×D)
Bezel Area(mm) 410.96×232.0mm(H×V)
Treatment Anti-glare, Hardness 3H
Luminance 350 cd/m² (Typ.)
Contrast Ratio 1000 : 1 (Typ.) (TM)
Viewing Angle 89/89/89/89(CR≥10)
Left/Right/UP/Down
Response 10/10 (Typ.)(Tr+Td) ms
Work Mode AHVA, Normally black,Transmissive
Color Depth 16.7M , 99% sRGB
Backlight 50K hours,with LED Driver
Net Weight 1.2kg (Typ.)
Touchscreen without
Signal Type/interface Type LVDS (2 ch 8bit) , 30 pins
Voltage Supply 5V (Typ./Max.)
Max. Ratings Storage Temp.: -20 ~ 70 °C
Operating Temp.: -20 ~70°C
Package 8 pcs/ carton

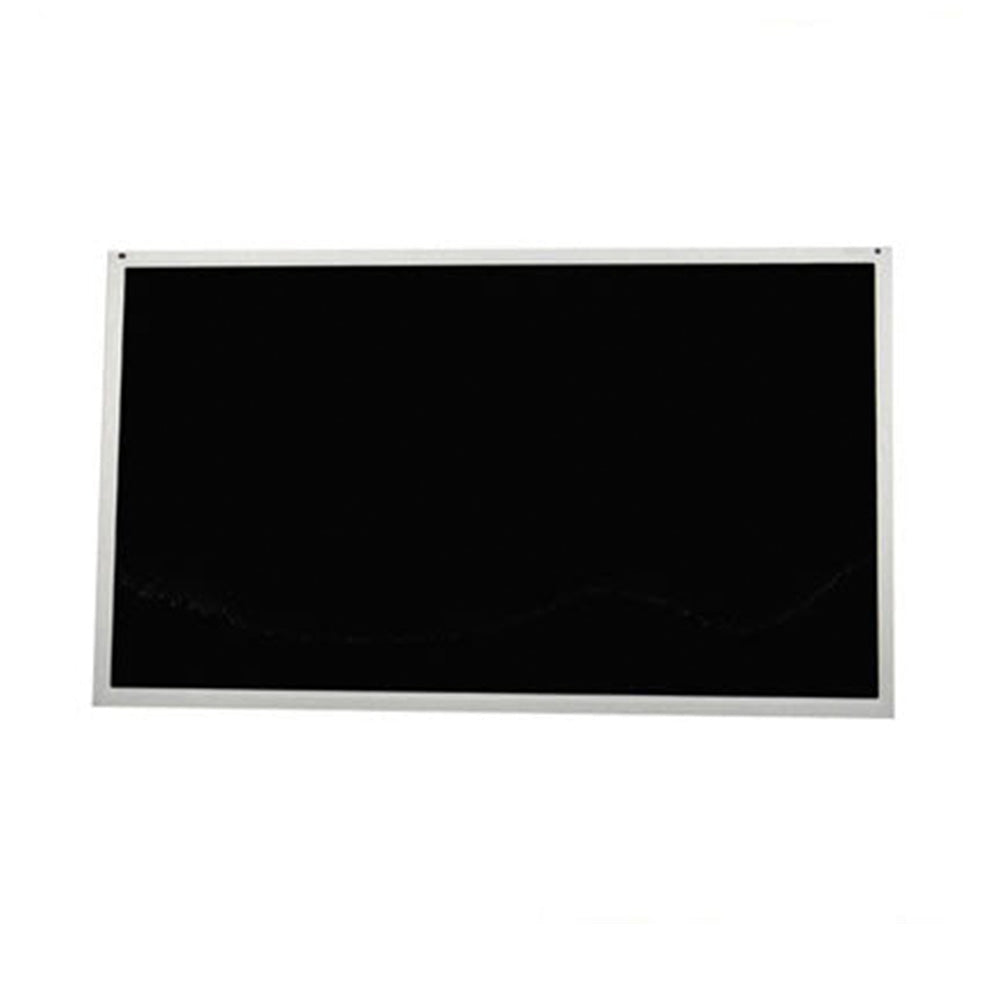

G185HAN01.0 is a 18.5”TFT LCD module with LED Backlight.

30 pins 2ch-LVDS interface.

This module supports 1920 x 1080 FHD AAS mode and can display 16,194,277 colors.

Low work temperature and good view angle .
