AUO

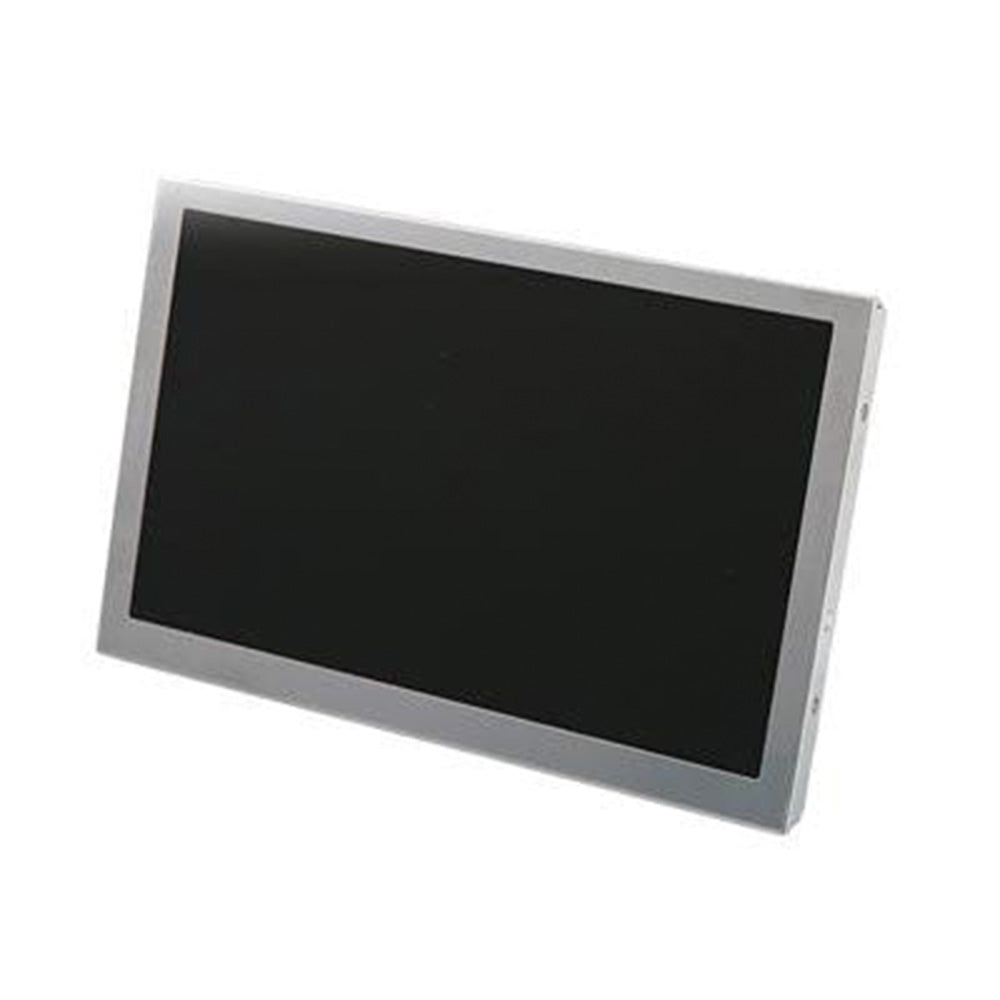

AUO G170ETN02.0

$173.74
  • Module No:G170ETN02.0
  • Brand:AUO
  • Size:17 inch
  • Resolution:1280*1024
  • Brightness:400 cd/m²
  • Viewing angle:80/80/70/70
  • Interface:LVDS (2 ch, 8-bit)
  • CR:800 : 1
  • Operating Temp.: -30-85
  • Parameters
Manufacturer AUO
Model Name G170ETN02.0
Screen Size 17
Pixel Number 1280(RGB)×1024   SXGA
Active Area(mm) 337.92×270.336 mm (H×V)
Outline(mm) 358.5×296.5mm(H×V×D)
Bezel Area(mm) 341.6×274.0 mm (H×V)
Treatment Hard coating (3H)
Luminance 400 cd/m² (Typ.)
Contrast Ratio 800 : 1 (Typ.) (TM)
Viewing Angle 80/80/70/70 (CR≥10)
Left/Right/UP/Down
Response 15/5 (Typ.)(Tr+Td) ms
Work Mode TN, Normally white,Transmissive
Color Depth 16.7M , 72% NTSC
Backlight 50K hours,with LED Driver
Net Weight 1.59Kgs (Typ.)
Touchscreen without
Signal Type/interface Type LVDS (2 ch, 8-bit) , 30 pins
Voltage Supply 5 V (Typ./Max.)
Max. Ratings Storage Temp.:-30 ~ 85 °C
Operating Temp.: -30~85°C
Package 8 pcs/ carton



AUO 17 inch LCD screen G170ETN02.0, with 800 luminance and -30-85°C operating temp.

G170ETN02.0 has standard 1280*1024 resolution.

50000 hrs backlight lifetime, can support long term operating.

G170ETN02.0 is often used in outdoor monitors.
