AUO

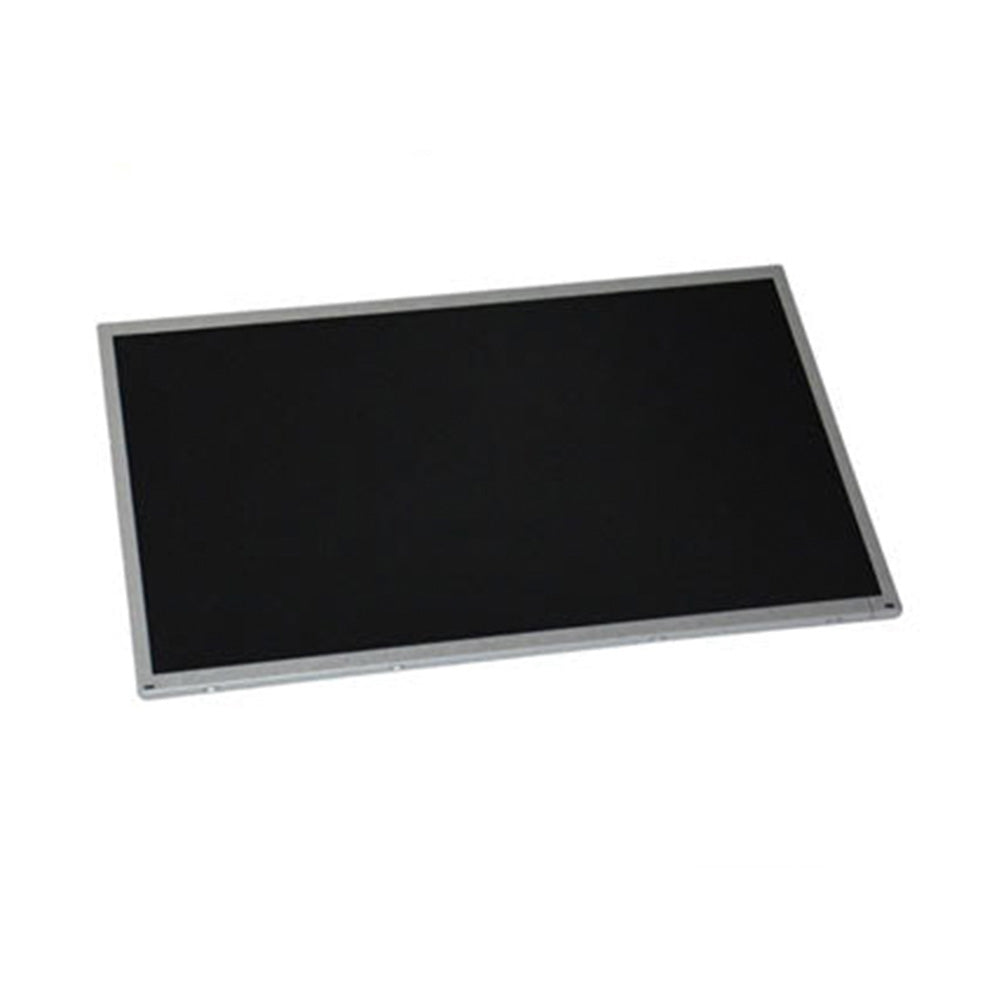

AUO G156XW01 V1

$124.02
  • Module No:G156XW01 V1
  • Brand:AUO
  • Size:15.6 inch
  • Resolution:1366*768
  • Brightness:400 cd/m²
  • Viewing angle:85/85/80/80
  • Interface:LVDS (1 ch, 8-bit) ,30 pins
  • CR:500:1
  • Operating Temp.: 0 ~ 60 °C
  • Parameters

Manufacturer

AUO

Model Name

G156XW01 V1

Screen Size

15.6

Pixel Number

1366(RGB)×768 , WXGA

Active Area(mm)

344.232×193.536mm (H×V)

Outline(mm)

363.8×215.9×17.35mm(H×V×D)

Bezel Area(mm)

347.54 x196.83 mm (H×V)

Treatment

Hard coating (3H)

Luminance

400 cd/m² (Typ.)

Contrast Ratio

500 : 1 (Typ.) (TM)

Viewing Angle

85/85/80/80(CR≥10)

Left/Right/UP/Down

Response

6/2 (Typ.)(Tr+Td) ms

Work Mode

TN, Normally white,Transmissive

Color Depth

262K/16.2M , 70% NTSC

Backlight

50K hours,with LED Driver

Net Weight

1.25kg (Typ.)

Touchscreen

without

Signal Type/interface Type

LVDS (1 ch,  8bit) , 30 pins

Voltage Supply

3.3V (Typ./Max.)

Max. Ratings

Storage Temp.: 0 ~ 60 °C

Operating Temp.: -20 ~60°C

Package

11pcs/ carton


AUO 15.6 inch G156XW01 V1 is a 1366*768 LCD display.

For indoor with 400nits.

With CTP/RTP touch panels.

Backlight lifetime of 50K hours.
