AUO

AUO G156HAN02.3

$262.00
  • Module No:G156HAN02.3
  • Brand:AUO
  • Size:15.6 inch
  • Resolution:1920*1080
  • Brightness:500 cd/m²
  • Viewing angle:89/89/89/89
  • Interface:LVDS (2 ch, 8-bit) , 30 pins
  • CR:1000 : 1
  • Operating Temp.: -20-70
  • Parameters
Manufacturer AUO
Model Name G156HAN02.3
Screen Size 15.6
Pixel Number 1920(RGB)×1080 , FHD
Active Area(mm) 344.16×193.59 mm (H×V)
Outline(mm) 363.8 × 215.9 × 9.3 mm(H×V)
Bezel Area(mm) 347.06 ×196.49 mm  mm (H×V)
Treatment Hard coating (3H)
Luminance 500 cd/m² (Typ.)
Contrast Ratio 1000 : 1 (Typ.) (TM)
Viewing Angle 89/89/89/89(CR≥10)
Left/Right/UP/Down
Response 25 (Typ.)(Tr+Td) ms
Work Mode AHVA, Normally black,Transmissive
Color Depth 16.7M , 99% sRGB
Backlight 50K hours,with LED Driver
Net Weight 600g (Typ.)
Touchscreen without
Signal Type/interface Type LVDS (2 ch, 8-bit) , 30 pins
Voltage Supply 3.3V (Typ./Max.)
Max. Ratings Storage Temp.: -20 ~ 70 °C
Operating Temp.: -20 ~70°C
Package 16pcs/ carton

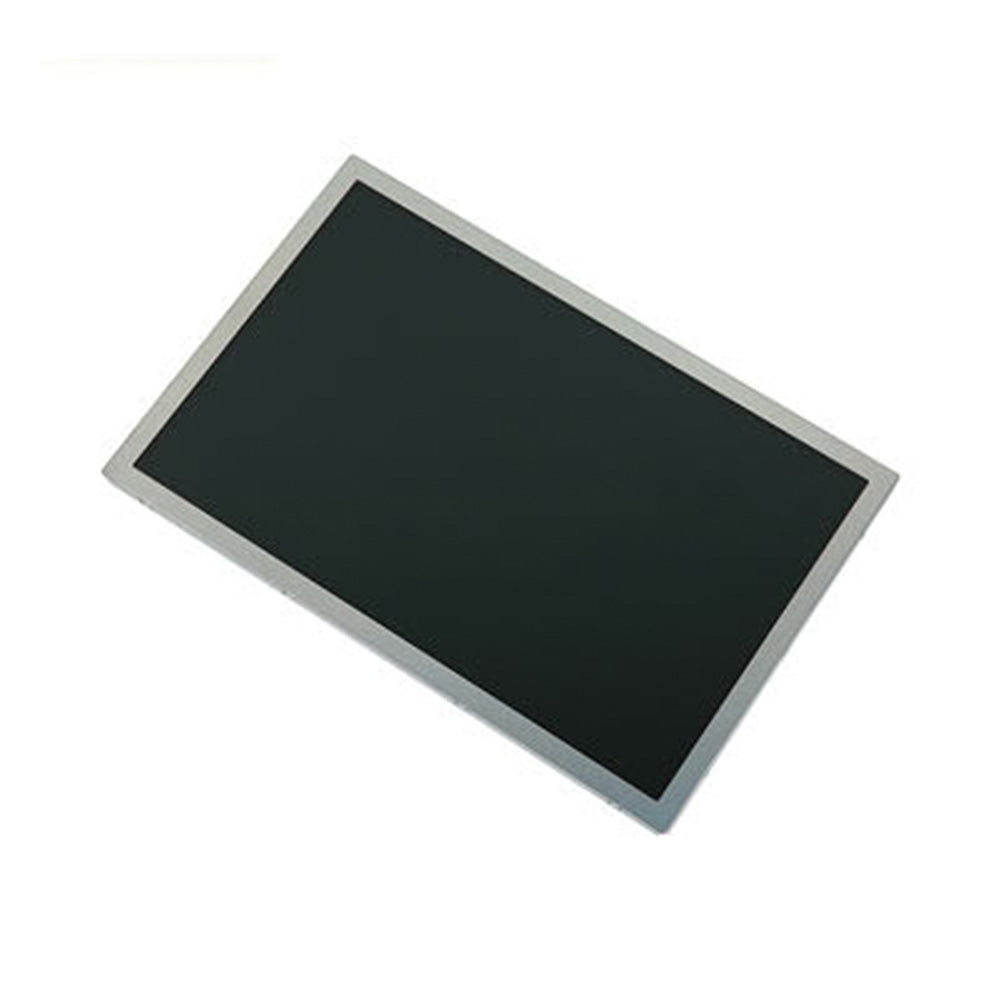

AUO 15.6 inch G156HAN02.3 is a FHD LCD display.

It is also a screen, with -20-70℃ operating temperature for outdoor.

There is CTP/RTP touch panels for this 15.6 inch LCD.

Backlight lifetime 50K hours.
