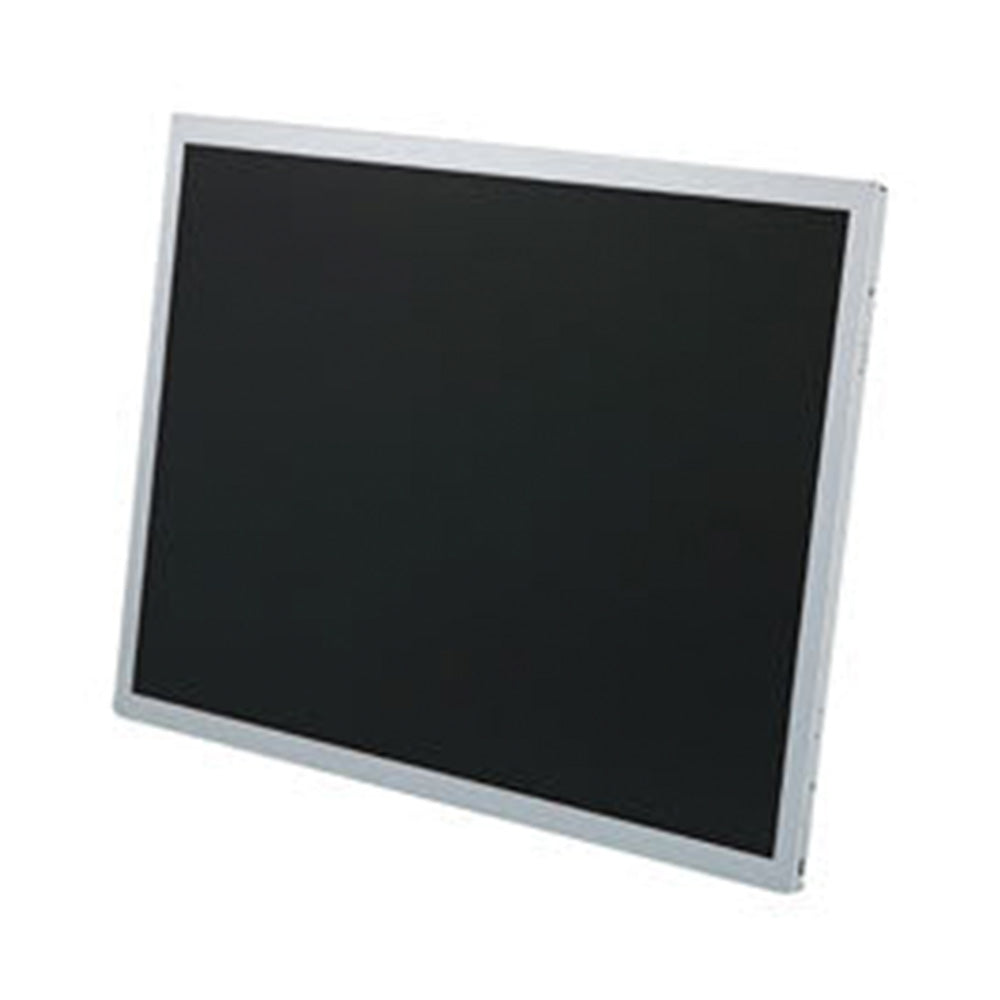

AUO

AUO G150XTN06.9

$268.00
  • Module No:G150XTN06.9
  • Brand:AUO
  • Size:15 inch
  • Resolution:1024*768
  • Brightness:1600 cd/m²
  • Viewing angle:80/80/70/80
  • Interface:LVDS (1 ch, 6/8bit) , 20 pins
  • CR:800 : 1
  • Operating Temp.: -30-70℃
  • Parameters
Manufacturer AUO
Model Name G150XTN06.9
Screen Size 15
Pixel Number 1024(RGB)×768  [XGA]
Active Area(mm) 304.128 × 228.096mm (H×V)
Outline(mm) 326.5 × 253.5 × 10  mm(H×V×D)
Bezel Area(mm) 311.9 × 236.85  mm(H×V)
Treatment Anti-glare, Hardness 3H
Luminance 1600 cd/m² (Typ.)
Contrast Ratio 800 : 1 (Typ.) (TM)
Viewing Angle 80/80/70/80(CR≥10)
Left/Right/UP/Down
Response 5.7/2.3 (Typ.)(Tr+Td) ms
Work Mode TN, Normally white,Transmissive
Color Depth 262K/16.2M , 60% NTSC
Backlight 50K hours,with LED Driver
Net Weight 1kg (Typ.)
Touchscreen without
Signal Type/interface Type LVDS (1 ch, 6/8bit) , 20 pins
Voltage Supply 3.3V (Typ./Max.)
Max. Ratings Storage Temp.: -30 ~ 70 °C
Operating Temp.: -30 ~70°C
Package 14 pcs/ carton



AUO 15 inch lcd screen panel with 1024x768 resolution and high brightness 1600nits special for outdoor.

Working temperature  -30 ~ 70°C  meet the  outdoor requirements.
