AUO

AUO G080UAN02.1

$50.00
  • Module No:G080UAN02.1
  • Brand:AUO
  • Size:8 inch
  • Resolution:1200*1920
  • Brightness:390 cd/m²
  • Viewing angle:89/89/89/89
  • Interface:MIPI (4 data lanes), 51 pins
  • CR:1000 : 1
  • Operating Temp.: 0 ~50 °C
  • Parameters
Manufacturer AUO
Model Name G080UAN02.1
Screen Size 8
Pixel Number 1200(RGB)×1920   [WUXGA]
Active Area(mm) 107.64 × 172.224 mm (H×V)
Outline(mm) 114.6 × 184.13 × 3.95 mm (H×V×D)
Bezel Area(mm)
Treatment Mirror surface
Luminance 390 cd/m² (Typ.)
Contrast Ratio 1000 : 1 (Typ.) (TM)
Viewing Angle 89/89/89/89(CR≥10)
Left/Right/UP/Down
Response 27(Typ.)(Tr+Td) ms
Work Mode AHVA, Normally black Transmissive
Color Depth 262K/16.2M , 60% NTSC
Backlight 20K hours,without LED Driver
Net Weight 80g (Typ.)
Touchscreen without
Signal Type/interface Type MIPI (8bit) , 51 pins
Voltage Supply 3.3V (Typ./Max.)
Max. Ratings Storage Temp.: -20 ~ 60 °C
Operating Temp.: 0 ~50 °C
Package

20 pcs/ carton

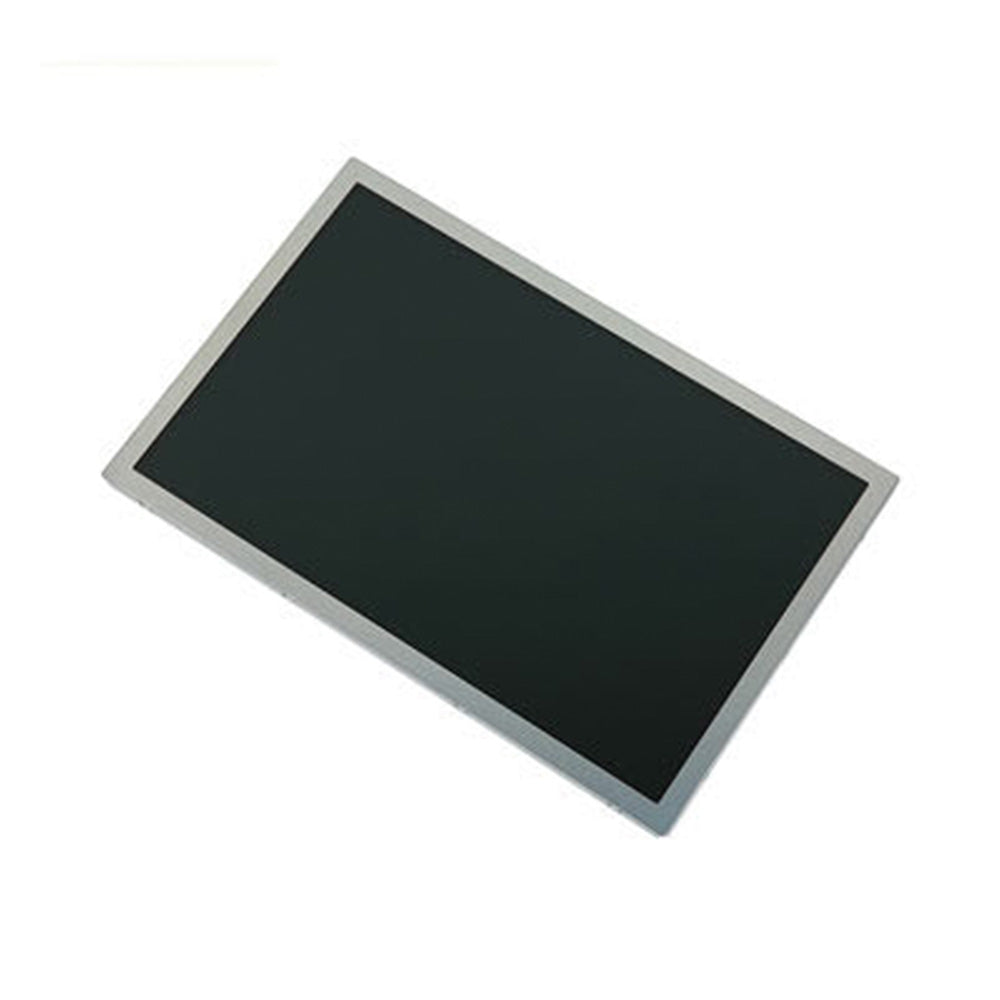

AUO 8 inch IPS lcd panel G080UAN02.1 with resolution 1200x1920 and 390 nit brightness

MIPI interface ,easy for connection. Thin structure and good view angel.
